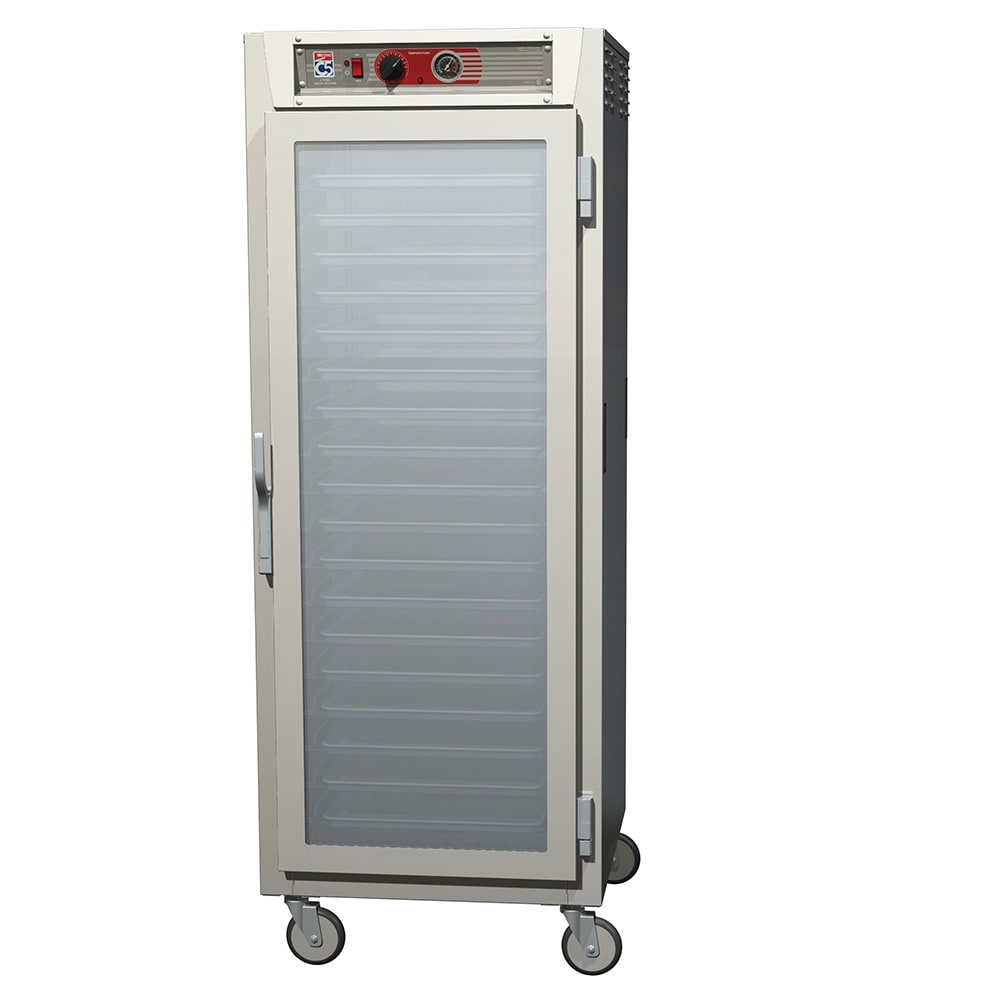

Metro C569L-SFC-LPFC Full Height Insulated Mobile Heated Cabinet w/ (35) Pan Capacity, 120v

Operators can hold prepared foods at temperatures between 70 and 200 degrees Fahrenheit in the Metro C569L-SFC-LPFC C5™ 6 series heated holding cabinet. The top-mounted temperature controls provide reliable temperature readouts—even when the unit is off or unplugged—and users can adjust the temperature dial quickly. Its ducted heated system heats the cabinet and recovers lost temperatures quickly to ensure products remain warm prior to serving. The cabinet's interior is also insulated with 2¹/₂-inch-thick, high-density fiberglass. To prevent foods from drying out, an integral water pan system introduces passive humidity to the cabinet's interior.

Lip-load slides line the Metro C569L-SFC-LPFC heated holding cabinet's interior and hold (35) 18-inch by 26-inch sheet pans. Because the slides are made of extruded aluminum, they withstand long-term use and resist corrosion. The unit's pass-thru layout streamlines pan loading and retrieval, while the two full-length, clear doors provide a direct view of inventory from both sides. Overall, this unit measures 29¹/₈ inches wide by 32⁵/₈ inches deep by 74³/₄ inches high and is mounted on four 5-inch casters, two of which can brake.

Product Details

• Full-height, pass-thru layout
• Pan capacity: (35) 18-in. x 26-in. sheet pans
• Ducted heating system heats and recovers cabinet's interior quickly
• Top-mount temperature controls with always-on analog thermometer
• Cabinet holding temperature range: 70-200 degrees F
• Integral water pan system boosts humidity
• Stainless steel cabinet interior with high-density fiberglass insulation
• Extruded aluminum lip-load slides mounted on stainless steel vertical uprights
• 2 double-pane, tempered glass doors are argon-filled with low-E coating
• (4) 5-in. casters (2 braking)
• Side and back clearances: 1¹/₂ in.
• Top clearance: 6 in.

Product Features

Dimensions & Utilities

• 29¹/₈ in. W x 32⁵/₈ in. D x 74³/₄ in. H
• 12 A, 1,440 W
• 120 V/60 Hz/1 ph, NEMA 5-15P plug

From The Manufacturer

C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated, double pane tempered glass doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, lip load (35) 18" x 26" pan capacity, 1-1/2" wire slides, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

1-year Against Manufacturing Defects

Metro C569L-SFC-LPFC Specifications

Documents

Spec Sheet

Warranty

Use & Care Guide

Product Info

Brochure

Certifications
