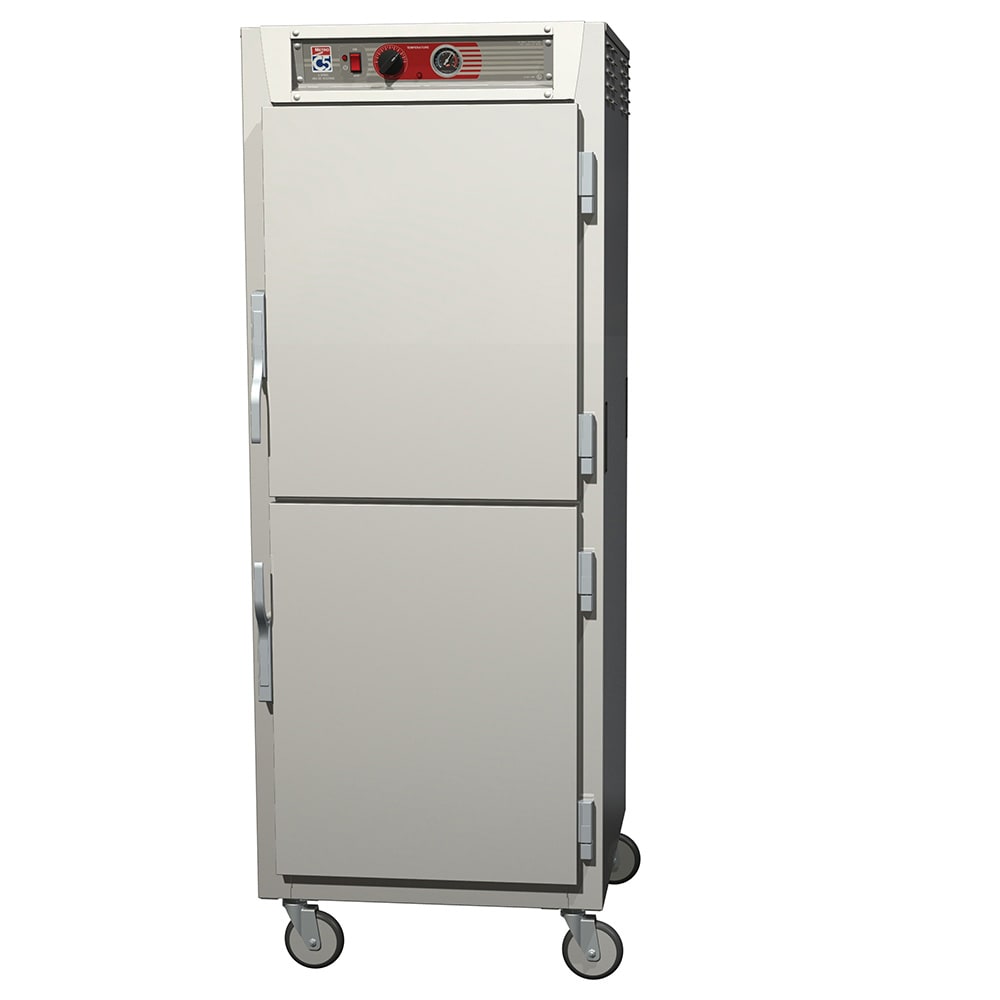

Metro C569L-SDS-UPDS Full Height Insulated Mobile Heated Cabinet w/ (17) Pan Capacity, 120v

The Metro C569L-SDS-UPDS C5™ 6 series heated holding cabinet ensures products are held at safe temperatures and remain hot prior to serving. Temperatures are displayed on the analog thermometer, even when the unit is off or unplugged, and to accommodate a wide range of product, temperatures can be adjusted between 70 and 200 degrees Fahrenheit with the top-mount temperature controls. The integral water pan system adds humidity to the cabinet to prevent foods from drying out or losing their intended texture. High-density, 2¹/₂-inch-thick fiberglass lines the unit's full perimeter to maintain temperatures when the doors are opened for short periods of time.

Inside the Metro C569L-SDS-UPDS holding cabinet, universal wire slides hold (17) 18-inch by 26-inch sheet pans or (32) 12-inch by 20-inch by 2¹/₂-inch steam table pans, and the slides can be adjusted in 1¹/₂-inch increments. Because it has a pass-thru configuration, operators can access pans from either side of the unit to streamline loading and retrieval. Its four solid Dutch doors are made of durable stainless steel and have a fully-insulated, double-panel construction. This full-size unit measures 29¹/₈ inches wide by 34⁵/₈ inches deep by 74³/₄ inches high and is mounted on four 5-inch casters, two of which have brakes.

Product Details

• Full-height, pass-thru configuration
• Pan capacity: (17) 18-in. x 26-in. sheet pans or (32) 12-in. x 20-in. x 2¹/₂-in. steam table pans
• Ducted heating system
• Top-mount temperature controls with an always-on analog thermometer
• Cabinet holding temperature range: 70-200 degrees F
• Integral water pan system
• Stainless steel cabinet with 2¹/₂-in.-thick, high-density fiberglass insulation
• Nickel-chrome universal wire slides adjustable in 1¹/₂-in. increments
• 4 solid stainless steel Dutch doors with insulated, double-panel construction
• (4) 5-in. casters (2 with brakes)
• Side and back clearances: 1¹/₂ in.
• Top clearance: 6 in.

Product Features

Dimensions & Utilities

• 29¹/₈ in. W x 34⁵/₈ in. D x 74³/₄ in. H
• 12 A, 1,440 W
• 120 V/60 Hz/1 ph, NEMA 5-15P plug

From The Manufacturer

C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated, solid Dutch doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, universal wire (17) 18" x 26" or (32) 12" x 20" x 2-1/2" pan capacity, 1-1/2" adjustable wire slides, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

1-year Against Manufacturing Defects

Metro C569L-SDS-UPDS Specifications

Documents

Spec Sheet

Warranty

Use & Care Guide

Product Info

Brochure

Certifications
