Metro C569L-SDS-LPDC Full Height Insulated Mobile Heated Cabinet w/ (34) Pan Capacity, 120v
$7,680.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Looking for ENERGY STAR® Heated Cabinet?
See our selection of Metro ENERGY STAR® Heated Cabinet below

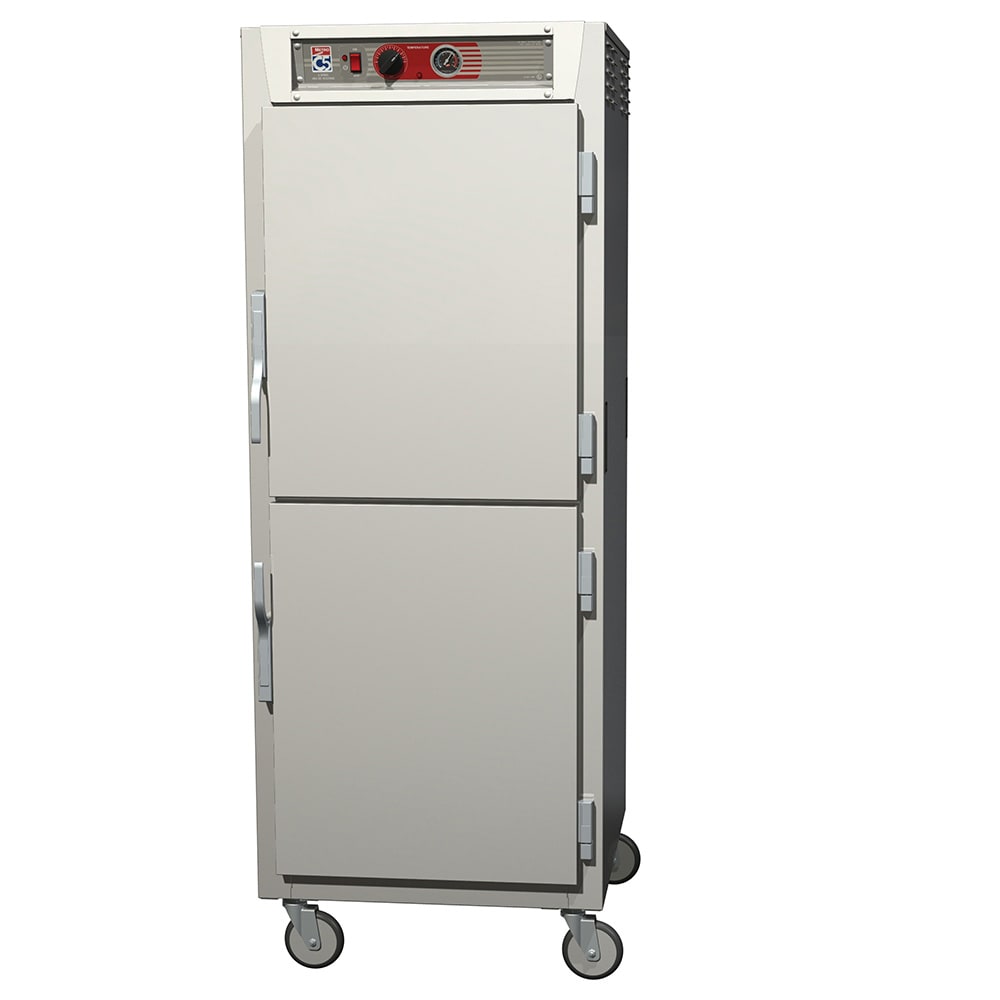

Metro C569L-SDS-LPDC Description
Constructed of stainless steel, the Metro C569L-SDS-LPDC C5™ heated holding cabinet can endure heavy use without rusting, scratching, or corroding. To preserve warm air, it's built with high-density fiberglass insulation and positioned on 5-inch casters to enable mobility. It operates with a ducted heating system to shorten recovery times, and it uses an integral water pan system to add moisture to the air. This unit's universal wire slides are adjustable in 11⁄2-inch increments, and the unit accommodates (34) 18-inch by 26-inch pans.
Using top-mounted controls, operators can adjust the temperature of the Metro C569L-SDS-LPDC mobile holding cabinet from 70 to 200 degrees, and they can monitor this temperature on a reliable analog thermometer. Because it has a pass-thru configuration, the interior is accessible through a set of Dutch doors on the unit's front and back. Overall, this full-height model measures 291/8 inches wide by 325/8 inches deep by 743/4 inches high.
Product Details
- Full-height, pass-thru Metro C5 6 series model
- Accommodates (34) 18-in. x 26-in. pans
- 1 set of solid Dutch doors and 1 set of double-pane glass Dutch doors
- Universal wire slides are adjustable in 11⁄2-in. increments
- Passive humidity added to air with integral water pan system
- Stainless steel interior and exterior
- Insulated with high-density fiberglass
- Temperature range: 70-200 degrees F
- Ducted heating system heats and recovers quickly
- Reliable analog thermometer and top-mounted controls
- Positioned on (4) 5-in. donut casters (2 braking)

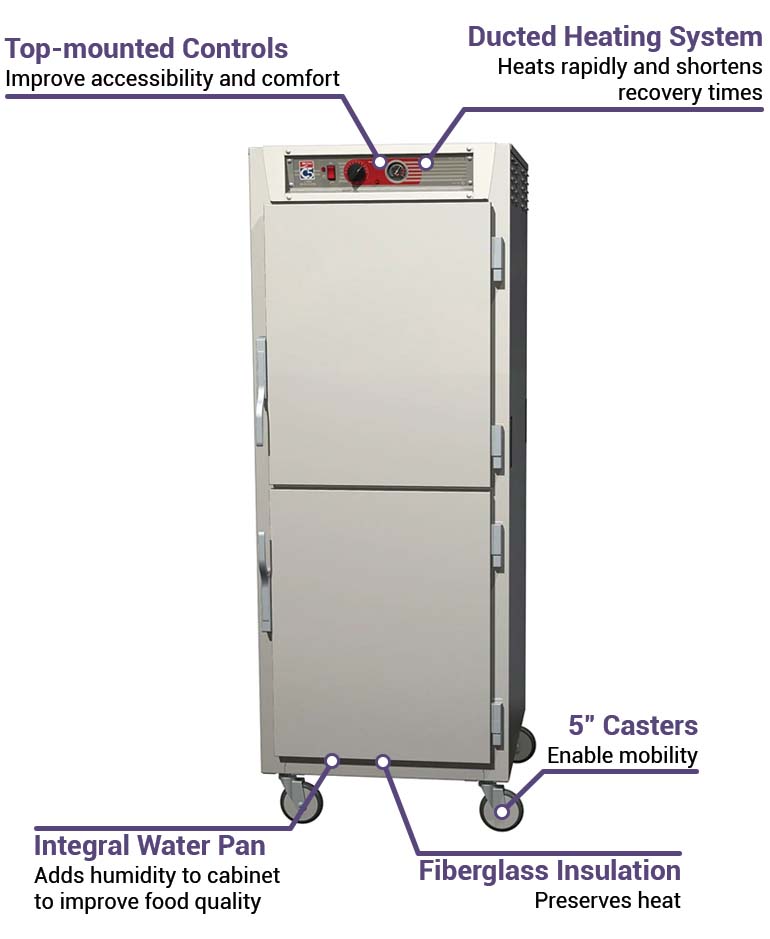

Product Features
Dimensions & Utilities
- 291/8 in. W x 325/8 in. D x 743/4 in. H
- 12 A, 1,440 W
- 120 V/60 Hz/1 ph, 71⁄2-ft. cord with NEMA 5-20P plug
*Free shipping on Metro C569L-SDS-LPDC within the 48 contiguous states.
From The Manufacturer
C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated (1) solid Dutch & (1) double pane tempered glass Dutch doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, lip load (34) 18" x 26" pan capacity, 1-1/2" wire slides, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF
*Image may not depict product color, inclusions or accessories.
Metro C569L-SDS-LPDC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 34.63 |
| Door Design | Dutch |
| Door Type | Solid/Glass |
| Heat | Electric |
| Height (in) | 74.75 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 1.4 |
| Load Type | Pass Thru |
| NEMA | 5-15P |
| No. of Doors | 4 |
| Pan Capacity | 34 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 6 Series |
| Size | Full Height |
| Slide Spacing (in) | 3 |
| Slide Type | Lip Load |
| Special Features | All Stainless Exterior |
| Special Features | Field Reversible Door |
| Special Features | Passive Humidity |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 29.13 |
| Weight | 380.00 |
