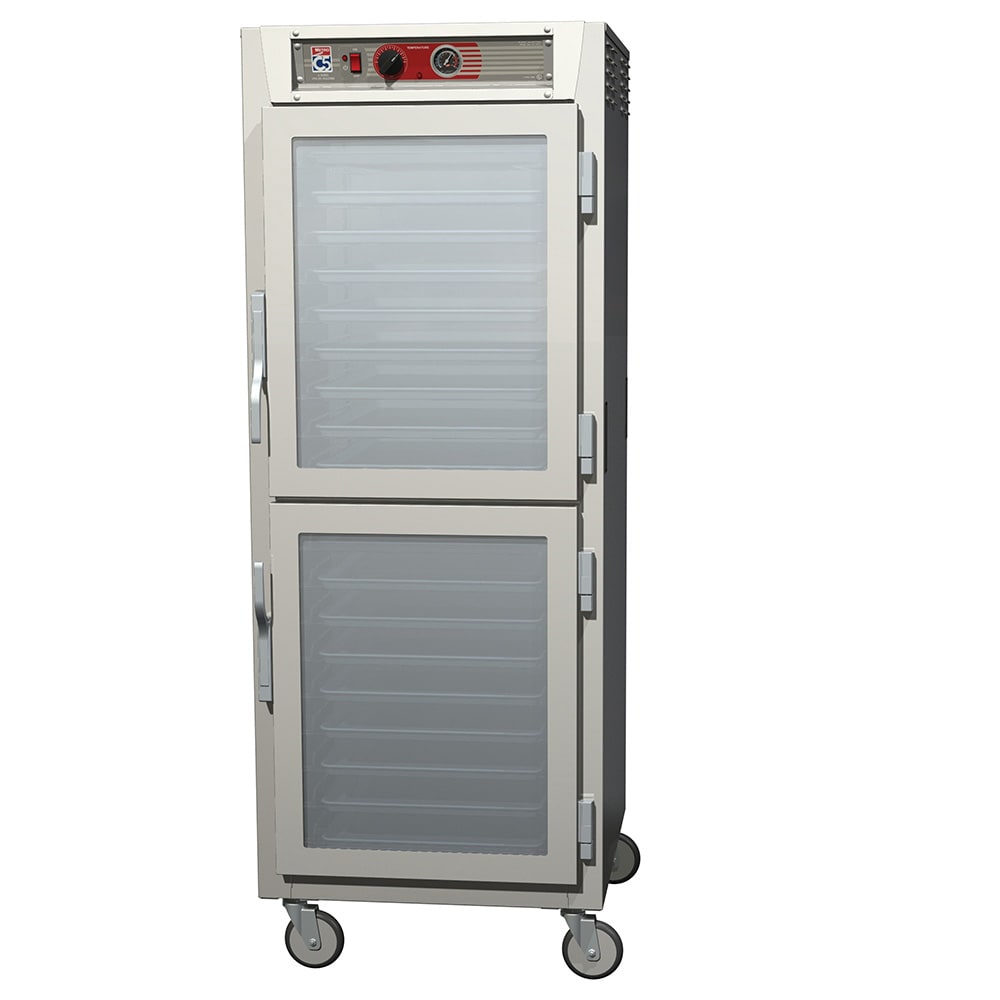

Metro C569L-SDC-UPDS Full Height Insulated Mobile Heated Cabinet w/ (17) Pan Capacity, 120v
$7,545.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Similar Products in Stock Now
Alto-Shaam 1200-UP-QS
Halo Heat® Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v
Need an Energy Star® Heated Cabinet?
See our selection of Metro Energy Star® certified Heated Cabinet products below
Metro C569L-SDC-UPDS Description
To preserve air and improve food quality, the Metro C569L-SDC-UPDS C5™ heated holding cabinet is built with high-density fiberglass insulation. It uses an integral water pan system to supply the air with moisture through passive humidity, while its ducted heating system shortens recovery times to optimize overall performance. Using a top-mounted control system that's comfortable to access, operators can adjust the cabinet's temperature from 70 to 200 degrees Fahrenheit, and to support mobile applications, this unit is furnished with 5-inch casters.
Suitable for environments where it will sustain high-volume use, the Metro C569L-SDC-UPDS mobile holding cabinet's exterior and interior are stainless steel—a rust- and corrosion-resistant metal that's easy to clean. It's equipped with a reliable analog thermometer to enable temperature monitoring at a glance, and it has a pass-thru configuration for convenience in fast-paced dining halls and cafeterias. This full-height unit measures 291/8 inches wide by 345/8 inches deep by 743/4 inches high overall.
Product Details
- Full-height Metro C5 6 series holding cabinet
- Pass-thru design
- Capacity: (17) 18-in. x 26-in. pans or (32) 12-in. x 20-in. pans
- 1 set of solid Dutch doors and 1 set of double-pane glass Dutch doors
- Universal wire slides are adjustable in 11⁄2-in. increments
- Ducted heating system
- Accessible top-mounted controls
- Reliable analog thermometer
- Resilient stainless steel construction
- High-density fiberglass insulation retains heat
- Integral water pan system adds moisture to food through passive humidity
- Temperature range: 70-200 degrees F
- Situated on (4) 5-in. donut casters (2 braking)
Product Features
Dimensions & Utilities
- 291/8 in. W x 345/8 in. D x 743/4 in. H
- 12 A, 1,440 W
- 120 V/60 Hz/1 ph, 71⁄2-ft. cord with NEMA 5-20P plug
From The Manufacturer
C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated (1) Dutch double pane tempered glass & (1) Dutch solid doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, universal wire (17) 18" x 26" or (32) 12" x 20" x 2-1/2" pan capacity, 1-1/2" adjustable wire slides, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF
*Image may not depict product color, inclusions or accessories.
Cord Attached
This product includes a cord and plug
Metro C569L-SDC-UPDS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Construction | Stainless Steel |
| Controls | Dial |
| Depth (in) | 34.63 |
| Door Design | Dutch |
| Door Type | Solid/Glass |
| Heat | Electric |
| Height (in) | 74.75 |
| Hertz | 60 |
| kW | 1.4 |
| Pan Capacity | 17 |
| Sections | 1 |
| Size | Full Height |
| Slide Type | Universal |
| Special Features | All Stainless Exterior |
| Special Features | Field Reversible Door |
| Special Features | Passive Humidity |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 29.13 |
| Series | C5™ 6 Series |
| Control Location | Top |
| Load Type | Pass Thru |
| No. of Doors | 4 |
| Slide Spacing (in) | 3 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| NEMA | 5-15P |
| Hinge Configuration | Right |
| Weight | 370.00 |
