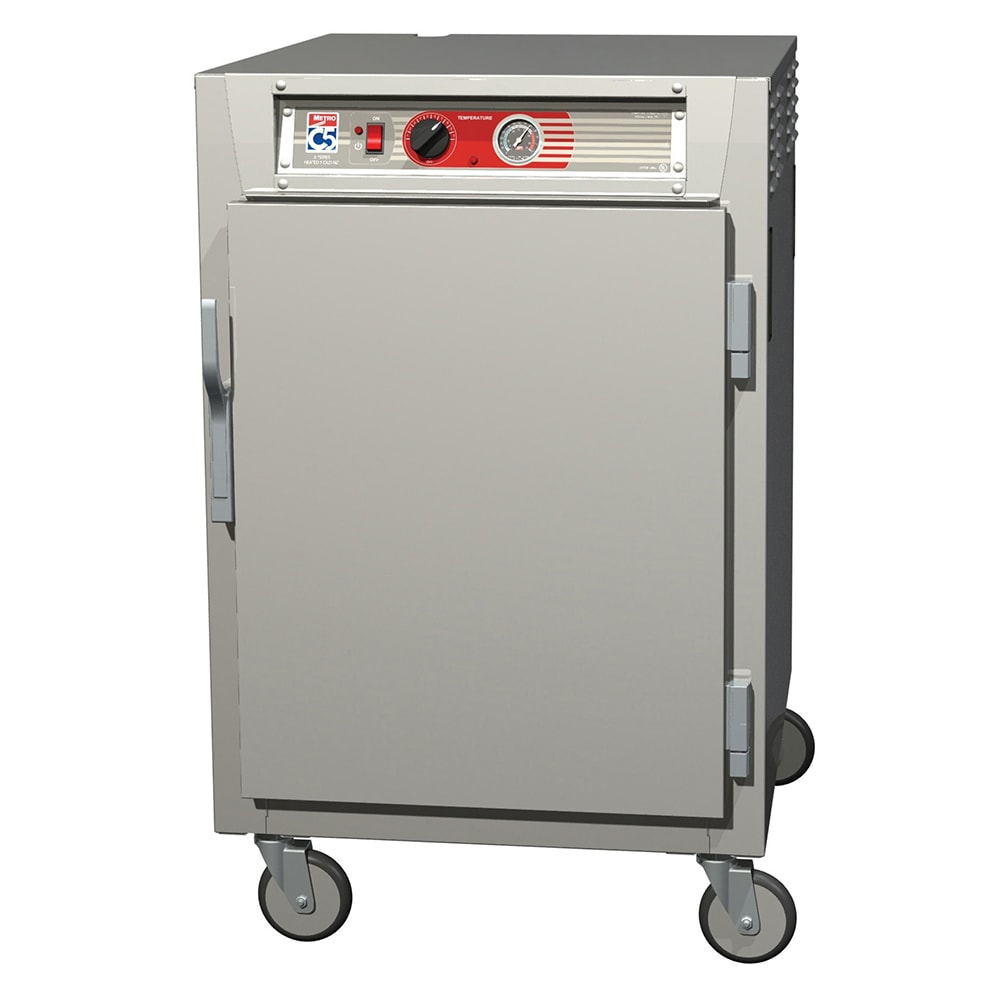

Metro C565-SFS-UPFC 1/2 Height Insulated Mobile Heated Cabinet w/ (8) Pan Capacity, 120v

This Metro C565-SFS-UPFC C5™ 6 series heated holding cabinet has a pass-thru arrangement that lets users load and retrieve pans from either side of the unit. On one side, a solid door helps retain heat, and the other side features a tempered glass door that grants a clear view of product for quick inventory checks. Its half-height design measures 29¹/₈ inches wide by 34⁵/₈ inches deep by 44³/₄ inches high and is mounted on 5-inch casters that facilitate maneuvering and stability. To extend its service life, this unit's cabinet is made of rigid, corrosion-resistant stainless steel.

The Metro C565-SFS-UPFC holding cabinet includes universal wire slides that can be adjusted on 1¹/₂-inch increments. Overall, it holds eight 18-inch by 26-inch pans or (16) 12-inch by 20-inch by 2¹/₂-inch pans. To ensure foods are warm prior to serving, this unit uses a thermostatically controlled, ducted heating system and 2¹/₂-inch-thick high-density fiberglass insulation. Users can adjust temperatures between 70 and 200 degrees Fahrenheit on the top-mounted control system, which includes an analog thermometer that always provides a temperature readout, even when the unit is off. To retain the texture of foods, users also can incorporate the water pan system for passive humidity.

Product Details

• Part of the Metro C5 6 series
• Half-height cabinet
• Pass-thru layout
• Capacity: (8) 18-in. x 26-in. pans or (16) 12-in. x 20-in. x 2¹/₂-in. pans
• Universal wire slides adjust in 1¹/₂-in. increments
• 1 solid and 1 tempered glass door
• 5-in. casters (2 with brakes)
• Stainless steel construction
• Thermostatically controlled, ducted heating system
• 2¹/₂-in. fiberglass insulation
• Water pan system for passive humidity
• Top-mounted temperature controls and analog thermometer
• Thermostat adjustable from 70-200 degrees F

Dimensions & Utilities

• 29¹/₈ in. W x 34⁵/₈ in. D x 44³/₄ in. H
• 16 A, 2 kW
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with a NEMA 5-20P plug

Product Features

From The Manufacturer

C5™ 6 Series Heated Holding Cabinet, mobile, half height, pass thru, insulated (1) solid & (1) double pan tempered glass doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, universal wire slides (8) 18" x 26" or (16) 12" x 20" x 2-1/2" pan capacity, 3" OC (adjustable on 1-1/2" increments), 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

1-year Against Manufacturing Defects
