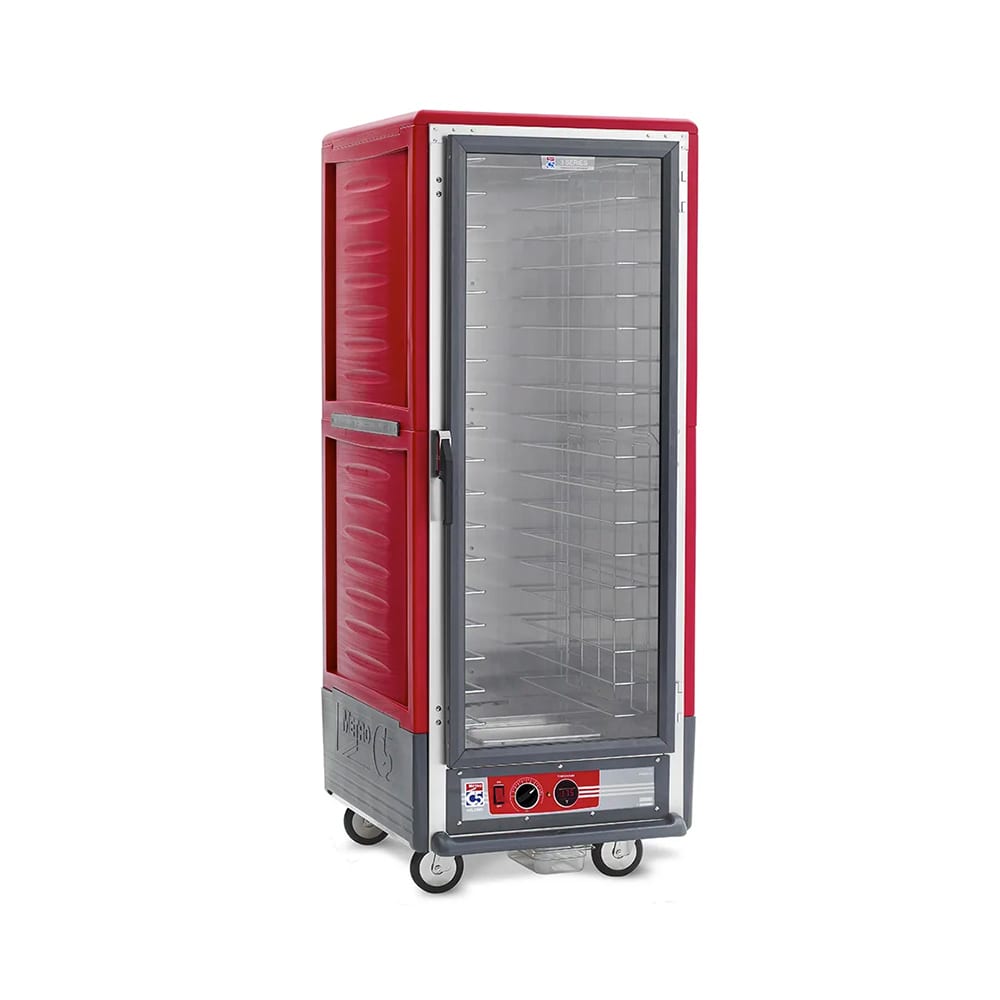

Metro C539-HFC-L Full Height Insulated Mobile Heated Cabinet w/ (35) Pan Capacity, 120v

The Metro C539-HFC-L 3 series heated cabinet is made of aluminum and is insulted with Insulation Armour™, a high-density polyethylene. Its heavy-duty polymer construction resists stains, dents, and impacts, and its red exterior remains cool to the touch. With a thermostatically controlled forced-convection system, this unit can heat up and recover heat quickly. Its four 5-inch, nickel-plated casters provide mobility, while two brakes lock the unit in place. The clear, double-hinged doors have an extruded aluminum powder-coated frame with a polycarbonate window, are field reversible, and can open 180 degrees. High-temperature gaskets keep heat inside the unit.

The Metro C539-HFC-L heated cabinet can hold (35) 18-inch by 26-inch pans spaced 1¹/₂ inches apart. To support mobile applications, vertical handles create a secure grip on the Insulation Armour. The cabinet features a control module in the bottom that can be removed without tools. A digital thermometer and a power-on light monitor the cooking process. To prevent injuries, the recessed control dials do not stick out into the aisle. The control module has a water pan at the bottom of the cabinet to keep foods from drying out while cooking.

Product Details

• Part of the 3 series
• Aluminum cabinet is insulated with high-density polyethylene Insulation Armour
• Heavy-duty polymer construction resists stains, dents, and impacts
• Heats up and recovers lost heat quickly with a thermostatically controlled forced-convection system
• (4) 5-in. nickel-plated casters; 2 with brakes
• Clear doors with an extruded aluminum powder-coated frame and a polycarbonate window
• Double-hinged doors are field reversible and open 180 degrees
• High-temperature door gaskets keep heat inside
• Hand holds are molded into the Insulation Armour on all four corners to create vertical handles for mobile applications
• Durable magnetic pull latch with lever-action release
• Red exterior remains cool to the touch
• 1¹/₂-in. x ¹/₂-in. x ⁵/₈-in. extruded aluminum channel slides are spaced 1¹/₂ in. apart
• Can hold (35) 18-in. x 26-in. pans
• Temperature range: 80-200 degrees F
• Should not make contact with surfaces that exceed 200 degrees F
• Must be 18 in. away from any cooking equipment
• 1¹⁄₂-in. minimum clearance from enclosures on sides, back, and top

Control Module

• Hot holding at higher temperatures without moisture control
• Module can be removed without tools
• Digital thermometer
• Recessed control dials
• Master on/off switch
• Power-on light
• Water pan
• Ball bearing blower forced-air system

Dimensoins & Utilities

• 27⁵⁄₈ in. W x 31¹⁄₂ in. D x 71 in. H
• 16 A, 2000 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with NEMA 5-20P plug

*Free shipping on Metro C539-HFC-L within the 48 contiguous states.

From The Manufacturer

C5™ 3 Series Heated Holding Cabinet, with Red Insulation Armour™, mobile, full height, insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 200°F, lip load slides on 1-1/2" centers (35) 18" x 26" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

*Note: Shown with Fixed Wire Shelves (Not Included)

1-year Against Manufacturing Defects

Metro C539-HFC-L Specifications

Documents

Spec Sheet

Warranty

Use & Care Guide

Manual

Product Info

Brochure
