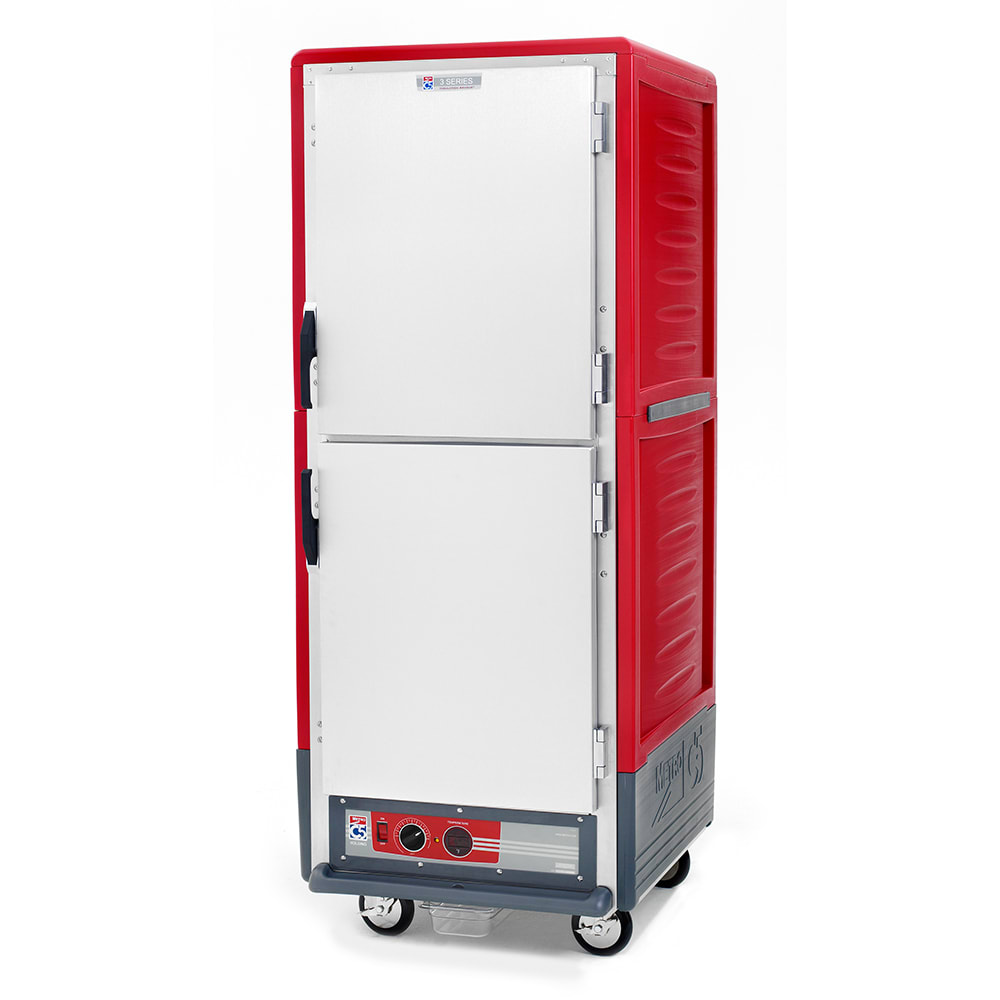

Metro C539-HDS-L Full Height Insulated Mobile Heated Cabinet w/ (34) Pan Capacity, 120v

Image may not depict product color, inclusions or accessories.

KaTom #: 001-C539HDSL • MPN: C539-HDS-L
Ships Free | Special Order Item

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Retail Price: $2,355.20

Image may not depict product color, inclusions or accessories.

Metro C539-HDS-L Description


The Metro C539-HDS-L heated holding cabinet keeps food hot at safe temperatures. The patented technology, Insulation Armour™, retains heat inside the cabinet while keeping the exterior cool to prevent burns. Its durable polymer construction resists dents and stains and has molded-in hand holds that act as handles when you need to move the cabinet. The forced convection system is thermostatically controlled and heats up and recovers heat quickly. The control module on this cabinet is easily removable for cleaning the cabinet interior.

The Dutch-style doors are solid with aluminum construction and 1-inch fiberglass insulation. The field-reversible hinges swing out 180 degrees for easy loading and unloading of the cabinet. Santoprene gaskets are mounted on the doors to keep heat inside the cabinet. Lip load slides hold the pans inside the cabinet. The slides are made from extruded aluminum and have 112-inch fixed spacing. The lip load pan capacity is 34 standard size pans. The Metro C539-HDS-L heated holding cabinet keeps food hot at higher temperatures without moisture control.

Product Details

  • Full-size, aluminum cabinet holds food at food-safe temperature
  • Water pan produces passive moisture to help maintain food's texture; no humidity control is provide
  • Heated holding keeps food warm for hours
  • Patented insulation technology Insulation Armour™ keeps heat inside the cabinet while the exterior stays cool
  • Insulation is made from durable polymer that is stain and dent resistant with molded-in hand holds to make the cabinet easy to transport from place to place
  • Insulation Armour™ comes in red for a pop of color
  • Thermostatically controlled forced convection system heats up and recovers heat quickly
  • 4 swivel, nickel plated casters; 2 come with brakes
  • Polymer drip trough with a catch pan to prevent messes
  • Requires 18-in. clearance from cooking equipment
  • Do not allow the cabinet to come in to contact with surfaces that surpass 200 degrees F
  • 112
  • 120 V/60 Hz/1 ph, 16.7 A, 2000 W, 712 ft. cord with a NEMA 5-20P plug
  • Overall Dimensions: 2758 in. W x 3112 in. D x 71 in. H
  • cULus listed; and NSF certified

Removable Control Panel

  • Control panel module is easily removable for cleaning the interior
  • Control dials are recessed to prevent damage
  • Digital thermometer is easy to read
  • 80-200 degrees F temperature range
  • Master on/off switch makes controlling the cabinet simple
  • Power indicator lights tell you if the cabinet is on or off
  • Ball bearing blower forced air system

Lip Load Slides

  • Extruded aluminum channel slides
  • Lip load slides have 112-in. fixed spacing
  • 34 lip load 18 in. x 26 in. pan capacity

Dutch-Style Doors

  • Solid, Dutch-style aluminum door
  • Doors are full insulation with 1-in.-thick fiberglass
  • Double-hinged, field-reversible hinges have 180 degree swing
  • Santoprene, high temperature gaskets are mounted on the door to keep heat inside the cabinet
  • Magnetic pull latch with lever-action release

C5™ 3 Series Heated Holding Cabinet, with Red Insulation Armour™, mobile, full height, insulated, Dutch insulated aluminum doors, removable bottom mount control module, thermostat to 200°F, lip load slides on 1-1/2" centers (34) 18" x 26" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Metro C539-HDS-L Specifications

PDF Spec Sheet
Manufacturer Metro
Size Full Height
Slide Type Lip Load
Type Insulated
Warranty 1-year Parts & Labor
No. of Doors 2
Door Type Lexan
Load Type Reach In
Pan Capacity 34 Full Size
Construction Aluminum
Series C5™ 3 Series
Height (in) 71
Width (in) 27.63
Depth (in) 31.5
Slide Spacing 1.5"
Control Location Bottom
Controls Dial
Door Design Full
Application Heat & Humidity
Specialty Options Field Reversible Doors
Phase 1
Voltage 120
Hertz 60
Product Type Food Warming Equipment
Product Heated Cabinet
Weight 278.00
Metro C539-HDS-L Certifications
  • UL
  • NSF
