Metro C539-HDS-4 Full Height Mobile Heated Cabinet w/ (17) Pan Capacity, 120v

KaTom #: 001-C539HDS4 • MPN: C539-HDS-4
free-shipping
special-order-item close Special Order Item Special order items may require additional time to fulfill and cannot be returned or canceled. Your special order item will be shipped once your item is ready and your payment has been processed. Please call us at 800-541-8683 for more information.

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Retail Price: $5,179.00
$1,999.83 / Each

Metro C539-HDS-4 Description

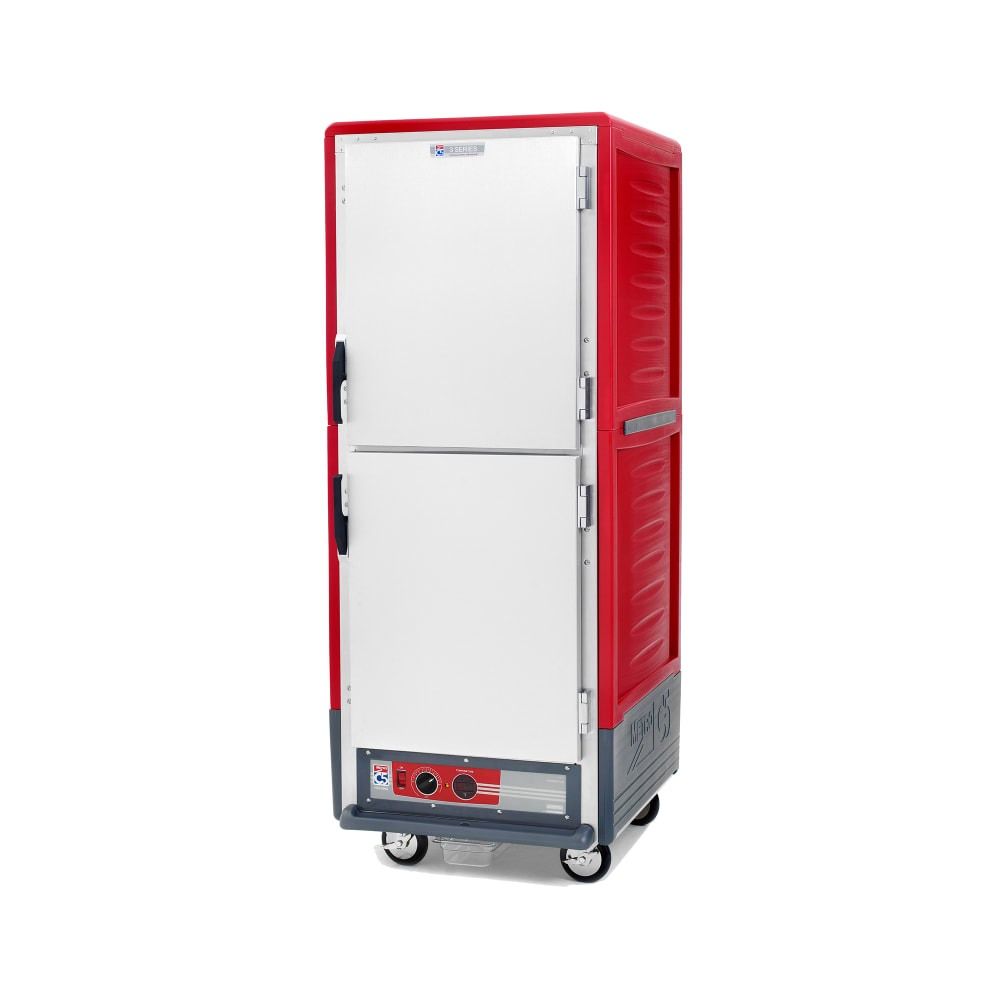

If you have cooked foods that need to be held at safe temperatures and transported until it is time to be served, then the C539-HDS-4 Metro full height insulated heated holding cabinet may meet your needs. This heated holding cabinet is ideal for bakeries, delis, and specialty shops. The patented technology known as Insulated Armour™ retains heat, saves energy, and offers a cool-to-the-touch exterior, all of which promotes energy savings and safety. The durable polymer construction of this insulation is dent-, impact-, and stain-resistant. The molded-in hand holds create vertical handles so moving the cabinet is simple.

This heated hold cabinet provides fast heat-up and recovery by utilizing a thermostatically controlled, forced-air heating system. The doors are solid, insulated aluminum and provide lasting reliability and durability, along with protecting your cabinet from losing precious heat. The 14-of-an-inch-diameter fixed wire slides are designed to hold full-size food pans. Constructed of high-quality components, the C539-HDS-4 Metro full height insulated heated holding cabinet will hold ready-to-serve foods at the optimal texture.

Product Details

  • Designed to hold foods at ready-to-serve temperatures; ambient humidity pan provides moisture to maintain food's texture
  • Full-sized cabinet is made from aluminum for durability and finished with red polymer
  • Patented technology Insulation Armour™ contains heat in the cabinet while keeping the exterior cool to prevent injuries
  • Insulation is made from durable polymer that resists denting and staining
  • Molded-in hand holds in the insulation create vertical handles to make moving the cabinet easy
  • 4 swivel, nickel-plated casters, 2 with brakes
  • Forced convection system is controlled with a thermostat and provides quick heat up and temperature recovery
  • Drip trough with a catch pan
  • Ball bearing blower forced air system
  • 120 V/60 Hz/1 ph, 2000 W, 16.7 A, 712 ft. cord with a NEMA 5-20P plug

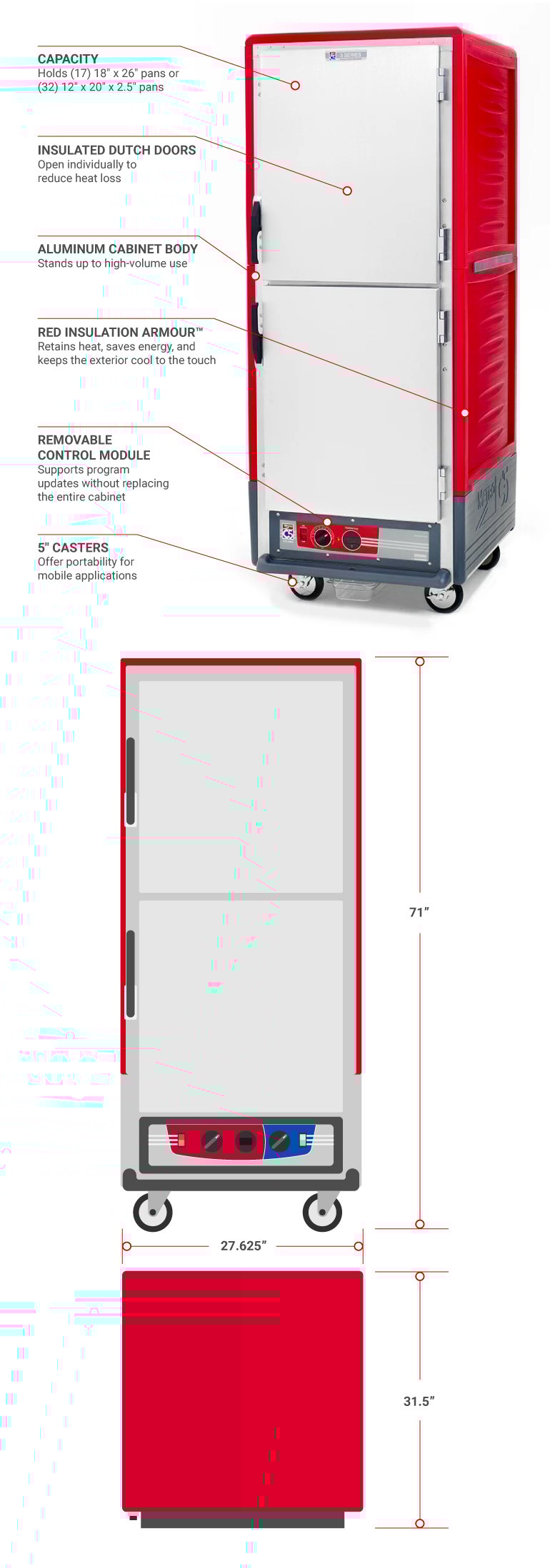

  • Overall Dimensions: 2758 in. W x 3112 in. D x 71 in. H
  • cULus listed; NSF certified

Removable Control Panel

  • Control panel module is easily removable to make cleaning the cabinet simple
  • Control dials are recessed to prevent damage
  • Operator can easily control with the master on/off switch
  • Power indicator lights lets the operator know if the cabinet is on or off
  • Digital thermometer is easy to read
  • 80-200 degrees F temperature range

Dutch-Style Doors

  • Dutch-style doors are solid
  • Solid doors are insulated with 1-in. fiberglass
  • Double-hinged, field-reversible hinges with 180 degree swing
  • Santoprene, high temperature gaskets are mounted on the door to keep heat inside the cabinet
  • Lever-action release magnetic pull latch on the door

Fixed Wire Slides

  • Fixed wire slides are made from nickel chrome wire
  • 14 in. dia. slides
  • Slides are adjustable in 112 in. increments
  • Slides hold 17 standard size pans measuring 18 in. x 26 in.
  • Slides hold 32 pans measuring 12 in. x 20 in. x 212 in.

Minimum Clearances

  • Requires 18 in. clearance from cooking equipment
  • 112 in. clearances on the top, back, and sides
  • Keep away from surfaces that exceed 200 degrees F

C5™ 3 Series Heated Holding Cabinet, with Red Insulation Armour™, mobile, full height, insulated, Dutch insulated aluminum doors, removable bottom mount control module, thermostat to 200°F, fixed wire slides on 3" centers (17) 18" x 26" or (32) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Metro C539-HDS-4 Specifications

PDF Spec Sheet
Manufacturer Metro
Size Full Height
Slide Type Fixed Wire
Type Insulated
Warranty 1-year Parts & Labor
No. of Doors 2
Door Type Lexan
Load Type Reach In
Pan Capacity 17 Full Size
Construction Aluminum
Voltage 120/60/1
Series C5™ 3 Series
Height (in) 71
Width (in) 27.63
Depth (in) 31.5
Slide Spacing 3"
Control Location Bottom
Controls Dial
Door Design Full
Application Heat & Humidity
Specialty Options Field Reversible Doors
Weight 270.00
Metro C539-HDS-4 Certifications
  • UL
  • NSF
