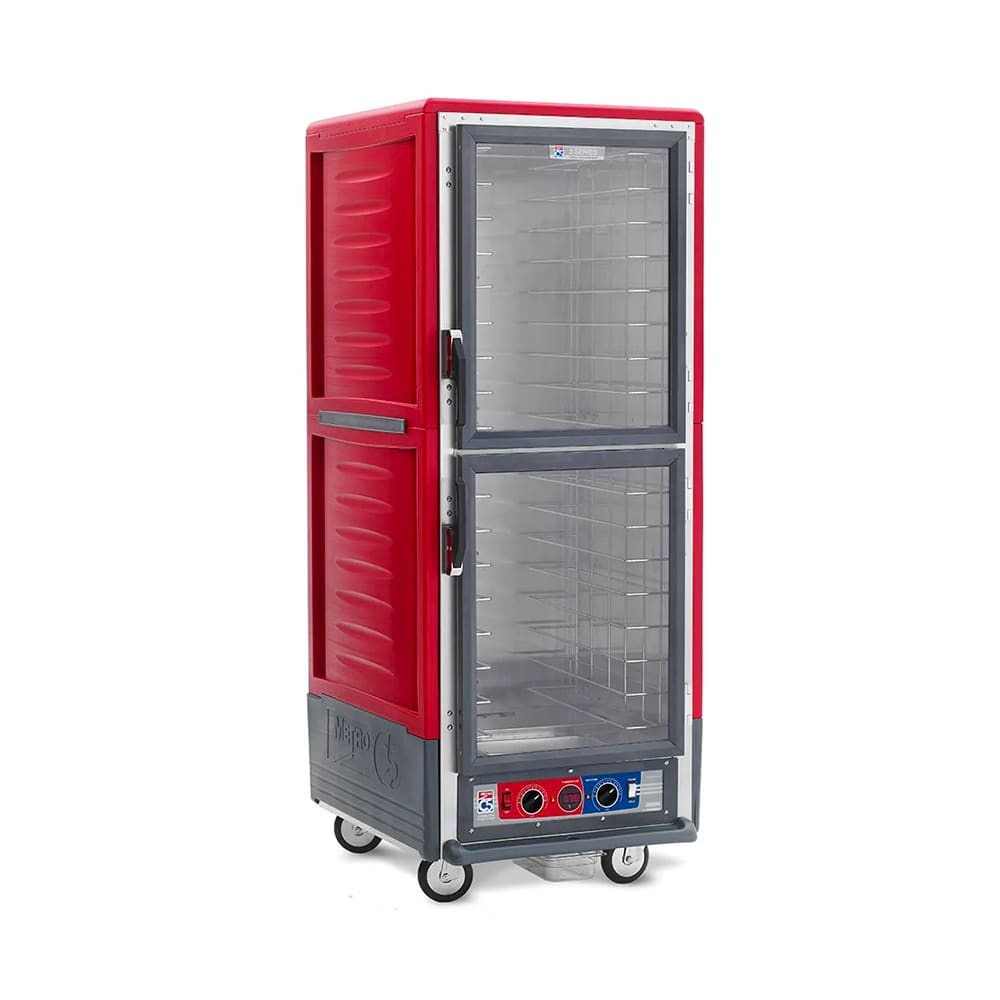

Metro C539-CDC-L Full Height Insulated Mobile Heated Cabinet w/ (35) Pan Capacity, 120v

Image may not depict product color, inclusions or accessories.

KaTom #: 001-C539CDCL • MPN: C539-CDC-L
Ships Free | Special Order Item

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Retail Price: $2,753.60

Image may not depict product color, inclusions or accessories.

Metro C539-CDC-L Description


The Metro C539-CDC-L full-height heated cabinet has lip load slides that accommodate (34) 18-inch-by-26-inch pans. It heats up quickly and has fast recovery times with its thermostatically controlled, forced convection system. The combination control module has settings for heated holding and proofing. The proofing mode operates with moisture control at low temperatures. The temperature ranges from 80 to 200 degrees Fahrenheit with 95 percent relative humidity at 95 degrees Fahrenheit.

The controls are simple to use with an on/off switch, power indicator lights, and dial knobs. The temperature is easy to keep up with since the panel includes an easy-to-read thermometer. To simplify cleaning, the control panel is removable without tools; this also enables the operator to replace the controls when there are updates. This full-height cabinet has Dutch doors with polycarbonate windows, creating visibility for product monitoring.

This Metro C539-CDC-L heated holding and proofing cabinet is strong for high-volume applications with its Insulation Armour™ design. It is made with high-density insulation that keeps heat in the unit, saves energy, and does not allow the exterior to get too hot. It is made of polymer, resisting damage from impacts, dents, and stains. It is mobile with four 5-inch casters, and molded-in hand holds help the user steer the unit. Two of the casters have brakes, so the cabinet can be locked in place.

Product Details

  • Part of the C5™ 3 series
  • Holds (34) 18-in. x 26-in. pans on 1.5-in. x 0.5-in. x 0.63-in. lip load slides
  • Forced convection system is thermostatically controlled and heats up quickly with fast recovery
  • Temperature range: 80-200 degrees F
  • Relative humidity at 95 degrees F: 95 percent
  • Combination control module for hot holding and proofing
  • Proofing has moisture control at low temperatures
  • Control panel includes an on/off switch, power indicator lights, and dial operating knobs
  • Digital thermometer is easy to read
  • Panel is removable without tools for convenient cleanup and updates
  • Polycarbonate windows in the Dutch doors enhance product visibility
  • Double-hinged doors are durable and field reversible
  • Red material stands out in the kitchen
  • 2 of the (4) 5-in. casters have brakes to keep the unit in place
  • Requires a 1.5-in. side, back, and top clearance
  • Requires an 18-in. clearance from cooking equipment
  • Avoid contact with surfaces that reach 200 degrees F
  • 2000 W, 16.7 A
  • 120 V/60 Hz/1 ph, NEMA 5-20P plug

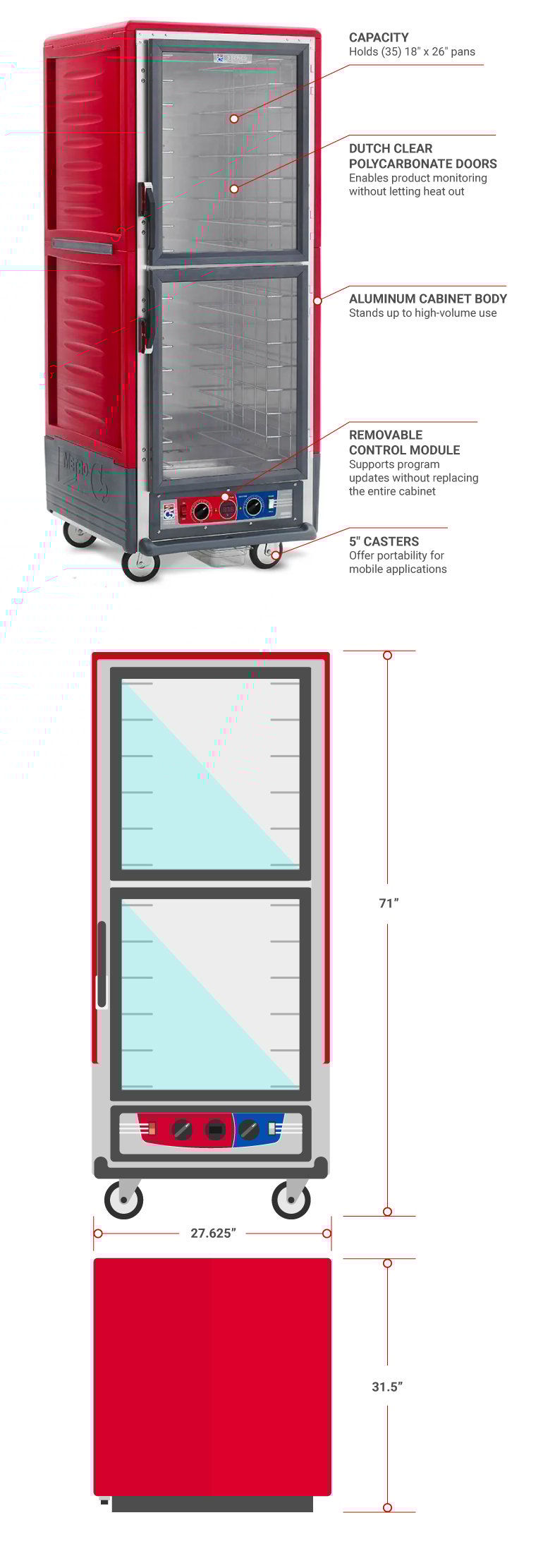

  • Overall dimensions: 27.625 in. W x 31.5 in. D x 71 in. H
  • cULus listed; NSF certified

Durable Construction with Insulation Armour Design

  • High-density polyethylene is made to retain heat, save energy, and create a cool-to-the-touch exterior
  • Polymer construction resists stains, dents, and damage from impacts
  • Molded-in hand holds in the sides create vertical handles for mobility

If you want to learn more about heated holding cabinets, check out our heated holding cabinets buyers' guide.

C5™ 3 Series Heated Holding & Proofing Cabinet, with Red Insulation Armour™, mobile, full height, insulated, Dutch clear polycarbonate doors, removable bottom mount control module, thermostat to 200°F, lip load slides on 1-1/2" centers (35) 18" x 26" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Metro C539-CDC-L Specifications

PDF Spec Sheet
Manufacturer Metro
Size Full Height
Slide Type Lip Load
Type Insulated
Warranty 1-year Parts & Labor
No. of Doors 2
Door Type Lexan
Load Type Reach In
Pan Capacity 35
Construction Aluminum
Series C5™ 3 Series
Height (in) 71
Width (in) 27.63
Depth (in) 31.5
Slide Spacing (in) 1.5
Control Location Bottom
Controls Dial
Door Design Full
Application Heat & Humidity
Special Features Field Reversible Doors
Phase 1
Voltage 120
Hertz 60
Product Type Food Warming Equipment
Product Heated Cabinet
Weight 259.00
Metro C539-CDC-L Certifications
  • UL
  • NSF
