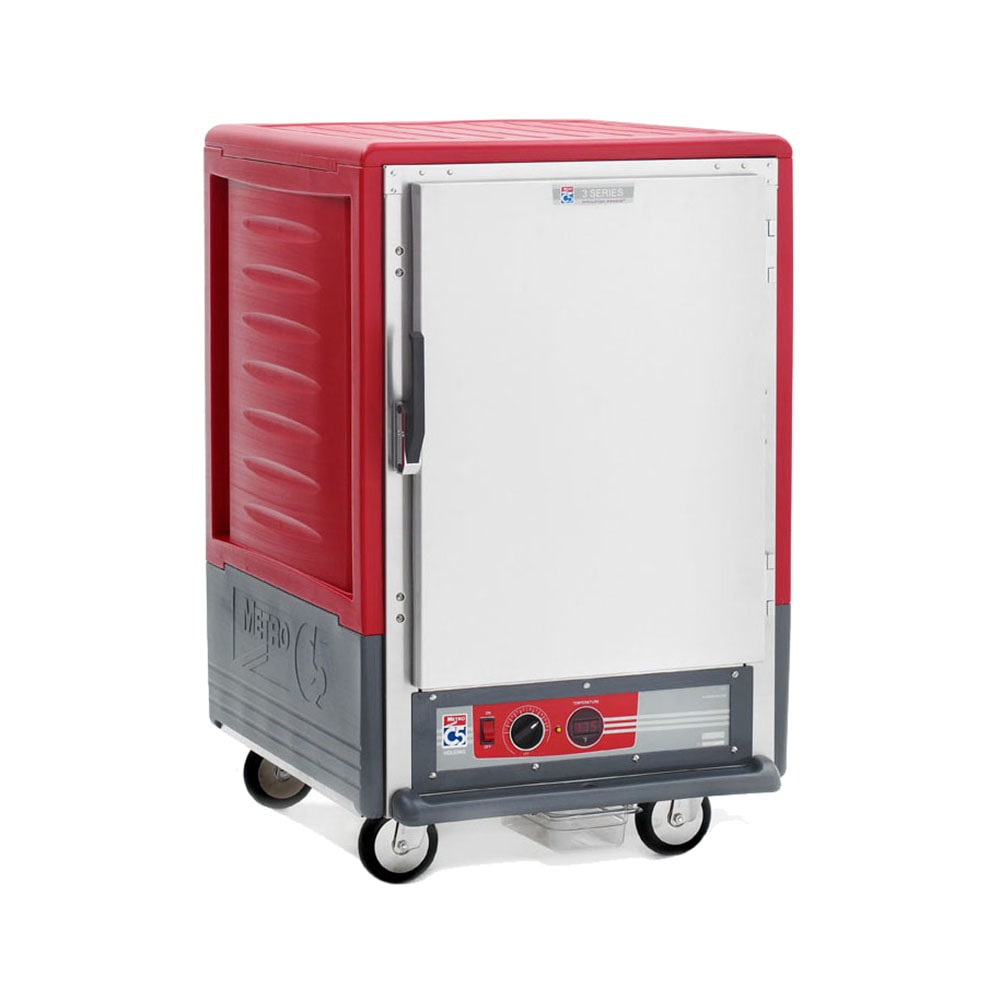

Metro C535-HFS-U Description
The Metro C535-HFS-U C5™ 3 half-height insulated mobile heated cabinet has the capacity for eight pans and is protected with red Insulation Armour™ for enhanced durability. To facilitate cleaning and service, the bottom-mount control module is removable without tools. This cabinet's temperature ranges from 80 to 200 degrees Fahrenheit. Its universal wires slides are on 3-inch centers, and they can be adjusted in 11⁄2-inch increments.
Designed with the capacity for eight 18-inch by 26-inch pans or (16) 12-inch by 20-inch by 21⁄2-inch pans, the Metro C535-HFS-U heated holding cabinet is optimal for product holding and transportation. This piece of equipment is designed with four 5-inch casters, two of which have brakes for stationary applications. It's made to retain heat, save energy, and keep the exterior cool to the touch.
Product Details
- Part of the C5 3 series
- Holds (8) 18-in. x 26-in. or (16) 12-in. x 20-in. x 21⁄2-in. pans
- Red Insulation Armour
- 3 control modules for combination proof and hold, moisture, and holding
- Straightforward digital thermometer
- Recessed control dials
- Master on/off switch
- Power-indicator lights alert user to machine status
- Modules can be removed without tools
- Forced, thermostatically controlled convection system
- Half-height unit
- Solid, insulated aluminum door
- (4) 5-in. casters (2 with brakes)
- Double-hinged hinges
- High-temperature gaskets
- High-strength magnetic latches
- Hand holds molded into Insulation Armour for facilitated movement
- 1⁄4-in.-diameter universal slides adjustable on 11⁄2-in. fixed spacing
- Smooth polymer drip trough with catch pan
- Temperature holding range: 80-200 degrees F

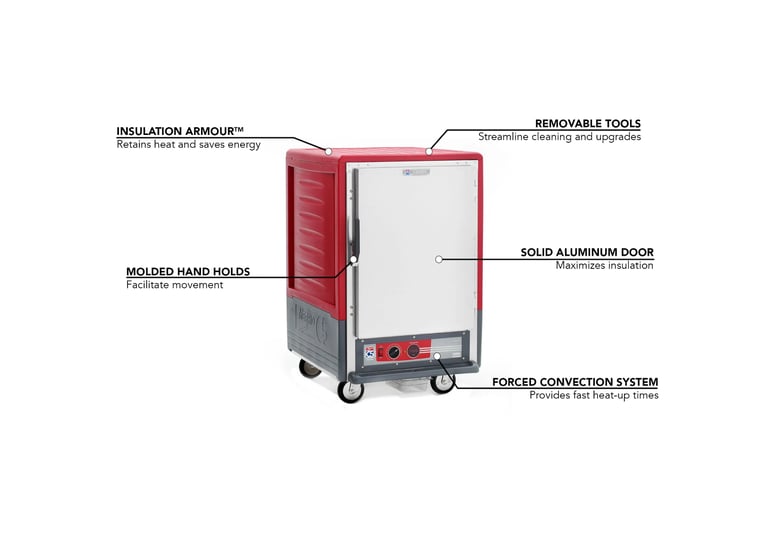

Product Features
Dimensions & Utilities
- 275/8 in. W x 311/2 in. D x 44 in. H
- 16.7 A, 2000 W
- 120 V/60 Hz/1 ph, 71/2-ft. cord with a NEMA 5-20P plug
*Free shipping on Metro C535-HFS-U within the 48 contiguous states.
From The Manufacturer
C5™ 3 Series Heated Holding Cabinet, with Red Insulation Armour™, mobile, half height, insulated cabinet & door, removable bottom mount control module, thermostat to 200°F, universal wire slides on 3" centers, adjustable on 1-1/2" increments (8) 18" x 26" or (16) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF
*Image may not depict product color, inclusions or accessories.
Metro C535-HFS-U Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat Only |
| Construction | Aluminum |
| Control Location | Bottom |
| Controls | Dial |
| Depth (in) | 31.5 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 44 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 2 |
| Load Type | Reach In |
| NEMA | 5-20P |
| No. of Doors | 1 |
| Pan Capacity | 8 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 3 Series |
| Size | 1/2 Height |
| Slide Spacing (in) | 3 |
| Slide Type | Universal |
| Special Features | Field Reversible Door |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 27.63 |
| Weight | 150.00 |
