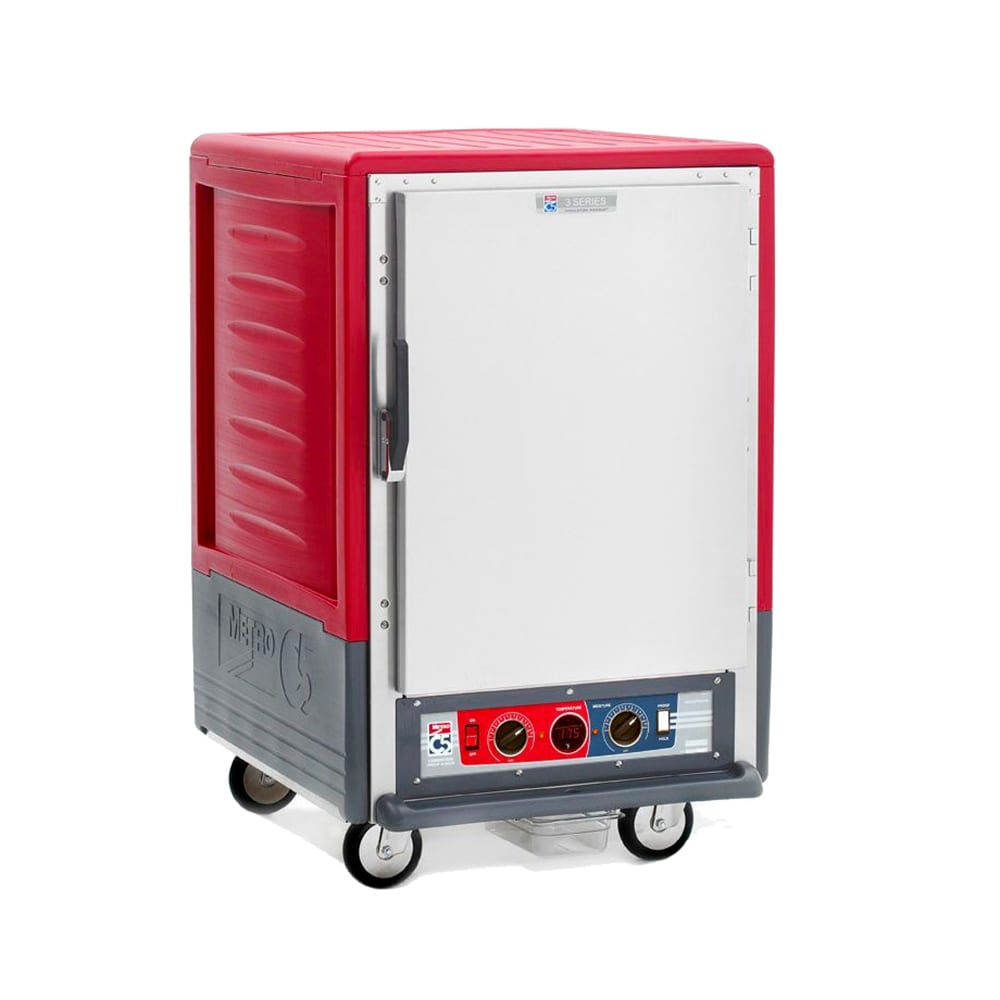

Metro C535-CLFS-U Half Height Insulated Mobile Heated Cabinet w/ (8) Pan Capacity, 120v

The Metro C535-CLFS-U C5™ 3 half-height insulated mobile heated cabinet has the capacity for eight pans. It's insulated with red Insulation Armour™, and the bottom-mounted control module can be removed to ease cleaning. Great for high-temperature applications that don't require moisture, the cabinet reaches temperatures as high as 200 degrees Fahrenheit.

Designed with universal wire slides on 3-inch centers, the Metro C535-CLFS-U heated holding and proofing cabinet is adjustable in increments of 1¹⁄₂ inches. Two of this unit's five casters have brakes to enable stationary use. The cabinet retains heat, saves energy, and provides an exterior that's cool to the touch while resisting dents, impact, and stains. Its molded-in hand holds provide operators with vertical handles for mobile applications.

Product Details

• Part of the C5 3 series
• (8) 18-in. x 26 in. or (16) 12-in. x 20-in. pan capacity
• Red Insulation Armour
• 3 control modules for holding, moisture, and combination proof and hold
• Straightforward digital thermometer
• Recessed control dials
• Master on/off switch
• Power indicator lights
• All modules can be removed without tools
• Thermostatically controlled forced convection system
• Half-height unit
• Solid, insulated aluminum cabinet and door
• (4) 5-in. casters (2 with brakes)
• Field-reversible hinges
• High-temperature gaskets
• High-strength magnetic latches with lever-action release
• Hand holds molded into exterior on all 4 corners
• ¹⁄₄-in. universal slides adjustable in 1¹⁄₂-in. increments
• Polymer drip trough with catch pan
• Temperature holding range: 80-200 degrees F

Product Features

Dimensions & Utilities

• 27⁵/₈ in. W x 31¹/₂ in. D x 44 in. H
• 12 A, 1440 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with a NEMA 5-15P plug

From The Manufacturer

C5™ 3 Series Heated Holding & Proofing Cabinet, lower wattage, with Red Insulation Armour™, mobile, half height, insulated cabinet & door, removable bottom mount control module, thermostat to 200°F, universal wire slides on 3" centers, adjustable on 1-1/2" increments (8) 18" x 26" or (16) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

1-year Against Manufacturing Defects

Metro C535-CLFS-U Specifications

Documents

Spec Sheet

Warranty

Use & Care Guide

Manual

Product Info

Brochure

Certifications
