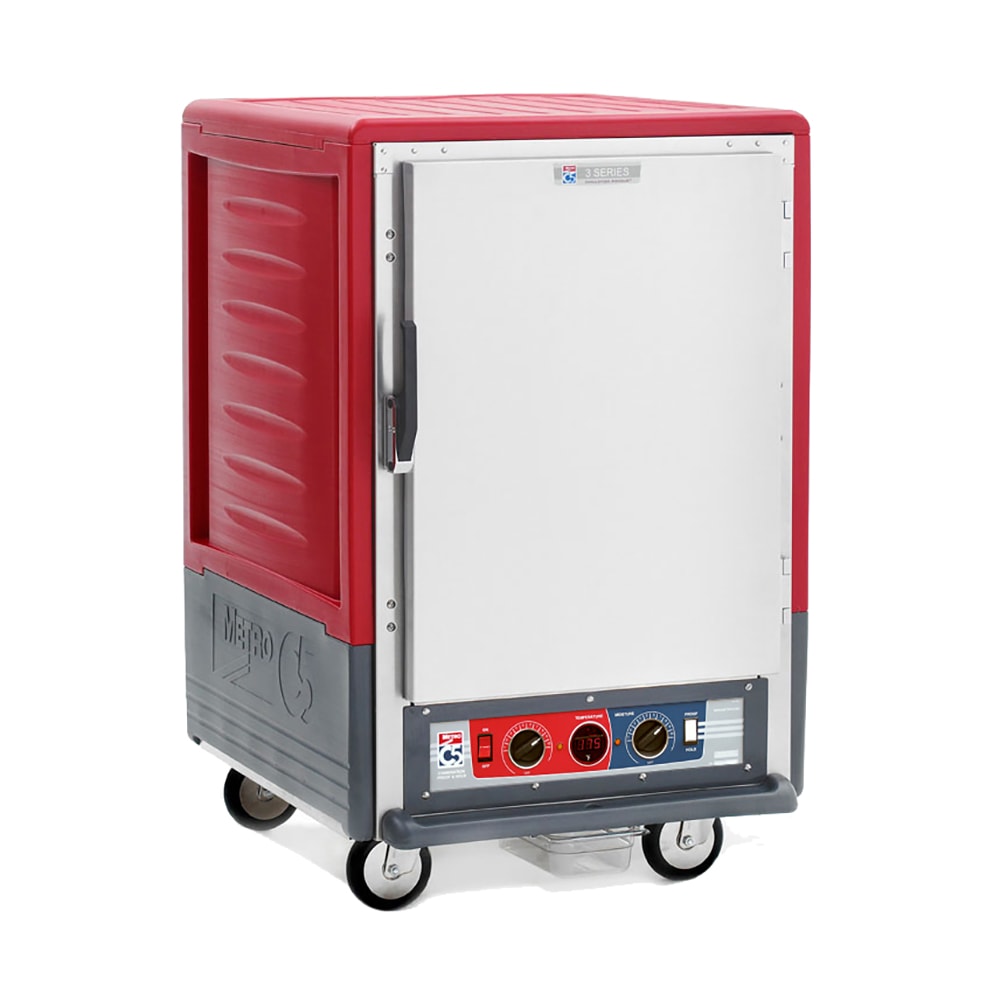

Metro C535-CFS-4 1/2 Height Insulated Mobile Heated Cabinet w/ (8) Pan Capacity, 120v

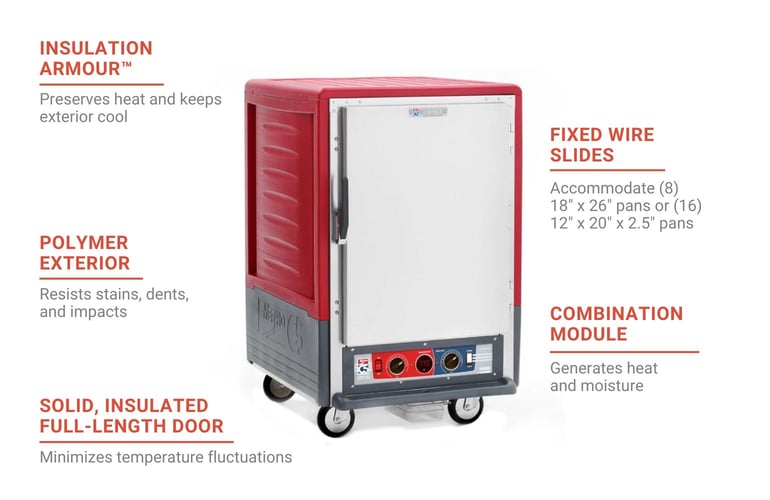

For maneuverability and low-volume holding, the half-height Metro C535-CFS-4 C5™ 3 series heated holding cabinet measures 27⁵/₈ inches wide by 31¹/₂ inches deep by 44 inches high. It's four 5-inch casters enable smooth mobility, and two casters include brakes for stabilization as pans are loaded and retrieved. Its polymer exterior resists dents, stains, and impacts, while vertical hand holds are molded into its four sides to improve steering control. Inside the cabinet, fixed wire slides welded 3 inches apart support eight 18-inch by 26-inch sheet pans or (16) 12-inch by 20-inch by 2¹/₂-inch steam pans.

Compatible with holding and proofing applications, this Metro C535-CFS-4 insulated mobile heated holding cabinet is a combination model that generates temperatures from 80 to 200 degrees Fahrenheit and produces 95 percent humidity when internal temperatures are 95 degrees Fahrenheit. Its forced convection technology heats and recovers temperature changes quickly to prevent operational lags. Operators can modify heating and humidity with the removable, bottom-mounted control panel that features a digital thermometer, recessed control dials, a power switch, and power indicator lights. To minimize temperature fluctuations, a solid, insulated full-length door encases the cabinet, and Insulation Armour™ high-density polyethylene retains heat and saves energy while keeping the exterior cool.

Product Details

• Half-height configuration
• Fixed wire slides situated in 3-in. increments
• Capacity: (8) 18-in. x 26-in. pans or (16) 12-in. x 20-in. x 2¹/₂-in. pans
• Combination module with holding and proofing technologies
• Bottom-mounted, removable control panel
• Digital thermometer, recessed control dials, power switch, and power indicator lights
• Temperature range: 80-200 degrees F
• Produces 95 percent humidity at 95 degrees F
• Insulation Armour HDPE insulation
• Red polymer exterior with molded, vertical hand holds
• Aluminum cabinet and chassis
• Solid, full-length aluminum door insulated with 1-in. fiberglass
• Field-reversible hinges with 180-degree swing-out design
• High-temperature, door-mounted Santoprene gaskets
• High-strength magnetic pull latch with lever-action release
• (4) 5-in. casters (2 with brakes)
• Polymer drip trough with catch pan
• Must be 18 in. away from cooking equipment
• Minimum side and back clearances: 1¹/₂ in.
• Minimum top clearance: ¹/₂ in.

Dimensions & Utilities

• 27⁵/₈ in. W x 31¹/₂ in. D x 44 in. H
• 16.7 A, 2000 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with NEMA 5-20P plug

Product Features

*Free shipping on Metro C535-CFS-4 within the 48 contiguous states.

From The Manufacturer

C5™ 3 Series Heated Holding & Proofing Cabinet, with Red Insulation Armour™, mobile, half height, insulated cabinet & door, removable bottom mount control module, thermostat to 200°F, fixed wire slides on 3" centers (8) 18" x 26" or (16) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

1-year Against Manufacturing Defects
