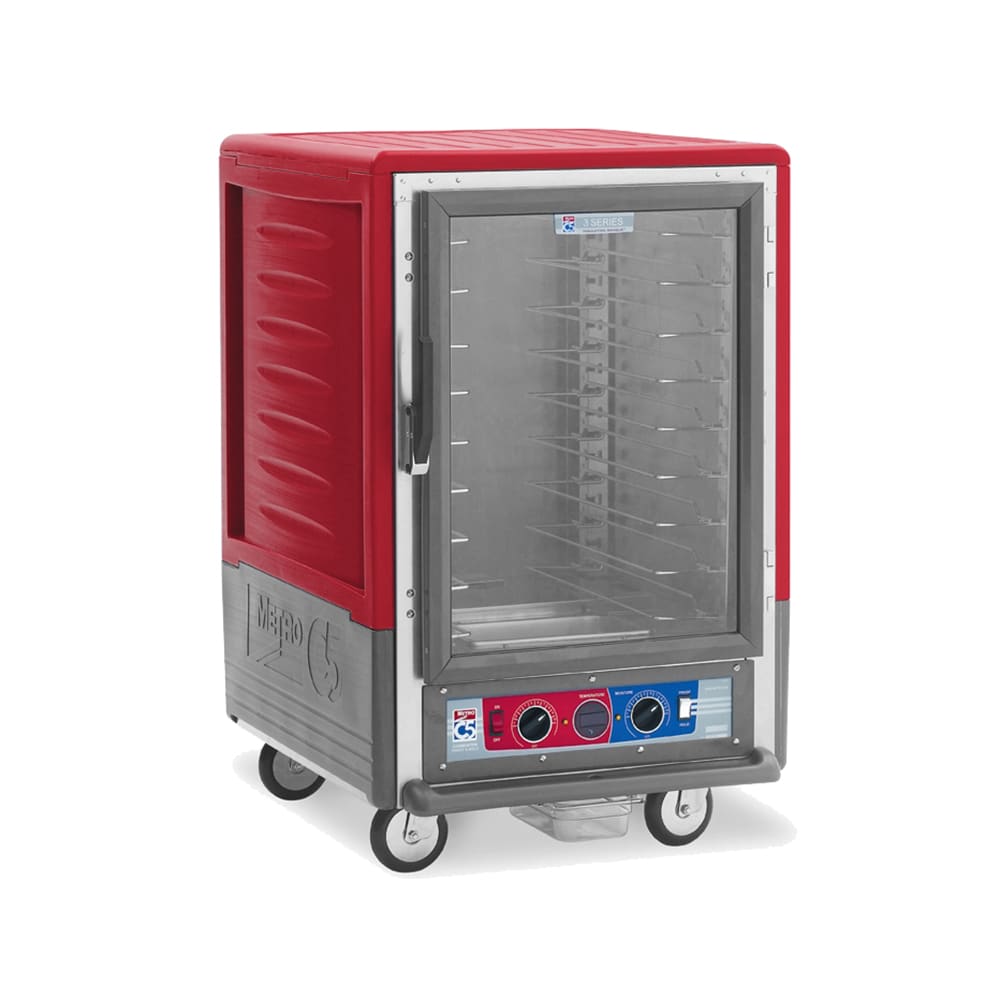

Metro C535-CFC-U 1/2 Height Insulated Mobile Heated Cabinet w/ (8) Pan Capacity, 120v

As a half-size unit, this Metro C535-CFC-U C5™ 3 series insulated mobile cabinet accommodates eight 18-inch by 26-inch sheet pans or (16) 12-inch by 20-inch by 2¹/₂-inch pans, which is great for low- and medium-volume applications. By combining heat and humidity, this system holds foods at safe serving temperatures for hours without drying them out, while forced convection technology minimizes initial heating and recovery times. Operators can adjust the thermostat from 80 to 200 degrees Fahrenheit and modify humidity as high as 95 percent when the unit is set to 95 degrees Fahrenheit. The bottom-mounted control panel features a digital thermometer, recessed control dials, a power switch, and power indicator lights; when it requires cleaning or upgrades, it can be removed without tools.

So employees can serve pans from the unit, the Metro C535-CFC-U half-height heated cabinet is furnished with 5-inch casters—two of which include brakes for stability. It's simple to maneuver from the kitchen to the serving area because it measures 27⁵/₈ inches wide by 31¹/₂ inches deep by 44 inches high and features vertical, molded hand holds for controlled steering. Its polymer construction resists impacts, dents, and stains to preserve its original look, while its red design indicates its application in color-coded systems. Its full-length clear polycarbonate door provides a view into the cabinet for monitoring, and to prevent heat loss as the unit is moved, Insulation Armour™ high-density polyethylene insulation retains heat while maintaining a cool exterior.

Product Details

• Half-height model
• 8 nickel-chrome electroplated wire universal slides (adjustable on 1¹/₂-in. increments)
• Accommodates (8) 18-in. x 26-in. pans or (16) 12-in. x 20-in. x 2¹/₂-in. pans
• Combination proof-and-hold configuration
• Bottom-mounted, removable control panel
• Digital thermometer, recessed control dials, power switch, and power indicator lights
• Produces temperatures from 80-200 degrees F
• Generates 95 percent humidity at 95 degrees F
• Insulation Armour HDPE insulation
• Red polymer exterior
• Molded-in vertical hand holds
• Aluminum cabinet and chassis
• Full-length clear polycarbonate door with powder-coated extruded aluminum frame
• Field-reversible hinges can swing out 180 degrees
• High-temperature, door-mounted Santoprene gaskets
• High-strength magnetic pull latch with lever-action release
• (4) 5-in. casters (2 with brakes)
• Polymer drip trough with catch pan
• 18-in. clearance required from cooking equipment
• Minimum side and back clearances: 1¹/₂ in.
• Minimum top clearance: ¹/₂ in.

Dimensions & Utilities

• 27⁵/₈ in. W x 31¹/₂ in. D x 44 in. H
• 16.7 A, 2000 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with NEMA 5-20P plug

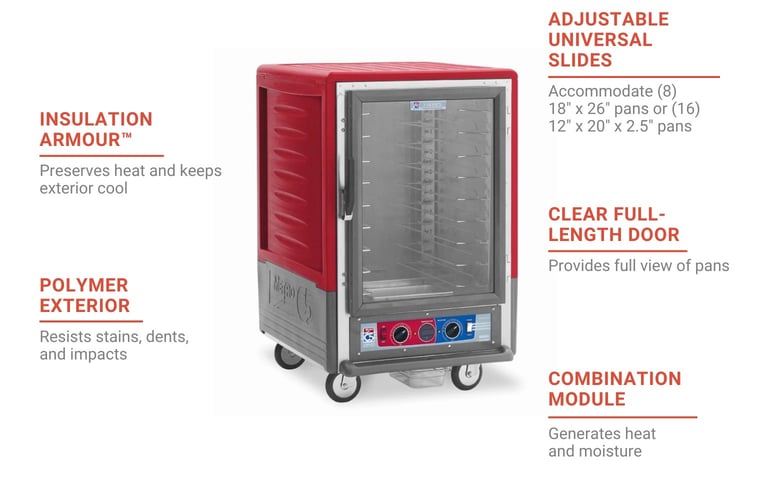

Product Features

*Free shipping on Metro C535-CFC-U within the 48 contiguous states.

From The Manufacturer

C5™ 3 Series Heated Holding & Proofing Cabinet, with Red Insulation Armour™, mobile, half height, insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 200°F, universal wire slides on 3" centers, adjustable on 1-1/2" increments (8) 18" x 26" or (16) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

1-year Against Manufacturing Defects

Metro C535-CFC-U Specifications

Documents

Spec Sheet

Warranty

Use & Care Guide

Manual

Product Info

Brochure
