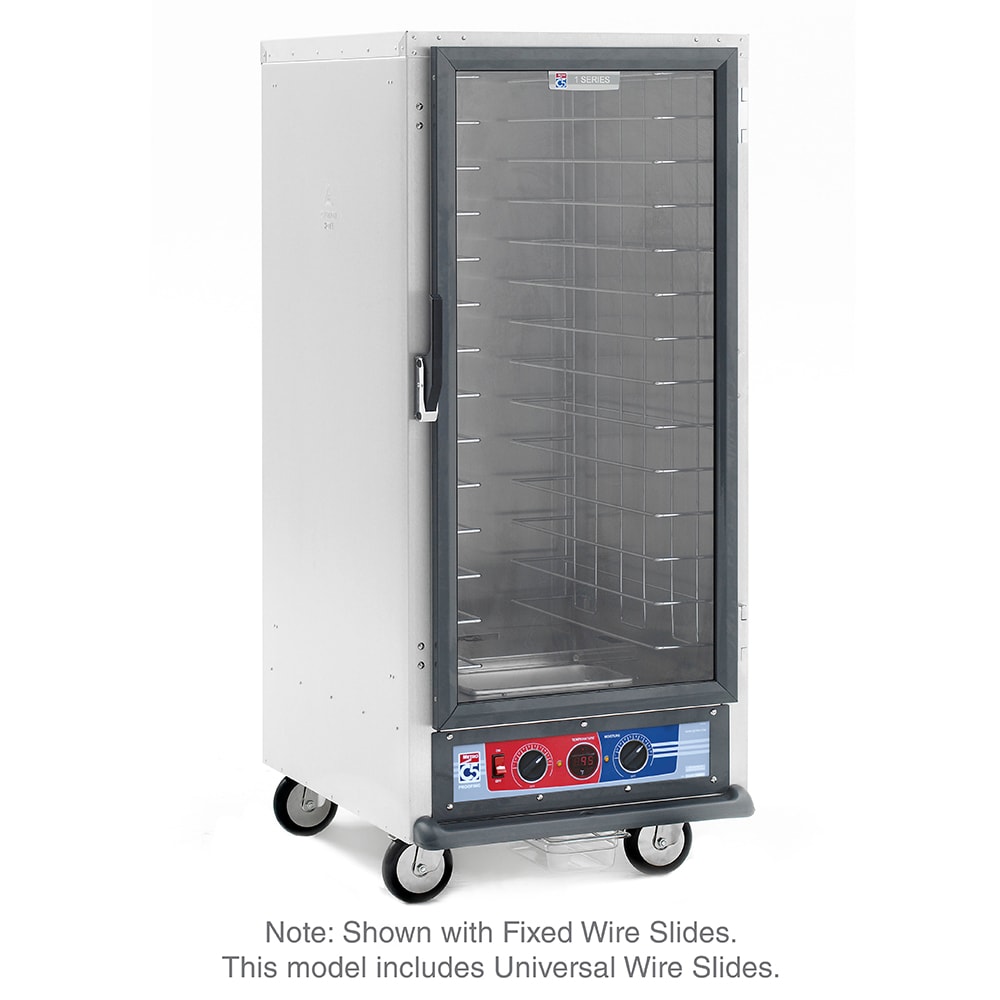

Metro C517-PFC-U 3/4 Height Non-Insulated Mobile Proofing Cabinet w/ (14) Pan Capacity, 120v

The Metro C517-PFC-U non-insulated mobile proofing cabinet can accommodate (14) 18-inch by 26-inch pans or (26) 12-inch by 20-inch pans of food at a time. It's designed with universal wire slides that can be adjusted in 1¹⁄₂-inch increments to fit various pan depths. Users can adjust the recessed analog controls to change the temperature and humidity settings independently from one another, and the unit's digital display provides a good way to monitor the changes. Mounted on the bottom for accessibility, the proofing control module can be removed for replacement or upgrade without requiring the use of any tools.

For additional security, the Metro C517-PFC-U non-insulated mobile proofing cabinet's door is protected with high-strength polymer latches that use magnetic function. Resting on heavy-duty hinges, the door can be opened as far as 180 degrees to enable complete user access, and the hinges are reversible to suit any floor plan. To catch drips and contain mess, the unit is designed with a catch pan and drip trough made of smooth polymer.

Product Details

• Part of the C5™ 1 series
• Thermostat settings from 80-120 degrees F
• Non-insulated
• Proofing function
• ³⁄₄-height mobile design
• Universal wire slides adjust in 1¹⁄₂-in. increments
• (14) 18-in. x 26-in. pan capacity
• Removable proofing control module is mounted to unit's bottom

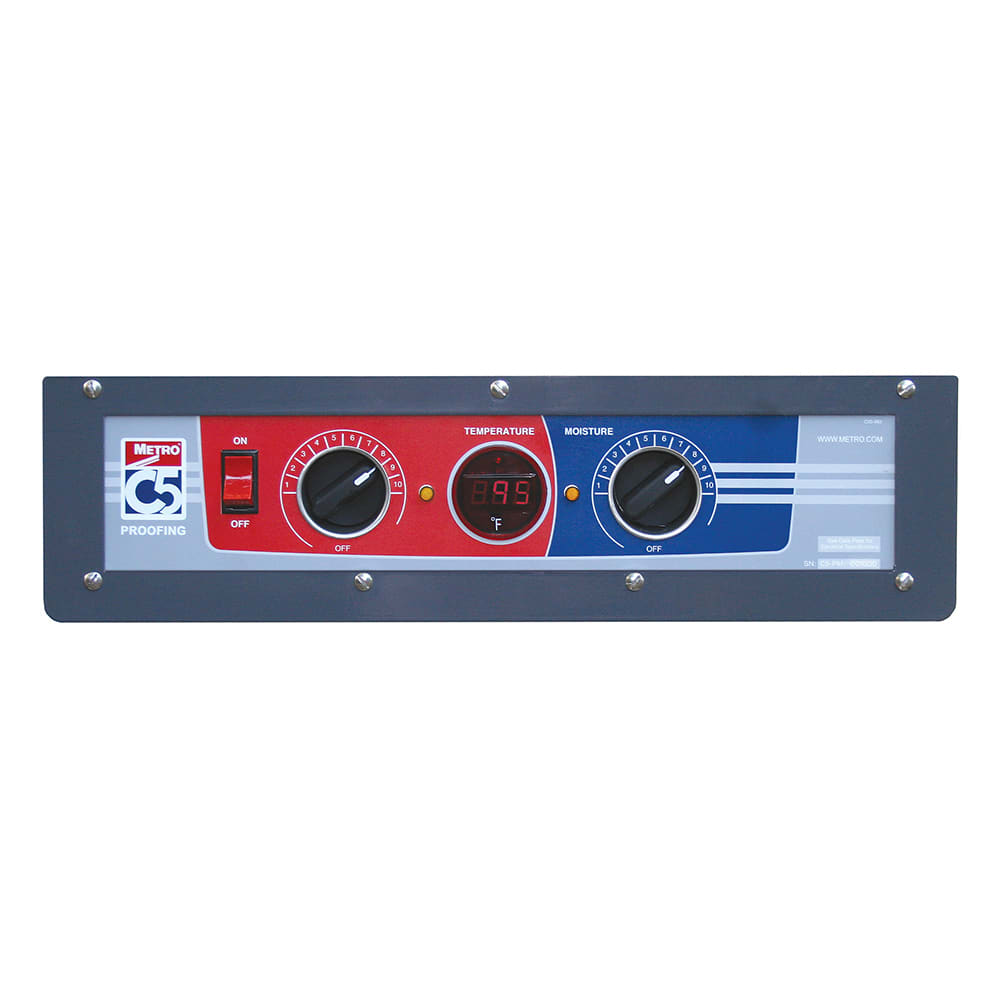

• Recessed temperature controls are analog
• Highly visible digital temperature display
• Forced-air system with thermostatic control
• Master power switch and status indicating lights
• Door made of clear polycarbonate
• Magnetic latches made of high-strength polymer for durability
• Lightweight maneuverability with aluminum cabinet design
• Santoprene door gaskets contain heat
• Heavy-duty, reversible door hinges open to 180 degrees
• Smooth polymer drip trough with catch pan
• Moves on (4) 5-in. neoprene casters, 2 with brakes

Product Features

Dimensions & Utilities

• 25¹⁄₈ in. W x 30¹⁄₄ in. D x 57³⁄₄ in. H
• 12 A, 1440 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with a NEMA 5-15P plug

*Free shipping on Metro C517-PFC-U within the 48 contiguous states.

From The Manufacturer

C5™ 1 Series Proofing Cabinet, mobile, 3/4 height, non-insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 120°F, universal wire slides on 3" centers, adjustable on 1-1/2" increments (14) 18" x 26" or (26) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

1-year Against Manufacturing Defects

Metro C517-PFC-U Specifications

Documents

Spec Sheet

Warranty

Use & Care Guide

Manual

Product Info

Brochure
