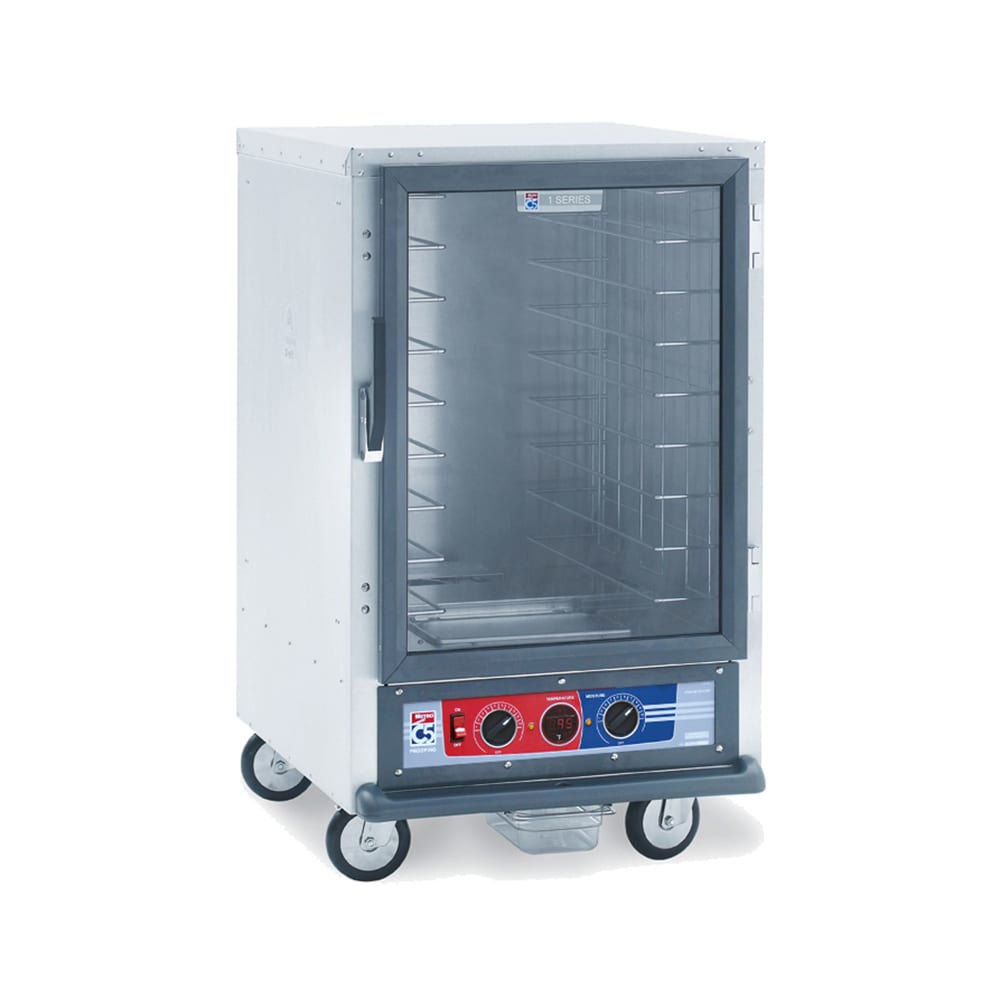

Metro C515-PFC-4 1/2 Height Non-Insulated Mobile Proofing Cabinet w/ (8) Pan Capacity, 120v

The Metro C515-PFC-4 C5™ 1 Series non-insulated mobile proofing cabinet is a half-height unit that can accommodate eight 18-inch by 26-inch pans or (16) 12-inch by 20-inch pans of food. Its fixed wire slides are mounted on 3-inch centers, enabling it to fit food pans as deep as 3 inches. To help users monitor dough as it proofs, the cabinet's door is made of clear polycarbonate, and its high-strength magnetic latches secure the door closed to prevent air from escaping during the proofing process.

Users can adjust the heat and humidity settings of the Metro C515-PFC-4 half-height uninsulated mobile proofing cabinet using the recessed analog controls and monitor the changes via the digital display. To support future upgrades and repairs, the unit's control module is removable, and it's bottom mounted to avoid overheating. Mounted on durable hinges with nylon bearings, the cabinet's doors can open to 180 degrees, enabling users to comfortably load and unload pans laden with dough. Resting on neoprene casters, this cabinet facilitates mobile applications.

Product Details

• Part of the C5 1 series
• Thermostat settings from 80-120 degrees F
• Non insulated
• Half-height, mobile design
• Fixed wire slides
• (8) 18-in. x 26-in. pan or (16) 12-in. x 20-in. x 2¹⁄₂-in. pan capacity
• Removable proofing module is bottom mounted

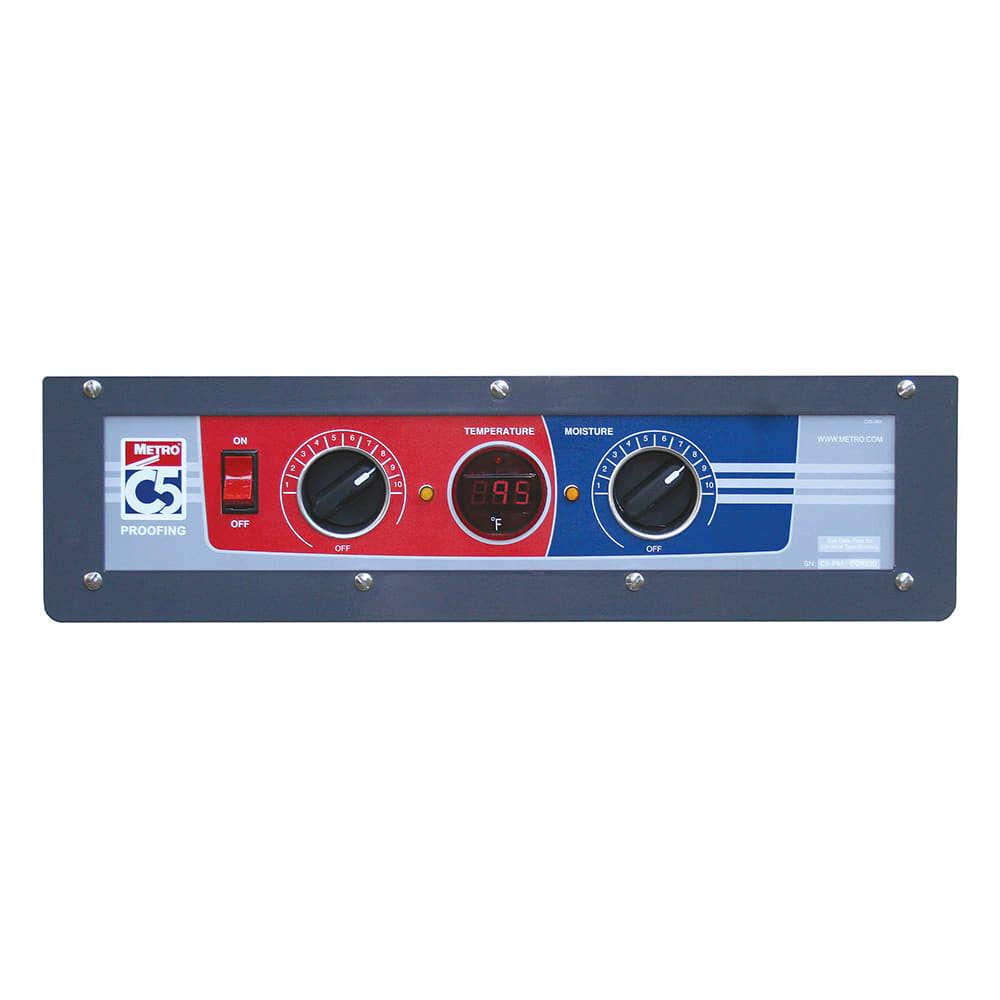

• Analog control dials with digital temperature display
• Forced-air system is thermostatically controlled for fast heat up and recovery
• Master power control switch and indicator lights
• Clear polycarbonate door provides view of cabinet contents
• High-strength magnetic latches withstand heavy use
• Lightweight aluminum construction
• Gaskets made of Santoprene resist high temperatures
• Field-reversible door hinges with nylon bearings open to 180 degrees
• Polymer drip trough with catch pan
• Mobility provided by (4) 5-in. neoprene casters, 2 with brakes

Dimensions & Utilities

• 25¹⁄₈ in. W x 30¹⁄₄ in. D x 42³⁄₄ in. H
• 12 A, 1440 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with a NEMA 5-15P plug

Product Features

*Free shipping on Metro C515-PFC-4 within the 48 contiguous states.

From The Manufacturer

C5™ 1 Series Proofing Cabinet, mobile, half height, non-insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 120°F, fixed wire slides on 3" centers (8) 18" x 26" or (16) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

1-year Against Manufacturing Defects
