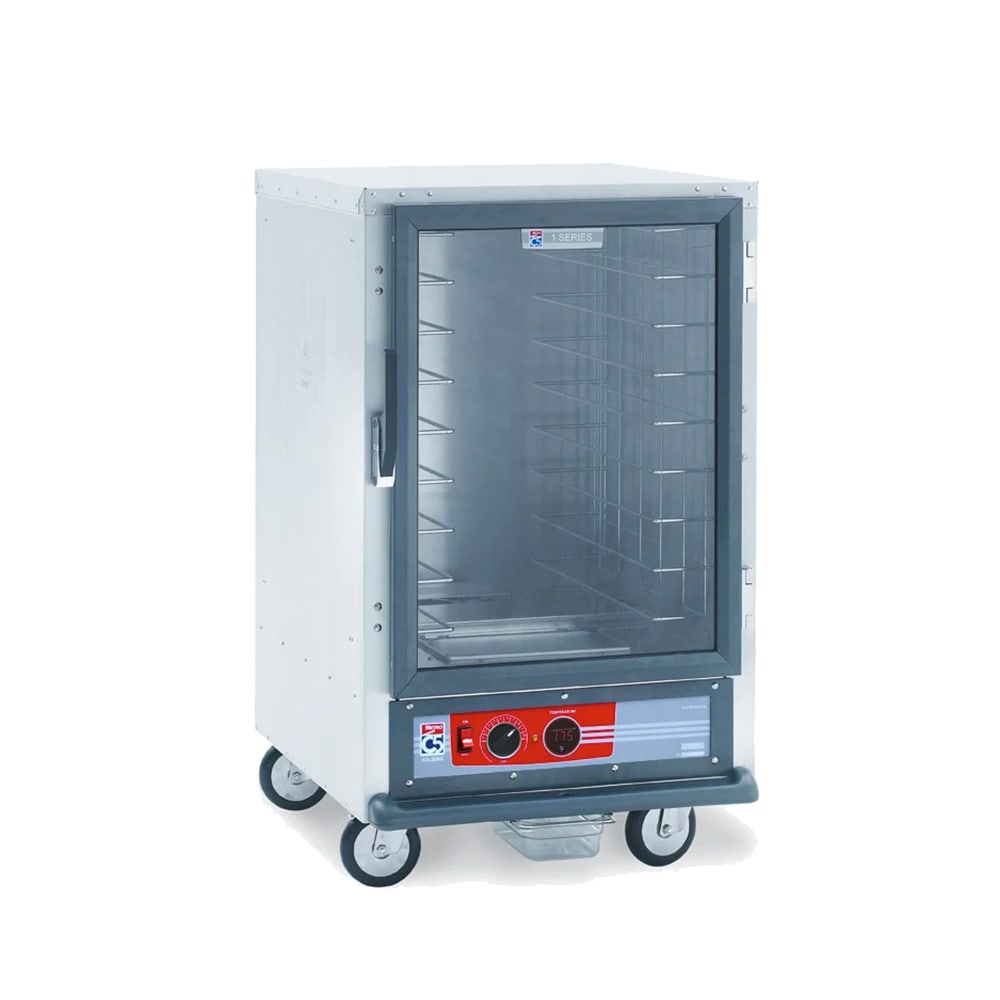

Metro C515-HFC-L 1/2 Height Non-Insulated Mobile Heated Cabinet w/ (17) Pan Capacity, 120v

The Metro C515-HFC-L C5™ 1 Series half-height heated cabinet has a forced-air heating system that quickly recovers temperatures and initially heats up. Product can be seen through the clear polycarbonate door, which has an extruded aluminum frame for durability. Gaskets around the door prevent heat from leaking, and the rest of the cabinet is also constructed of aluminum for strength. Lip-load slides in the cabinet are 1¹/₂ inches apart to accept (17) 18-inch by 26-inch pans. A drip trough with catch pan collects excess moisture and debris to simplify cleaning the cabinet.

This Metro C515-HFC-L non-insulated heated cabinet only has a heating module to keep product at safe holding temperatures, which range from 80 to 190 degrees Fahrenheit. For safety, the panel has a master on/off switch. The control module is removable for maintenance without tools, and it has recessed control knobs to protect them from damage. Power indicator lights let the operator know what stage the unit is in.

Product Details

• Part of the C5 1 series
• Half-height, non-insulated design
• Quickly heats and recovers heat with a forced-air heating system
• Polycarbonate door is transparent for product visibility
• Powder-coated aluminum door frame holds its shape
• 180-degree door swing for loading and unloading pans
• Lip-load slides use fixed aluminum extrusions to hold pans on 1.5-in. spacing
• 1¹/₂-in. x ¹/₂-in. x ⁵/₈-in. aluminum channel slides
• (17) 18-in. x 26-in. pan capacity
• Cabinet is constructed of aluminum for durability
• 5-in. nickel-plated swivel casters provide mobility
• Donut neoprene wheels withstand rolling over various surfaces
• Door-mounted gaskets prevent heat from escaping
• Magnetic pull latch with lever-action release keeps the door shut during transportation
• Drip trough with catch pan collects messes to simplify cleanup

Control Panel

• Recessed control dials resist damage
• Master on/off switch
• Power indicator lights
• Holding module heats up and holds product at serving temperatures
• Holding mode is controlled with an analog temperature knob
• Temperature range: 80-190 degrees F
• Module is removable

Dimensions & Utilities

• 25¹/₈ in. W x 30¹/₄ in. D x 42³/₄ in. H
• 16.7 A, 2000 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with a NEMA 5-20 plug

*Free shipping on Metro C515-HFC-L within the 48 contiguous states.

From The Manufacturer

C5™ 1 Series Heated Holding Cabinet, mobile, half height, non-insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 190°F, lip load slides on 1-1/2" centers (17) 18" x 26" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

1-year Against Manufacturing Defects
