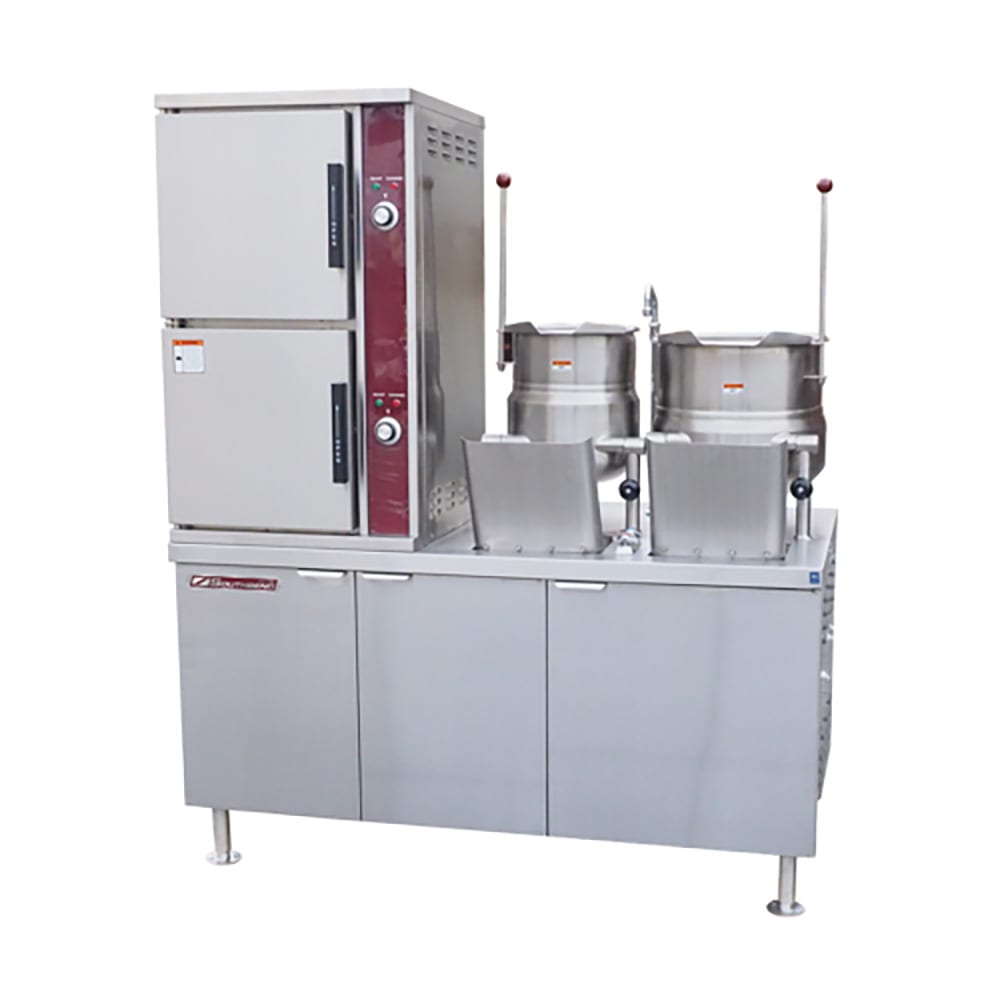

Southbend SCX-2S-6-6 (6) Pan / (2) Kettle Convection Steamer - Cabinet, Steam Coil
$70,610.98 /Each
Call for details!
Southbend SCX-2S-6-6 Description
The Southbend SCX-2S-6-6 steamer and steam kettles comes with a cabinet base, while a steam coil boiler in the cabinet doors creates food-safe steam. This boiler creates steam using an external steam and water source, so steam flows through coils in a bath of water. To ensure proper operation, automatic controls maintain the correct water level, and users can check this level at any time with the water gauge.
For durability, this Southbend SCX-2S-6-6 convection steamer and kettles is made of 304 and 316 stainless steel, which are highly resistant to rust. Two 6-gallon steam kettles that can cook large batches of sauce or soup are included with the cabinet, and a swing faucet is mounted to the deck, to ease adding water to the kettles. Because each kettle and steamer section has its own controls, many kinds of foods can be cooked at one time.
Depending on the pan height, as many as 12 full-size pans can fit into the steamer, while steam flows around the compartment and evenly cooks food in the pans. Users can set the 60-minute timer and work on other things while the food cooks, as an alarm sounds as the timer expires, and steam production stops when a steamer door opens.
- Made of 304 and 316 stainless steel for scratch, bend, and corrosion resistance
- Beautiful satin finish
- Deck faucet eliminates the need to carry water to the kettle
- Integrated sink
- Steam coil boiler in cabinet requires steam and potable water connections
- Automatic blowdown helps flush sediment out of the boiler
- Water gauge for checking current water level in the boiler
- Automatic controls maintain correct water level
- Pressure relief valve and upper limit ensure safe pressure levels
- Magnetic latches encourage cabinet doors to stay shut
- Front bullet feet adapt to floors, and rear flange feet are adjustable
- Sturdy cabinet supports (2) 2-section steamer and (2) 6-gal. kettles
- Each kettle and steamer section has its own controls
- Welded steamer sections facilitate cleaning
- 2-in. IPS drain
- 3 4⁄5-in. O.D. tubing for sink's hot water supply
- 1 1⁄8-in. O.D. tubing for sink drain
- Lock-and-seal doors shut tight
- Gasket seal blocks steam escape
- Spring-release doors ease opening
- Automatic steam cutoff reduces burn risks when the door is opened
- Door trough catches drips and drains condensate
- Welded, 1-piece interior
- Removable pan supports
- Illuminated on/off switch
- Status lights show the unit is ready or cooking
- 60-min. timer with alarm track cook cycles
- Removable side panel provides component access
- 12 full-size, 1-in.-deep pans
- 6 full-size, 2 1⁄2-in.-deep pans
- 4 full-size, 4-in.-deep pans
- 2 full-size, 6-in.-deep pans
- Compartments: 14 in. W x 21 in. D x 10 5⁄8 in. H
- Overall: 44 in. W x 33 in. D x 62 1⁄10 in. H
- 120 V/50-60 Hz/1 ph
- 3⁄4-in. IPS incoming steam connection
- 1⁄2-in. NPT incoming potable water connection
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend SCX-2S-6-6 within the 48 contiguous states.
From The Manufacturer
Convection Steamer/Kettle, steam coil, (2) compartment, (2) 6 gallon kettles, (3) 12" x 20" pan capacity per compartment, 60" cabinet base, automatic blowdown, 60 minute timer per compartment, deck mount faucet valve, swing nozzle & intregal sink, CSD-1 code package, stainless steel interior & exterior, 6" legs, adjustable bullet feet front, adjustable flanged feet rear, CSA, NSF
Southbend SCX-2S-6-6 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Also Known As | Crown SCX-2-6-6 |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 33 |
| Heat | Steam Coil |
| Height (in) | 62.1 |
| Hertz | 60 |
| Kettle Capacity | 6 gal |
| No. of Compartments | 2 |
| No. of Kettles | 2 |
| Pan Capacity | 3 to 9 Pans |
| Pan Type | Full Size Steam Pans |
| Phase | 1 |
| Product | Steamers |
| Product Type | Cooking Equipment |
| Steam Generator | Boiler-Based |
| Steamer Type | Convection |
| Voltage | 120 |
| Warranty | 1-year Limited Parts & Labor |
| Water Source | Plumbed |
| Width (in) | 60 |
| Weight | 930.00 |
