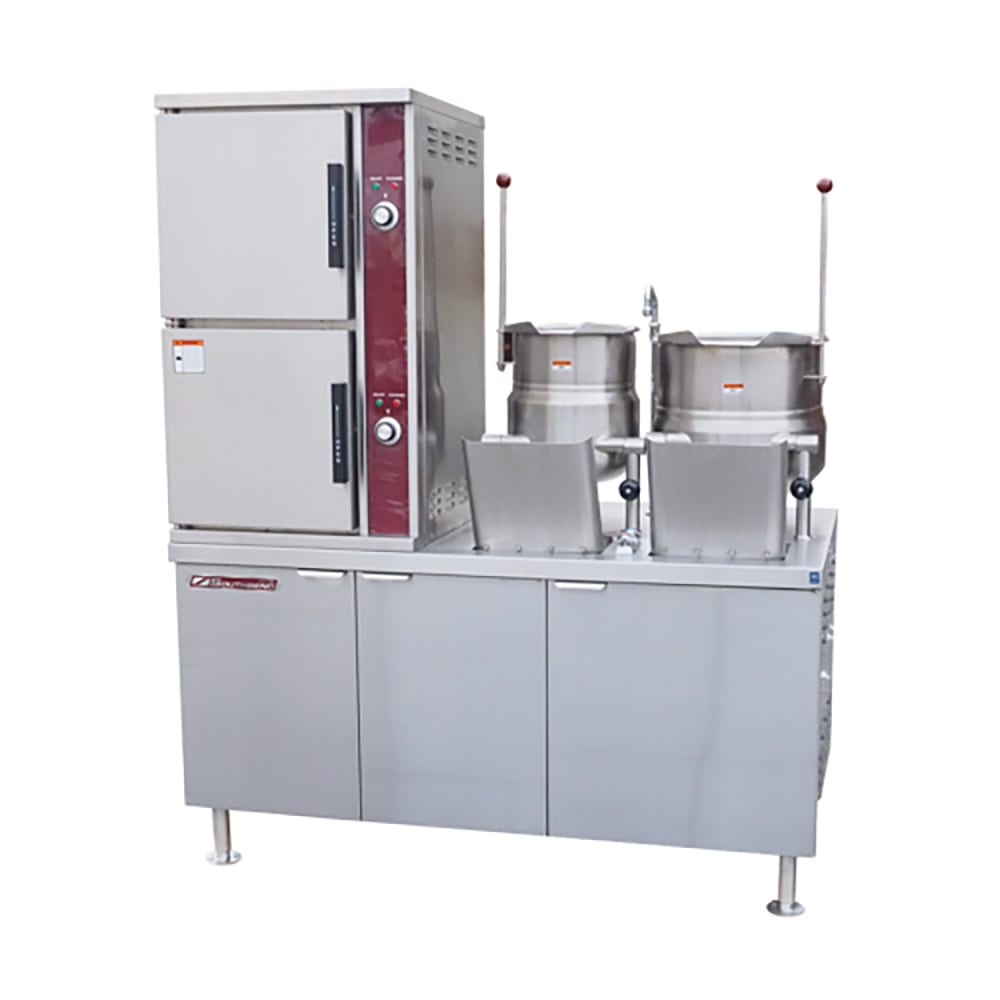

Southbend SCX-2S-6-10 (6) Pan / (2) Kettle Convection Steamer - Cabinet, Steam Coil

KaTom #: 972-SCX26101201 • MPN: SCX-2S-6-10 120/1
  • 972-SCX26101201 Primary Thumbnail Image
Free Shipping Item

$74,179.47 /Each

Call for details!

Add-ons & Options

Carson Shockley User Image
Ask a Foodservice Equipment Specialist

Southbend SCX-2S-6-10 Description

The Southbend SCX-2S-6-10 steamer and steam kettles provide different pieces to cook different dishes. Employees can cook popular dishes in the 10-gallon kettle and large batches of sides in the 6-gallon kettle, while a deck-mounted faucet eases adding water to either kettle. Depending on the height, as many as 12 pans of food fit into the steamer.

Steam surrounds the food, cooking it evenly and efficiently, and unlike other cooking methods, steaming preserves its texture and nutrients. Employees can stop steaming at any time by opening the door, which activates a door switch that cuts off steam production. Preventing puddles, water drips into the door trough. Water in the trough drains to simplify the cleaning process, and for full cleaning access, the pan supports are removable.

Because this Southbend SCX-2S-6-10 convection steamer and kettles has a steam coil boiler base, it can be connected to a steam generator that produces nonpotable steam. This is because the nonpotable steam is not used to cook the food, instead heating potable water to create food-safe steam.

Automatic controls monitor and maintain the proper water level, and for longevity, the boiler has automatic blowdown when the unit is turned off. This process helps flush sediment and mineral buildup down the walls, and it keeps the unit operating properly.

  • Constructed of durable stainless steel with a satin finish
  • Swing faucet nozzle can add water to either kettle
  • Built-in sink
  • Cabinet doors have magnetic latches to stay shut
  • Adjustable feet: 2 bullet and 2 flange
  • Cabinet base contains a steam coil boiler
  • Automatic controls ensure enough water is in the boiler
  • Gauge for checking water level in the boiler
  • Upper pressure limit and relief valve prevent pressure from getting too high
  • Automatic boiler blowdown helps reduce mineral buildup
  • Cabinet holds 2-section steamer, 6-gal. kettle, and 10-gal. kettle
  • 2-in. IPS drain
  • 3 4⁄5-in. O.D. tubing for sink hot water supply
  • 1 1⁄8-in. O.D. tubing for sink drain

  • Each compartment has independent controls
  • Welded interiors can be wiped clean
  • Gasket seal prevents steam leaks
  • Lock-and-seal mechanism keeps the doors safely shut
  • Spring release opens the doors with minimal resistance
  • Automatic steam cutoff stops steam flow when the door opens
  • Door trough collects condensate and drains it from the unit
  • Pan supports can be removed for cleaning

  • Power switch lights up
  • Ready and cooking status lights
  • 60-min. timer has an audible alarm
  • Removable side panel for electric component access

  • 12 full-size, 1-in.-deep pans
  • 6 full-size, 2 1⁄2-in.-deep pans
  • 4 full-size, 4-in.-deep pans
  • 2 full-size, 6-in.-deep pans

  • Compartments: 14 in. W x 21 in. D x 10 5⁄8 in. H
  • Overall: 60 in. W x 33 in. D x 62 1⁄10 in. H
  • 120 V/50-60 Hz/1 ph
  • Boiler steam connection is 3⁄4-in. IPS
  • Boiler water connection is 1⁄2-in. NPT

*Image may not depict product color, inclusions or accessories.

*Free shipping on Southbend SCX-2S-6-10 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Convection Steamer/Kettle, steam coil, (2) compartment, (1) 6 gallon & (1) 10 gallon kettles, (3) 12" x 20" pan capacity per compartment, 60" cabinet base, automatic blowdown, 60 minute timer per compartment, deck mount faucet valve, swing nozzle & intregal sink, CSD-1 code package, stainless steel interior & exterior, 6" legs, adjustable bullet feet front, adjustable flanged feet rear, CSA, NSF

Warranty Icon
1-year Limited Parts & Labor

Southbend SCX-2S-6-10 Specifications

Documents
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
