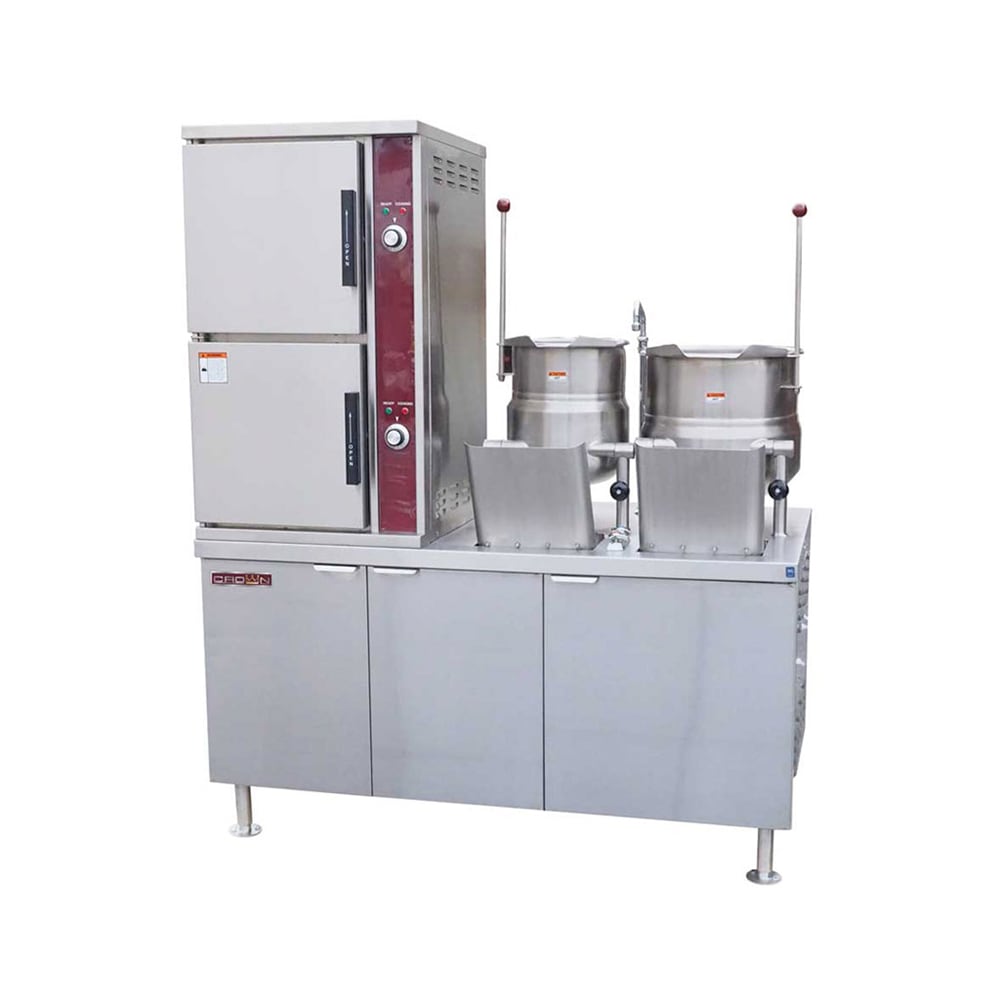

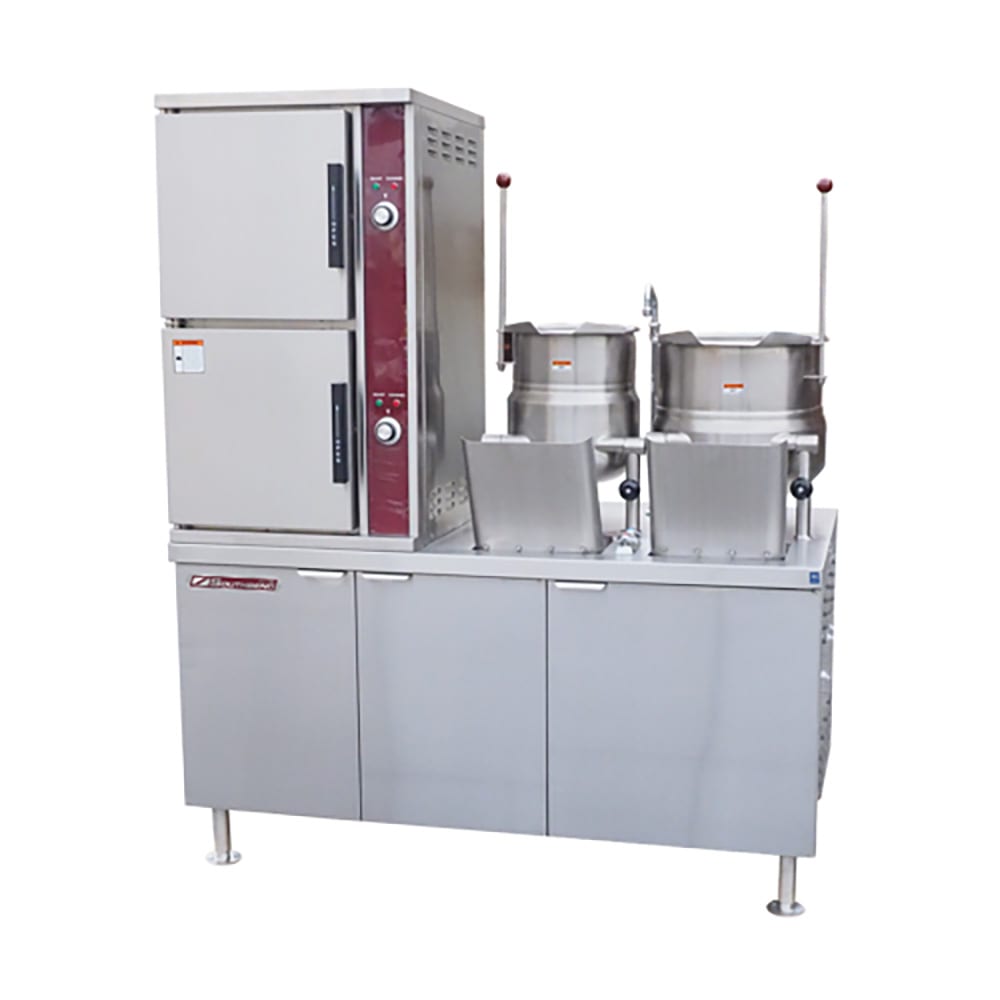

Crown Steam SCX-10-6-6 (10) Pan / (2) Kettle Convection Steamer - Cabinet, Steam Coil

The Crown Steam SCX-10-6-6 10-pan and two-kettle convection steamer comes with two types of equipment that can be used for steaming product. The two kettles have 6-gallon capacities and can be used to prepare sauces, stews, and soups. An integral faucet with a swing nozzle can fill the kettles with water. The steamer provides two compartments and can accommodate (10) 12-inch by 20-inch food pans. The stainless steel construction of the steamer is durable and efficient to clean. The doors are secured by a positive lock and seal mechanism to prevent tampering. Independent controls are housed in stainless steel.

The base of the Crown Steam SCX-10-6-6 convection steamer and kettles is 60 inches wide. It has a stainless steel construction with four legs equipped with adjustable bullet feet on the front and adjustable flanged feet on the rear to stabilize the unit. The steam coil boiler is housed inside the base and provides the heat and steam to the steamer and kettles. The boiler operates between 9 and 11 PSI and the water line is split. The boiler's controls allow the user to monitor and adjust water and pressure levels.

Product Details

• (2) 6-gal. kettles
• 2 steamer compartments
• Can accommodate (10) 12-in. x 20-in. pans
• Stainless steel interior and exterior resist corrosion
• Doors are equipped with interior and exterior liners made of stainless steel
• Doors are secured by the positive lock and seal mechanism with a spring release
• Pan supports are removable and made of durable stainless steel
• Drip trough made of stainless steel catches condensate
• Trough is connected to a drain, which clears out the liquid
• Independent controls are housed in stainless steel
• Illuminated on/off switches
• Electric timer counts down from 60 mins. and has an audible signal
• Ready pilot light and pilot cooking light

Base Details

• 60-in. cabinet base
• Durable construction made of stainless steel
• Magnetic latches equipped on the 2 hinged doors
• Stabilized by stainless steel legs with adjustable bullet feet on the front and flanged feet on the rear
• Integral sink with a swing nozzle
• Deck-mounted faucet valve
• Steam coil boiler housed in the base produces heat
• Boiler operates from 9 to 11 PSI
• Boiler controls feature water gauge glass, operating pressure control, pressure gauge, automatic water level control, safety relief valve, and safety high-limit control
• Water line is split

Dimensions & Utilities

• Cooking chamber: 14 in. W x 21 in. D x 17 in. H
• Overall: 44 in. W x 33 in. D x 68^{1/₂ in. H}
• 120 V/50-60 Hz/1 ph

*Free shipping on Crown Steam SCX-10-6-6 within the 48 contiguous states.

From The Manufacturer

Convection Steamer/Kettle, steam coil, (2) compartment, (2) 6 gallon kettles, (5) 12" x 20" pan capacity per compartment, 60" cabinet base, automatic blowdown, 60 minute timer per compartment, deck mount faucet valve, swing nozzle & intregal sink, CSD-1 code package, stainless steel interior & exterior, 6" legs, adjustable bullet feet front, adjustable flanged feet rear, CSA, NSF

*Image may not depict product color, inclusions or accessories.

Crown Steam SCX-10-6-6 Specifications

Spec Attribute	Spec Value
Manufacturer	Crown Steam
Application	High Volume
Base	Cabinet
Controls	Digital
Depth (in)	33
Heat	Steam Coil
Height (in)	68.5
Hertz	60
Kettle Capacity	6 gal
No. of Compartments	2
No. of Kettles	2
Pan Capacity	10 or More Pans
Phase	1
Product	Steamer/Kettle Combos
Product Type	Cooking Equipment
Steam Generator	Boiler-Based
Steamer Type	Convection
Voltage	120
Warranty	1-year Limited Parts & Labor
Water Source	Plumbed
Width (in)	60
Weight	1000.00
