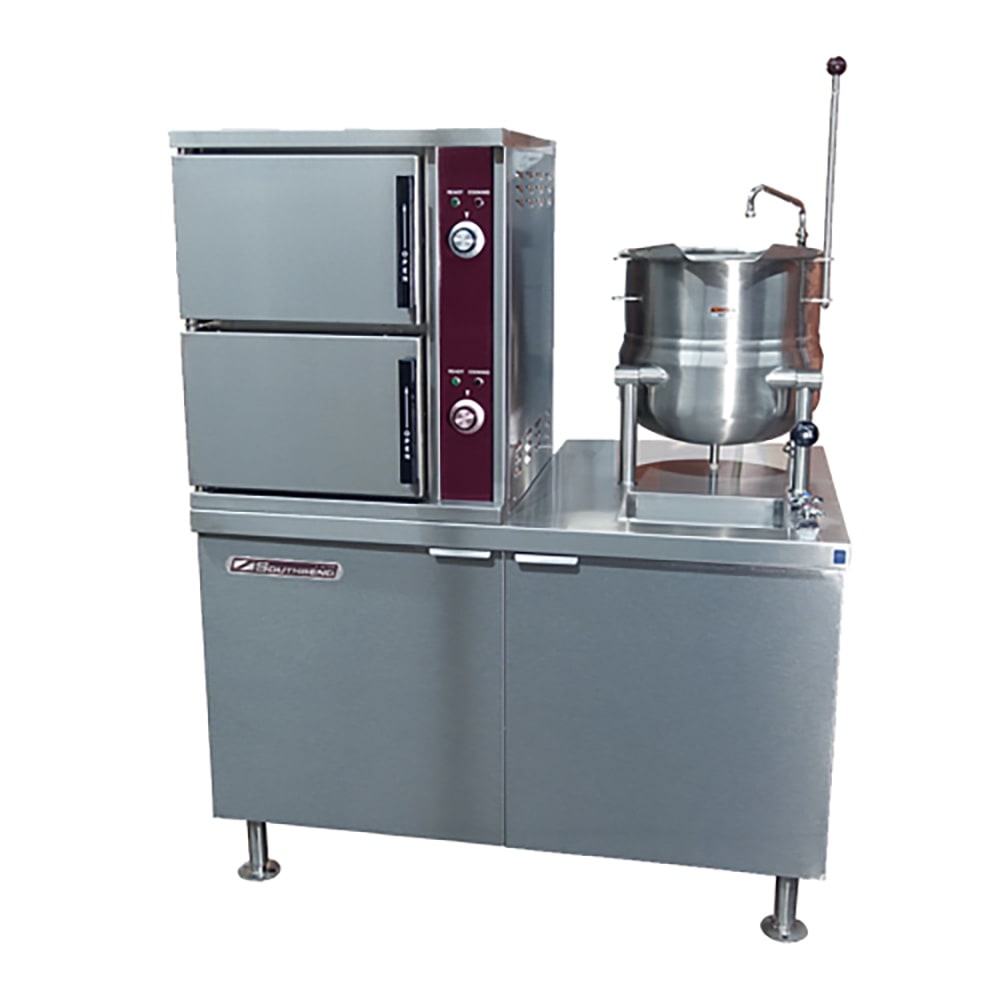

Southbend SCX-10S-6 (10) Pan / (1) Kettle Convection Steamer - Cabinet, Steam Coil
$49,371.09 /Each
Call for details!
Southbend SCX-10S-6 Description
The Southbend SCX-10S-6 convection steamer and kettle features a two-compartment steamer and a 6-gallon kettle. The steamer can accommodate (10) 12-inch by 20-inch food pans for steaming, reheating, stewing, and more. An integral sink with a swing nozzle can be used to fill the kettle or wash off product. The interior and exterior are constructed of rust-resistant stainless steel.
The steamer's doors are lined with stainless steel, and the stainless steel pan supports can be removed for cleaning. The steamer compartments have their own controls housed in stainless steel, including the 60-minute electric timer and illuminated on/off power switches.
For structural support, the Southbend SCX-10S-6 convection steamer and kettle are situated on top of a 44-inch-wide cabinet base. Its stainless steel construction is durable and efficient to clean. The doors are hinged and use magnetic latches to close securely. A steam coil boiler provides steam for the unit and is housed within the base. Controls for the boiler, including operating pressure control and automatic water level control, enable the user to ensure proper operation.
- (1) 6-gal. kettle
- 2 cooking compartments
- Accommodates (10) 12-in. x 20-in. pans
- Stainless steel interior and exterior are efficient to clean
- Removable inner door liners are made of stainless steel with a full-perimeter gasket seal
- 1-piece outer door liners are welded and made of stainless steel
- Positive lock and seal mechanism with a spring release secures the door
- Stainless steel pan supports can be removed for cleaning
- Stainless steel drip trough guides condensate into a connected drain
- Each compartment features separate controls
- Controls are housed in stainless steel
- On/off power switches light up
- 60-min. electric timer with an audible alarm
- Pilot lights indicate when the unit is ready and cooking
- 44-in.-wide cabinet base
- Stainless steel construction provides durability
- Hinged doors with magnetic latches
- 4 stainless steel legs with adjustable feet, 2 bullet feet on front and 2 flanged feet on the rear
- Faucet valve is deck mounted
- Integral sink comes with a swing nozzle
- Base houses steam coil boiler, which heats the unit
- Boiler operates between 9 and 11 PSI
- Controls for the boiler include: operating pressure control, pressure gauge, water gauge glass, safety high-limit control, automatic water level control, safety relief valve
- Split water line
- Cooking chamber: 14 in. W x 21 in. D x 17 in. H
- Overall: 44 in. W x 33 in. D x 68 1⁄2 in. H
- 120 V/50-60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend SCX-10S-6 within the 48 contiguous states.
From The Manufacturer
Convection Steamer/Kettle, steam coil, (2) compartment, (1) 6 gallon kettle, (5) 12" x 20" pan capacity per compartment, 44" cabinet base, automatic blowdown, 60 minute timer per compartment, deck mount faucet valve, swing nozzle & intregal sink, CSD-1 code package, stainless steel interior & exterior, 6" legs, adjustable bullet feet front, adjustable flanged feet rear, CSA, NSF
Southbend SCX-10S-6 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Also Known As | Crown SCX-10-6 |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 33 |
| Heat | Steam Coil |
| Height (in) | 68.5 |
| Hertz | 60 |
| Kettle Capacity | 6 gal |
| No. of Compartments | 2 |
| No. of Kettles | 1 |
| Pan Capacity | 10 or More Pans |
| Pan Type | Full Size Steam Pans |
| Phase | 1 |
| Product | Steamers |
| Product Type | Cooking Equipment |
| Steam Generator | Boiler-Based |
| Steamer Type | Convection |
| Voltage | 120 |
| Warranty | 1-year Limited Parts & Labor |
| Water Source | Plumbed |
| Width (in) | 44 |
| Weight | 1000.00 |
