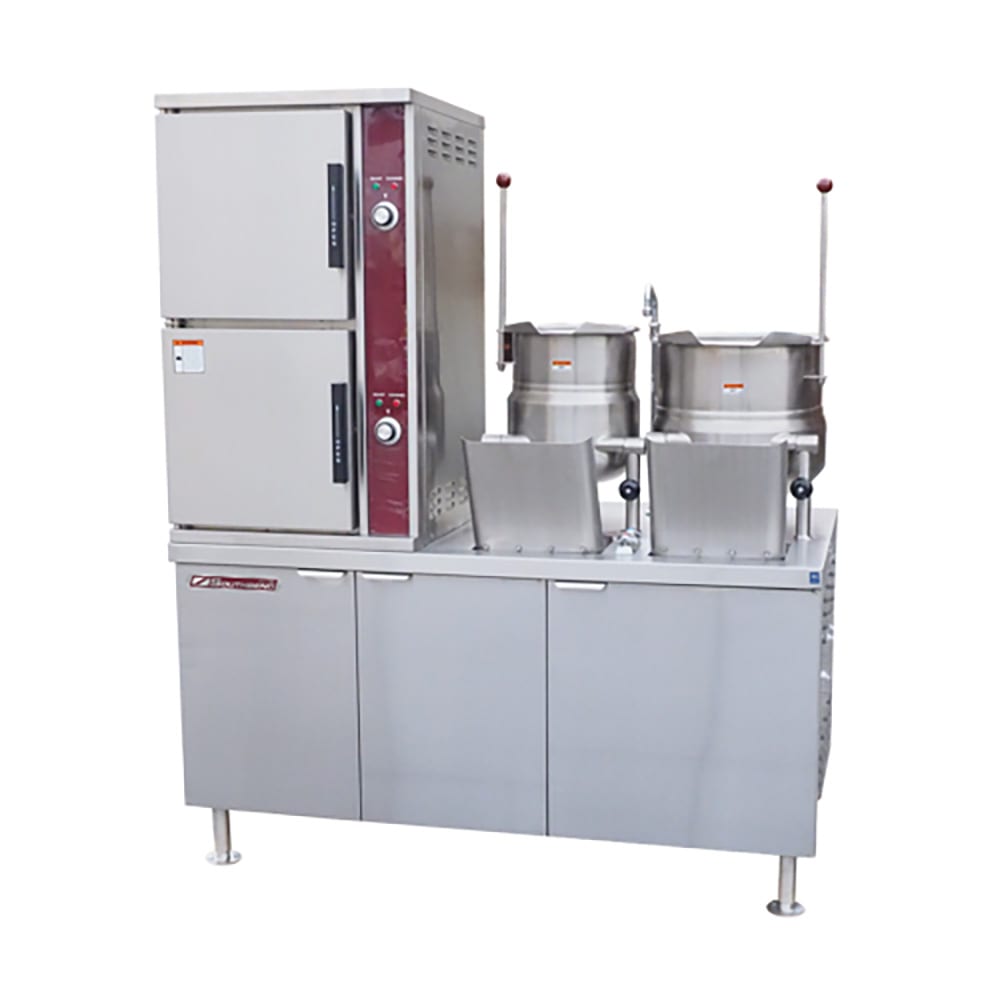

Southbend SCX-10S-6-10 (10) Pan / (2) Kettle Convection Steamer - Cabinet, Steam Coil
$74,767.19 /Each
Call for details!
Southbend SCX-10S-6-10 Description
The Southbend SCX-10S-6-10 convection steamer and kettles has a 60-inches-wide, stainless steel base for support. The 6-gallon kettle and 10-gallon kettle can be used to cook soups, stews, and sauces. The deck-mounted faucet valve and integral sink with swing nozzle can be used to fill a kettle and wash product before placement.
The stainless steel steamer has two compartments, each with a capacity for five 12-inch by 20-inch food pans, and the doors have a positive lock and seal mechanism to prevent tampering. The drip trough is connected to a drain, and condensate is gathered in the trough when the steamer's doors are opened.
The Southbend SCX-10S-6-10 10-pan convection steamer and kettle houses the steam coil boiler—which makes steaming possible—in its base. The unit automatically blows down the boiler to ensure smooth operation. The water line is split, and the boiler operates from 9 to 11 PSI. Boiler controls are included for monitoring and adjusting the pressure and water levels. The base is kept level by four stainless steel, adjustable legs that are fitted with front bullet feet and rear flanged feet.
- (1) 6-gal. kettle and (1) 10-gal. kettle
- 2 compartments
- Each compartment can hold (5) 12-in. x 20-in. pans
- Rust-resistant, 304 stainless steel exterior with a satin finish
- 1-piece, 316 stainless steel interior
- Doors equipped with removable, stainless steel inner liner with a gasket seal that runs the full perimeter
- Doors feature an outer liner made of 1-piece stainless steel
- Positive lock and seal mechanism with spring release on the doors
- Removable, stainless steel pan supports
- Drip trough made of stainless steel and connected to a drain
- Condensate is gathered in the trough when the doors are opened
- Stainless steel control housing with a removable side panel
- Independent controls for each compartment
- Illuminated on/off power switches
- Pilot ready and pilot cooking lights
- 60-min. timer is electric with an audible alarm
- 60-in.-wide base
- Rust-resistant, stainless steel construction Doors are hinged and equipped with a magnetic latch 2. Deck-mounted faucet valve
- Integral sink with a swing nozzle
- Automatic blowdown breaks down debris
- Steam coil boiler is contained in the base
- Boiler operates between 9 and 11 PSI
- Boiler controls include: water gauge glass, operating pressure control, pressure gauge, safety high-limit control, safety relief valve, automatic water level control
- Water line is split
- Adjustable, stainless steel legs with rear flanged feet and front bullet feet
- Cooking chamber: 14 in. W x 21 in. D x 17 in. H
- Overall: 60 in. W x 33 in. D x 68 1⁄2 in. H
- 120 V/50-60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend SCX-10S-6-10 within the 48 contiguous states.
From The Manufacturer
Convection Steamer/Kettle, steam coil, (2) compartment, (1) 6 gallon & (1) 10 gallon kettles, (5) 12" x 20" pan capacity per compartment, 60" cabinet base, automatic blowdown, 60 minute timer per compartment, deck mount faucet valve, swing nozzle & intregal sink, CSD-1 code package, stainless steel interior & exterior, 6" legs, adjustable bullet feet front, adjustable flanged feet rear, CSA, NSF
Southbend SCX-10S-6-10 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Also Known As | Crown SCX-10-6-10 |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 33 |
| Heat | Steam Coil |
| Height (in) | 68.5 |
| Hertz | 60 |
| Kettle Capacity | 6 & 10 gal |
| No. of Compartments | 2 |
| No. of Kettles | 2 |
| Pan Capacity | 10 or More Pans |
| Pan Type | Full Size Steam Pans |
| Phase | 1 |
| Product | Steamers |
| Product Type | Cooking Equipment |
| Steam Generator | Boiler-Based |
| Steamer Type | Convection |
| Voltage | 120 |
| Warranty | 1-year Limited Parts & Labor |
| Water Source | Plumbed |
| Width (in) | 60 |
| Weight | 1000.00 |
