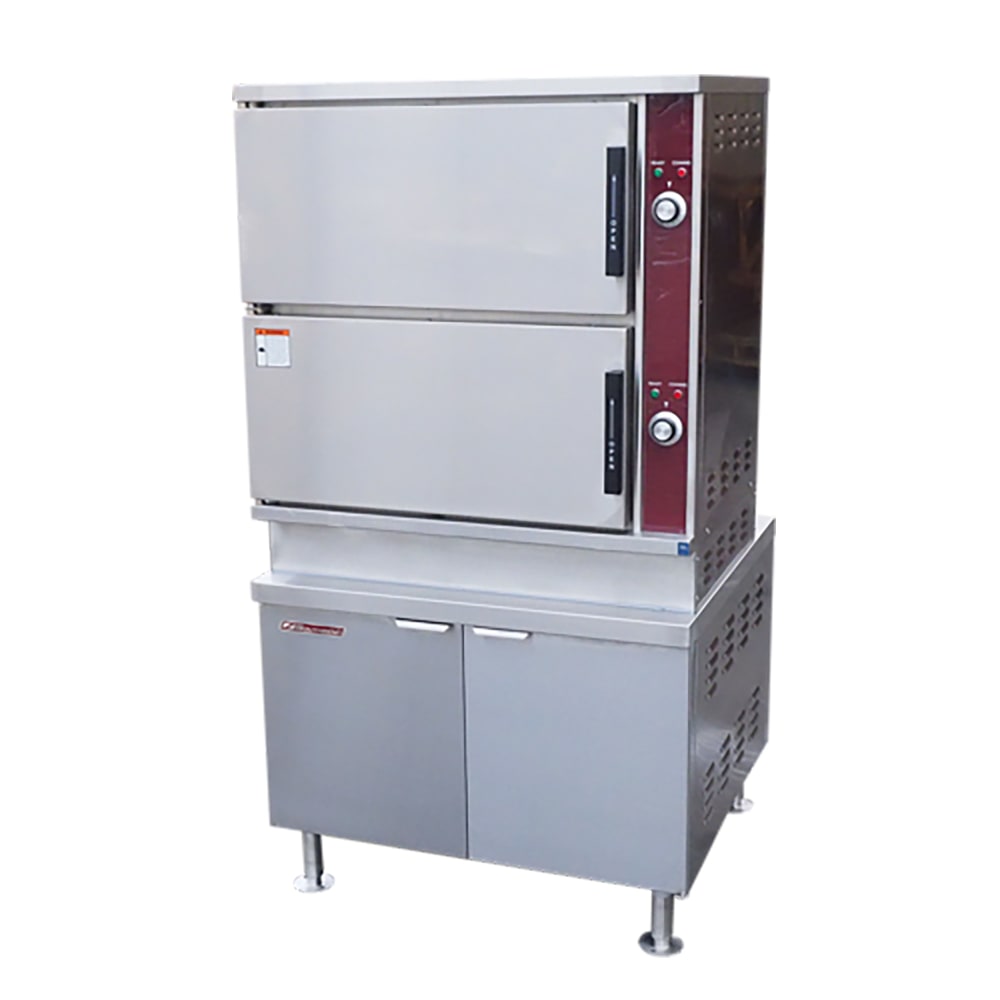

Southbend GCX-16-SB (16) Pan Convection Steamer - Cabinet, Liquid Propane
$45,260.78 /Each
Call for details!
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Southbend GCX-16-SB Description
The Southbend GCX-16-SB gas convection steamer accommodates eight 12-inch by 20-inch pans in each of its two compartments. Mounted on a 36-inch cabinet base, this unit is designed for high-volume commercial steaming. It features electronic ignition, a 60-minute timer per compartment, and an automatic blowdown function to maintain performance. Removable stainless steel pan supports and a stainless steel drip trough facilitate cleaning and condensate collection when the doors are opened.
The Southbend GCX-16-SB convection steamer is constructed with a stainless steel interior and exterior for durability in commercial environments. A water treatment system, split water lines, and CSD-1 boiler controls are included for optimized operation. The cabinet base features a reinforced counter, full-perimeter angle frame, and a gas boiler with integrated controls. It is supported by 6-inch stainless steel legs with adjustable flanged feet for stability and floor attachment.
- 2-compartment convection steamer accommodates (8) 12-in. x 20-in. pans each
- Stainless steel interior and exterior
- Electronic ignition system
- Automatic blowdown function
- Removable stainless steel pan supports
- Stainless steel drip trough for condensate collection
- CSD-1 boiler controls
- Water treatment system
- Split water lines
- 60-minute timer per compartment
- 6-in. stainless steel legs with adjustable flanged feet
- Gas connection: 3⁄4-in. IPS supply line required
- Generator cold water: 3⁄8-in. O.D. tubing at 25-50 PSI
- Condensate cold water: 3⁄8-in. O.D. tubing at 25-50 PSI
- Drain: 2-in. IPS piped to open floor drain
- 300,000 BTU
- 36 in. W x 33 in. D x 62 in. H
- 120V/60 Hz/1 ph
- LP gas powered
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend GCX-16-SB within the 48 contiguous states.
From The Manufacturer
Convection Steamer, gas, (2) compartment, (8) 12" x 20" pan capacity per compartment, 36" cabinet base, electronic ignition, automatic blowdown, 60 minute timer per compartment, removable pan supports & drip trough, CSD-1 code package, includes water filter system, stainless steel interior & exterior, 6" legs, adjustable flanged feet, 300,000 BTU, CSA, NSF
Southbend GCX-16-SB Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Also Known As | Crown GCX-16 |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 33 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 62 |
| No. of Compartments | 2 |
| Pan Capacity | 10 or More Pans |
| Pan Type | Full Size Steam Pans |
| Product | Steamers |
| Product Type | Cooking Equipment |
| Steam Generator | Boiler-Based |
| Steamer Type | Convection |
| Total BTU | 300000 |
| Warranty | 1-year Limited Parts & Labor |
| Water Source | Plumbed |
| Width (in) | 36 |
| Weight | 800.00 |
Important Prop 65 information for California residents.
