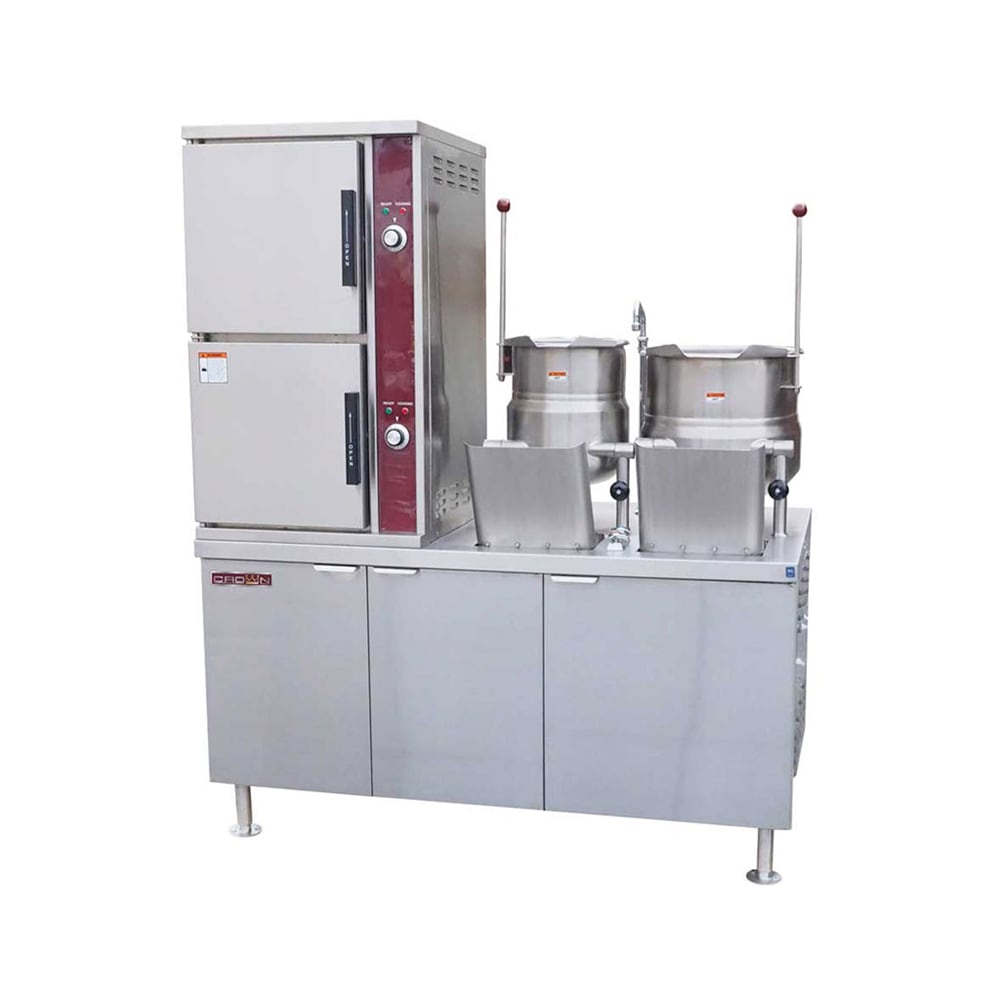

Crown Steam GCX-10-6-10 (10) Pan / (2) Kettle Convection Steamer - Cabinet, Natural Gas
$74,546.00 /Each
Web price, call us!
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Crown Steam GCX-10-6-10 Description
The Crown Steam GCX-10-6-10 convection steamer/kettle features a durable stainless steel construction for lasting commercial use. This unit combines two steaming compartments with an integrated kettle system, including one 6-gallon kettle, one 10-gallon kettle, and two compartments that each hold five 12-inch by 20-inch pans. Mounted on a 60-inch cabinet base, this gas-powered steamer includes electronic ignition, automatic blowdown, and a deck-mounted faucet valve with a swing nozzle and integral sink. Adjustable flanged feet provide stability for secure installation.
Crown Steam’s GCX-10-6-10 convection steamer/kettle is designed for efficiency, featuring doors with a full-perimeter gasket seal, a positive lock-and-seal mechanism, and a stainless steel drip trough to collect condensate. Steam flow halts automatically when the compartment door is opened and resumes once it is closed. This model includes a water treatment system, a split water line, and CSD-1 boiler controls for enhanced safety and performance.
Product Details
- (1) 6-gal. kettle
- (1) 10-gal. kettle
- 2 steaming compartments
- Holds (5) 12-in. x 20-in. pans
- Stainless steel construction
- Electronic ignition
- Deck-mounted faucet valve with swing nozzle and integral sink
- Automatic blowdown function
- 60-minute timer per compartment
- Removable pan supports and drain trough
- Steam flow halts when doors are opened
- Doors include full-perimeter gasket seal and condensate drip trough
- Boiler system with automatic water level control and pressure gauge
- Water treatment system
- Split water line and CSD-1 boiler controls
- Mounted on 6-in. stainless steel legs with adjustable flanged feet
Service Connections
- Gas inlet size: 3⁄4-in. IPS supply line required
- Gas connection: 3⁄4-in. IPS
- Steam take-off connection: 3⁄4-in. IPS (optional)
- Boiler feed water: 1⁄2-in. NPT at 25-50 psi
- Condensate cold water: 1⁄2-in. NPT at 25-50 psi
- Drain: 2-in. IPS piped to an open floor drain (no solid connection)
- Sink drain: 1 1⁄8-in. O.D. tubing
- Faucet hot water: 3⁄8-in. O.D. tubing at 25-50 psi
- Faucet cold water: 3⁄8-in. O.D. tubing at 25-50 psi
Dimensions & Utilities
- 60 in. W x 33 in. D x 72 1⁄2 in. H
- 120 V/60 Hz/1 ph
- Natural gas
*Free shipping on Crown Steam GCX-10-6-10 within the 48 contiguous states.
From The Manufacturer
Convection Steamer/Kettle, gas, (2) compartment, (1) 6 gallon & (1) 10 gallon kettles, (5) 12" x 20" pan capacity per compartment, 60" cabinet base, electronic ignition, automatic blowdown, 60 minute timer per compartment, deck mount faucet valve, swing nozzle & integral sink, CSD-1 code package, includes water filter system, stainless steel interior & exterior, 6" legs, adjustable flanged feet, CSA, NSF
*Image may not depict product color, inclusions or accessories.
Crown Steam GCX-10-6-10 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Crown Steam |
| Application | High Volume |
| Base | Cabinet |
| Controls | Digital |
| Depth (in) | 33 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 72.5 |
| Kettle Capacity | 6 & 10 gal |
| No. of Compartments | 2 |
| No. of Kettles | 2 |
| Pan Capacity | 10 or More Pans |
| Product | Steamer/Kettle Combos |
| Product Type | Cooking Equipment |
| Steam Generator | Boiler-Based |
| Steamer Type | Convection |
| Total BTU | 250000 |
| Warranty | 1-year Limited Parts & Labor |
| Water Source | Plumbed |
| Width (in) | 60 |
| Weight | 1020.00 |
