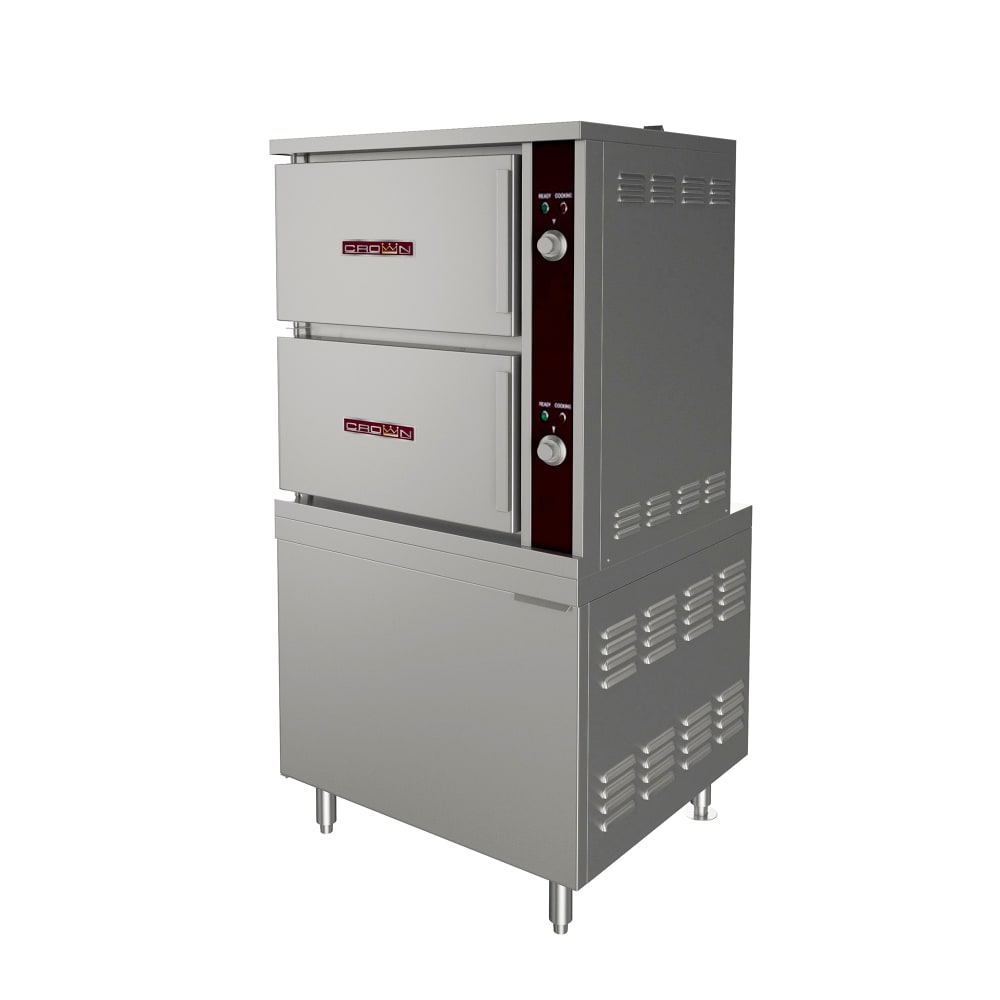

Crown Steam GCX-10-36 (10) Pan Convection Steamer - Cabinet, Natural Gas

Built for high-capacity steaming, the Crown Steam GCX-10-36 convection steamer features two compartments, each capable of holding five 12-inch by 20-inch pans. Mounted on a 36-inch cabinet base, this unit operates with a gas-fired steam boiler rated at 9-11 psi and is powered by natural gas. The steamer includes electronic ignition, a 60-minute timer per compartment, and automatic blowdown functionality for efficient operation. Its stainless steel construction enhances durability, while removable pan supports and a built-in drain trough simplify maintenance.

Designed for controlled and efficient steaming, the Crown Steam GCX-10-36 includes doors with a full-perimeter gasket seal, a positive lock-and-seal mechanism, and a stainless steel drip trough to collect condensate. Steam flow automatically halts when the compartment door is opened and resumes once it is closed. The boiler system features automatic water level control, a pressure gauge, a water gauge glass, and a safety relief valve. This model is equipped with a water treatment system, a split water line, and CSD-1 boiler controls for enhanced safety and performance.

Product Details

• 5-pan capacity per compartment
• 2 compartments
• Gas-fired steam boiler rated at 9-11 psi
• Electronic ignition
• Automatic blowdown function
• 60-minute timer per compartment
• Removable pan supports and drain trough
• Steam flow halts when doors are opened
• Doors include full-perimeter gasket seal and condensate drip trough
• Boiler system with automatic water level control and pressure gauge
• Water treatment system included
• Split water line and CSD-1 boiler controls
• Mounted on 6-in. stainless steel legs
• Adjustable flanged feet
• 250,000 total BTU

Service Connections

• Gas inlet size: ³⁄₄-in. (IPS supply line required)
• Steam return size: ³⁄₄-in.
• Boiler feed water: ¹⁄₂-in. NPT at 25-50 psi
• Condensate cold water: ¹⁄₂-in. NPT at 25-50 psi
• Drain: 2-in. IPS piped to an open floor drain (no solid connection)

Dimensions & Utilities

• 36 in. W x 33 in. D x 68¹/₅ in. H
• 115 V/60 Hz/1 ph
• Natural gas

*Free shipping on Crown Steam GCX-10-36 within the 48 contiguous states.

From The Manufacturer

Convection Steamer, gas, (2) compartment, (5) 12" x 20" pan capacity per compartment, 36" cabinet base, electronic ignition, automatic blowdown, 60 minute timer per compartment, removable pan supports & drain trough, CSD-1 code package, includes water filter system, stainless steel interior & exterior, 6" legs, adjustable flanged feet, NSF

*Image may not depict product color, inclusions or accessories.

Crown Steam GCX-10-36 Specifications

Spec Attribute	Spec Value
Manufacturer	Crown Steam
Application	High Volume
Base	Cabinet
Controls	Digital
Depth (in)	33
Gas Type	NG
Heat	Gas
Height (in)	68.5
No. of Compartments	2
Pan Capacity	10 or More Pans
Product	Steamers
Product Type	Cooking Equipment
Steam Generator	Boiler-Based
Steamer Type	Convection
Total BTU	250000
Warranty	1-year Limited Parts & Labor
Water Source	Plumbed
Width (in)	36
Weight	840.00
