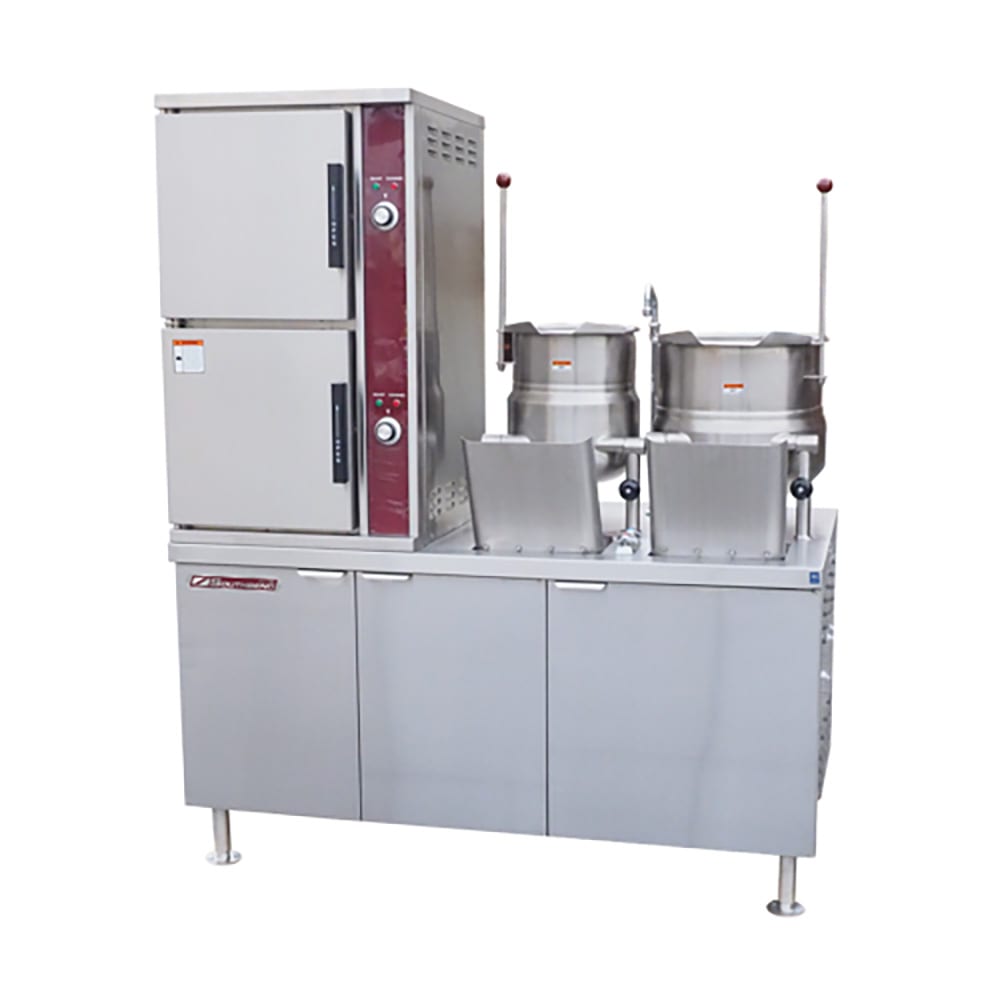

Southbend ECX-2S-6-6 (6) Pan / (2) Kettle Convection Steamer - Cabinet, 208v/3ph
$64,369.49 /Each
Call for details!
Southbend ECX-2S-6-6 Description
The Southbend ECX-2S-6-6 convection steamer and kettle combination is designed for high-volume cooking, featuring two compartments and two 6-gallon kettles. Each compartment accommodates three 12-inch by 20-inch pans, making it a versatile option for commercial kitchens. Built with a stainless steel interior and exterior, this unit is equipped with a deck-mounted faucet valve, swing nozzle, and an integral sink with a common drain. The digital controls include a 60-minute timer per compartment, and the automatic blowdown system enhances efficiency and maintenance.
The Southbend ECX-2S-6-6 steamer’s built-in water treatment system ensures longevity, while CSD-1 boiler controls and an automatic blowdown system improve safety and performance. The steamer is mounted on a 60-inch-wide cabinet base with an angled frame, reinforced boiler mountings, and a stainless steel exterior. Its six legs include adjustable bullet feet in the front and flanged feet in the rear for stability.
- 2 compartments with (2) 6-gal. kettles
- Each compartment holds (3) 12 in. x 20 in. pans
- Constructed of stainless steel
- Deck-mounted faucet valve and swing nozzle
- Integral sink with common drain
- Automatic blowdown system
- Removable stainless steel pan supports
- Stainless steel drip trough to collect condensate
- Water treatment system included
- Cabinet base with angled frame and reinforced boiler mountings
- 6-in. legs with adjustable bullet feet and flanged feet
- Digital controls for precision cooking
- 60-min. timer per compartment
- 60 in. W x 33 in. D x 66 1⁄8 in. H
- 116.6 A, 42 kW
- 208 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend ECX-2S-6-6 within the 48 contiguous states.
From The Manufacturer
Convection Steamer/Kettle, electric, (2) compartment, (2) 6 gallon kettles, (3) 12" x 20" pan capacity per compartment, 60" cabinet base, automatic blowdown, 60 minute timer per compartment, deck mount faucet valve, swing nozzle & intregal sink, CSD-1 code package, includes water filter system, stainless steel interior & exterior, 6" legs, adjustable bullet feet front, adjustable flanged feet rear, 42.0 kW, CSA, NSF
Southbend ECX-2S-6-6 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Also Known As | Crown ECX-2-6-6 |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 33 |
| Heat | Electric |
| Height (in) | 66.13 |
| Hertz | 60 |
| Kettle Capacity | 6 gal |
| kW | 42 |
| No. of Compartments | 2 |
| No. of Kettles | 2 |
| Pan Capacity | 3 to 9 Pans |
| Pan Type | Full Size Steam Pans |
| Phase | 3 |
| Product | Steamers |
| Product Type | Cooking Equipment |
| Steam Generator | Boiler-Based |
| Steamer Type | Convection |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Water Source | Plumbed |
| Width (in) | 60 |
| Weight | 840.00 |
