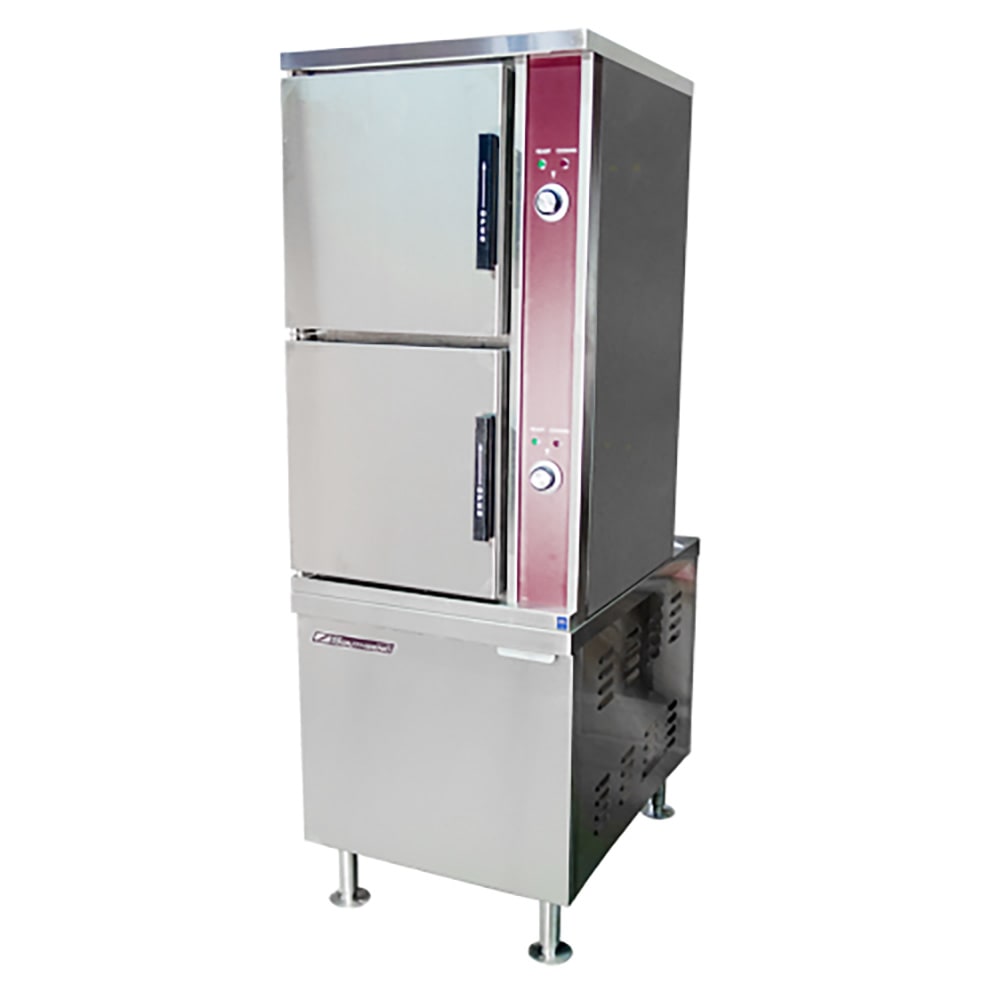

Southbend ECX-2S-36 (6) Pan Convection Steamer - Cabinet, 208v/3ph
$29,946.27 /Each
Call for details!
Southbend ECX-2S-36 Description
The Southbend ECX-2S-36 convection steamer features two independent compartments, each capable of holding three 12-inch by 20-inch pans, providing efficient steaming capabilities. Constructed with a durable type 304 stainless steel exterior and a fully welded type 316 stainless steel cooking chamber, this unit ensures long-lasting performance and resistance to corrosion. The cooking compartments are fully insulated for optimal heat retention, and removable stainless steel pan supports facilitate easy cleaning.
The Southbend ECX-2S-36 steamer includes a digital control system with a 60-minute mechanical timer per compartment, complete with ready and cooking pilot lights. An automatic blowdown function reduces sediment buildup, and the included water treatment system enhances boiler longevity. The doors feature a removable inner liner, full perimeter gasket seal, and a positive locking mechanism, while a stainless steel drip trough collects condensate when the doors are opened.
- 2 independent cooking compartments
- (3) 12 in. x 20 in. pan capacity per compartment
- Removable pan supports
- Constructed of type 304 stainless steel
- Fully insulated cooking chambers
- Stainless steel drip trough
- 6-in. stainless steel legs with adjustable bullet feet and adjustable flanged feet
- Automatic blowdown function
- Water treatment system included
- Split water line
- 60-min. timer per compartment with ready and cooking indicators
- 36 in. W x 33 in. D x 55 1⁄2 in. H
- 66.6 A, 24 kW
- 208 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend ECX-2S-36 within the 48 contiguous states.
From The Manufacturer
Convection Steamer, electric, (2) compartment, (3) 12" x 20" pan capacity per compartment, 36" cabinet base, automatic blowdown, 60 minute timer per compartment, removable pan supports & drip trough, CSD-1 code package, includes water filter system, stainless steel interior & exterior, 6" legs, adjustable bullet feet front, adjustable flanged feet rear, 24.0 kW, CSA, NSF
Southbend ECX-2S-36 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Also Known As | Crown ECX-2-36 |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 33 |
| Heat | Electric |
| Height (in) | 55.5 |
| Hertz | 60 |
| kW | 24 |
| No. of Compartments | 2 |
| Pan Capacity | 3 to 9 Pans |
| Pan Type | Full Size Steam Pans |
| Phase | 3 |
| Product | Steamers |
| Product Type | Cooking Equipment |
| Steam Generator | Boiler-Based |
| Steamer Type | Convection |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Water Source | Plumbed |
| Width (in) | 36 |
| Weight | 650.00 |
