Southbend ECX-10S-6 (10) Pan / (1) Kettle Convection Steamer - Cabinet, 208v/3ph
$49,232.97 /Each
Call for details!
Southbend ECX-10S-6 Description

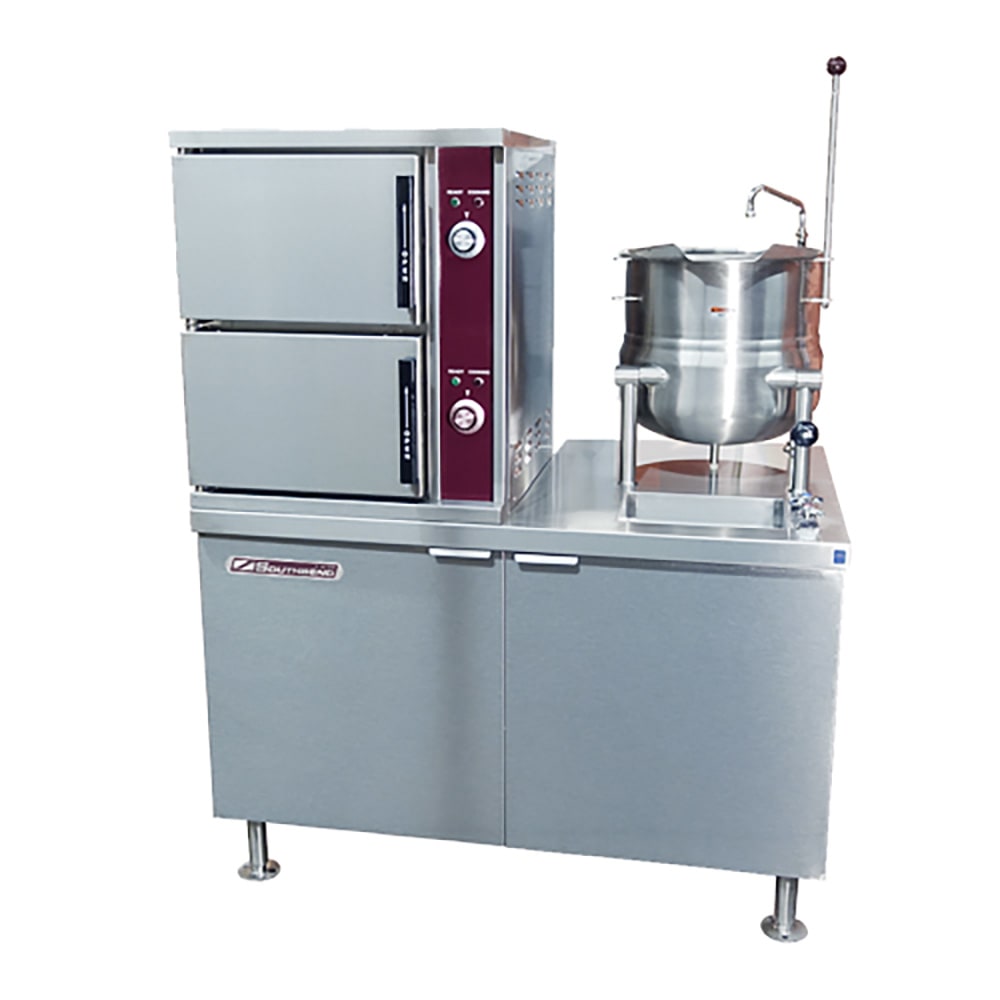

The Southbend ECX-10S-6 electric convection steamer/kettle features a 44-inch cabinet base for stability and storage. A 6-gallon kettle enhances cooking versatility, while a deck-mounted faucet valve with a swing nozzle and integral sink supports seamless workflow. The integrated water filter system maintains efficiency, and the automatic blowdown system simplifies maintenance.
Measuring 44 inches wide by 33 inches deep by 72 1⁄2 inches high, the Southbend ECX-10S-6 includes two compartments, each accommodating five 12-inch by 20-inch pans. Constructed of stainless steel for durability, it stands on 6-inch legs with adjustable bullet feet in the front and flanged feet in the rear to ensure secure placement.
- Stainless steel construction
- 2 compartments with a 5-pan total capacity per compartment (12 in. x 20 in. each)
- 6-gal. kettle
- 60-minute timer per compartment
- Automatic blowdown
- Deck-mounted faucet valve with swing nozzle and integral sink
- Water filter system
- 44-in. cabinet base
- 6-in. legs with adjustable bullet feet (front) and flanged feet (rear)
- 44 in. W x 33 in. D x 72 1⁄2 in. H
- 36,000 W
- 208 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend ECX-10S-6 within the 48 contiguous states.
From The Manufacturer
Convection Steamer/Kettle, electric, (2) compartment, (1) 6 gallon kettle, (5) 12" x 20" pan capacity per compartment, 44" cabinet base, automatic blowdown, 60 minute timer per compartment, deck mount faucet valve, swing nozzle & intregal sink, CSD-1 code package, includes water filter system, stainless steel interior & exterior, 6" legs, adjustable bullet feet front, adjustable flanged feet rear, 36.0 kW, CSA, NSF
Southbend ECX-10S-6 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Also Known As | Crown ECX-10-6 |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 33 |
| Heat | Electric |
| Height (in) | 72.5 |
| Hertz | 60 |
| Kettle Capacity | 6 gal |
| kW | 36 |
| No. of Compartments | 2 |
| No. of Kettles | 1 |
| Pan Capacity | 10 or More Pans |
| Pan Type | Full Size Steam Pans |
| Phase | 3 |
| Product | Steamers |
| Product Type | Cooking Equipment |
| Steam Generator | Boiler-Based |
| Steamer Type | Convection |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Water Source | Plumbed |
| Width (in) | 44 |
| Weight | 900.00 |
