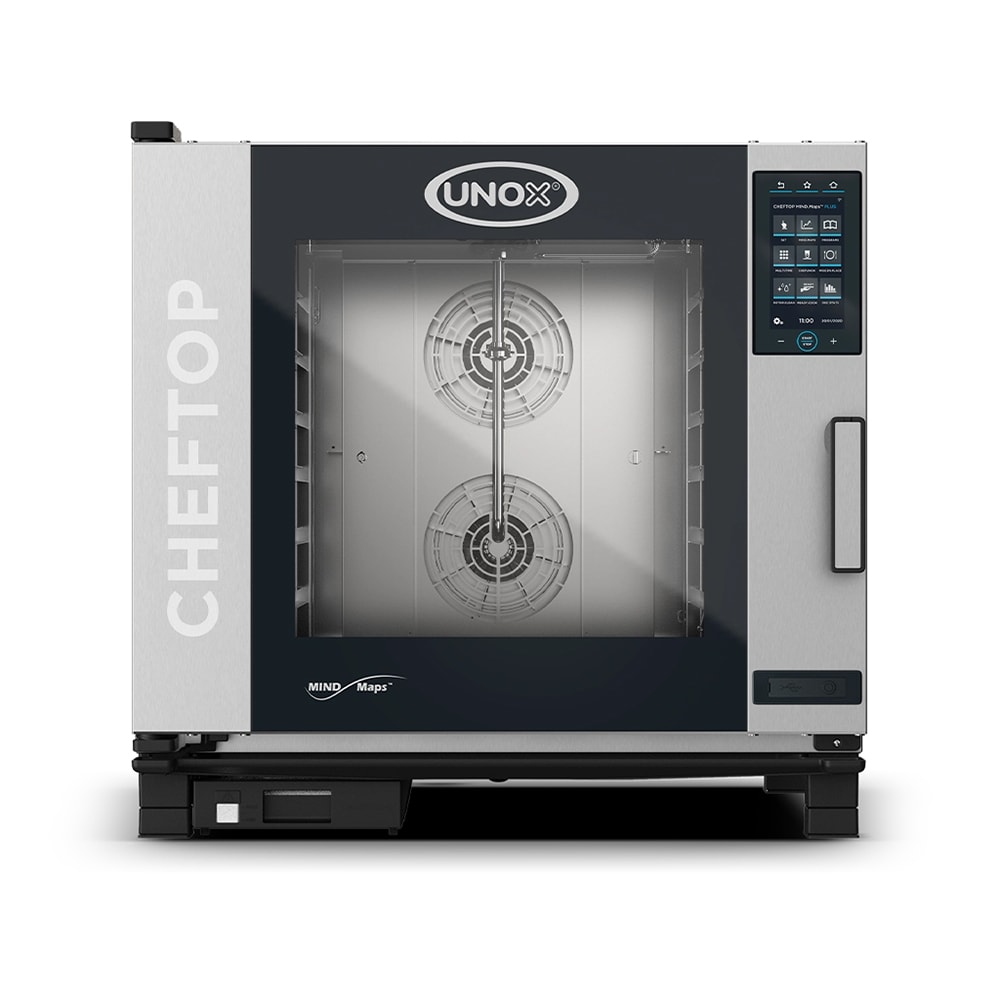

Unox XAVC-06FS-GPRM CHEFTOP MIND.Maps™ Full Size Combi Oven - Boilerless, Convertible
Typically ships in 10 - 12 weeks
$20,464.03 /Each
Selected Hinge: Left Hinge
Unox XAVC-06FS-GPRM Description
To provide versatile food preparation and consistent product results, the Unox XAVC-06FS-GPRM CHEFTOP MIND.Maps™ Plus combi oven combines advanced cooking features with intuitive control programs. This gas countertop unit supports a wide temperature range of 86 to 500 degrees Fahrenheit, making it ideal for baking, steaming, sous vide, and roasting. The 9 1⁄2-inch MIND.Maps touchscreen enables operators to draw custom cooking processes, store up to 1,000 programmable recipes, and manage up to 10 simultaneous tasks with MULTI.TIME technology. For precise humidity and steam cooking adjustments, this unit features CLIMA.Control and STEAM.Maxi™ preparation functions. The unit's boilerless steam generator ensures consistent steam production, while Wi-Fi and USB connectivity simplify HACCP compliance and data transfer.
With dimensions of 33 7⁄8 inches wide by 38 1⁄16 inches deep by 33 1⁄8 inches high, the Unox XAVC-06FS-GPRM CHEFTOP MIND.Maps Plus combi oven is compact enough to fit into kitchens with limited space. The cooking chamber is constructed of high-resistance AISI 316L stainless steel with rounded edges for durability and simplified cleaning, while the triple-glass door improves energy efficiency and operator safety. Designed for reliability, the oven features a drip collection system integrated into the door and tray supports with an anti-tip system for safe operation. For added convenience, the ROTOR.Klean™ system automates cleaning between shifts, reducing staff maintenance time and keeping the oven ready for continuous use.
- CHEFTOP MIND.Maps series
- Half-size
- AISI 316L stainless steel chamber
- Compact countertop design
- Boilerless design
- Holds 6 full-size sheet pans or 12 hotel pans
- Rounded edges
- Triple-glass door, right-to-left opening
- LED chamber lighting
- Tray supports with anti-tip system
- Drip collection system
- 4-speed fan system
- Temperature holding range: 86-500 degrees F
- Integrated Wi-Fi
- Wi-Fi and USB data: download/upload HACCP data and programs
- 9 1⁄2-in. MIND.Maps touch control panel
- Up to 9 manual cooking steps
- CHEFUNOX automated recipes
- MULTI.TIME cooking management
- MISE.EN.PLACE synchronization
- READY.COOK quick-start settings
- SMART.Preheating
- SENSE.Klean cleaning suggestions
- Humidity adjustable with CLIMA.Control
- ADAPTIVE.Cooking™ technology
- CLIMALUX™ humidity control
- Saturated steam with STEAM.Maxi
- Dry chamber with DRY.Maxi™
- Auto-reversing fans with AIR.Maxi™
- Delta T cooking supported with core probe
- SOUS-VIDE compatible
- ROTOR.Klean automatic washing system
- Special washing behind fan guard
- DET&Rinse™ detergent container
- Overall dimensions: 33 7⁄8 in. W x 38 1⁄16 in. D x 33 1⁄8 in. H
- 3⁄4-in. MPT water line connection
- 81,892 BTU/hr.
- sup>3⁄4-in. female NPT gas hook-up
- 120 V/60 Hz/1 ph, NEMA 5-20P
- 8 A, 1 kW
*Image may not depict product color, inclusions or accessories.
*Free shipping on Unox XAVC-06FS-GPRM within the 48 contiguous states.
From The Manufacturer
CHEFTOP MIND.Maps™ Plus Combi Oven/Steam Oven is a gas countertop oven that combines heat, hot air flow and steam. (6) 18" x 26" full size sheet or (12) hotel size pan capacity, MIND.Maps™ technology, programmable menu, 2-11/16" shelf spacing, glass door, right-to-left door opening, stainless steel interior & exterior, WIFI/USB for data transfer to HACCP software, 1kW, 8 amps, 120v/60/1-ph, cETLus, NSF, ENERGY STAR® (cooking chamber built from 316L stainless steel) (For safety and reliability purposes, CHEFTOP MIND.Maps™ Gas ovens (Free Standing and Countertop Models) must be equipped with only UNOX brand casters with safety chains),Gas lines is not included with the oven and must be purchased separately. Ovens come standard with rack slides for sheet pans.
Unox XAVC-06FS-GPRM Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Unox |
| Controls | Touch Screen |
| Depth (in) | 38.06 |
| Gas Type | Convertible |
| Gas Type | LP |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 33.13 |
| Hinge Configuration | Left |
| kW | 1 |
| NEMA | 5-20P |
| No. of Compartments | Single |
| Pan Type | Full Size Sheet Pans |
| Pan Type | Full Size Steam Pans |
| Pan Type | Half Size Sheet Pans |
| Pan Type | Half Size Steam Pans |
| Product | Combi Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | CHEFTOP MIND.Maps™ |
| Sheet Pan Capacity | 6 Full |
| Size | Full Size |
| Special Features | HACCP Record Keeping |
| Special Features | USB Compatible |
| Steam Generator | Boilerless |
| Steam Pan Capacity | 12 Full |
| Steam Source | Water Reservoir |
| Warranty | 2-year Parts; 1-year Labor |
| Width (in) | 33.88 |
| Weight | 287.00 |
