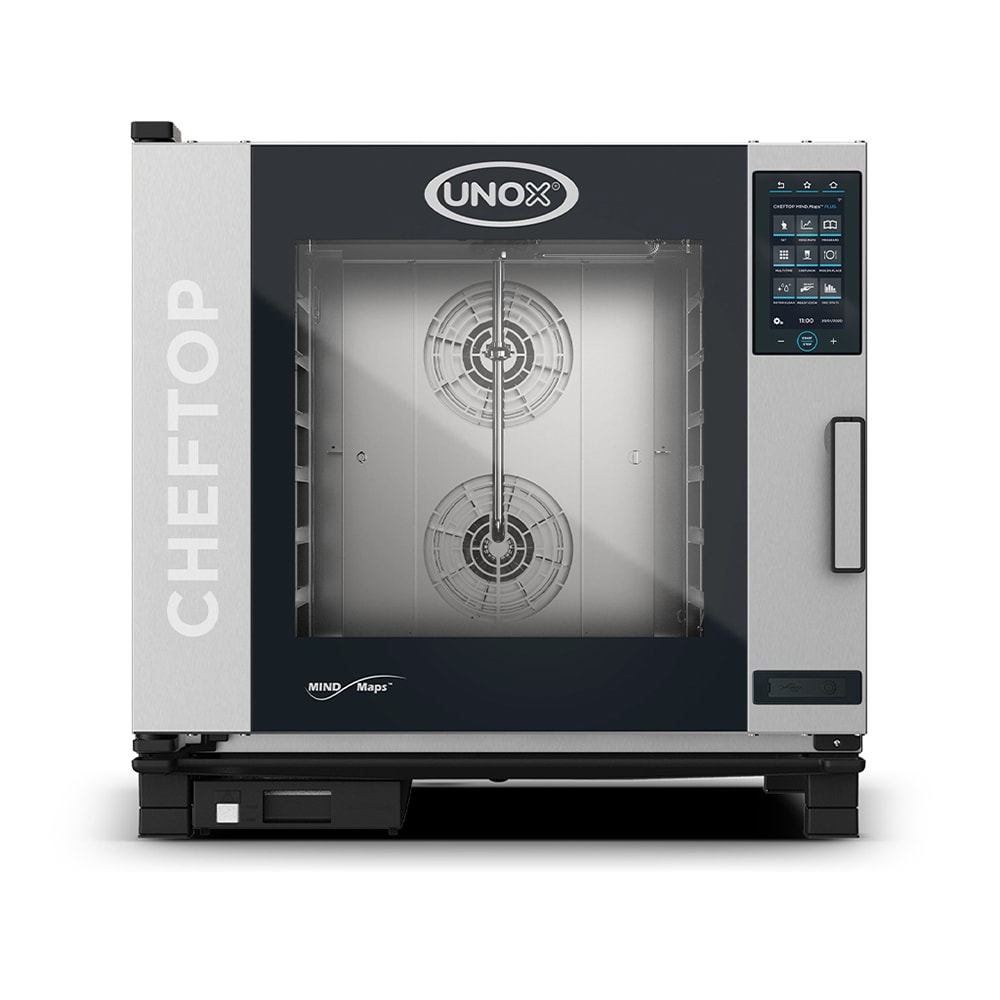

Unox XAVC-06FS-EPRM CHEFTOP MIND.Maps™ Full Size Combi Oven - Boilerless, 240v/3ph
$17,773.54 /Each
Selected Hinge: Left Hinge
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 1 Phase |
Unox XAVC-06FS-EPRM Description
The Unox XAVC-06FS-EPRM CHEFTOP MIND.Maps™ Plus oven is designed for professional kitchens needing a versatile and compact cooking solution. Measuring 33 7⁄8 inches wide 38 1⁄16 inches deep by 33 1⁄8 inches high, it fits seamlessly into small spaces while accommodating up to six full-size sheet pans or 12 hotel pans with 2 11⁄16-inch shelf spacing. Built of high-resistance AISI 316L stainless steel, the cooking chamber ensures durability and hygiene, while the triple-glass door improves energy efficiency and operator safety. This unit is ideal for preparing diverse dishes in catering, bakeries, or restaurants, allowing chefs to bake, roast, or steam with consistent, repeatable results.
The Unox XAVC-06FS-EPRM CHEFTOP MIND.Maps Plus combi oven is an electric countertop unit that supports a wide range of cooking methods. With a temperature range of 86 to 500 degrees Fahrenheit, this oven provides consistent steam production, enabling precision cooking for steaming, sous vide, and baking. The 9 1⁄2-inch MIND.Maps touchscreen simplifies operation with customizable cooking processes, programmable menus, and MULTI.TIME technology, allowing operators to manage up to 10 simultaneous tasks. CLIMA.Control and STEAM.Maxi™ provide precise humidity and steam adjustments, while DRY.Maxi™ extracts moisture for crispy, golden results, making this oven ideal for a variety of recipes, from delicate desserts to roasted meats.
- CHEFTOP MIND.Maps series
- AISI 316L stainless steel chamber
- Designed for countertop installation
- Holds 6 full-size sheet pans or 12 hotel pans
- Rounded edges
- Triple-glass door, right-to-left opening
- LED chamber lighting
- Tray supports with anti-tip system
- Drip collection system
- 4-speed fan system
- Temperature holding range: 86-500 degrees F
- Integrated Wi-Fi
- Wi-Fi and USB data: download/upload HACCP data and programs
- 9 1⁄2-in. MIND.Maps touch control panel
- Up to 9 manual cooking steps
- CHEFUNOX automated recipes
- MULTI.TIME cooking management
- MISE.EN.PLACE synchronization
- READY.COOK quick-start settings
- SMART.Preheating
- SENSE.Klean cleaning suggestions
- Humidity adjustable with CLIMA.Control
- ADAPTIVE.Cooking™ technology
- CLIMALUX™ humidity control
- Saturated steam with STEAM.Maxi
- Dry chamber with DRY.Maxi
- Auto-reversing fans with AIR.Maxi™
- Delta T cooking supported with core probe
- SOUS-VIDE compatible
- ROTOR.Klean™ automatic washing system
- Special washing behind fan guard
- DET&Rinse™ detergent container
- Overall dimensions: 33 7⁄8 in. W x 38 1⁄16 in. D x 33 1⁄8 in. H
- 3⁄4-in. MPT water line connection
- 240 V/60 Hz/3 ph, (plug not included)
- 47 A, 19 kW
- 60 A required breaker size
- Power cable requirements: 4 x AWG 6
*Image may not depict product color, inclusions or accessories.
*Unox XAVC-06FS-EPRM is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
CHEFTOP MIND.Maps™ Plus Combi Oven/Steam Oven, electric, countertop, combines heat, hot air flow, steam, (6) 18" x 26" full size sheet or (12) hotel size pan capacity, MIND.Maps™ technology, programmable menu, 2-11/16" shelf spacing, glass door, right-to-left door opening, stainless steel interior & exterior, WIFI/USB for data transfer to HACCP software, 19kW, 47 amps, cMETus, NSF, ENERGY STAR® (cooking chamber built from 316L stainless steel), water line to connect from oven to ¾” npt water connection within three feet of water placement is included, ovens come standard with rack slides for sheet pans
Unox XAVC-06FS-EPRM Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Unox |
| Controls | Touch Screen |
| Depth (in) | 38.06 |
| Heat | Electric |
| Height (in) | 33.13 |
| Hertz | 50/60 |
| Hinge Configuration | Left |
| kW | 19 |
| No. of Compartments | Single |
| Pan Type | Full Size Sheet Pans |
| Pan Type | Full Size Steam Pans |
| Pan Type | Half Size Sheet Pans |
| Pan Type | Half Size Steam Pans |
| Phase | 3 |
| Product | Combi Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | CHEFTOP MIND.Maps™ |
| Sheet Pan Capacity | 6 Full |
| Size | Full Size |
| Special Features | HACCP Record Keeping |
| Special Features | USB Compatible |
| Steam Generator | Boilerless |
| Steam Pan Capacity | 12 Full |
| Steam Source | Water Reservoir |
| Voltage | 240 |
| Warranty | 2-year Parts; 1-year Labor |
| Width (in) | 33.88 |
| Weight | 247.00 |
