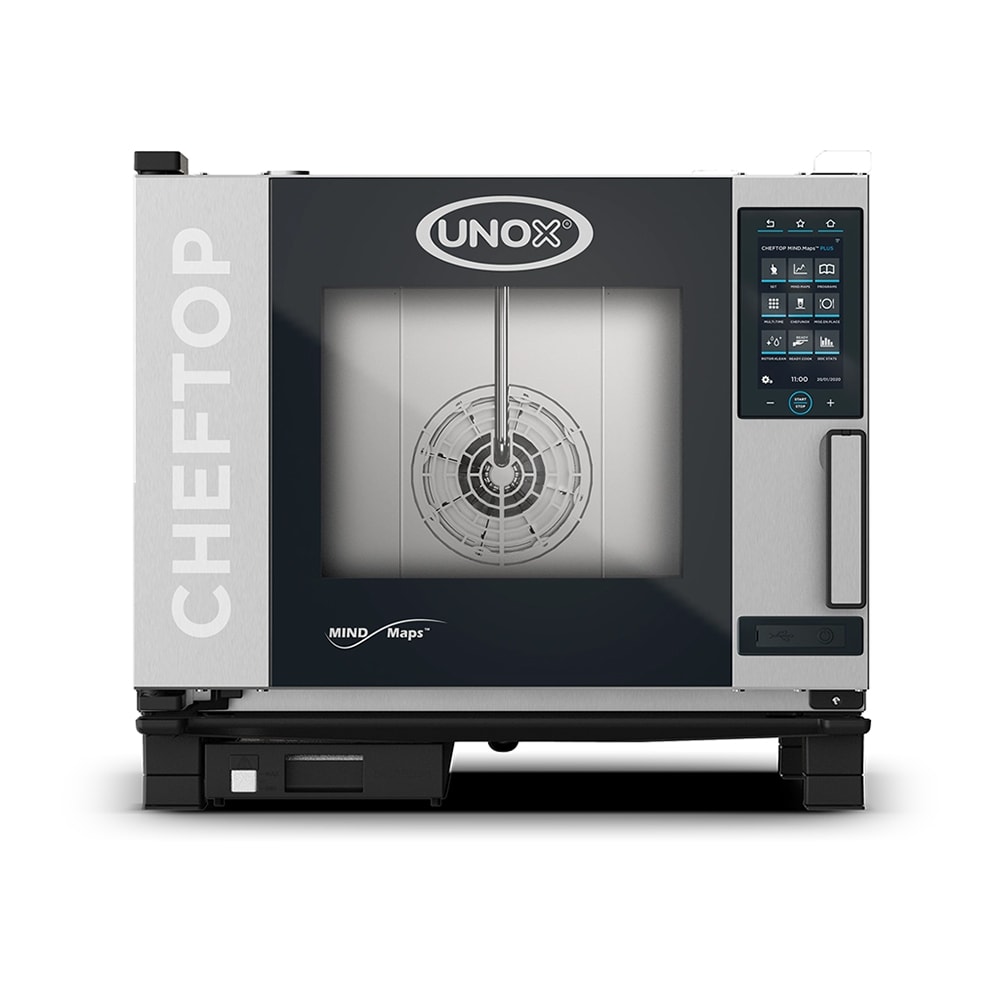

Unox XAVC-0511-GPRM CHEFTOP MIND.Maps™ Half Size Combi Oven - Boiler Based, Convertible

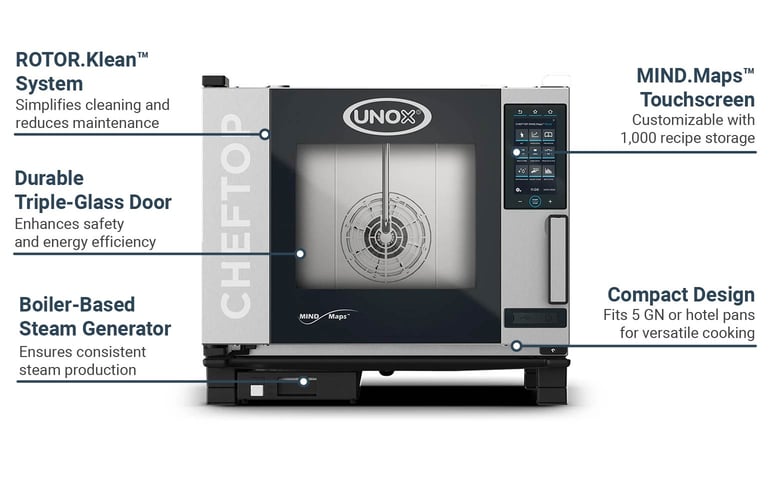

The Unox XAVC-0511-GPRM CHEFTOP MIND.Maps™ Plus combi oven offers efficient and versatile cooking capabilities for professional kitchens. This gas countertop unit accommodates five 1/1 GN pans or five 12-inch by 20-inch hotel pans, making it ideal for preparing a variety of dishes in a compact space. Its boiler-based steam generator ensures consistent steam production, while advanced features such as STEAM.Maxi™ and DRY.Maxi™ provide precise control over moisture levels, ensuring optimal results for everything from baked goods to steamed vegetables. The MIND.Maps touchscreen allows operators to customize cooking processes, manage up to 10 tasks simultaneously with MULTI.TIME, and store 1,000 recipes for efficient food production during busy shifts.

Built for durability and straightforward maintenance, the Unox XAVC-0511-GPRM CHEFTOP MIND.Maps Plus combi oven features a high-resistance AISI 316L stainless steel chamber with rounded edges for hygiene and simplified cleaning. The triple-glass door enhances safety and energy efficiency, while LED chamber lighting improves visibility during cooking. Cleaning is streamlined with the ROTOR.Klean™ automatic washing system and integrated DET&Rinse™ detergent container, reducing staff maintenance time. Additional features such as anti-tip tray supports, an integrated drip collection system, and Wi-Fi/USB connectivity for HACCP data transfer make this oven a practical and reliable choice for commercial kitchens.

Product Details

• CHEFTOP MIND.Maps series
• AISI 316L stainless steel interior and exterior
• Half-size configuration
• Compact countertop design
• Boiler-based steam generator with water reservoir
• Holds (5) 1/1 GN pans or (5) 12 in. x20 in. hotel pans
• Rounded edges
• Triple-glass door, right-to-left opening
• LED chamber lighting
• Tray supports with anti-tip system
• Drip collection system
• 4-speed fan system
• Temperature holding range: 86-500 degrees F

User Interface

• Integrated Wi-Fi
• Wi-Fi and USB data: download/upload HACCP data and programs
• 9¹/₂-in. MIND.Maps touch control panel
• Up to 9 manual cooking steps
• CHEFUNOX automated recipes
• MULTI.TIME cooking management
• MISE.EN.PLACE synchronization
• READY.COOK quick-start settings
• SMART.Preheating
• SENSE.Klean cleaning suggestions
• Humidity adjustable with CLIMA.Control
• ADAPTIVE.Cooking™ technology
• CLIMALUX™ humidity control
• Saturated steam with STEAM.Maxi
• Dry chamber with DRY.Maxi
• Auto-reversing fans with AIR.Maxi™
• Delta T cooking supported with core probe
• SOUS-VIDE compatible

Cleaning Features

• ROTOR.Klean automatic washing system
• Special washing behind fan guard
• DET&Rinse detergent container

Dimensions & Utilities

• Overall dimensions: 29¹/₂ in. W x 30¹³/₁₆ in. D x 26⁹/₁₆ in. H
• ¾-in. MPT water line connection
• Nominal gas power: 51,183 BTU/hr.
• ³/₄-in. female NPT gas hook-up
• 120 V/60 Hz/1 ph, NEMA 5-15P
• 5 A, 0.6 kW

Product Features

*Unox XAVC-0511-GPRM is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

CHEFTOP MIND.Maps™ Plus Combi Oven/Steam Oven is a gas countertop oven that combines heat, hot air flow and steam. (5) 1/1 GN or (5) 12"x20" hotel size pan capacity, MIND.Maps™ technology, programmable menu, 2-11/16" shelf spacing, glass door, right-to-left door opening, stainless steel interior & exterior, Gas lines is not included with the oven and must be purchased separately, WIFI/USB for data transfer to HACCP software, 0.6kW, 5 amps, 120v/60/1-ph, cord, NEMA 5-15P, cETLus, NSF, ENERGY STAR® (For safety and reliability purposes, CHEFTOP MIND.Maps™ Gas ovens (Free Standing and Countertop Models) must be equipped with only UNOX brand casters with safety chains)

*Image may not depict product color, inclusions or accessories.

2-year Parts; 1-year Labor
