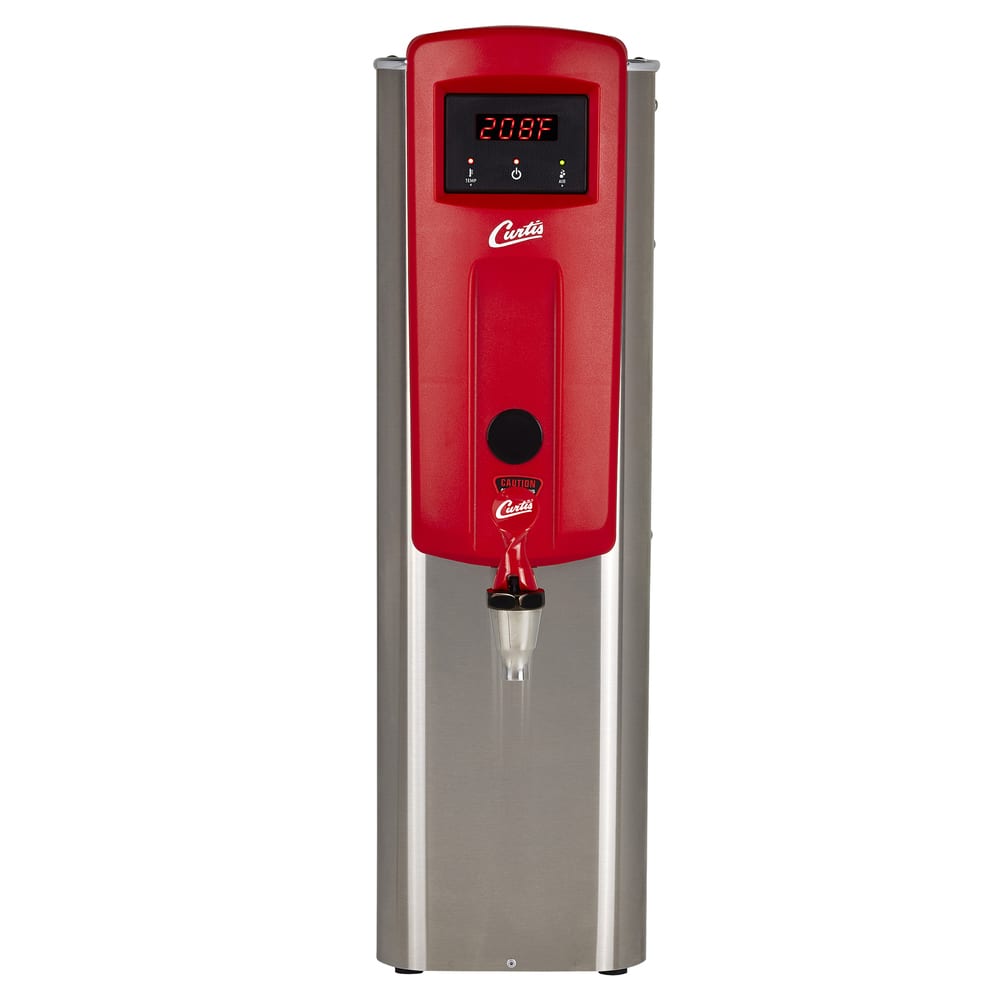

Curtis WB5NL Low-volume Plumbed Hot Water Dispenser - 5 gal., 120-220v/1ph
Typically ships in 9 - 13 Business Days
Retail Price: $1,735.50
$1,084.69 /Each
Similar Products in Stock Now

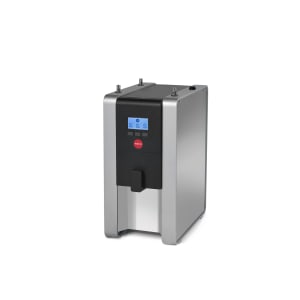

Marco Beverage Systems 1000880US
MIX Undercounter Low Volume Plumbed Hot Water Dispenser - 0.8 gal, 220v
Marco Beverage Systems FRIIAHCS
Countertop Hot, Cold, & Sparkling Water Dispenser - Cup Fill, Push Button, 110v

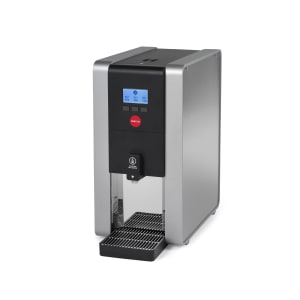

Marco Beverage Systems 1001870US
MIX Countertop Low Volume Plumbed Hot Water Dispenser - 0.8 gal, 110v

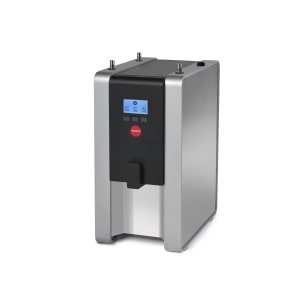

Marco Beverage Systems 1001880US
MIX Undercounter Low Volume Plumbed Hot Water Dispenser - 0.8 gal, 110v

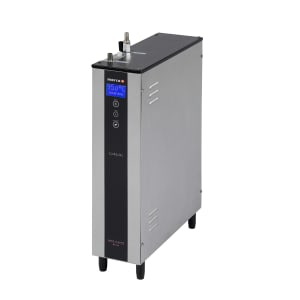

Marco Beverage Systems 1000750US
Ecosmart Undercounter Low Volume Plumbed Hot Water Dispenser - 1 gal, 220v

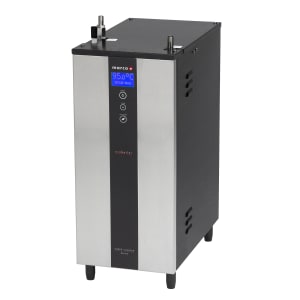

Marco Beverage Systems 1000752US
Ecosmart Undercounter Low Volume Plumbed Hot Water Dispenser - 1 gal, 220v

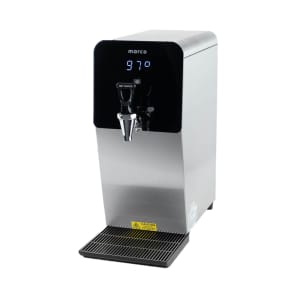

Marco Beverage Systems 1000762US
MT Series Countertop Low Volume Plumbed Hot Water Dispenser - 1 gal, 220v
Curtis WB5NL Description
Made for low-volume operations in the front and back of house, the Curtis WB5NL hot water dispenser can provide water for tea, coffee, and soup or be used for cleaning jobs. In an hour, the 5-gallon tank produces 4.5 to 15 gallons of hot water, and the automatic refill system keeps the tank full. The unit has a digital control system, so users can adjust the temperature or the level of aeration. Aerating the water enhances tea extraction and the flavor of food when it is added. Operators can monitor the temperature level on the straightforward LED display. Diagnostics sense the conditions in this Curtis WB5NL plumbed dispenser to ensure it is running properly, and if there is an issue, the components are accessible from the side.
Product Details
- 5-gal. capacity
- Produces 4.5-15 gal. each hr.
- Automatic refilling system provides on-demand hot water
- 9-in. faucet height
- Thermostatic controls
- Temperature range: 140-210 degrees F
- Agitator pump provides continuous aeration that enhances food flavor and tea extraction
- Digital controller with large LED temperature display
- On-board diagnostic system continuously senses water temperature and level
- Components are side accessible and serviceable
- Stainless steel exterior with red accents
Product Features
Dimensions & Utilities
- 7.5 in. W x 24.38 in. D x 25.75 in. H
- 12.5/22.7 A, 1500/5000 W
- 120, 220 V/50-60 Hz/1 ph, includes cord and plug
*Curtis WB5NL is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
Hot Water Dispenser, electric with aerator, 5 gallons capacity, 4-1/2 to 15 gallons per hour, 5 gallon tank volume, 14" H low faucet, automatic refill, large LED display, 140“-210“F temperature range, includes: cord & plug, heavy gauge stainless steel, 120/220v/50/60/1-ph, 1500/5000 watts, 12.5/22.7 amps, 1 GPM, (2) 3W+G, 20-90 psi, 1/4" flare fitting
*Image may not depict product color, inclusions or accessories.
Curtis WB5NL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Curtis |
| Amps | 12.5 |
| Capacity (gallons) | 5 |
| Color | Silver |
| Depth (in) | 24.38 |
| Height (in) | 25.75 |
| Hertz | 60 |
| Incoming PSI | 20-90 |
| Output | Low Volume |
| Phase | 1 |
| Product | Hot Water Dispensers |
| Product Type | Beverage Equipment |
| Special Features | Adjustable Temperature |
| Special Features | Digital Controls |
| Type | Plumbed |
| Voltage | 120/220 |
| Warranty | 3-year Parts & Labor Digital Control Board; 2-year Parts & 1-year Labor Electrical Component |
| Width (in) | 7.5 |
| Weight | 42.00 |
