Curtis WB5NB Low-volume Plumbed Hot Water Dispenser - 5 gal., 120-220v/1ph
Typically ships in 9 - 13 Business Days
Retail Price: $1,858.40
$1,161.50 /Each
Attention: Order by 05-19-2025 to save before the price increases!
Similar Products in Stock Now
Marco Beverage Systems 1001762US
MT Series Countertop Low Volume Plumbed Hot Water Dispenser - 1 gal, 110v
Marco Beverage Systems FRIIAHCS
Countertop Hot, Cold, & Sparkling Water Dispenser - Cup Fill, Push Button, 110v
Marco Beverage Systems 1001870US
MIX Countertop Low Volume Plumbed Hot Water Dispenser - 0.8 gal, 110v
Marco Beverage Systems 1001880US
MIX Undercounter Low Volume Plumbed Hot Water Dispenser - 0.8 gal, 110v
Marco Beverage Systems 1000750US
Ecosmart Undercounter Low Volume Plumbed Hot Water Dispenser - 1 gal, 220v
Marco Beverage Systems 1000752US
Ecosmart Undercounter Low Volume Plumbed Hot Water Dispenser - 1 gal, 220v
Marco Beverage Systems 1000762US
MT Series Countertop Low Volume Plumbed Hot Water Dispenser - 1 gal, 220v
Marco Beverage Systems 1000763US
MT Series Countertop Low Volume Plumbed Hot Water Dispenser - 2.1 gal, 220v
Marco Beverage Systems 1000870US
MIX Countertop Low Volume Plumbed Hot Water Dispenser - 0.8 gal, 230v

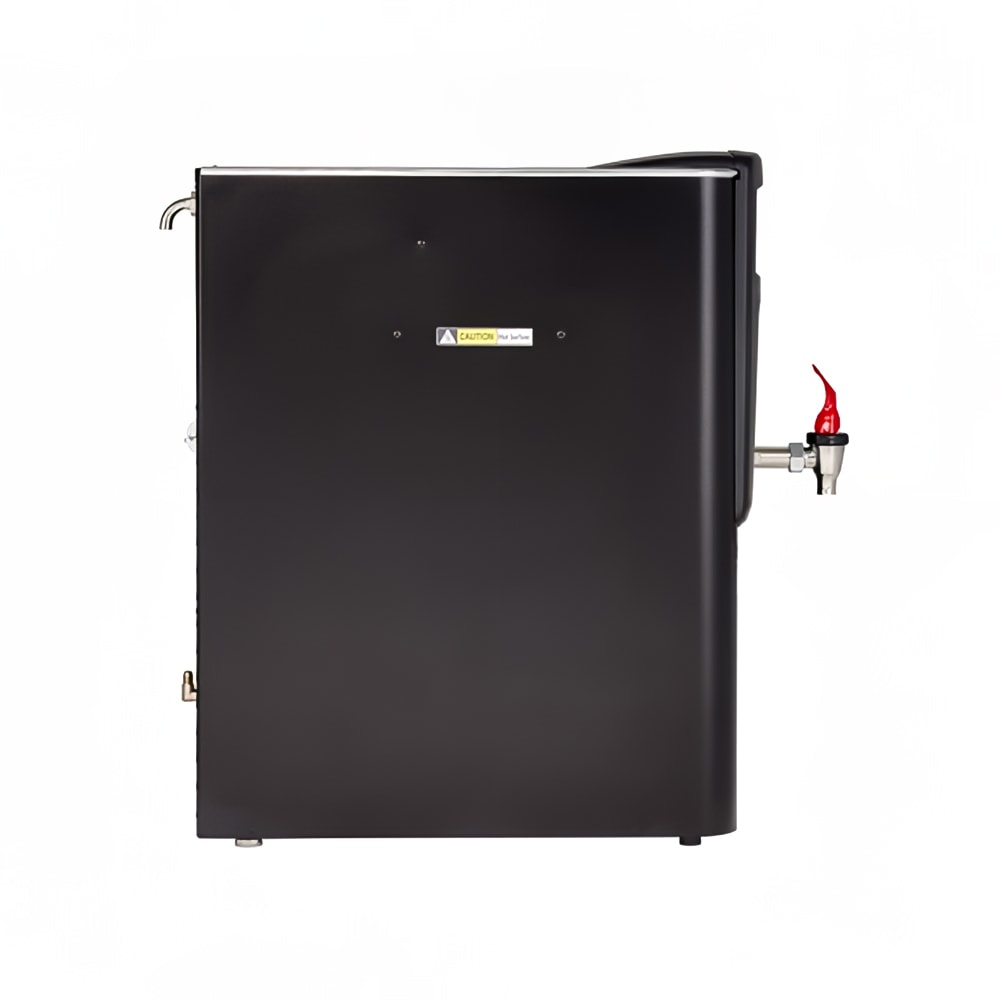

Curtis WB5NB Description
Great for cleaning applications, hot drinks, and hot food, the Curtis WB5NB hot water dispenser works in the front and back of the house, and depending on the demand of the operation, its 5-gallon capacity can provide 4.5 to 15 gallons of hot water per hour. The faucet is 13.63 inches high, so it accommodates tall cups and large containers. The temperature is adjustable on the digital controller, along with the aeration level—a feature that moves the water to improve extraction when it is dispensed. Equipped with on-board diagnostics, the unit continually senses the temperature and water level, maintaining proper operation. If the dispenser has an issue, the operator can access and service the components at the side. Because this Curtis WB5NB plumbed hot water dispenser is black, it fits into most settings effortlessly.
Product Details
- 5-gal. capacity
- Can produce 4.5-15 gal. per hr.
- Automatic refill system ensures water is always ready to dispense
- 13.63-in. faucet height
- Thermostatic temperature controls
- Temperature range: 140-210 degrees F
- Agitator pump continuously aerates the water to improve tea extraction when the water is added
- Digital aeration and temperature controls
- Large LED water temperature display
- On-board diagnostics senses the temperature and fill level of water
- Side-accessible components
- Black body
Product Features
Dimensions & Utilities
- 7.5 in. W x 24.38 in. D x 25.75 in. H
- 12.5/22.7 A, 1500/5000 W
- 120, 220 V/50-60 Hz/1 ph, includes cord and plug
*Curtis WB5NB is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
Hot Water Dispenser, electric with aerator, 5 gallons capacity, 4-1/2 to 15 gallons per hour, 5 gallon tank volume, 18-5/8"H faucet, automatic refill, large LED display, 140“-210“F temperature range, includes: cord & plug, black, 120/220v/50/60/1-ph, 1500/5000 watts, 12.5/22.7 amps, 1 GPM, (2) 3W+G, 20-90 psi, 1/4" flare fitting
*Image may not depict product color, inclusions or accessories.
Curtis WB5NB Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Curtis |
| Amps | 12.5 |
| Capacity (gallons) | 5 |
| Color | Black |
| Depth (in) | 24.38 |
| Height (in) | 25.75 |
| Hertz | 60 |
| Incoming PSI | 20-90 |
| Output | Low Volume |
| Phase | 1 |
| Product | Hot Water Dispensers |
| Product Type | Beverage Equipment |
| Special Features | Adjustable Temperature |
| Special Features | Digital Controls |
| Type | Plumbed |
| Voltage | 120/220 |
| Warranty | 3-year Parts & Labor Digital Control Board; 2-year Parts & 1-year Labor Electrical Component |
| Width (in) | 7.5 |
| Weight | 42.50 |
