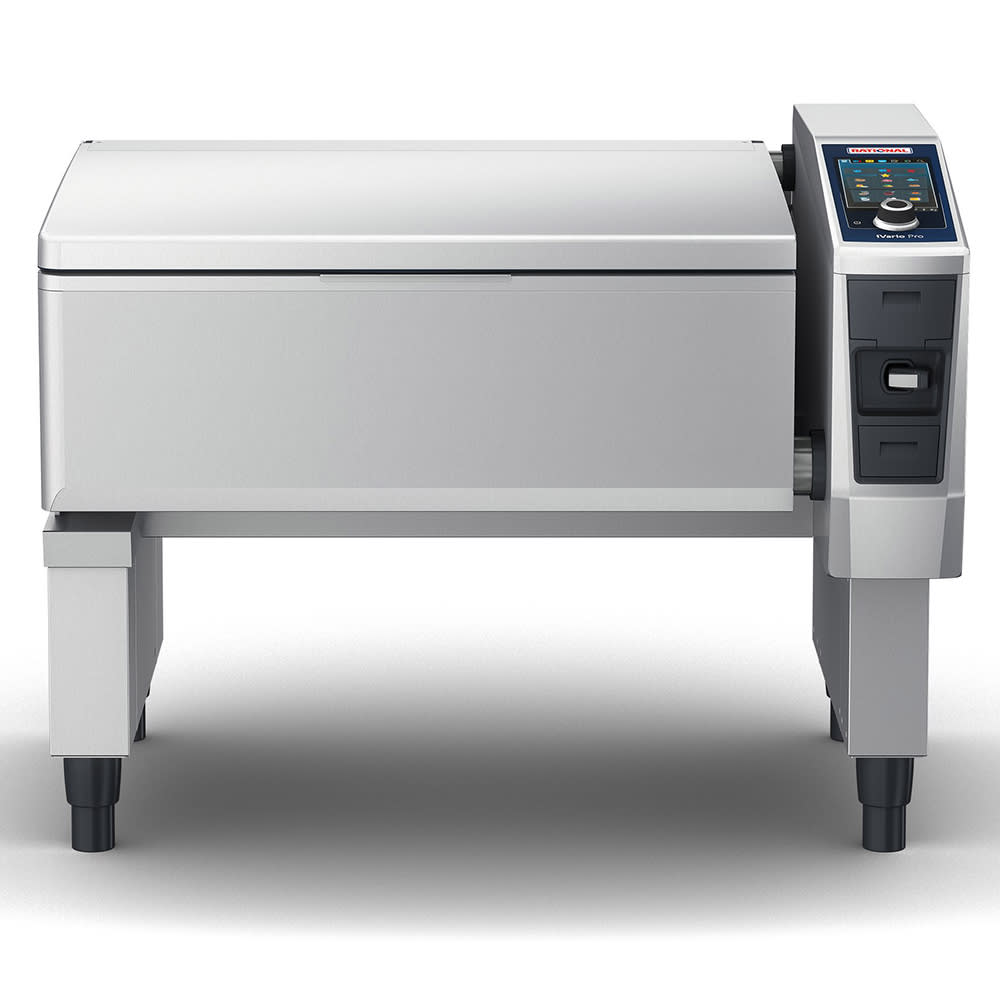

Rational IVARIOPRO XL 440/480V 3 PH 40 gal Tilt Skillet - Open Base, Temperature Probe, 440-480v/3ph

To simplify operation, the Rational IVARIOPROXL440/480V3PH (LMX100DE) iVarioPro XL multifunctional cooking center features three intelligent cooking assistants: iVarioBoost, iCookingSuite, and iZoneControl. iVarioBoost quickly heats the unit's 6⁷/₂₀-square-foot frying area evenly using its ceramic elements, reaching 392 degrees Fahrenheit in 3 minutes. When food is inserted into the iVarioPro, iCookingSuite detects load quantities, piece sizes, and food conditions, and adjusts cooking parameters automatically to reduce the likelihood of operator error. For cooking more than one type of food simultaneously, iZoneControl divides heat on the pan's cooking surface for individual heat zones.

The Rational IVARIOPROXL440/480V3PH (LMX100DE) tilt skillet sports a stainless steel interior and exterior, rests on an included base, and measures 54 inches wide by 35 inches deep by 24 inches tall. To ease the emptying of its 40-gallon-capacity pan, it features a motorized lift and doesn't require a front floor trough. Its automatic water-filling capabilities are accurate to the quart, while its core temperature probe can monitor 6 points at a time, ensuring temperature readings are accurate. To simplify cleaning, it's equipped with a retractable hand shower.

Product Details

• 40-gal.-capacity pan
• Stainless steel interior and exterior
• 6⁷/₂₀-sq.-ft. (906-sq.-in.) cooking surface
• Boiling temperature: 85 degrees F
• Pan fry temperature range: 85-480 degrees F
• Deep-fry temperature range: 85-355 degrees F
• 6-point core temperature probe with ergonomic handle and magnetic core temperature probe holder
• Automatic water filling
• Water drains through integrated pan drain (no trough required)
• Touchscreen, high-definition 10¹/₁₀-in. full-color display
• Digital timer with continuous mode or optional hours/minutes/seconds
• Central dial with push function
• User interface can be set to 1 of 44 languages
• Joint-free pan with rounded edges
• Retractable hand shower
• Motorized pan lift
• Ethernet interface, WiFi enabled

Intelligent Assistants

• iVarioBoost
• Ceramic heating elements attached to heat-conductive, scratch-resistant base
• Heats base to 392 degrees F in 90 seconds or less
• Reserves energy to streamline efficiency
• iCookingSuite
• Automatically detects load quantities, piece sizes, and food condition
• iZoneControl allows base to be divided into individual heating zones

Dimensions & Utilities

• Pan size: 40 in. W x 22 in. D x 11 in. H
• Overall: 54 in. W x 35 in. D x 24 in. H
• 44 kW, 70 A
• 440/480 V/60 Hz/3 ph

Product Features



From The Manufacturer

(WW9ENRA.0005622 - 440/480V) iVario Pro XL Multifunctional Cooking Center, (1) 40 gallon pan, integrated iVarioBoost energy management system,  85° to 480°F temperature range, iZoneControl with up to (4) individually controlled heating zones, iCookingSuite intelligent cooking system, 6-point sensor core temperature probe, AutoLift (baskets and arm required for use), portioned water dispenser, retractable hand shower, Ethernet interface, WiFi enabled, includes stand with plastic feet, 440/480v/60/3-ph, 44.0 kw, CE, ETL, NSF, IPX5

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor

Rational IVARIOPRO XL 440/480V 3 PH Specifications

Documents

Spec Sheet

Warranty

Installation Guide

Certifications
