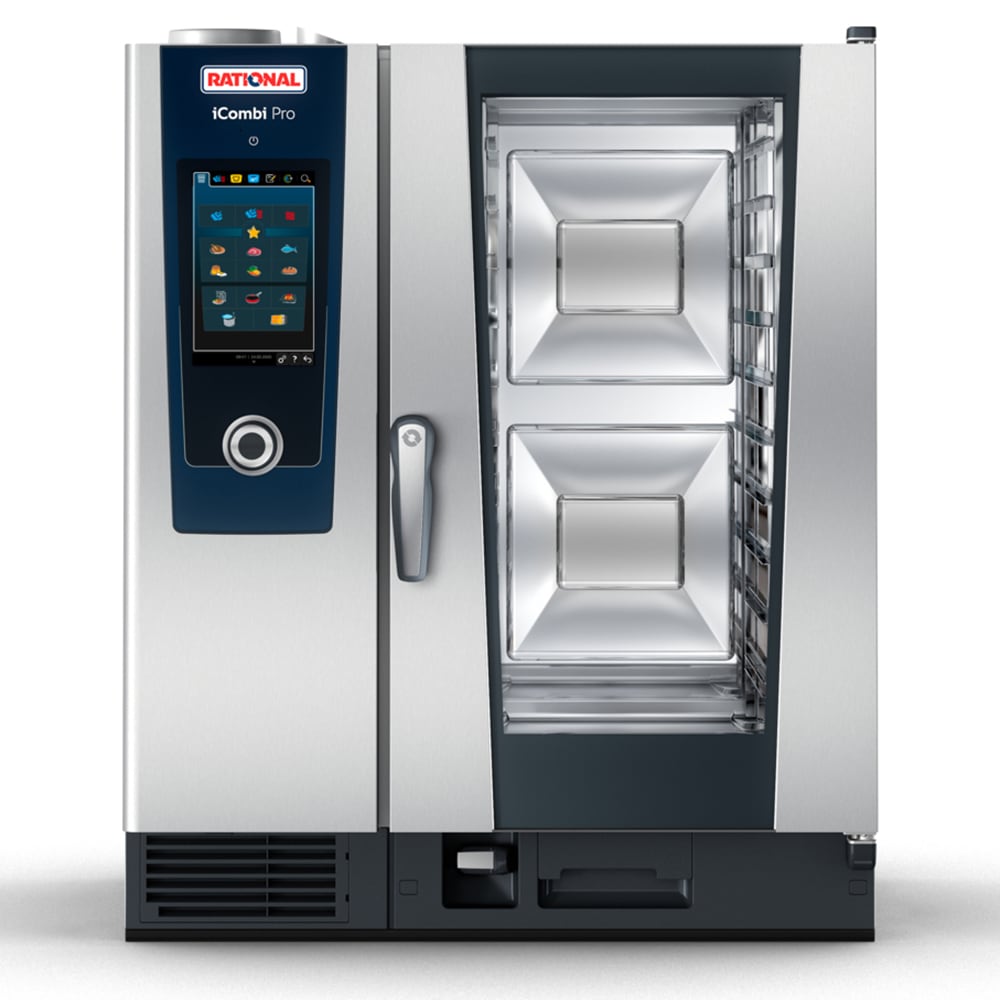

Rational ICP 10-HALF E 480V 3 PH Half Size Combi Oven - Boiler Based, 480v/3ph

Built to handle a variety of cooking processes, the Rational iCombi Pro ICP 10-HALF E half size combi oven offers steam, convection, or a combination of both methods for cooking. The iProductionManager system schedules and optimizes cooking sequences, and its high-performance steam generator provides steaming at temperatures below 212 degrees Fahrenheit. Its core temperature probe has six measuring points for accurate monitoring. This unit maintains a temperature holding range between 85 and 572 degrees Fahrenheit, and the contact temperature of the door does not exceed 163 degrees Fahrenheit. To provide a clear view of food items while cooking, the chamber is illuminated with LED lights. The high-resolution 10¹/₁₀-in. touchscreen oven provides detailed visibility and control over cooking operations.

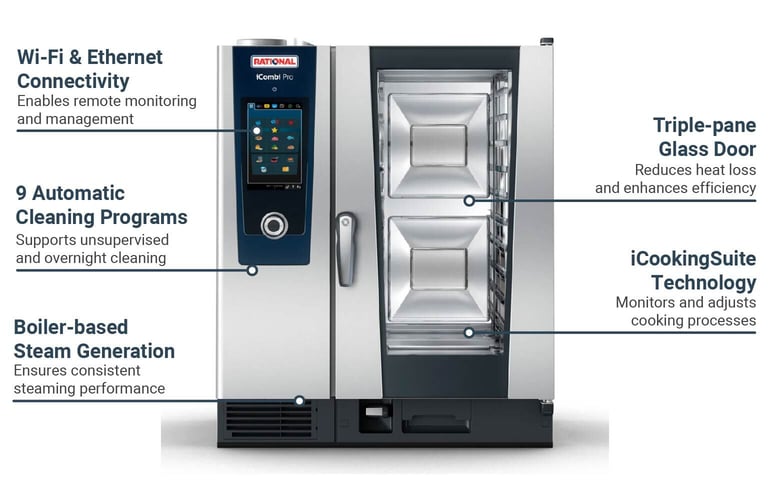

Rational ICP 10-HALF E iCombi Pro 10-half size combi oven operates with a boiler-based steam system and accommodates (10) 13-in. x 18-in. sheet pans, (10) 12-in. x 20-in. steam pans, or (10) 1/1 GN pans. This unit is designed for multiple cooking applications, including roasting, steaming, baking, and grilling. The iCookingSuite monitors and adjusts cooking paths, while maintenance is automated through the iCareSystem, which features nine cleaning programs, an ultrafast 12-minute cleaning cycle, and automatic limescale removal. The system connects to Ethernet, Wi-Fi, and USB for remote data management, HACCP logging, and software updates. The triple-pane glass door enhances heat retention, and the ergonomic door handle supports left- or right-handed operation.

Product Details

• Part of the iCombi Pro series
• Half-size unit
• Boiler-based steam generation
• Holds (10) 13-in. x 18-in. sheet pans, (10) 12-in. x 20-in. steam pans, or (10) 1/1 GN pans
• Stainless steel interior and exterior with rounded internal corners
• Triple-pane glass door with ventilation
• Ergonomic door handle with left- or right-hand swing-shut function
• Swiveling glass panes for simplified cleaning
• 6-point core temperature probe with automatic error correction
• High-performance steam generator for steaming at temperatures below 212 degrees F
• Contact door temperature: 163 degrees Fahrenheit
• Temperature holding range: 85-572 degrees Fahrenheit
• Integrated grease separation system without additional filter
• Cool-down function with internal water nozzle
• Delta-T cooking function
• Burst-steam injection with 4 adjustable water levels
• Electronic safety temperature limiter for steam generator and convection heating
• Integrated fan wheel brake

User Interface

• 10¹/₁₀-in. TFT touchscreen with intuitive controls
• Multi-language support with over 55 options
• Drag-and-drop programming for up to 1,200 cooking programs
• iDensityControl adjusts humidity and airflow
• iCookingSuite monitors and regulates cooking paths
• iProductionManager schedules multiple cooking processes
• iCareSystem recommends cleaning programs
• Visual indication of loading and removal requests
• Integrated Wi-Fi and Ethernet connectivity
• USB interface for local data exchange
• ConnectedCooking cloud-based management
• Acoustic and visual prompts for user notifications
• Digital temperature display in Celsius or Fahrenheit
• Cooking cabinet humidity and time displayed digitally
• Time display in 12- or 24-hour format
• 24-hour real-time clock with daylight savings adjustment
• Automatic pre-selected start time with variable date and time

Cleaning Features

• Automatic, water pressure-independent maintenance system
• 9 cleaning programs, including unsupervised overnight cleaning
• 12-minute cleaning cycle
• Automatic restart after power outages
• Phosphate and phosphorus-free Active-Green cleaning tabs
• Automatic limescale removal in the steam generator
• Integrated hand shower with automatic retraction and switchable spray/jet function
• Cleaning status display with recommended care product dosage

Dimensions & Utilities

• Overall dimensions: 33 1/2 in. W x 33 1/8 in. D x 41 7/8 in. H
• 30 A, 18.9 kW
• 480 V/60 Hz/3 ph

Product Features

*Free shipping on Rational ICP 10-HALF E 480V 3 PH within the 48 contiguous states.

From The Manufacturer

(CD1ERRA.0000216) iCombi Pro® 10-Half Size Combi Oven, electric, (10) 13" x 18" sheet pan or (10) 12" x 20" steam pan or (10) 1/1 GN pan capacity, intelligent cooking system with (4) assistants; iDensityControl, iCookingSuite, iProductionManager, & iCareSystem, (6) operating modes, (5) cooking methods, (3) manual operating modes, 85° to 572°F temperature range, quick clean, care control, eco mode, 6-point core temperature probe, retractable hand shower, Ethernet interface, Wi-Fi enabled, 480v/60/3-ph, 18.9 kW, CE, IPX5, UL, cULus, NSF, ENERGY STAR­®

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 5-year Steam Generator

Rational ICP 10-HALF E 480V 3 PH Specifications

A European company, Rational has made a name in the development of combi ovens and tilt skillets. Rational strives for a customer-centric, innovative approach to its products that combine steam and convection cooking into one appliance.
