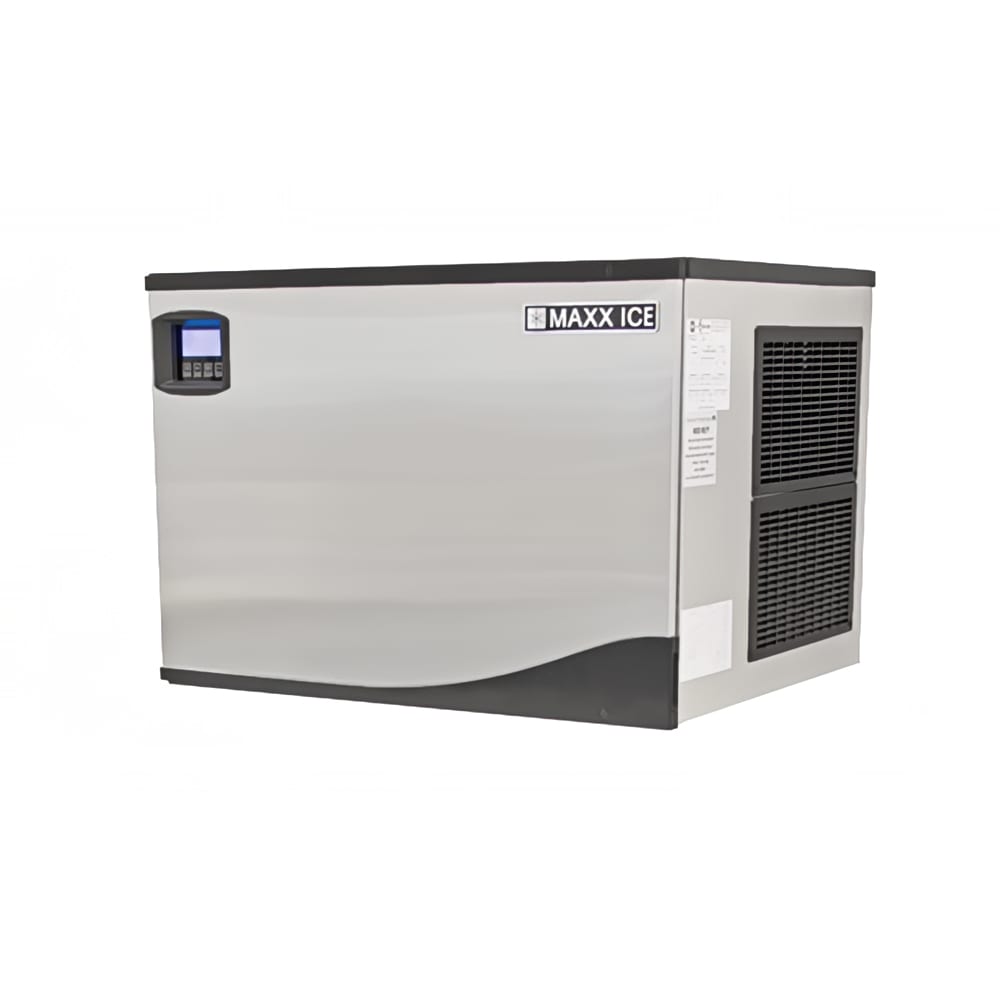

Maxx Ice MIM650NH 30" Half Cube Ice Machine Head - 645 lb/24 hr, Air Cooled, 220-240v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$3,727.19 /Each
Selected Ice Type: Half Cube
Maxx Ice MIM650NH Description
To match existing equipment, the Maxx Ice MIM650NH half dice ice machine head is made of durable stainless steel with black plastic trim. It has programmable digital controls and a digital screen display to regulate and monitor production status. Although it still requires manual sanitation procedures, this model is self-cleaning. Its power switch enables simple operation, while its air-cooled compressor pushes air across the condenser to generate chill. To prevent waste, it's equipped with bin overflow protection.
For simple set up, the Maxx Ice MIM650NH ice machine head is self-contained but requires connection to a gravity drain line for proper installation. It makes roughly 645 pounds of ice daily—great for hotels, bagged ice businesses, concession stands, and other high-volume operations. This unit fits the Maxx Ice MIB470N and MIB580N storage bins (not included) and can power their interior LEDs. Overall, this model measures 30 inches wide by 24 3⁄5 inches deep by 21 inches high.
- Half-dice cube style
- Half-dice cube size: 7⁄8 in. W x 1⁄2 in. D x 7⁄8 in. H
- Daily ice production: 645 lbs.
- Self-contained condenser
- Vertical evaporator
- Eco-friendly R-404a refrigerant
- Stainless steel construction with black trim exterior
- Air-cooled compressor
- On/off switch
- Programmable digital controls
- Digital screen displays production status
- Automatic cleaning cycle and bin overflow prevention
- Can be paired with the MIB470N and MIB580N storage bins (sold separately)
- Hinged front panel
- Units can be stacked with adapter (not included)
- Ambient temperature air range: 50 degrees F to 100 degrees F
- Uses 13.12 gal. of water per 100 lbs. of ice
- Gravity drain line required for installation
- 3⁄8 in. FPT water supply connection
- Water pressure range: 15-80 PSI and 1-5.5 bar
- 30 in. W x 24 3⁄5 in. D (54 1⁄2 with door open) x 21 in. H
- 5.6 kWh per 100 lbs. of ice, 7.1-8 A
- 230 V/60 Hz/1ph with NEMA L14-20 plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Maxx Ice MIM650NH within the 48 contiguous states.
From The Manufacturer
Maxx Ice Modular Ice Maker, cube-style (half dice), air-cooled, self-contained condenser, programmable digital controls & display, automatic cleaning, overflow prevention, approximately 645 lb. production/24 hours, on/off switch, LED light, vertical evaporator, stainless steel exterior with black trim, R404a refrigerant, 220-240v/60/1-ph, 8.0 amps, NEMA 5-15P, NSF, cULus Classified, CE
Maxx Ice MIM650NH Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Maxx Ice |
| 24 Hr. Production (lb) | 645 |
| Compressor Type | Air Cooled |
| Depth (in) | 24.6 |
| Height (in) | 21 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Good |
| Refrigerant | R404A |
| Suggested Use | Commercial |
| Voltage | 220/240 |
| Warranty | 1-year Limited |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 165.00 |
