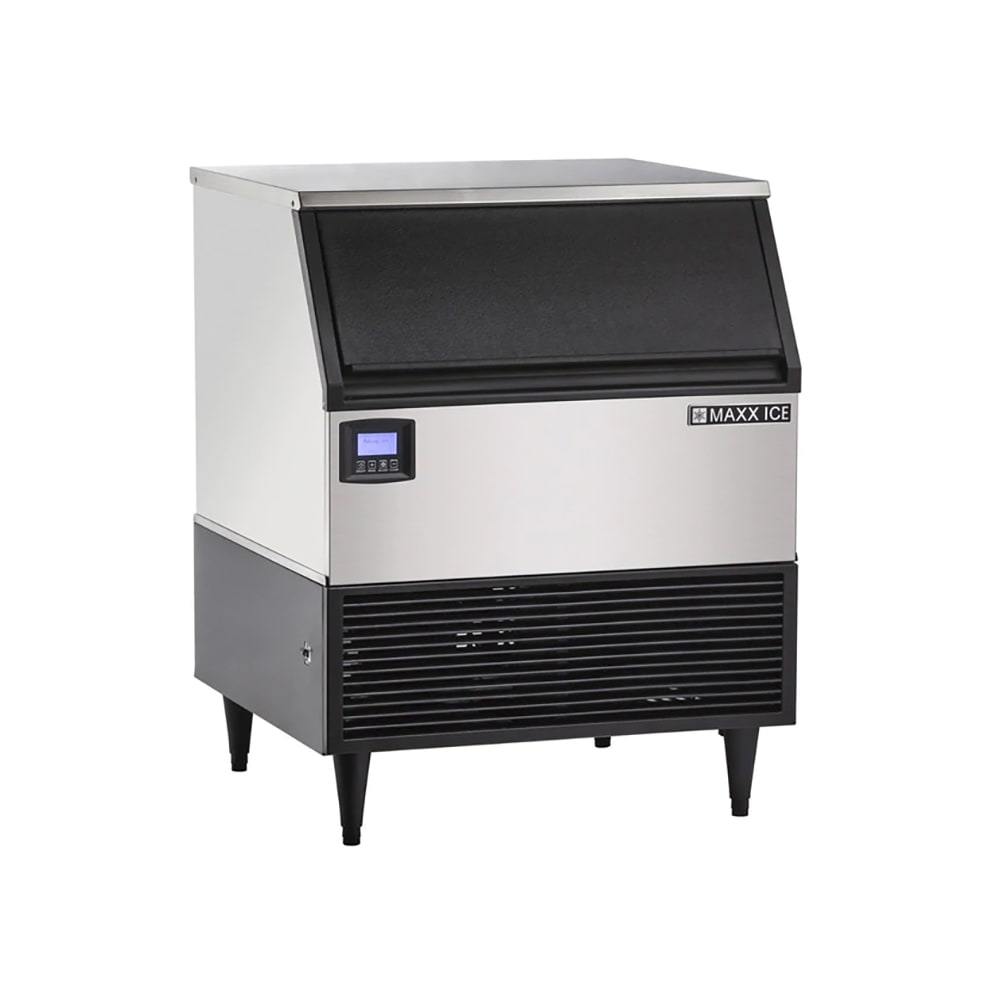

Maxx Ice MIM320NH 30"W Half Cube Undercounter Ice Machine - 328 lbs/day, Air Cooled

KaTom #: 678-MIM320NH • MPN: MIM320NH
  • 678-MIM320NH Primary Thumbnail Image

QUICK SHIP: Typically ships in 1 - 3 Business Days

Free Shipping Item

$3,282.11 /Each

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $170.85
  • Edit Remove

Selected Ice Type: Half Cube

Full CubeFull Cube
Kennedy Robison User Image
Ask a Foodservice Equipment Specialist

Maxx Ice MIM320NH Description

Simpler to install and maintain than remote systems, the Maxx Ice MIM320NH Intelligent ice machine is self-contained and air cooled. This 30-inch-wide by 28-inch-deep by 39-inch-tall unit features a front-breathing design compatible with freestanding or built-in applications for flexibility in installation. To complement existing pieces of equipment, it sports a rugged stainless steel exterior with black plastic trim. Because it's mounted on adjustable 6-inch legs, it can be raised or lowered to level the unit on uneven flooring, minimizing disruptive rocking or wobbling during operation and ice retrieval. For convenience, this unit is equipped with a 100-pound-capacity ice bin. The bin's polyethylene liner is treated with an antimicrobial agent that inhibits microbial growth between regularly scheduled cleanings. A blue LED interior light illuminates the storage bin's interior to enhance staff visibility when retrieving ice, while an internal scoop holder positions the included ice scoop in place for sanitary storage.

Great for high-traffic establishments selling bagged ice, dispensed ice, soft drinks, or smoothies, the Maxx Ice MIM320NH undercounter ice maker produces half-cube ice. Each cube measures 22⁄25 inches by 1⁄2 inches by 22⁄25 inches to cool drinks quickly and displace liquid. To produce 328 pounds of ice in 24 hours, incoming water must be 50 degrees Fahrenheit, and ambient air must be 70 degrees Fahrenheit. Operators can adjust settings with the user-friendly digital controls, while the external digital display provides temperature and status readouts. For simplified maintenance, this unit features an automatic cleaning cycle, bin overflow protection, and a removable air intake filter.

  • Part of the Intelligent line
  • 328-lb. maximum daily ice production
  • Undercounter unit compatible with freestanding or built-in applications
  • Front-breathing condenser
  • Produces half-cube ice
  • Half-cube ice size: 22⁄25 in. x 1⁄2 in. x 22⁄25 in.
  • Self-contained refrigeration system with air-cooled compressor
  • Energy-saving micro-fin condenser
  • R-404a refrigerant
  • Programmable, user-friendly digital controls
  • External digital screen with temperature and status readouts
  • Automatic cleaning cycle and bin overflow protection
  • Rugged, rust- and corrosion-resistant stainless steel exterior with black trim
  • Removable air intake filter
  • 3⁄4-in. gravity drain line required for installation
  • Recommended wall clearance: 2 in.
  • Water filter recommended
  • Uses 13.3 gal. of water per 100 lbs. of ice
  • Required ambient air temperature range: 50-100 degrees F
  • Required incoming water temperature range: 41-90 degrees F
  • Required incoming water pressure range: 15-80 PSI

  • 100-lb. storage capacity
  • Antimicrobial polyethylene liner enhances sanitation
  • Blue LED interior lighting
  • Internal scoop holder includes ice scoop
  • Adjustable 6-in. leveling legs

  • 30 in. W x 28 in. D x 39 in. H
  • 8-9 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
  • 3⁄8-in. FPT water supply line connection

*Image may not depict product color, inclusions or accessories.

*Free shipping on Maxx Ice MIM320NH within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Digital Undercounter Ice Maker With Bin, cube-style (half dice), air-cooled, self-contained condenser, approximately 328 lb. production/24 hours, 100 lb. built-in storage capacity, digital display & controls, automatic cleaning, overflow prevention, internal LED light, stainless steel exterior with black trim, 6" adjustable legs, R404a refrigerant, NSF, cULus Classified

Warranty Icon
1-year Limited

Maxx Ice MIM320NH Specifications
