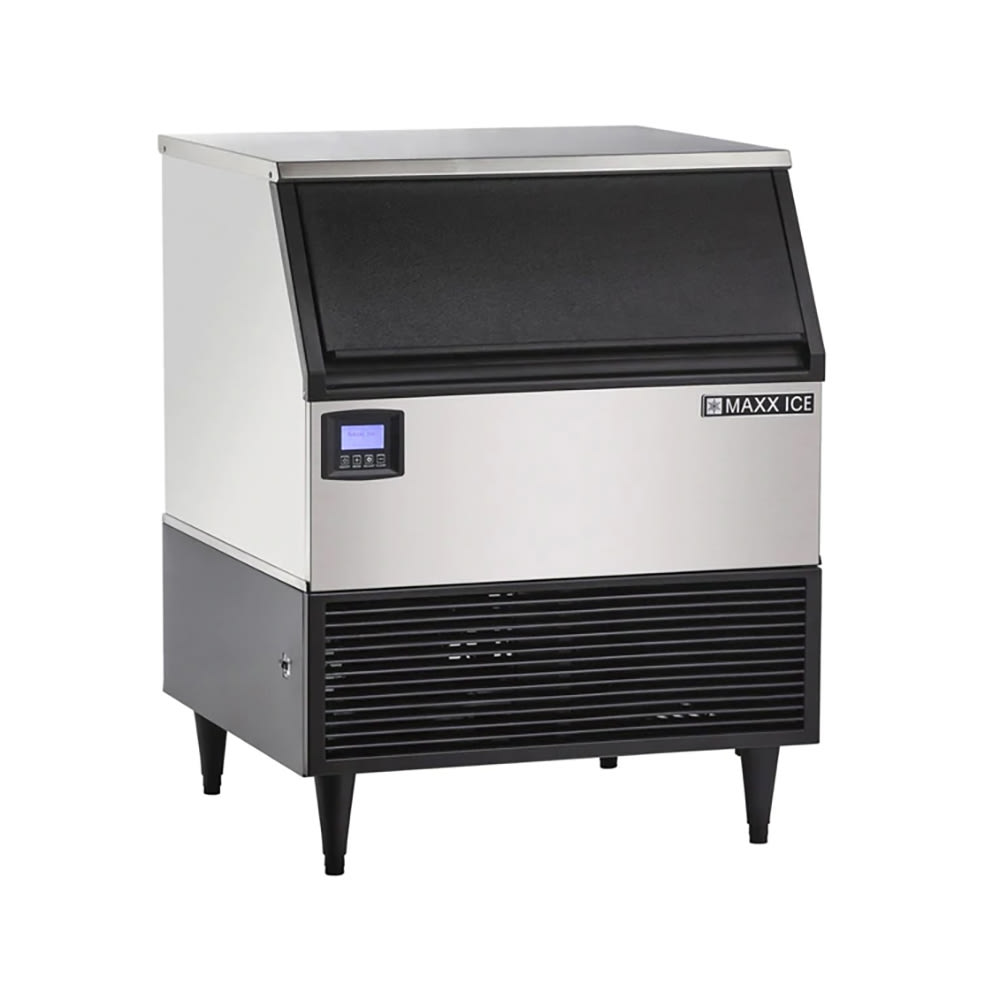

Maxx Ice MIM320N 30"W Full Cube Undercounter Ice Machine - 328 lbs/day, Air Cooled

When ambient air is 70 degrees Fahrenheit and incoming water temperature is 50 degrees Fahrenheit, the Maxx Ice MIM320N undercounter ice machine can produce 328 pounds of full-cube ice per day. This slow-melting ice type is ideal for serving premium cocktails as well as soft drinks. Staff can monitor unit temperature and status with the externally mounted digital screen; to adjust settings, operators can use the programmable, user-friendly controls. This air-cooled unit uses fans to direct air across its condenser to cool the equipment, and because this unit is self-contained, it's simpler to install and maintain than remote systems. To ease maintenance, this piece of equipment is built with an automatic cleaning cycle and bin overflow protection, and its air intake filter can be removed.

For kitchens with limited space, the Maxx Ice MIM320N Intelligent ice maker measures 30 inches wide by 28 inches deep by 39 inches high. Because it's front breathing, it can be installed beneath a counter for a cohesive look. Made of durable rust- and corrosion-resistant stainless steel, it boasts a classic appearance detailed with an eye-catching black trim. To further save floor space, this unit is built with an integrated storage bin that can hold 100 pounds of harvested ice. The bin's polyethylene liner is treated with an antimicrobial agent that inhibits bacterial growth between standard cleanings to enhance sanitation. To increase visibility during ice retrieval, a blue LED light illuminates the bin's interior. A built-in internal scoop holder secures the included ice scoop in place for hygiene and convenience. To minimize rocking or wobbling, its 6-inch legs can be raised or lowered for stabilization on sloped or irregular flooring.

Ice Maker Details

• Part of the Intelligent collection
• 328-lb. maximum daily ice production
• Front-breathing undercounter unit
• Can be used freestanding or be built-in
• Produces full-cube ice
• Full-cube ice size: ³⁄₄ in. x ³⁄₄ in. x 1 in.
• Self-contained refrigeration system with air-cooled compressor
• R-404a refrigerant
• External digital screen provides readouts of temperature and operational status
• Programmable, user-friendly digital controls
• Automatic cleaning cycle
• Bin overflow protection
• Rust-, corrosion-, and wear-resistant stainless steel exterior with black trim
• Energy-saving micro-fin condenser saves energy
• Air intake filter is removable
• ³⁄₄-in. gravity drain line required for installation
• Recommended wall clearance: 2 in.
• Water filter recommended
• Uses 13.3 gal. of water per 100 lbs. of ice
• Required ambient air temperature range: 50-100 degrees F
• Required incoming water temperature range: 41-90 degrees F
• Required incoming water pressure range: 15-80 PSI

Ice Bin Details

• 100-lb. storage capacity
• Polyethylene liner treated with antimicrobial agent
• Blue LED interior lighting
• Includes internal scoop holder with ice scoop
• 6-in. leveling legs can be raised or lowered to stabilize on irregular surfaces

Dimensions & Utilities

• 30 in. W x 28 in. D x 39 in. H
• 8-9 A
• 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
• ³⁄₈-in. FPT water supply line connection

Product Features

*Free shipping on Maxx Ice MIM320N within the 48 contiguous states.

From The Manufacturer

Digital Undercounter Ice Maker With Bin, cube-style (full dice), air-cooled, self-contained condenser, approximately 328 lb. production/24 hours, 100 lb. built-in storage capacity, digital display & controls, automatic cleaning, overflow prevention, internal LED light, stainless steel exterior with black trim, 6" adjustable legs, R404a refrigerant, NSF, cULus Classified

*Image may not depict product color, inclusions or accessories.

1-year Limited
