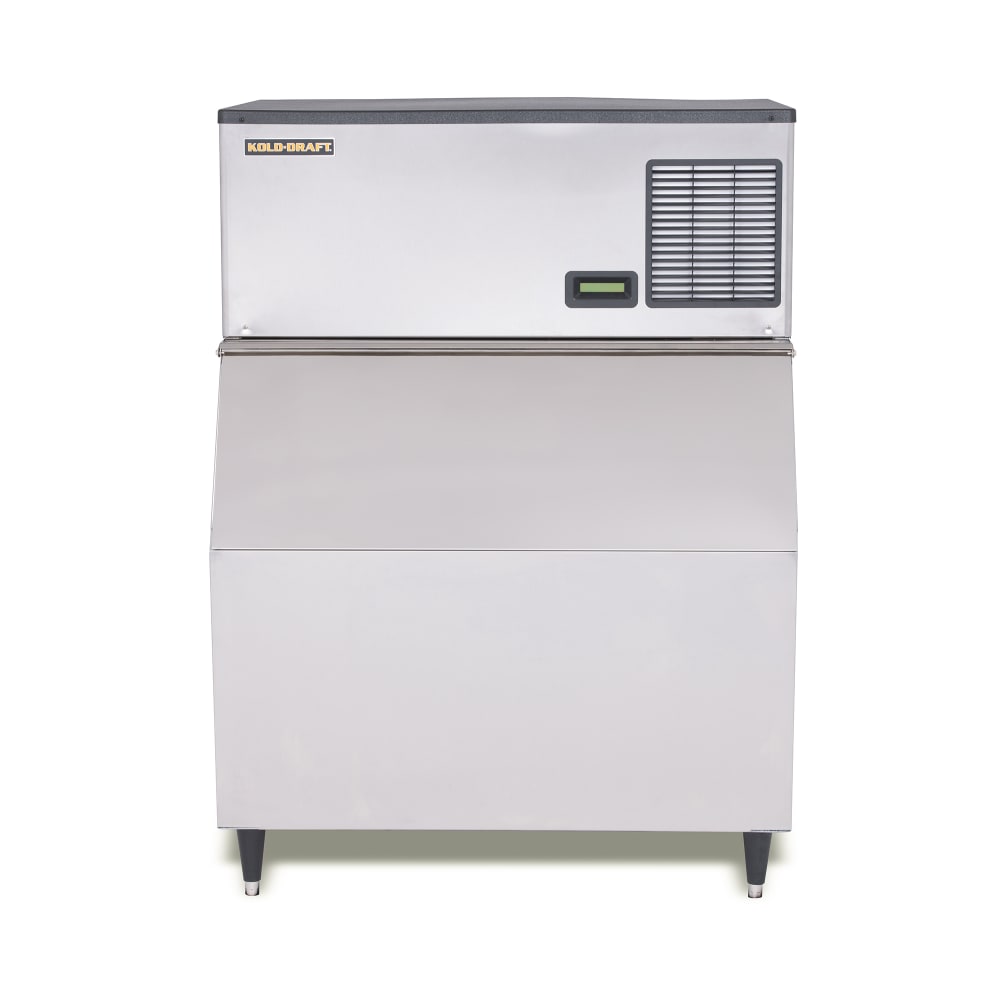

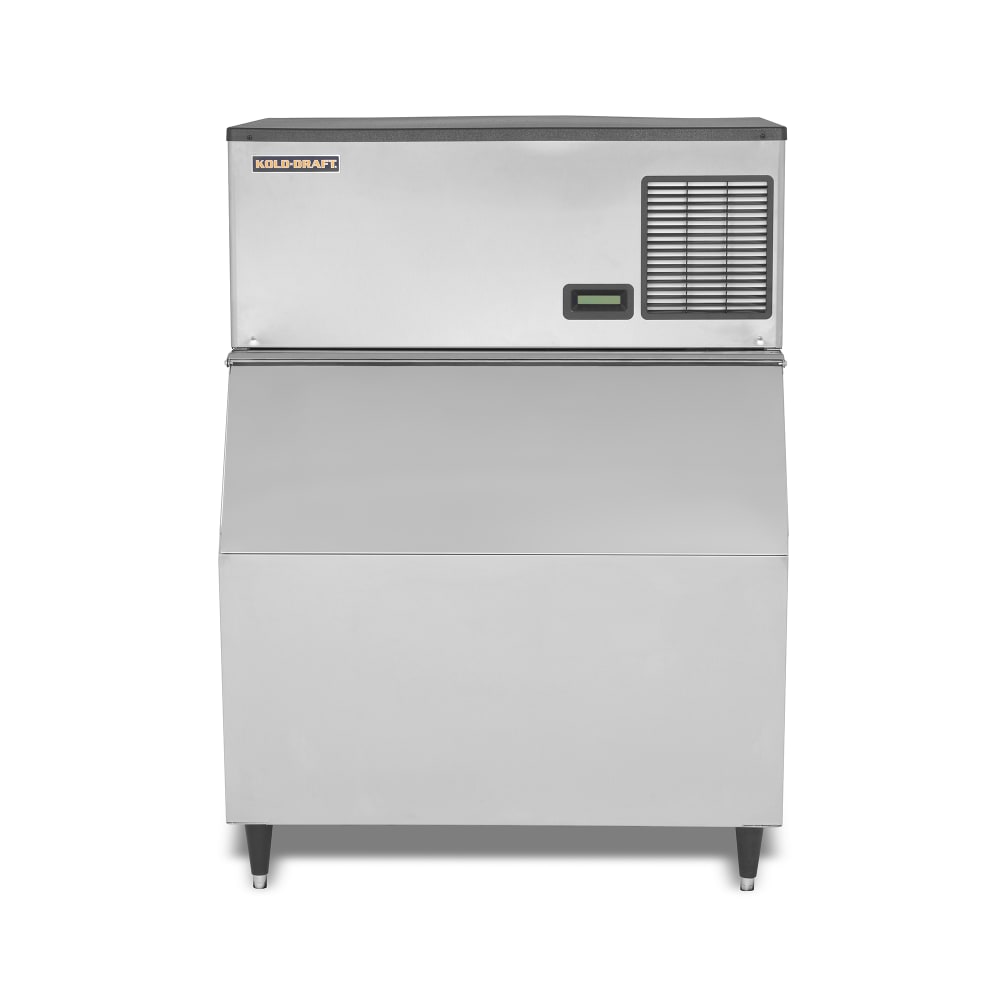

Kold-Draft GBX564AC/KDB650 483 lb Full Cube Ice Machine w/ Bin - 660 lb Storage, Air Cooled, 208-230v
Typically ships in 4 - 6 weeks
$9,384.60 /Each
Call us for pricing
Selected Compressor Type: Air Cooled
Kold-Draft GBX564AC/KDB650 Description
The Kold-Draft GBX564AC/KDB650 ice machine with bin features an air-cooled, self-contained condenser that produces up to 483 pounds of full-dice ice per day at 70°/50° conditions. Its LED display provides system updates, while a thermostatic expansion valve helps regulate ice formation. Built with a 300-series stainless steel exterior, this model resists corrosion, and plastic louvers direct airflow for cooling. The unit is stackable, allowing for additional production if needed.
The Kold-Draft KDB650 ice bin stores up to 660 pounds of ice and is designed for commercial use. Its sloped front and top-hinged door provide quick access to ice, while a polyethylene liner reinforces durability. The stainless steel exterior protects against wear and corrosion. This model operates with R-404A refrigerant and is designed to fit standard ice machine setups. Measuring 42 inches wide by 35 inches deep by 58 inches high, it maximizes storage while conserving space.
- Ice maker and bin combination
- 483-lb. ice production per 24 hours at 70/50 degrees
- 413-lb. AHRI certified production at 90/70 degrees
- Full-dice ice
- Air-cooled, self-contained condenser
- Stackable design
- LED display
- Thermostatic expansion valve
- 300-series stainless steel exterior
- Plastic top and louvers
- R-404A refrigerant
- 660-lb. storage capacity
- Sloped front
- Top-hinged door
- Stainless steel exterior
- Polyethylene interior liner
- Overall dimensions: 42 in. W x 35 in. D x 58 in. H
- 9.3 A, 6 kW
- 208-230V/60Hz/1ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Kold-Draft GBX564AC/KDB650 within the 48 contiguous states.
From The Manufacturer
Ice Maker, cube-style, air-cooled self-contained condenser, production capacity up to 483 lbs/24 hours at 70°/50° (413 lbs at 90°/70°), LED display, stainless steel frame, plastic top, plastic louvers, full-dice size ice, stackable, 208-230v/60/1-ph, 9.3 amps, cETLus, Made in USA
Ice Storage Bin, 42" W, sloped front, top-hinged door, 660 lb ice storage capacity, stainless steel exterior, polyethylene interior liner, 6" legs (for GB series ice makers)
Kold-Draft GBX564AC/KDB650 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Kold-Draft |
| 24 Hr. Production (lb) | 483 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 660 |
| Compressor Type | Air Cooled |
| Depth (in) | 35 |
| Height (in) | 58 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R404A |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.75 |
| Width (in) | 42 |
| Weight | 405.00 |
