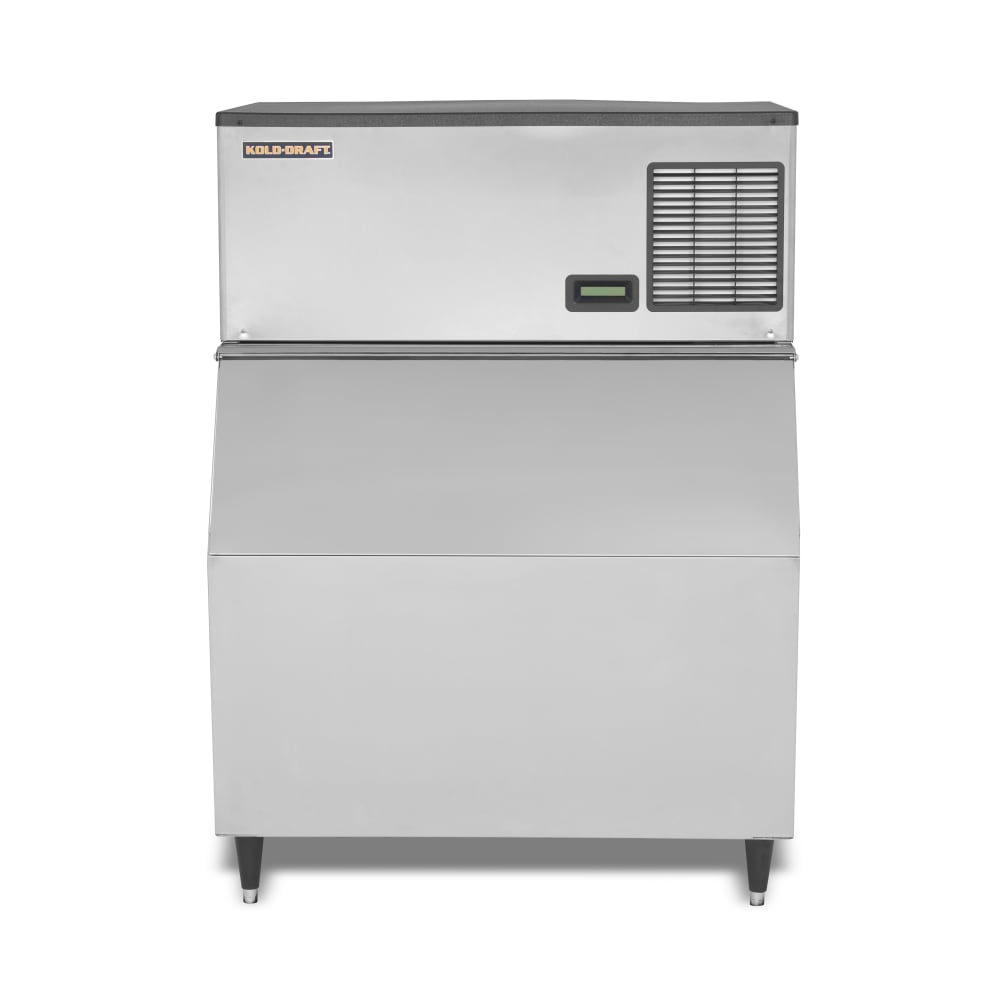

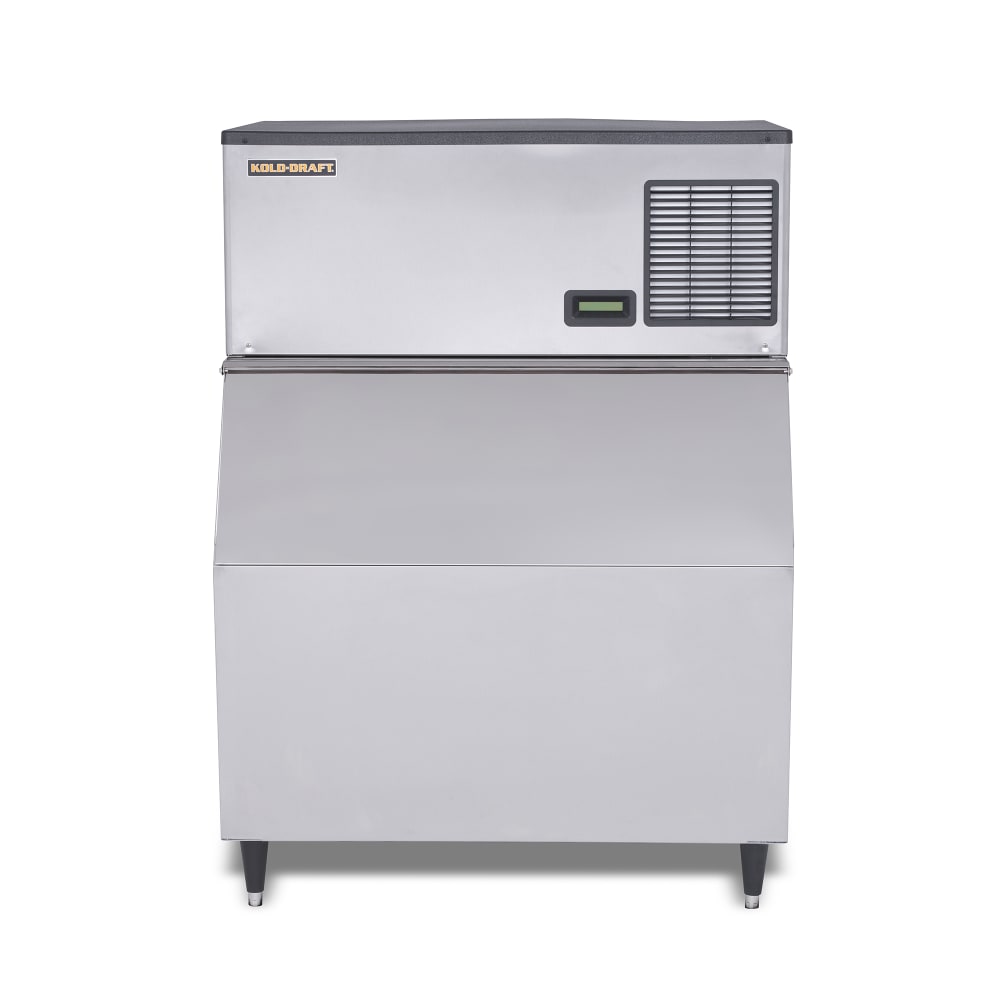

Kold-Draft GBX561AC/KDB650 490 lb Full Cube Ice Machine w/ Bin - 660 lb Storage, Air Cooled, 115v

Designed with an air-cooled, self-contained condenser, the Kold-Draft GBX561AC/KDB650 modular ice machine with storage bin produces up to 490 lbs. of full-cube ice per day. The cooling system regulates temperature and reduces heat buildup for consistent ice production. A stainless steel frame with a plastic top and louvers provides durability and corrosion resistance. The full-dice size ice is ideal for beverage service, food preservation, and cocktail preparation. The included storage bin holds 660 lbs. of ice, ensuring a steady supply in demanding environments.

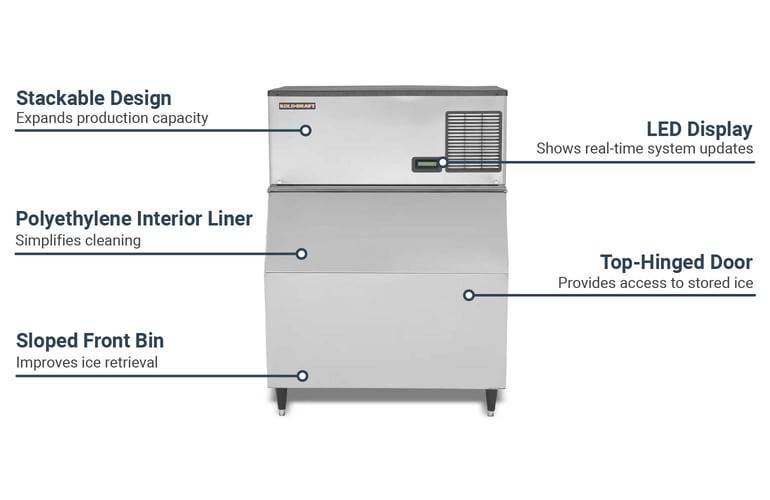

The Kold-Draft GBX561AC/KDB650 ice machine features a thermostatic expansion valve to optimize refrigerant flow for improved efficiency. A polyethylene interior liner simplifies cleaning, while the LED display provides real-time monitoring of system performance and ice production. The stackable design increases total ice output, and the sloped front bin with a top-hinged door improves accessibility. Six-inch legs elevate the unit for stability and airflow. Compatible with GB series ice makers, this unit can be a valuable addition to commercial establishments.

Product Details

• 490-lb. full-cube ice production per day
• Air-cooled, self-contained condenser
• Thermostatic expansion valve
• R-404a refrigerant
• Stainless steel frame
• Plastic top and louvers
• Full-dice size ice
• Stackable design
• LED display
• Polyethylene interior liner
• Sloped front
• Top-hinged door
• 6-in. legs

Ice Bin

• Holds up to 660 lbs of ice
• 42-in. width
• Polyethylene interior liner
• Sloped front
• Top-hinged door
• Compatible with GB series ice makers
• Includes ice scoop

Dimensions & Utilities

• Overall dimensions: 42 in. W x 35 in. D x 58 in. H
• 115 V/60 Hz/1 ph
• 20.2 A
• Produces up to 490 lbs. of ice at 70 degrees F air and 50 degrees F water temperature

Product Features

*Free shipping on Kold-Draft GBX561AC/KDB650 within the 48 contiguous states.

From The Manufacturer

Ice Maker, cube-style, air-cooled self-contained condenser, production capacity up to 490 lbs/24 hours at 70°/50° (402 lbs at 90°/70°), LED display, stainless steel frame, plastic top, plastic louvers, full-dice size ice, stackable, 115v/60/1-ph, 20.2 amps, cETLus, Made in USA

Ice Storage Bin, 42" W, sloped front, top-hinged door, 660 lb ice storage capacity, stainless steel exterior, polyethylene interior liner, 6" legs (for GB series ice makers)

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator & Compressor Parts

Kold-Draft GBX561AC/KDB650 Specifications

Documents

Spec Sheet

Installation Guide
