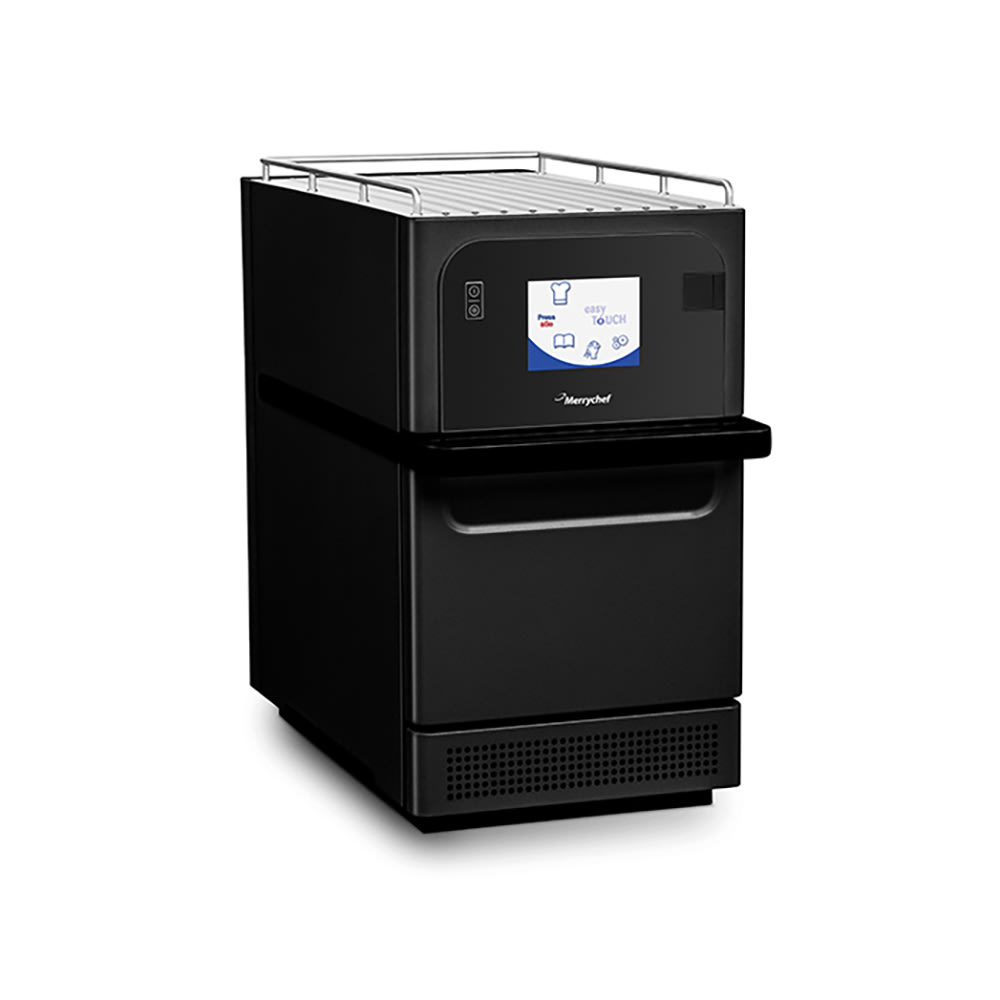

Merrychef eikon E2S TREND HIGH-POWER High Speed Countertop Convection Oven, Black, 208 240v/1ph
Merrychef eikon E2S TREND HIGH-POWER Description
To maximize the amount of food that can be cooked, the Merrychef E2S TREND HIGH-POWER BLK eikon® microwave convection/impingement oven's cavity has a 12-inch depth. Made of stainless steel, the cavity is seam welded and has large, rounded edges that can be cleaned quickly. Its bottom-hinged door grants users full access to the interior for brisk product loading and retrieval. Overall, the unit measures 14 inches wide by 23.4 inches deep by 25.4 inches high, facilitating use on a 23.6-inch worktop.
For uniform heating results, the Merrychef eikon E2S TREND HIGH-POWER BLK microwave impingement and convection oven uses Accelerated Cooking Technology®, which combines tuned impingement, microwave, and convection heating. As a ventless unit, it uses a convection fan that moves air to the catalyst converter and impinger plate. The microwave power can be adjusted between 5 and 100 percent in 1-percent increments, and convection heat settings range between 212 and 527 degrees Fahrenheit. For easy adjustment, the easyTouch® touchscreen controls are equipped with icons that let users change temperatures, save multi-stage cooking profiles, and transfer data via a USB memory stick.
Product Details
- Part of the eikon series
- Accelerated Cooking Technology uses tuned impingement, microwave, and convection heat
- Ventless design uses a catalytic converter
- Convection fan settings: 10-100 percent
- Convected heat temperature settings: 212-527 degrees F
- Microwave settings: 5-100 percent
- easyTouch touchscreen stores cooking profiles, monitors components, and transfers data via USB
- Stainless steel interior and exterior
- 12-in. cavity with easy-to-clean, rounded edges
- Installable on a 23.6-in. worktop
- Front-mounted air filter
- Trend finish
- Black
- Includes a cook plate, paddle, solid bottom basket, mesh bottom basket, a cooldown pan, 2 sheet pan liners, a USB menu key, and a cleaner kit
Dimensions & Utilities
- 14 in. W x 23.4 in. D x 25.4 in. H
- 30 A, 6000 W
- 208-240 V/60 Hz/1 ph, NEMA 6-30P plug
Product Features

*Image may not depict product color, inclusions or accessories.
*Free shipping on Merrychef eikon E2S TREND HIGH-POWER within the 48 contiguous states.
From The Manufacturer
eikonâ„¢ Microwave Convection/Impingement Oven, high power, ventless, 12" cooking cavity, EasyTouchâ„¢ controls, USB memory, bottom-hinged door, built-in catalytic converter, 'Trend' finish, includes: (1) cook plate "PSB3108", (1) paddle "SR318", (1) solid bottom basket "32Z4080", (1) mesh bottom basket "32Z4081", (1) cool down pan "32Z4079", (2) sheet pan liners "32Z4088", (1) USB menu key & (1) cleaner kit "32Z4058", stainless steel construction, 208/240v/60/1-ph, 30 amps, NEMA L6-30P, UL EPH Classified, cULus
Merrychef eikon E2S TREND HIGH-POWER Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Merrychef |
| Amps | 30 |
| Color | Black |
| Controls | Touch Screen |
| Depth (in) | 23.4 |
| Design | Small Batch |
| Heat | Electric |
| Height (in) | 25.4 |
| Hertz | 60 |
| Interior Depth (in) | 12 |
| Interior Width (in) | 12 |
| kW | 6 |
| NEMA | 6-30P |
| Phase | 1 |
| Product | High Speed Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | eikonâ„¢ |
| Special Features | Ventless |
| Type | Microwave/Convection |
| Voltage | 208/240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 14 |
| Weight | 156.00 |
- Merrychef CONNEX12HPNEMA6-30PBLACK (Replacement)
Compare to Similar Items
| Attributes |
Merrychef eikon E2S TREND HIGH-POWER Merrychef eikon E2S TREND HIGH-POWER High Speed Countertop Convection Oven, Black, 208 240v/1ph Current Item |
Merrychef CONNEX12HPNEMA6-30PBLACK |
|---|---|---|
| Customer Rating |
|
|
| Price | $11,564.00 / Each | |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 6 - 8 weeks | |
| Type | Microwave/Convection | Convection/Impingement/Microwave |
| Rating | Best | Best |
| Color | Black | Black |
| Controls | Touch Screen | Digital |
| Voltage | 208/240 | 208/240 |
| kW | 6 | 6 |
| Interior Width (in) | 12 | 12 |
| Interior Depth (in) | 12 | 12 |
| Special Features | Ventless | Ventless |
| Heat | Electric | Electric |
| Warranty | 1-year Limited Parts & Labor | 1-year Limited Parts & Labor |
