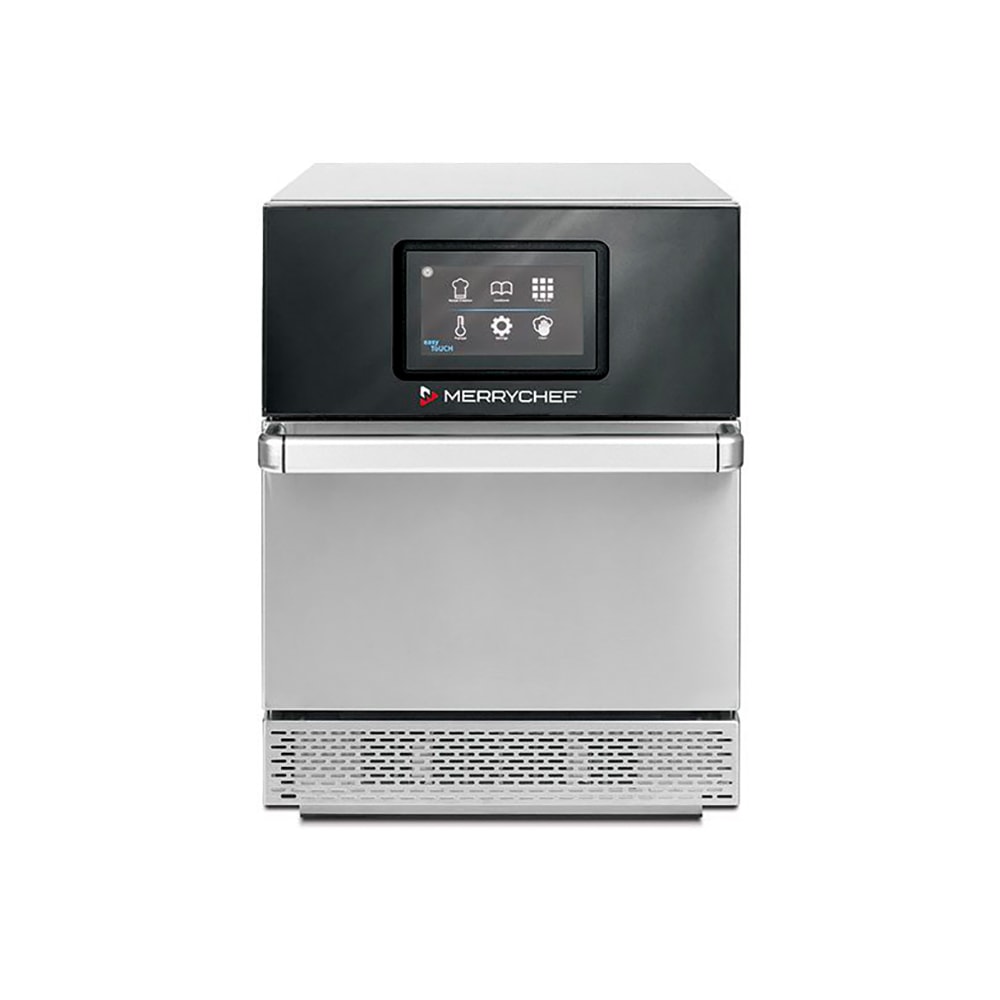

Merrychef CONNEX16STAINLESSSTEEL Merrychef conneX® 16 Microwave Convection/Impingement Oven - 208 240v/1ph, Silver
Typically ships in 1 - 3 Business Days
Similar Products in Stock Now
Merrychef CONNEX16STAINLESSSTEEL Description
The Merrychef CONNEX16STAINLESSSTEEL microwave convection/impingement oven streamlines cooking operations even with its compact size. Capable of microwave, convection, and impingement cooking, it cooks up to 20 times faster in comparison to other cooking methods. Settings, such as temperature and microwave percentage, can be adjusted using the 7-inch high-definition touchscreen. The microwave settings are changed in 1 percent increments between 5 and 100 percent, while convection heat has a temperature range between 212 and 527 degrees Fahrenheit. Its ventless design makes this unit simple to install. Its internal catalytic filtration converters minimize grease and odor.
This three-in-one system's touchscreen provides multiple modes, including Recipe creation, Press & Go, Cookbook, Cleaning, Temperature Change, and Settings. Operators can easily switch between submenus using the simple-to-discern icon-based controller. Users can input their own recipes or utilize the cooking library, which stores a total of 100 pre-saved recipes for convenience. The touchscreen enables users to view operation diagnostics and statistics. Employees can connect to this oven through WiFi or ethernet to update the menu or use the USB memory stick.
The Merrychef CONNEX16STAINLESSSTEEL microwave and convection oven fits on a 271/2-inch worktop for simple access. The cavity interior measures 16 inches long and wide. The inside easily accessed via the bottom-mounted door, and its stainless steel construction is patented with air-cooled technology to remain cool to the touch. It ships with the following accessories: a cook plate, paddle, solid bottom basket, cool-down pan, non-stick cooking liner, and oven cleaner pack.
Product Details
- conneX® series
- Fits on a 271/2-in. worktop
- 7-in., high-definition touchscreen
- Built-in catalytic converters for a ventless design
- Bottom-hinged door with ergonomic handle
- Stainless steel finish
- Stainless steel cavity with rounded corners for simple cleaning
- Microporous for better insulation
- Front-facing air filtration
Touchscreen Details
- 3 technologies: microwave, convection, and impingement
- Microwave setting options: 5-100 percent
- Convection temperature range: 212-527 degrees F
- Icon-driven control system
- Convenient diagnostic self-monitoring
- Cooking profiles with 6 stages of programmable cooking times, microwave power settings, and instructions
- Data transfer through USB memory stick or KitchenConnect cloud for quick updates to menu
Accessories Included
- Cook plate
- Paddle
- Solid bottom basket
- Cool-down pan
- Non-stick cooking liner
- Oven cleaner/protector pack
Dimensions & Utilities
- Cooking cavity: 16 in. W x 16 in. D
- Overall: 181/10 in. W x 269/10 in. D x 242/5 in. H
- 30 A
- 208-240 V/60 Hz/1 ph, NEMA 6-30P plug
Product Features
*Free shipping on Merrychef CONNEX16STAINLESSSTEEL within the 48 contiguous states.
From The Manufacturer
Merrychef conneX® 16, Microwave Convection/Impingement Oven, 2000 watt microwave / 3200 watt convection, ventless, 16" x 16" cooking cavity, EasyTouch™ 2.0 , 7" high definition touchscreen control, bottom-hinged door, built-in catalytic converters, stainless steel finish (1) cook plate (DF0035), (1) paddle (SF326), (1) solid bottom basket (32Z4175), (1) cool down pan (32Z4028), (1) non-stick cooking liner (32Z4178), (1) oven cleaner/protector pack (32Z4148), (1) Scrapper (32Z4191), (1) steam pipe brush (32Z4188), stainless steel exterior, cULus, UL EPH Classified
*Image may not depict product color, inclusions or accessories.

Merrychef CONNEX16STAINLESSSTEEL Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Merrychef |
Amps | 30 |
Base | None |
Cavities | 1 |
Color | Silver |
Construction | Stainless Steel |
Controls | Touch Screen |
Depth (in) | 26.9 |
Door Construction | Solid Only |
Door Type | Independent |
Heat | Electric |
Height (in) | 24.4 |
Hertz | 60 |
kW | 6 |
Special Features | Ventless |
Type | Convection/Impingement/Microwave |
Voltage | 208/240 |
Warranty | 1-year Limited Parts & Labor |
Width (in) | 18.1 |
Series | ConneX® 16 |
Interior Width (in) | 16 |
Interior Depth (in) | 16 |
Phase | 1 |
Rating | Best |
Product | High Speed Ovens |
Product Type | Cooking Equipment |
NEMA | 6-30P |
Weight | 175.00 |
