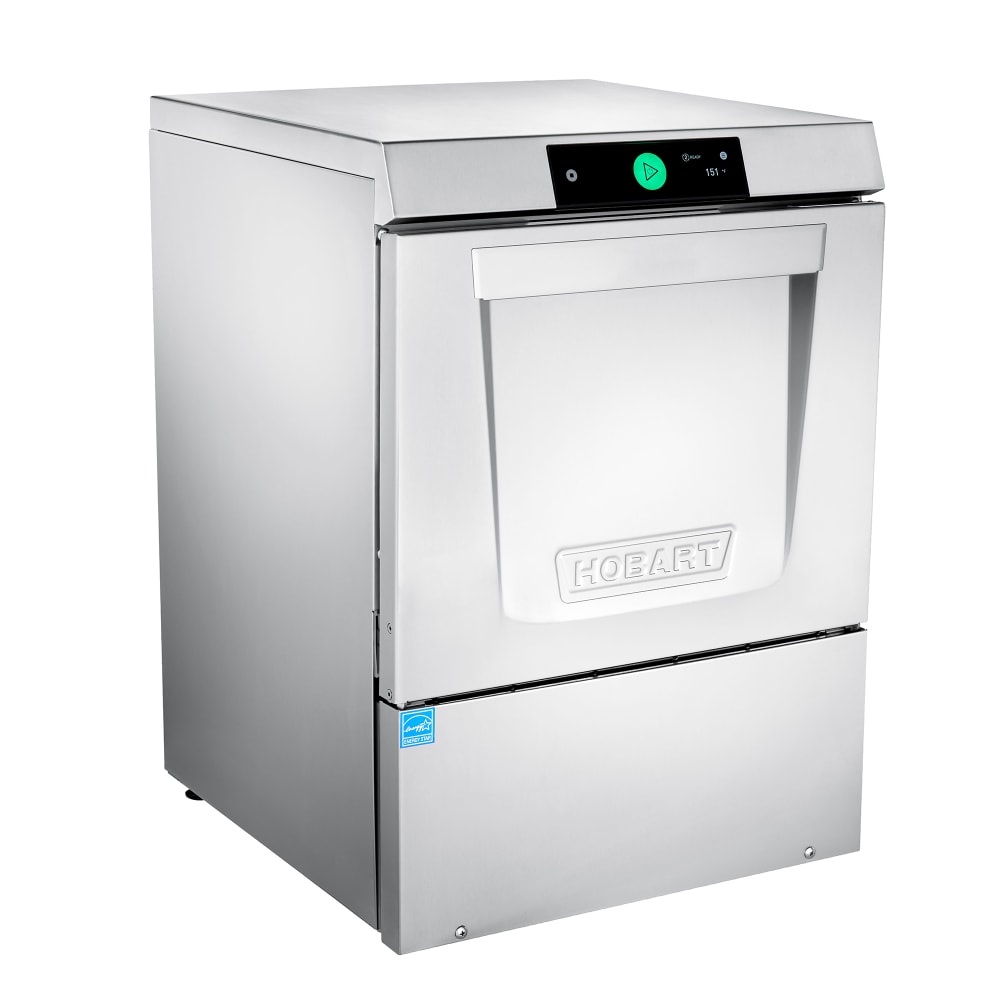

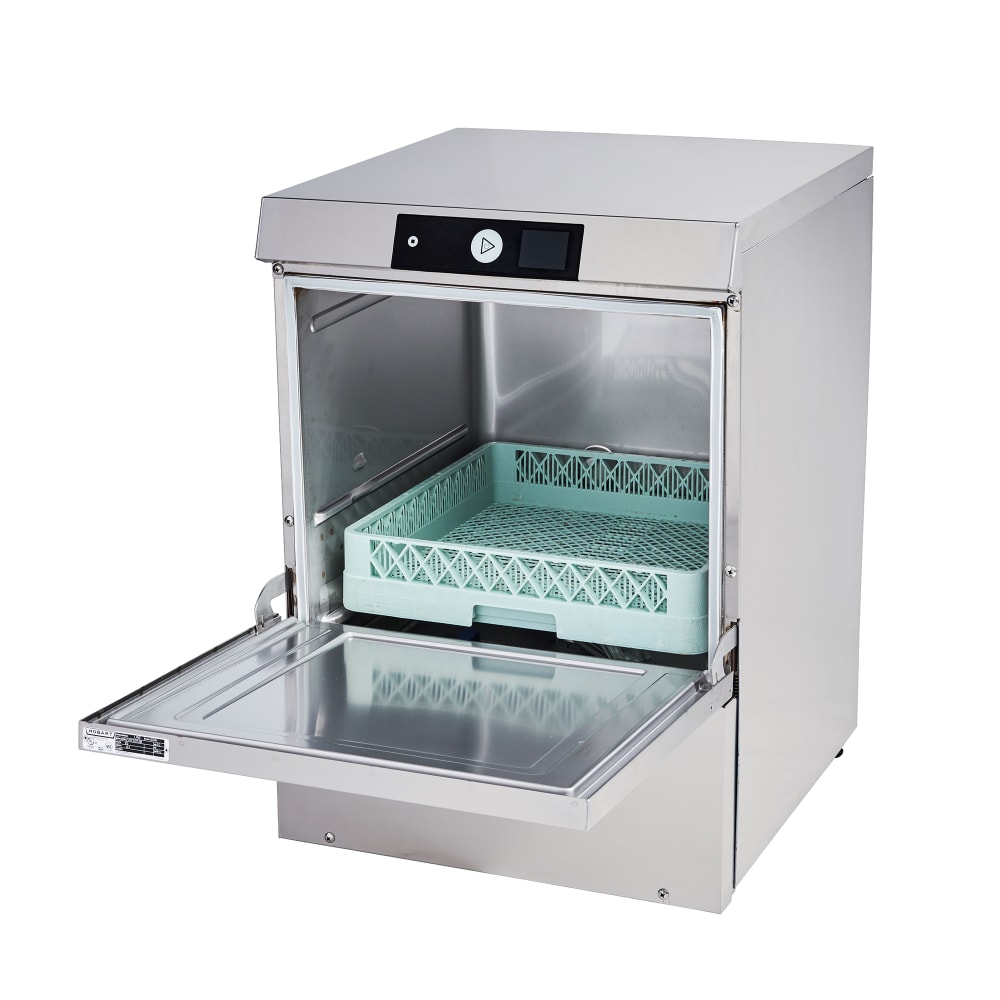

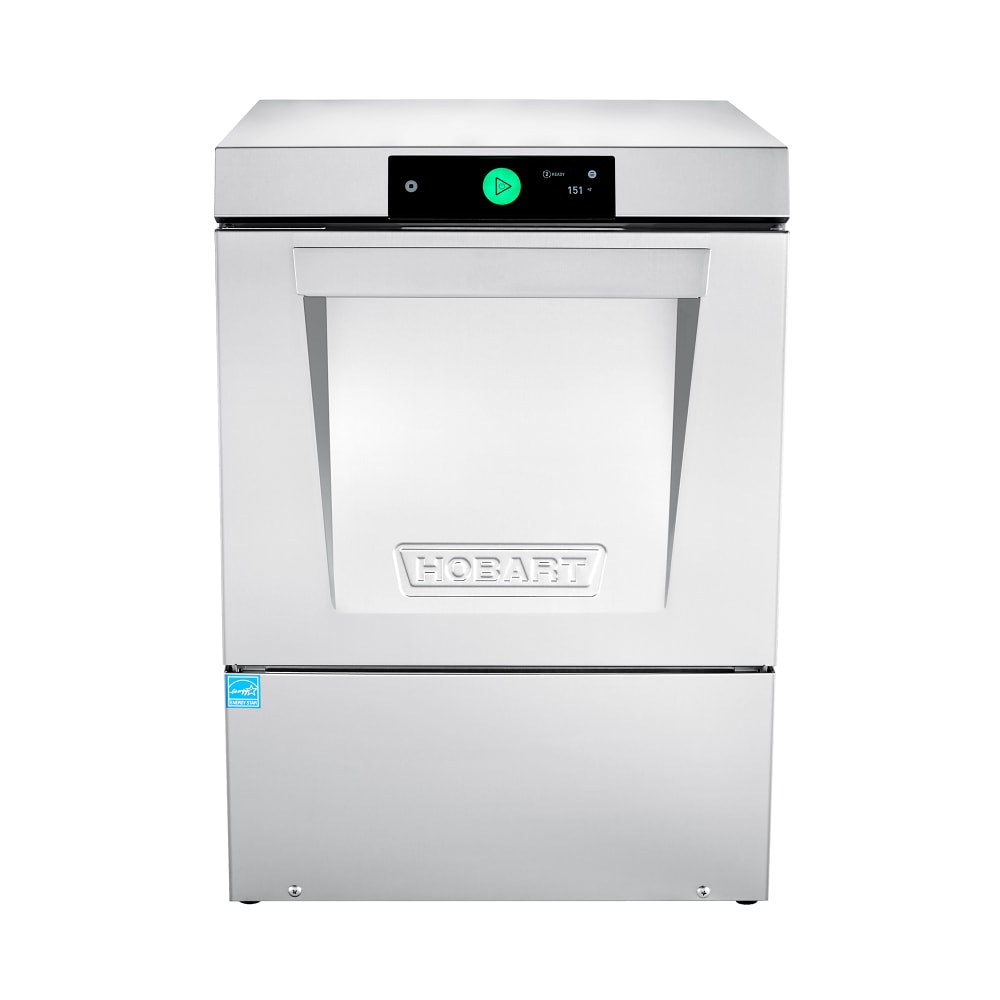

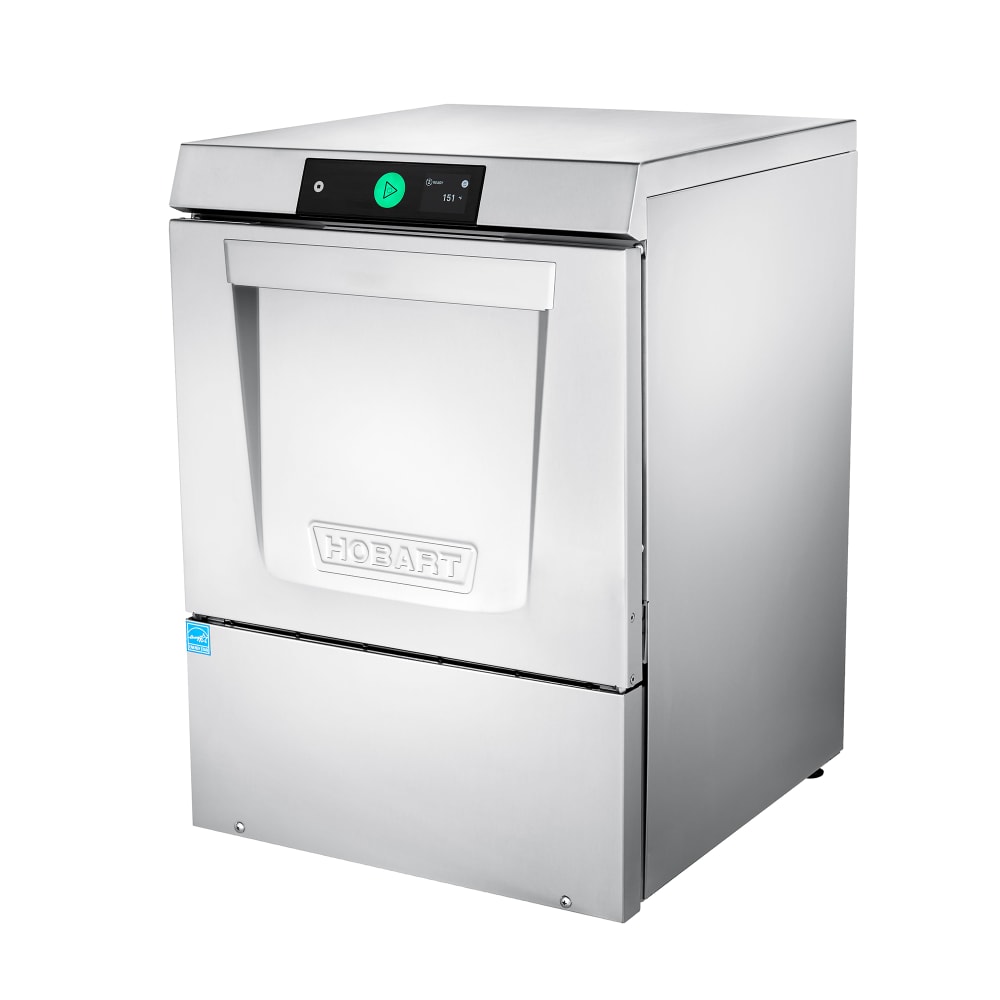

Hobart LXNR-2L LXn Series High Temp Rack Undercounter Dishwasher w/ 30 Racks/hr Capacity, Built-in Booster, 120/208

The Hobart LXNR-2L high-temp undercounter dishwasher is designed for high-volume use and measures 23¹⁵/₁₆ inches wide. It can clean 30 racks with a single-rack setup and includes a two-level rack to increase its holding capacity to 48 racks. It’s made of stainless steel to minimize wear from heavy use, and it features dual wash and rinse arms to streamline cleaning. It’s designed for chemical sanitizing and includes chemical pumps to switch between detergent and rinse aid solutions.

Atop the Hobart LXNR-2L dishwasher, a user-friendly control system with Wi-Fi connectivity enables users to track machine status, temperature logs, error code reporting, and usage analysis via the SmartConnect app. An AutoClean cycle periodically cleans the compartment, and the delime detection prompts auto-dispensing when the unit has reached certain water hardness levels. This unit provides three operating cycles and reaches water temperatures as high as 150 degrees using the electric booster heater.

Product Details

• LXn Advansys™ series
• 48 racks an hour with 2-level rack
• 30, 24, and 13 racks with single rack setup
• Deep-drawn stainless steel compartment

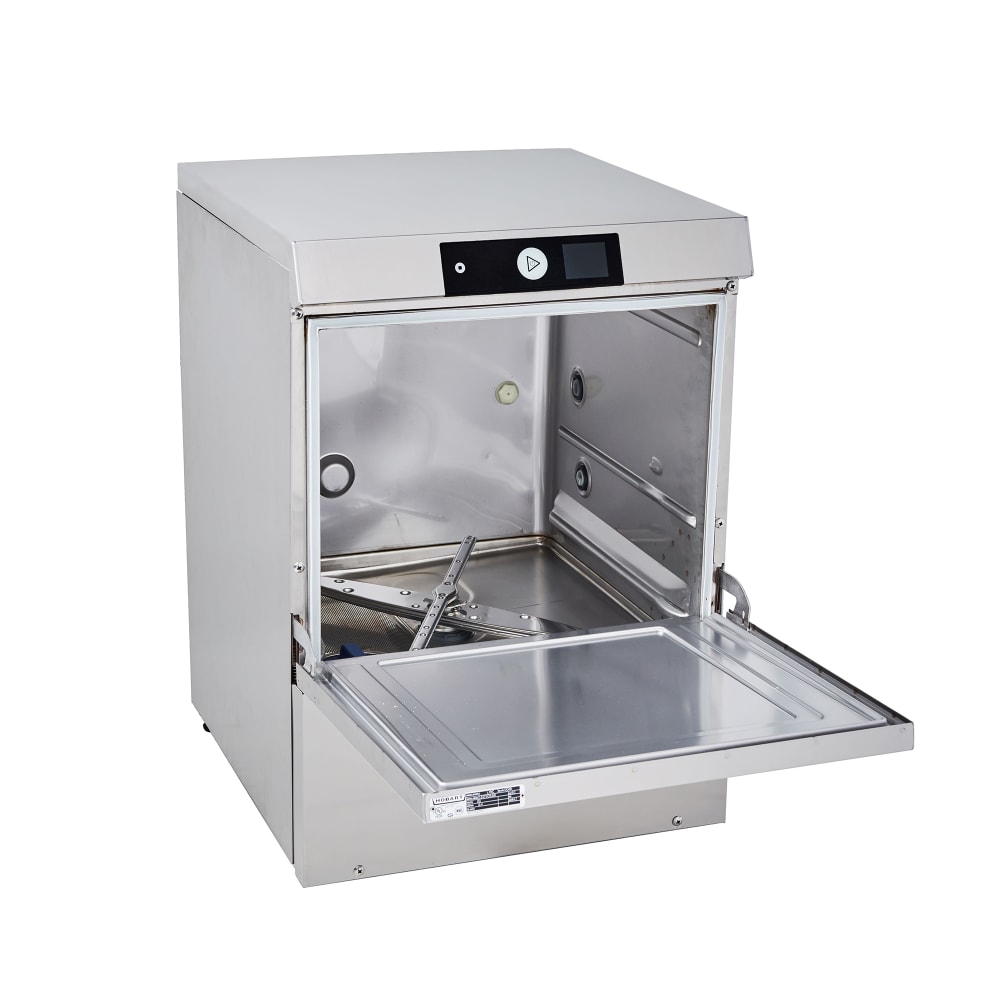

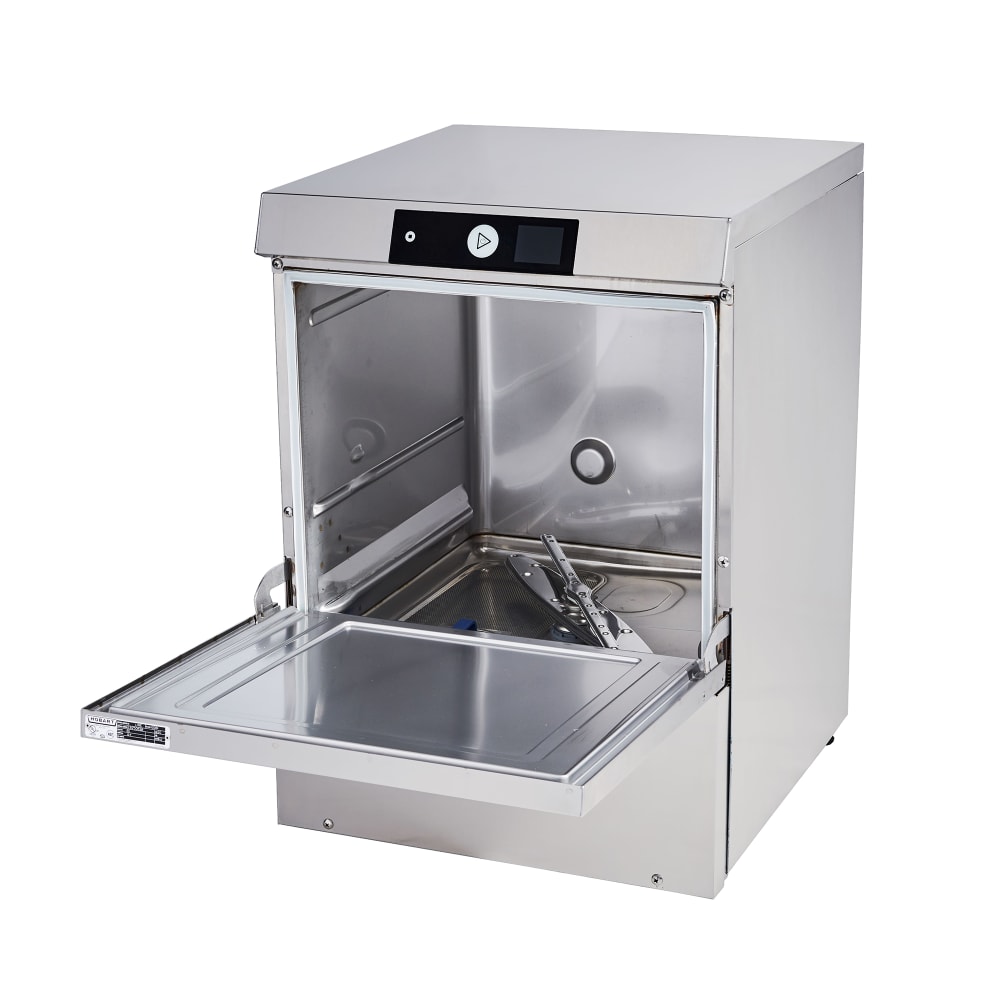

• Revolving upper and lower wash arms (removable)
• Interchangeable upper and lower rinse arms
• Chemical pumps with auto prime
• Automatic rinse and drain pumping
• Automatic fill up

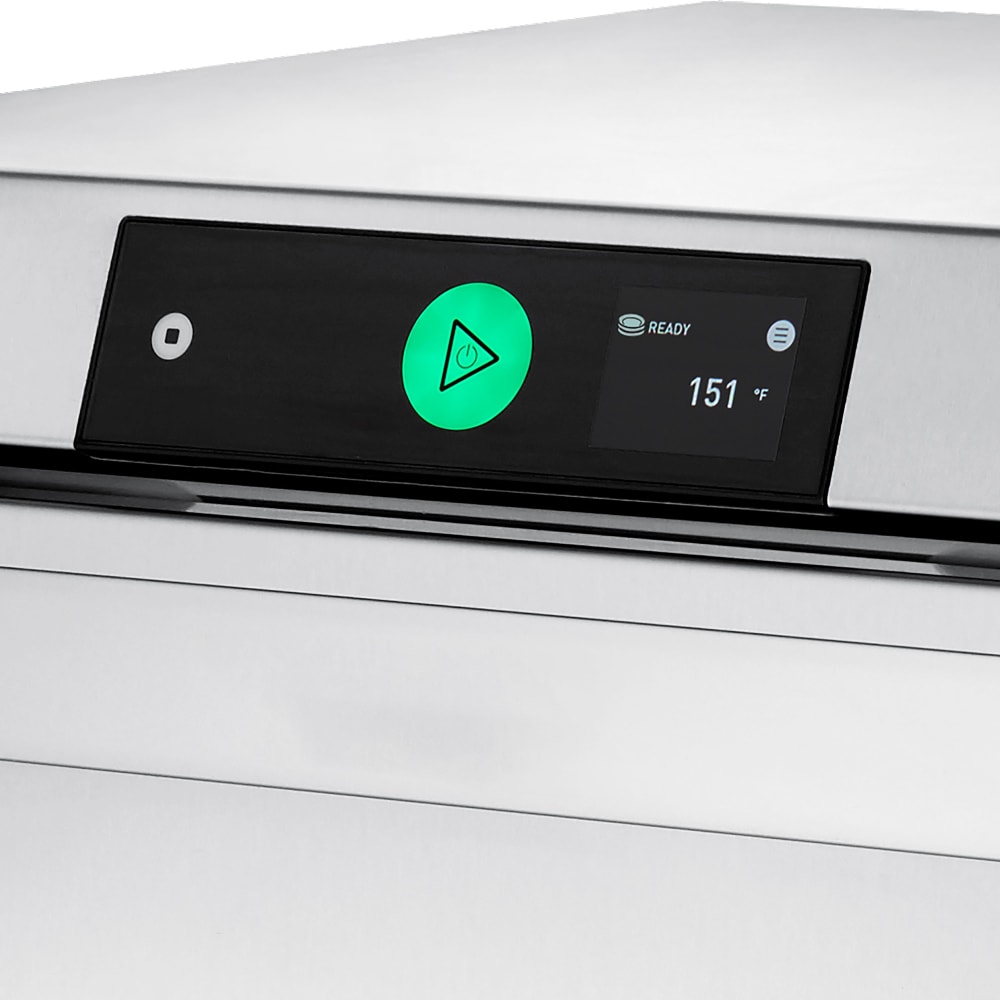

Control System

• Intuitive design
• SmartConnect App Wi-Fi connectivity
• Screens machine status, temperature logs, error code reporting, and usage analysis
• Delime (auto dispensing) and AutoClean processes
• Temperature and chemical level alerts
• Soft-start system
• Sense-a-Temp electric booster heater

Dimensions & Utilities

• 23¹⁵/₁₆ in. W x 26¹³/₁₆ x 32¹/₂ in. H
• 120-240 V/60 Hz/1 ph

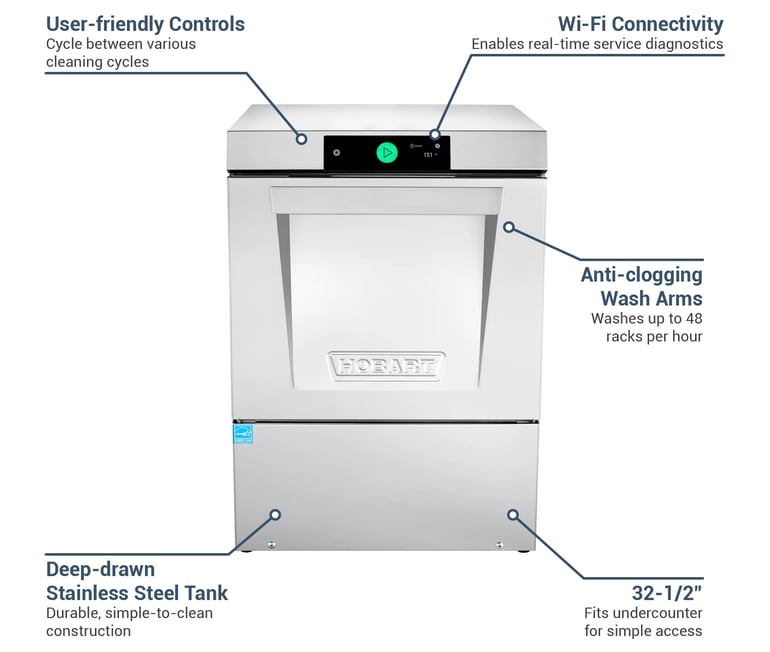

Product Features

*Free shipping on Hobart LXNR-2L within the 48 contiguous states.

From The Manufacturer

LXn Advansys™ Dishwasher, undercounter with 17” door opening height, Sense-A-Temp™ 70°F rise electric booster heater, 120/208-240(3W)/60/1, includes two-level racking accessory, high temperature sanitizing, Steam elimination and Energy Recovery, 48 racks / hour with second level rack (30, 24, 13 Racks/Hour single rack), Fresh Water Rinse, .62 gal/rack, Automatic Delime with Automatic Dispensing and Booster Assurance, 3 selectable cycles - light, normal, heavy (Pot & Pan cycle on heavy cycle), smart touchscreen controls with SmartConnect™ app, Service Diagnostics, Chemical Pumps with Auto Prime, 23-15/16"W x 26-13/16"D x 32-1/2"H, cULus, NSF, ENERGY STAR®. Free factory startup for installations within a 100 mile radius of a Hobart service office; installation beyond 100 miles will be charged at the quoted rate by the local Hobart service office

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor

Hobart LXNR-2L Specifications
