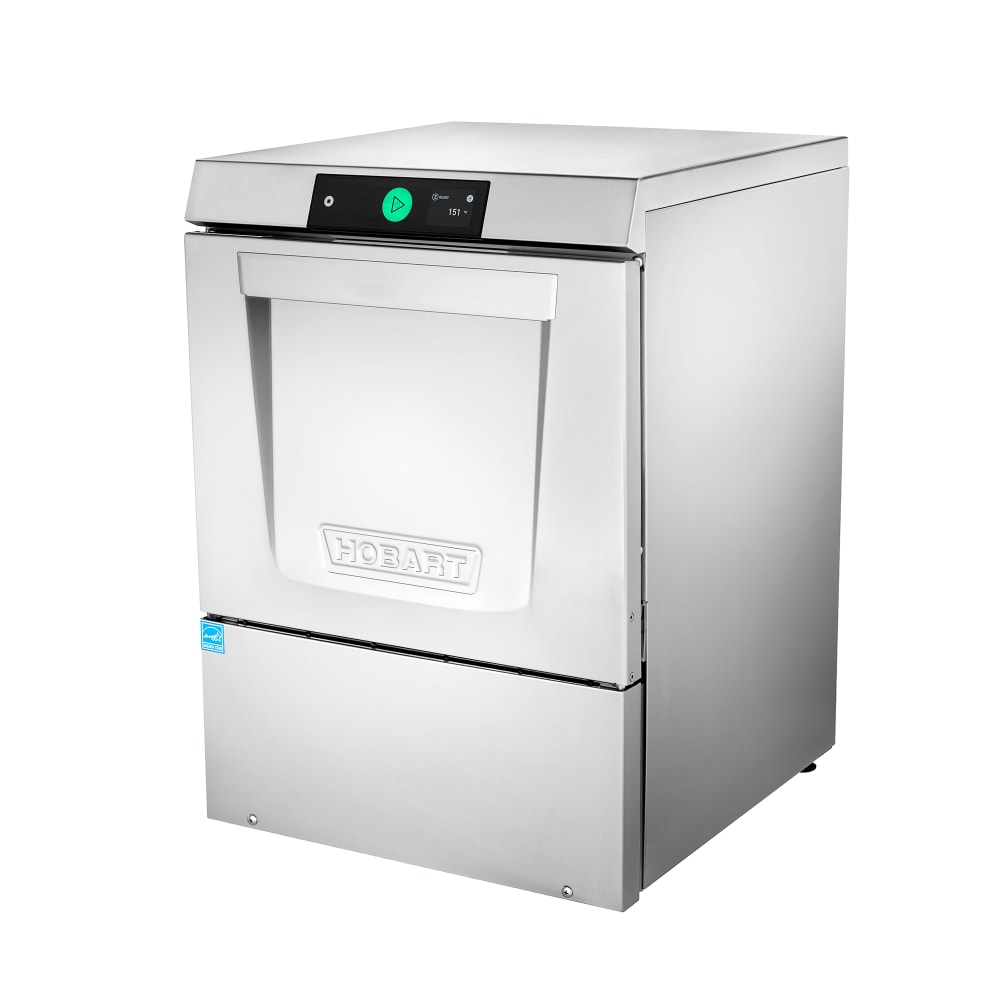

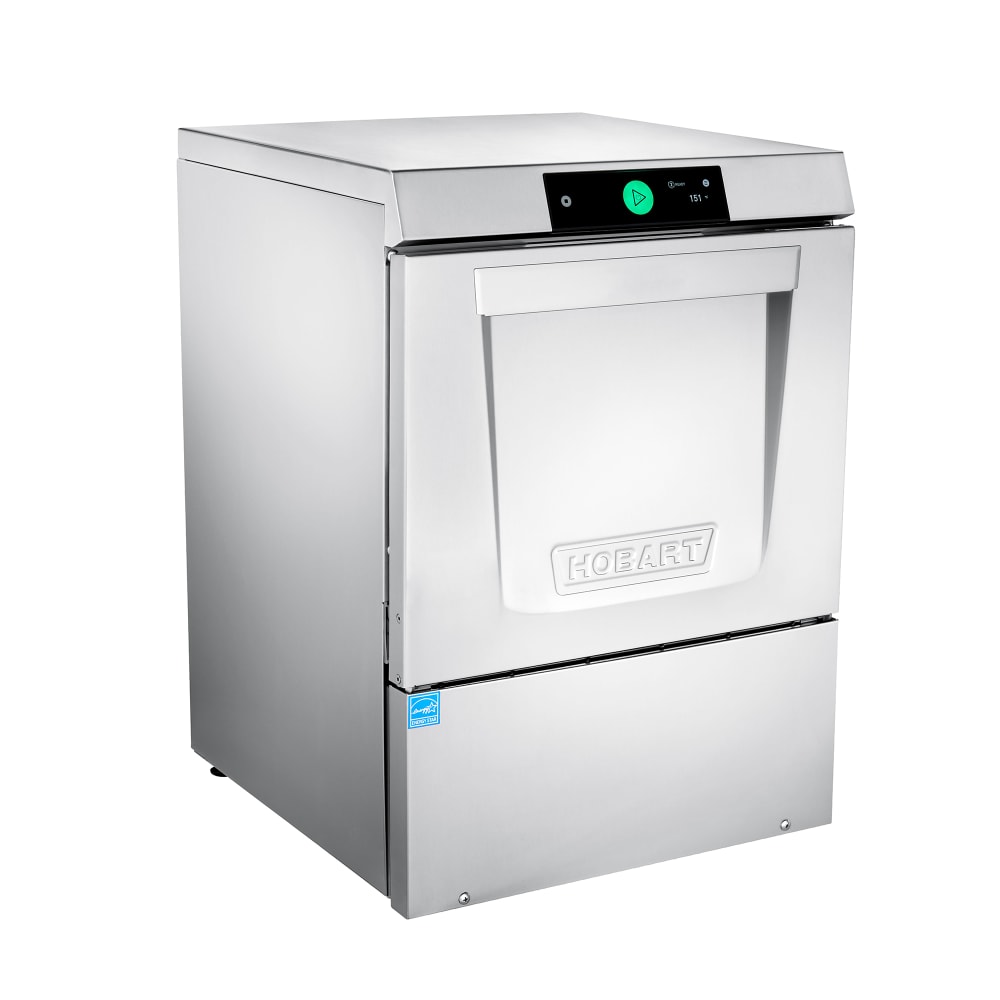

Hobart LXNH-5 LXn Series High Temp Undercounter Dishwasher w/ 32 Racks/hr Capacity, Built-in Booster, 208-240v/3ph
$9,704.10 /Each
Contact us for details!
Selected Voltage: 208-240V, 3 Phase
| 208-240V, 3 Phase |
| 208-240V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Hobart LXNH-5 Description
With self-managing chemical systems and maintenance alerts, the Hobart LXNH-5 LXn Series high temp undercounter dishwasher streamlines daily operation for professional kitchens. Its 0.62-gallon-per-cycle system balances sanitation and conservation, while the Sense-A-Temp™ 70 degrees F rise booster heater maintains uniform wash temperatures. This design supports consistent cleaning results while reducing downtime between loads.
The Hobart LXNH-5 LXn Series high temp undercounter dishwasher features an AutoPrime system that automatically regulates detergent and rinse aid flow, minimizing manual oversight during each cycle. AutoClean and delime notification functions maintain the interior for long-term reliability, while SmartConnect™ diagnostics track performance data. A 17-inch door opening and dual wash arms ensure complete coverage for every rack.
- LXn Series
- 3 min 58 sec cycle period
- Processes up to 32 racks per hour
- 0.62 gallons of water per cycle
- 17-inch door opening height
- 2-level racking capability
- Built-in Sense-A-Tem 70 degrees F rise booster heater
- Stainless steel tank

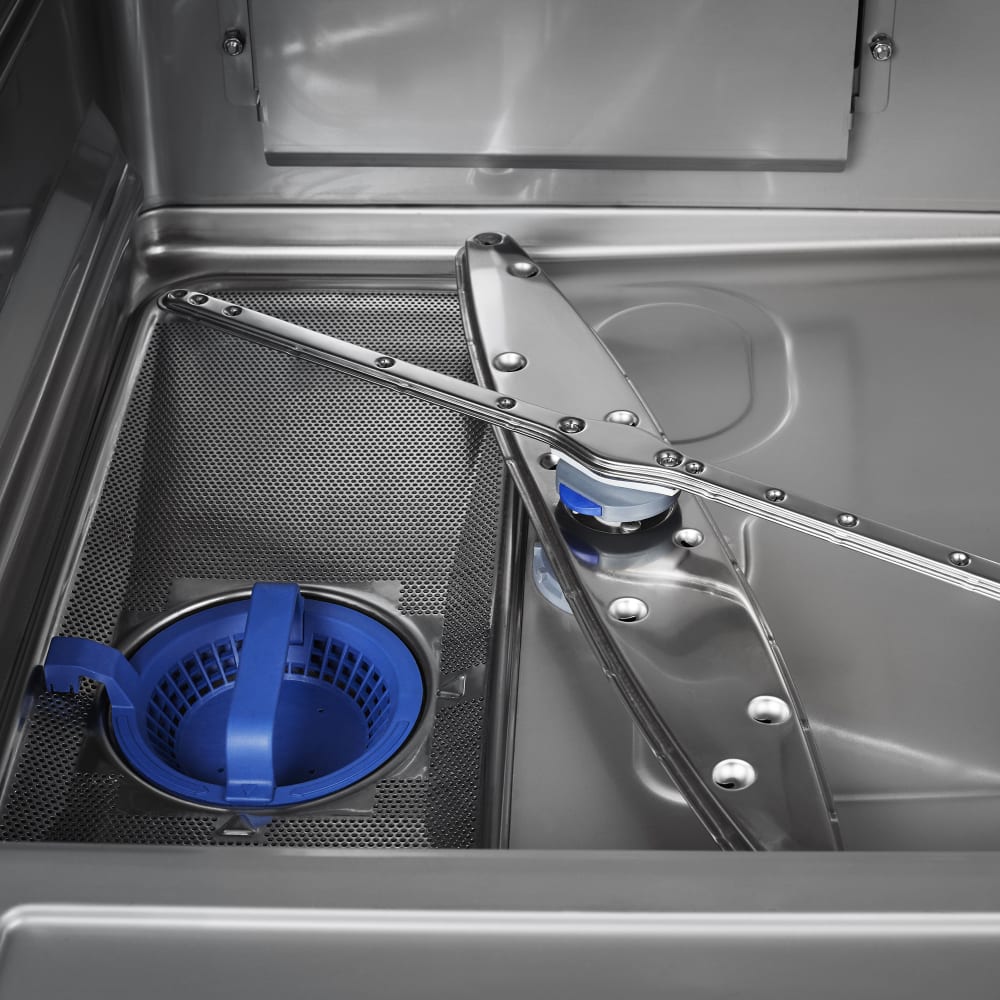

- Dual wash and rinse arms for full coverage
- Anti-clogging wash arms
- AutoClean cycle washes interior at shutdown
- Detergent and rinse aid pumps with auto-prime

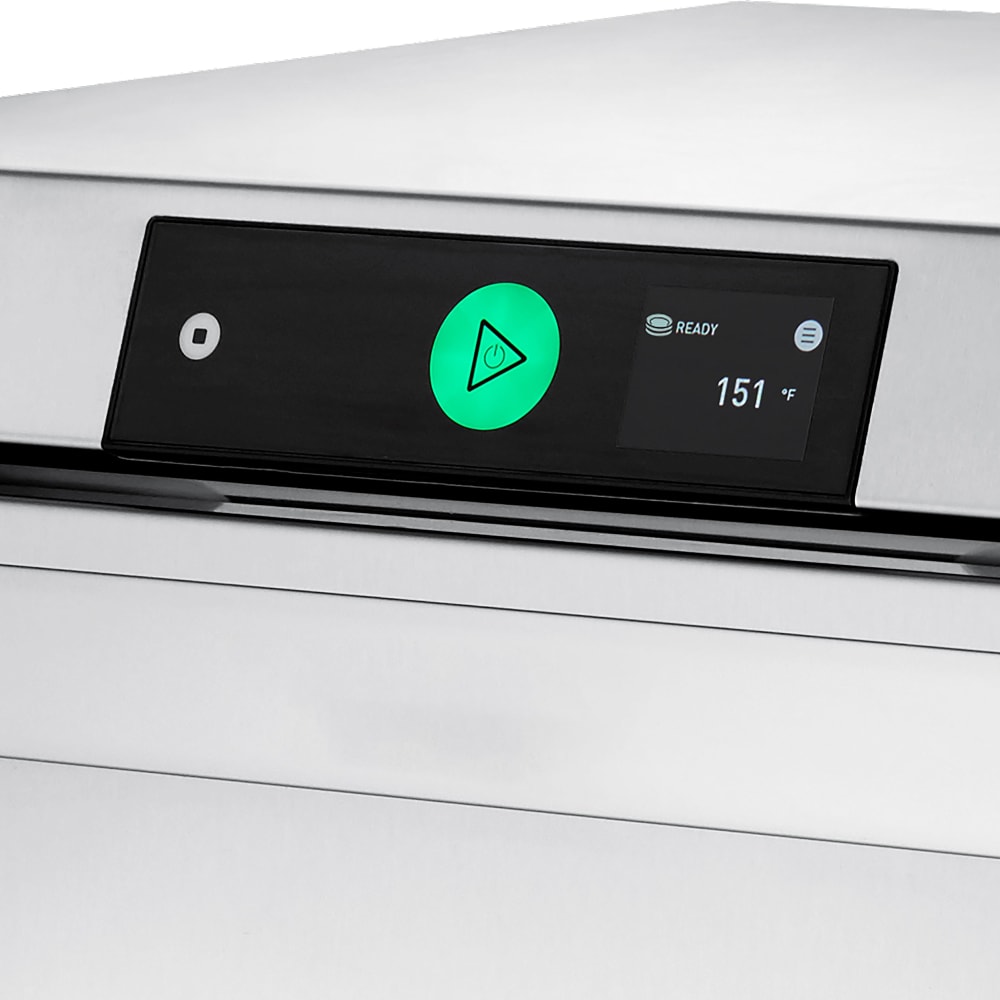

- Smart touchscreen controls with SmartConnect app
- Temperature and chemical lockout alerts
- Advanced diagnostics and service connection
- Automatic fill, pumped rinse, and drain functions
- Energy saver mode
- Combination rack and peg rack included
- ENERGY STAR certified
- Overall: 23 15⁄16 in. W x 25 9⁄16 in. D x 33 1⁄4 in. H
- 24.9 A, 0.85 HP wash motor, 0.19 HP rinse motor
- 208-240 V/60 Hz/3 ph
- 3⁄4 in. water inlet connection
- 110 degrees F minimum incoming water temperature
- 1⁄2 in. trade size pipe with shutoff valve and strainer
- 1 1⁄2 in. reduced to 3⁄4 in. FPT drain connection
- 19.8 gallons per hour maximum water use
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hobart LXNH-5 within the 48 contiguous states.
From The Manufacturer
LXn Dishwasher, high temperature sanitizing undercounter with 17” door opening height, 208-240v/60/3ph, accommodates optional two-level racking accessory, 32 Racks/Hour (48 racks / hour with second level rack), fresh water rinse, .62 gal/rack, Delime Notification with Cycle, Auto Chemical Priming, Detergent & Rinse Aid Pump, smart touchscreen controls with SmartConnect™ app, Service Diagnostics, 23-15/16"W x 25-9/16"D x 33-1/4"H, cULus, NSF, ENERGY STAR®
Watch a video about this product
Hobart LXNH-5 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hobart |
| Cycle Period | 3 min 58 sec |
| Depth (in) | 25.56 |
| Design | Rack |
| Drain Type | Pump |
| For Use With | Dish and Glass |
| Height (in) | 33.25 |
| Hertz | 60 |
| Includes | Rack |
| Phase | 3 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 32 |
| Rating | Better |
| Series | LXn |
| Special Features | Built In Booster |
| Special Features | Dual Wash Arms |
| Type | High Temp |
| Voltage | 208/240 |
| Warranty | 1-year Parts & Labor |
| Water Inlet (in) | 3/4 |
| Width (in) | 23.93 |
| Weight | 150.00 |
