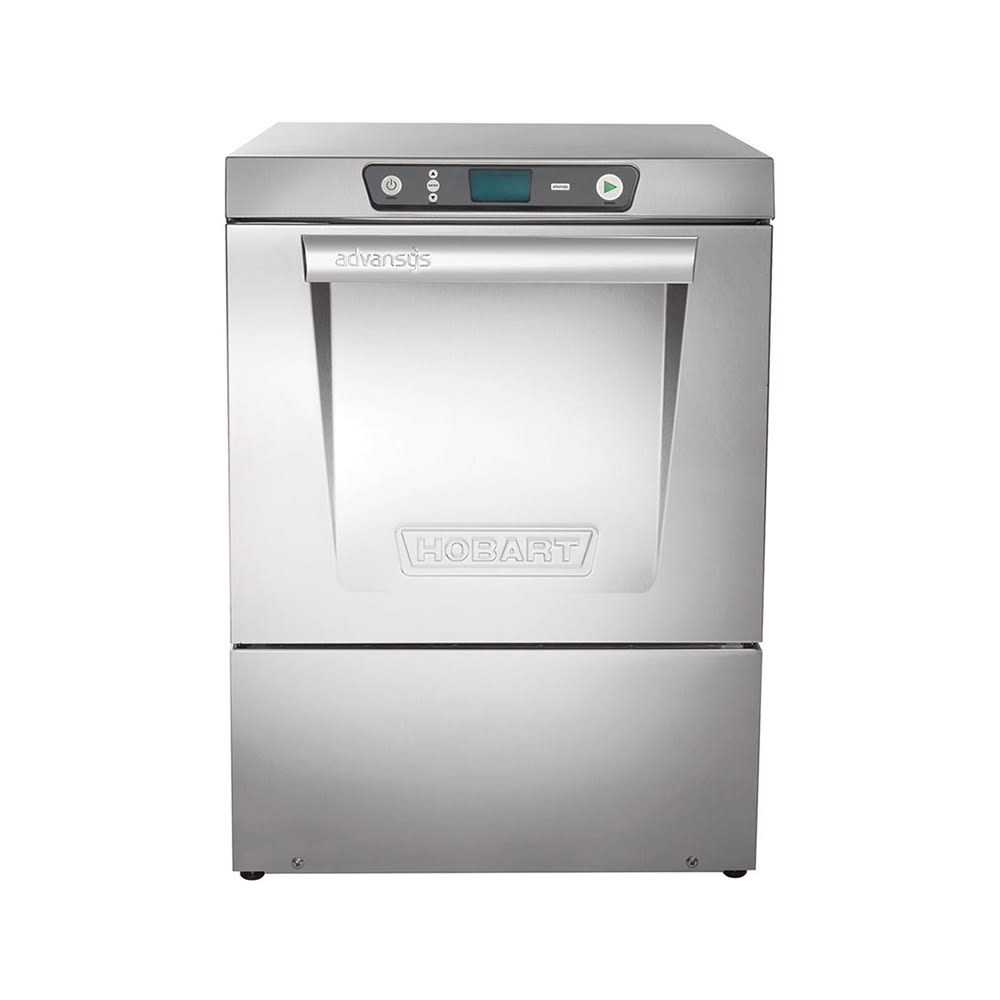

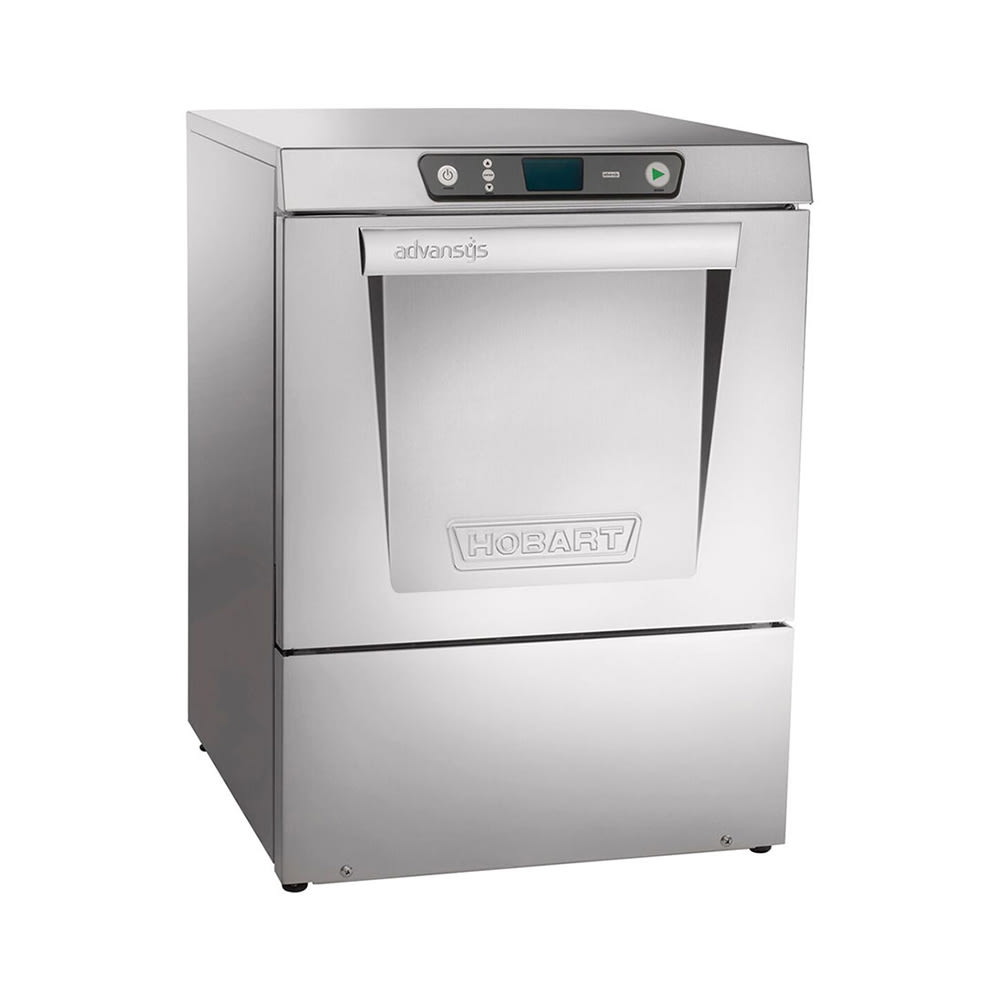

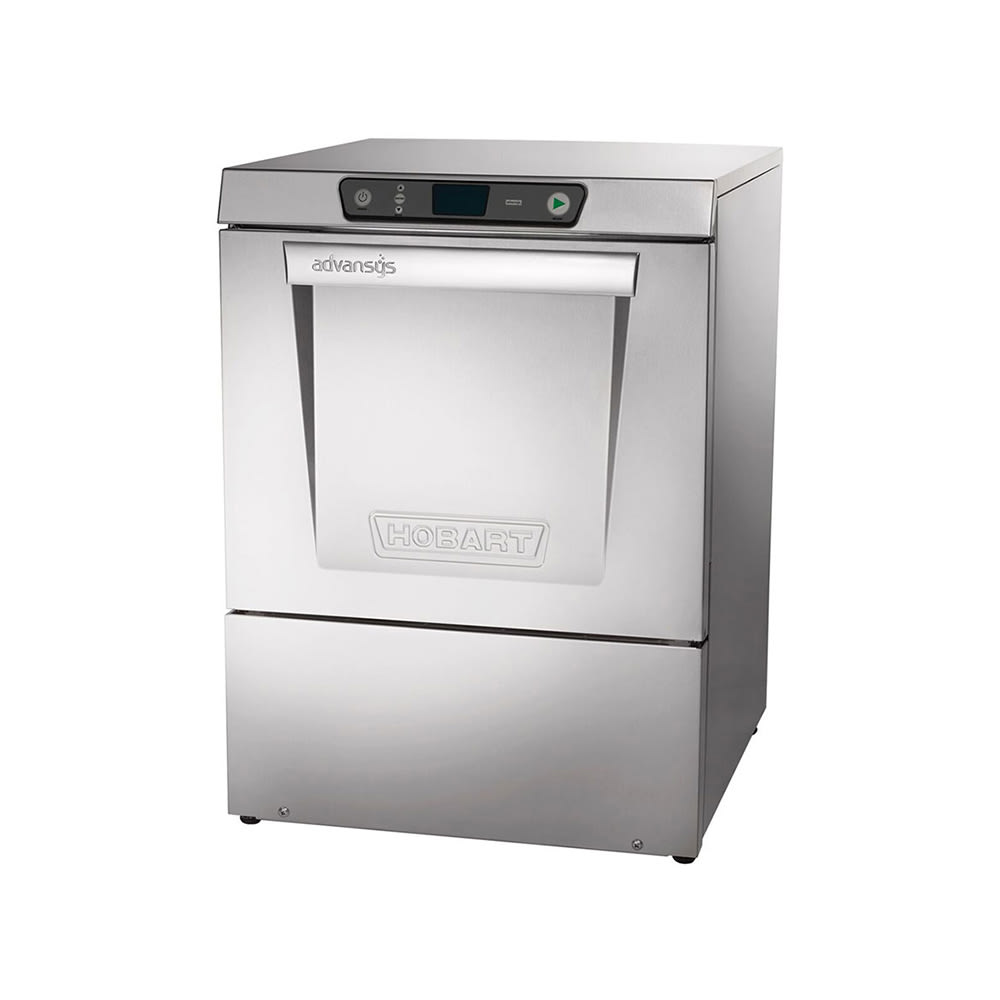

Hobart LXER-2 High Temp Rack Undercounter Dishwasher - (30) Racks/hr, 208-240v/1ph

The Hobart LXER-2 undercounter dishwasher is a high-temp machine that uses water heated to a high temperature to sanitize dishes. On the normal setting, up to 24 racks can be cleaned per hour. Each rack uses 0.62 gallons of water for the entire wash and rinse cycle. Two dishracks come with this washer: a peg and a combo type. 10-inch-by-20-inch pans, 20-inch-by-20-inch pans, and 16-inch-by-18-inch cafeteria trays will fit in this dishwasher.

With its Smart Display, the Hobart LXER-2 undercounter dishwasher informs the operator of important errors and maintenance requirements. A built-in booster heater uses Sense-A-Temp™ to increase the temperature of incoming water from 55 degrees Fahrenheit all the way to a minimum of 180 degrees Fahrenheit. A special feature known as Energy Recovery takes heat energy from the condensation that is produced in the chamber at the end of each cycle and uses it to pre-heat the water for the next rinse cycle. Part of Energy Recovery, Steam Elimination reduces the amount of steam that is released when the door is opened.

Product Details

• Cleans dishes using high-temperature water
• Able to clean 24 racks per hour on its normal setting
• 0.62 gal. of water used per rack
• 2.9-gal. tank capacity
• Accommodates 10-in. x 20-in. pans, 20-in. x 20-in. pans, and 16-in. x 18-in. cafeteria trays
• 2 dishracks come with this unit: 1 peg and 1 combo type
• NSF certified for pot and pan cycle on the heavy cycle
• 17-in. door opening allows for bigger wares to be cleaned
• Front opening design is built for undercounter or freestanding use
• Upper and lower wash arms are revolving, anti-clogging, and easily snap into place
• Stainless steel scrap screen is removable for cleaning
• Corrosion-resistant pump is mounted horizontally and is a centrifugal type
• Automatic pumped drain uses a built-in pump to drain water
• Stainless steel tank is deep drawn for strength
• Tube and fin coil made of copper and aluminum is used by the condensing system
• Electric tank heat
• Motor is built with an overload protection with an auto reset
• Energy recovery from the waste heat is used by the condenser coil
• Blower is a tangential wheel that is powered by a single phase motor for quiet operation

Product Features

Operation Process

• Fills automatically for easy use
• Initial cycle fills the wash tank, with the water being recycled for each wash cycle
• Solid-state electronics control the wash and rinse cycles
• Cycles can be interrupted when the door opens and continues once the door is shut
• Rinse cycle refreshes wash water and tank heat
• Auto clean cycle washes in the interior of the machine during shut down

Specialty Features

• Energy Recovery recovers heat energy from condensation to pre-heat water in the next rinse cycle
• Steam Elimination is part of Energy Recovery that reduces the amount of steam released into the air
• Sense-A-Temp booster heater is able to produce a 70 degrees F rise
• Built-in booster heater is designed to raise the temperature of water to a minimum 180 degrees F from incoming water that is at 55 degrees F
• Energy Saver mode helps reduce the amount of energy used

Smart Display

• Informs operator of maintenance requirements, such as the need for deliming
• Microcomputer, top-mounted controls come with an advanced digital cycle and temperature display
• "Advansys" button allows for customizable functions
• Senses when the wash arms are clogged
• Able to select custom cycle, including light, normal, and heavy
• Delime cycle is automated with booster deliming
• Dirty water indicator informs users when there is no more clean water

Dimensions & Utilities

• 23 15⁄16 in. W x 26 3⁄4 in. D x 32 1⁄2 in. H
• 30.5 A, 4.9 kW
• 120, 208-240 V/60 Hz/1 ph
