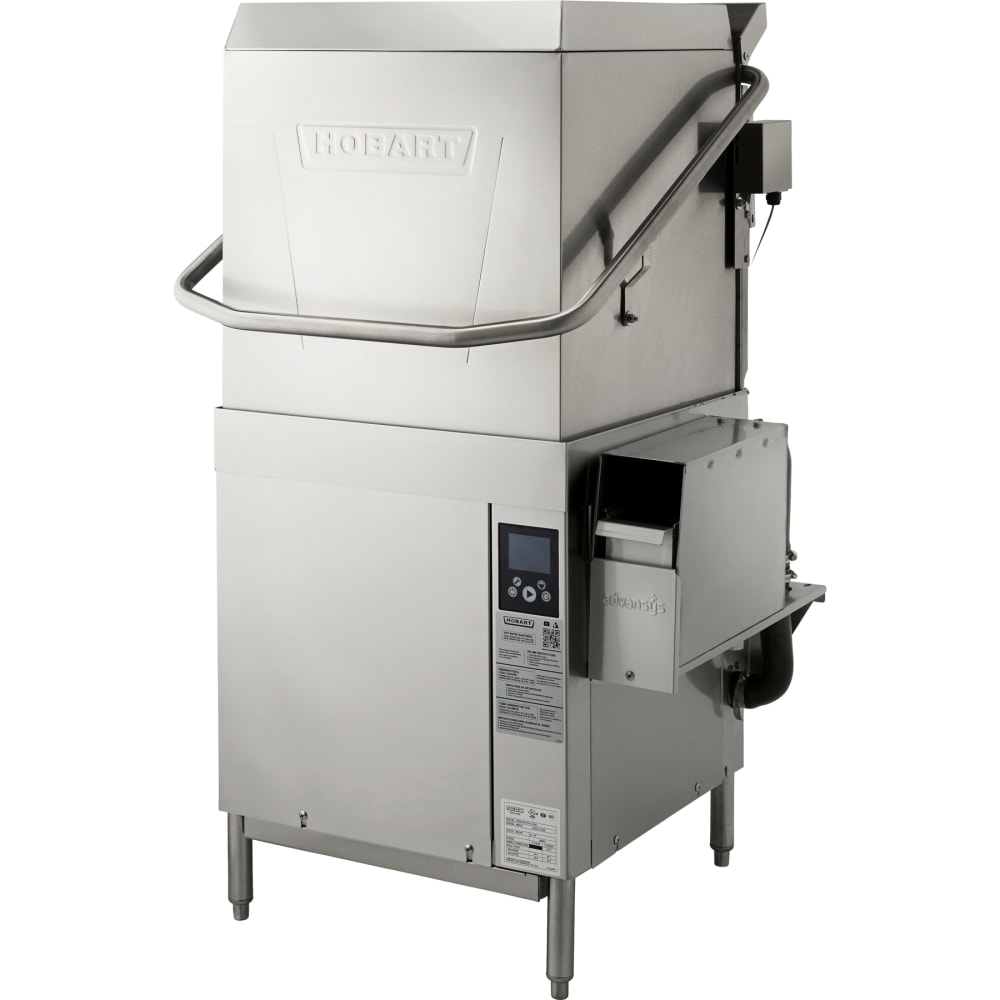

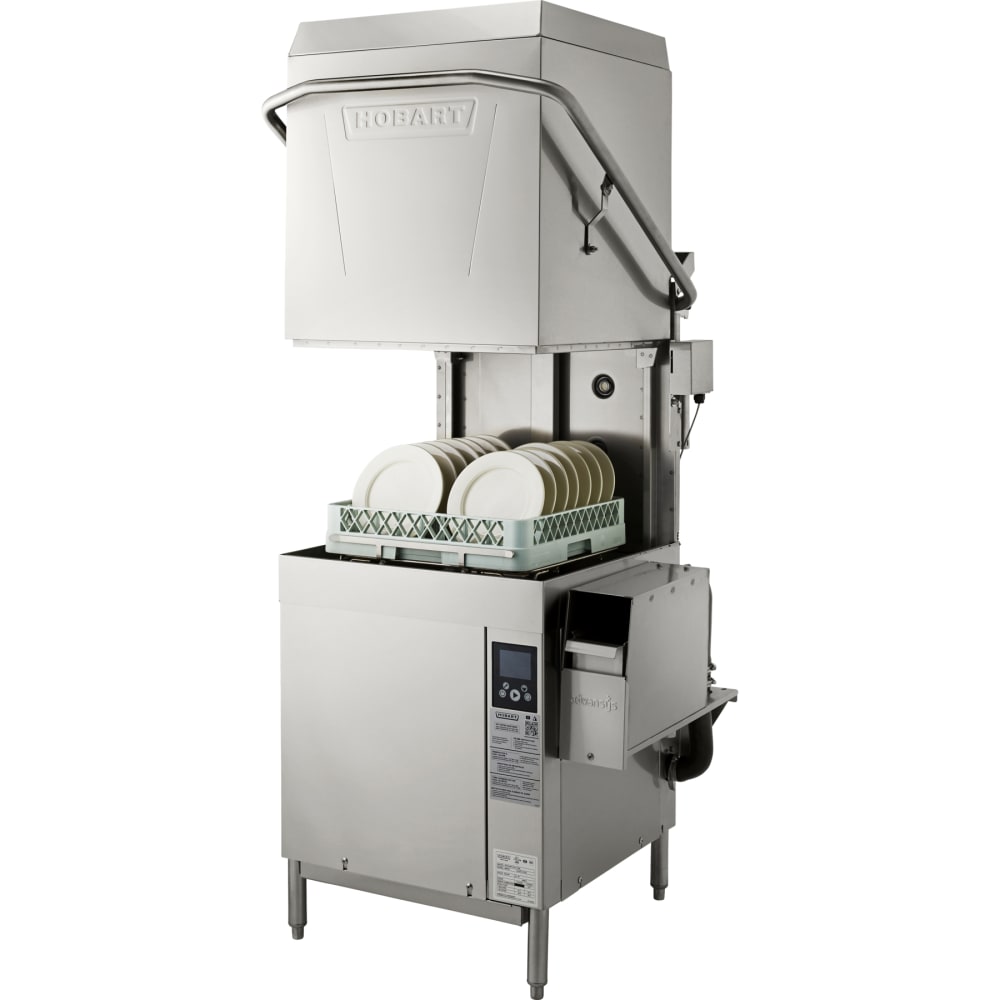

Hobart AM16VL-ADV-2 High Temp Door Type Dishwasher w/ 40 Racks/hr Capacity, Built-in Booster, 208-240v/3ph
$25,612.30 /Each
Contact us for details!
Hobart AM16VL-ADV-2 Description
Measuring 30 inches wide by 24 7⁄16 inches deep by 59 inches high, the Hobart AM16VL-ADV-2 high-temp dishwasher is constructed of stainless steel to resist corrosion through constant moisture exposure. Integrated legs facilitate stable, freestanding setup in pass-thru or corner configurations, while an internal condensing system with energy recovery collects heat from escaping vapor and redirects it into the washing process. Touchscreen controls with WiFi connectivity display machine status, error codes, and troubleshooting steps. For wastewater management, drain water tempering cools hot discharge before the pumped drain empties it.
The Hobart AM16VL-ADV-2 dishwasher automatic soil removal feature, screen, and basket extract food scraps for simple disposal. Equipped with an automatic fill system, its 10 1⁄2-gallon electric-heat tank supports uninterrupted cycling, and the Sense-A-Temp™ booster warms water for high-temperature sanitizing. Its lockable, lift-up door automatically triggers startup as it closes, while AutoClean and automatic deliming address scale deposits. Rated for 40 racks per hour, the machine uses X-shaped wash arms that repeatedly reposition the spray pattern around loaded dishes and wares.
- Accommodates 40 racks per hr.
- Pass-thru or corner installation
- Ventless design
- Stainless steel construction
- 10 1⁄2-gal. wash tank
- Lockable, lift-up door
- Door-actuated start
- X-shaped wash arms

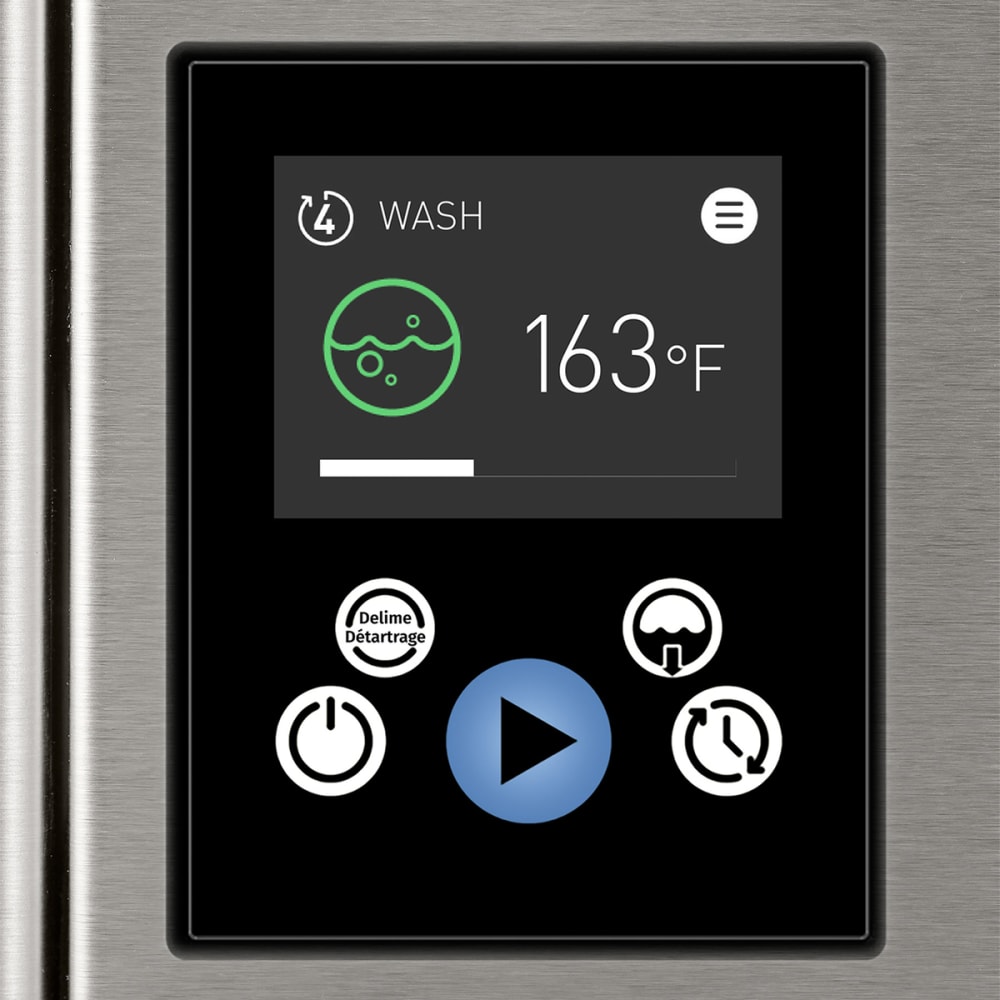

- Touchscreen controls
- Pumped drain with air gap

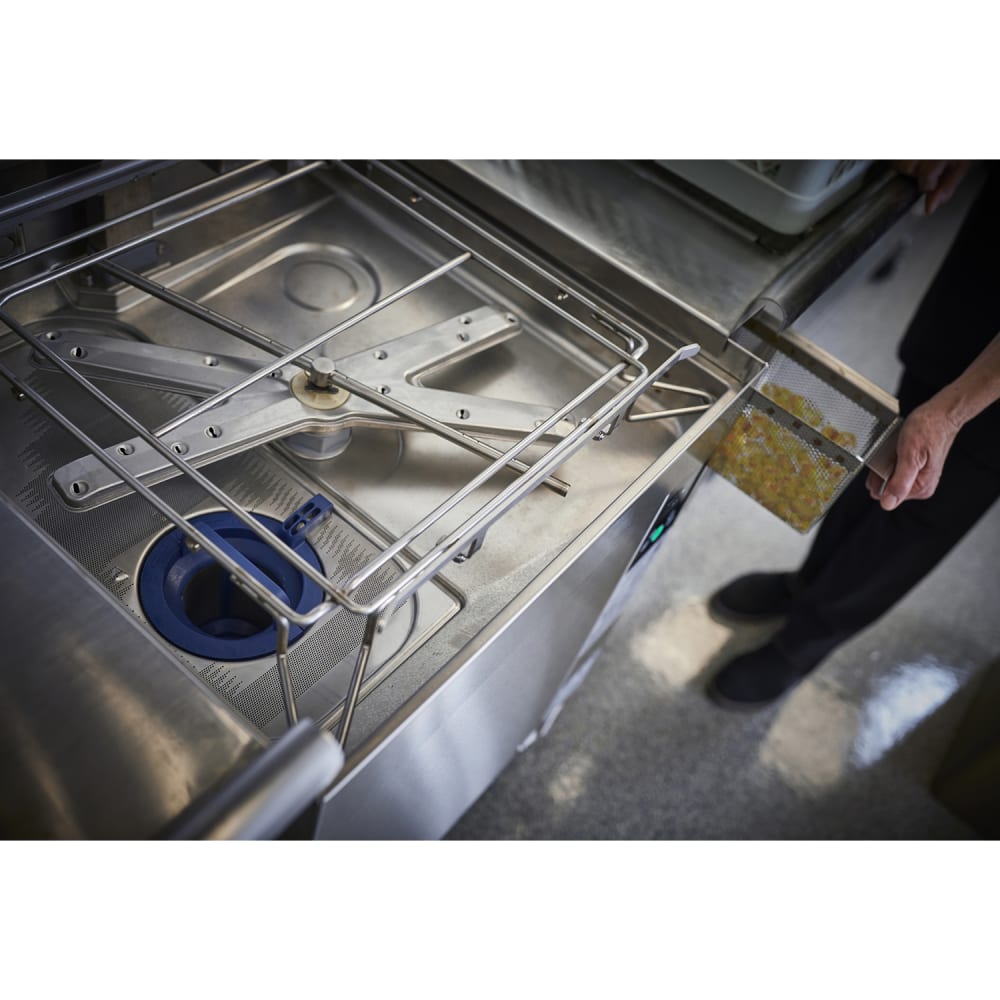

- Scrap screen and basket
- Integrated legs

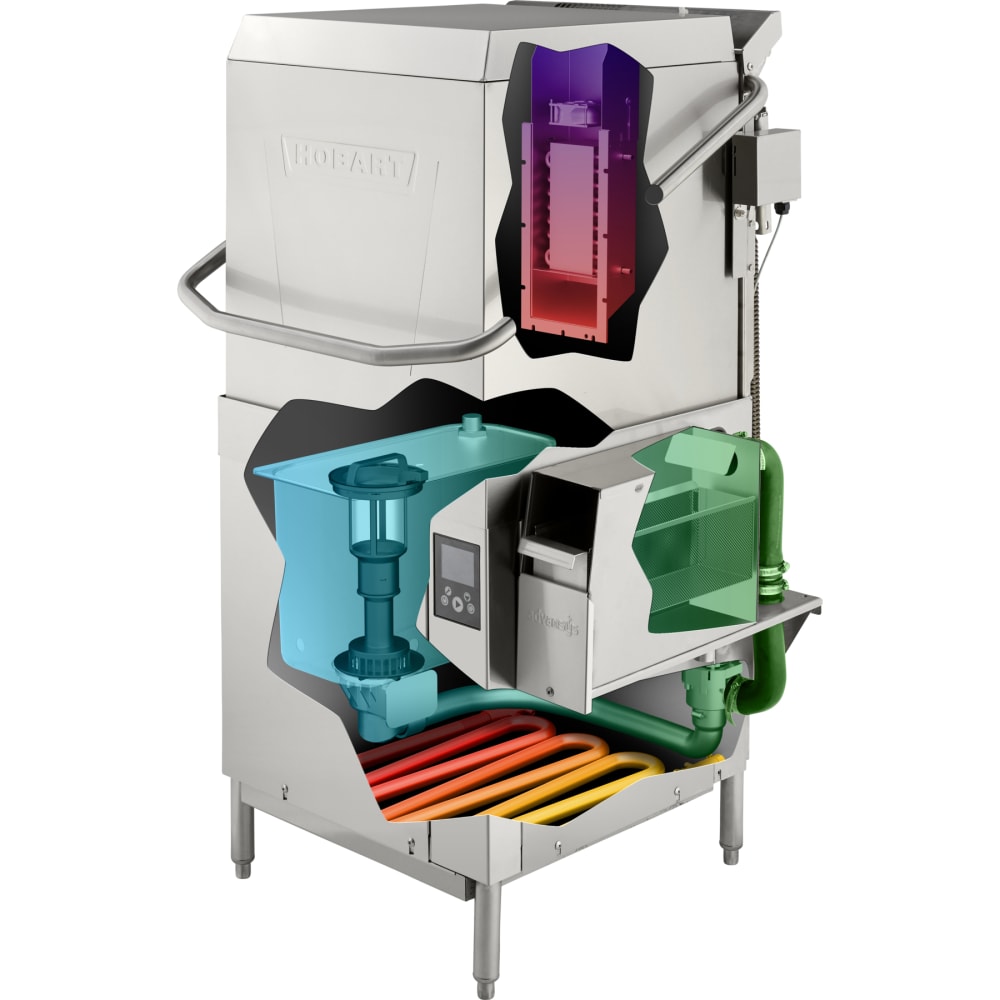

- Internal condensing system
- Energy recovery
- Sense-A-Temp booster
- Electric tank heat
- AutoClean
- Automatic fill
- Automatic soil removal
- Automatic delime
- Drain water tempering
- 30 in. W x 24 7⁄16 in. D x 59 in. H
- 53.5 A
- 208-240 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hobart AM16VL-ADV-2 within the 48 contiguous states.
From The Manufacturer
Ventless Dishwashing Machine, door type, energy recovery, automatic soil removal (ASR), drain water energy recovery (DWER), high temp sanitizing, 208-240/60/3 (field convertible to single phase), internal condensing system, 40 racks/hour, straight-thru or corner installation, user-friendly smart touchscreen controls, Sense-A-Temp™ booster, electric tank heat, X-shaped wash arms, scrap screen and basket, door actuated start, door lock, stainless steel tank, tank shelf, chamber, trim panels, frame & feet, pumped drain air gap, drain water tempering, cULus, NSF, ENERGY STAR®. Factory Startup - Free for installations within 100 miles of a Hobart Service Office during normal business hours with appropriate notice; installation beyond 100 miles will be quoted by Service.
Watch a video about this product
Hobart AM16VL-ADV-2 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hobart |
| Capacity | Single Rack |
| Cavity Height (in) | 17 |
| Control Location | Bottom |
| Depth (in) | 24.44 |
| Design | Standard |
| Door Type | Lift Up |
| Drain Type | Pump |
| Heat | Electric |
| Height (in) | 59 |
| Hertz | 60 |
| Kitchen Innovations Awards | 2010 |
| Phase | 3 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 40 |
| Rating | Better |
| Special Features | Built In Booster |
| Type | High Temp |
| Voltage | 208/240 |
| Warranty | 1-year Parts, Labor, & travel time during normal working hours within the USA |
| Width (in) | 30 |
| Weight | 377.00 |
