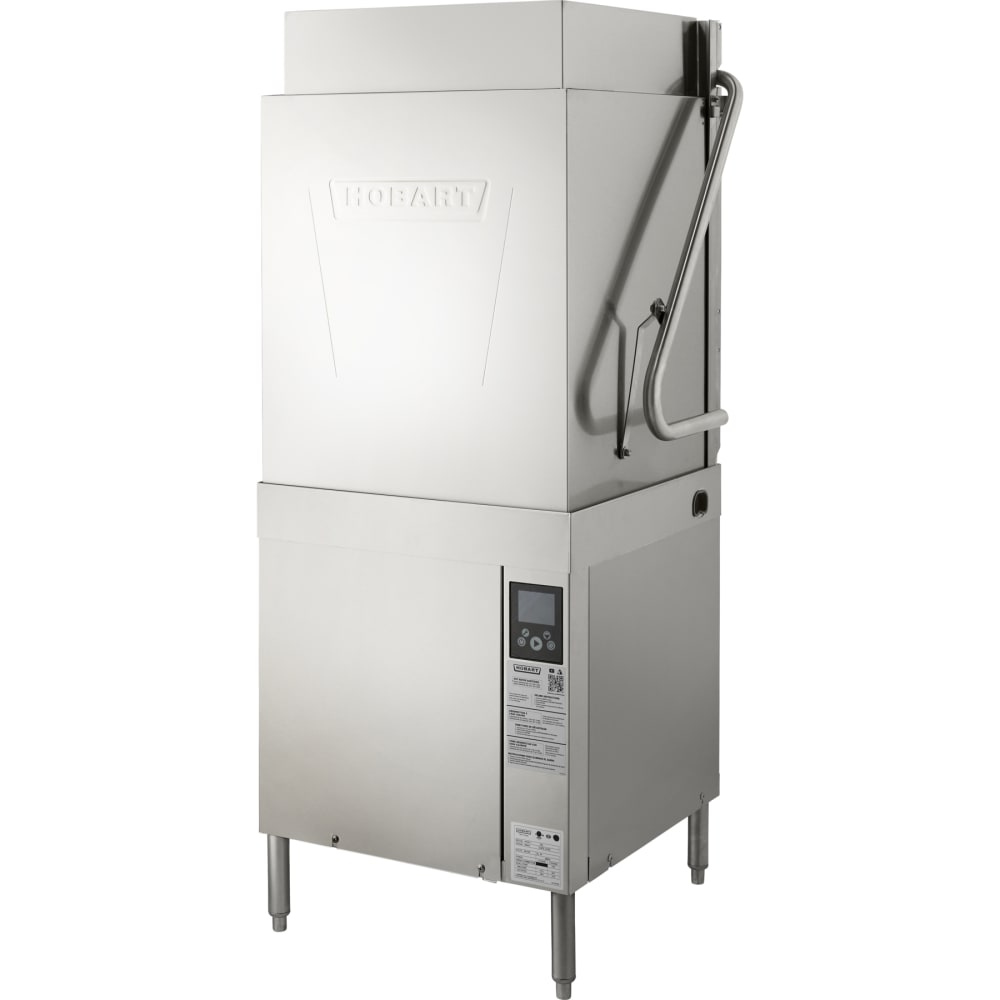

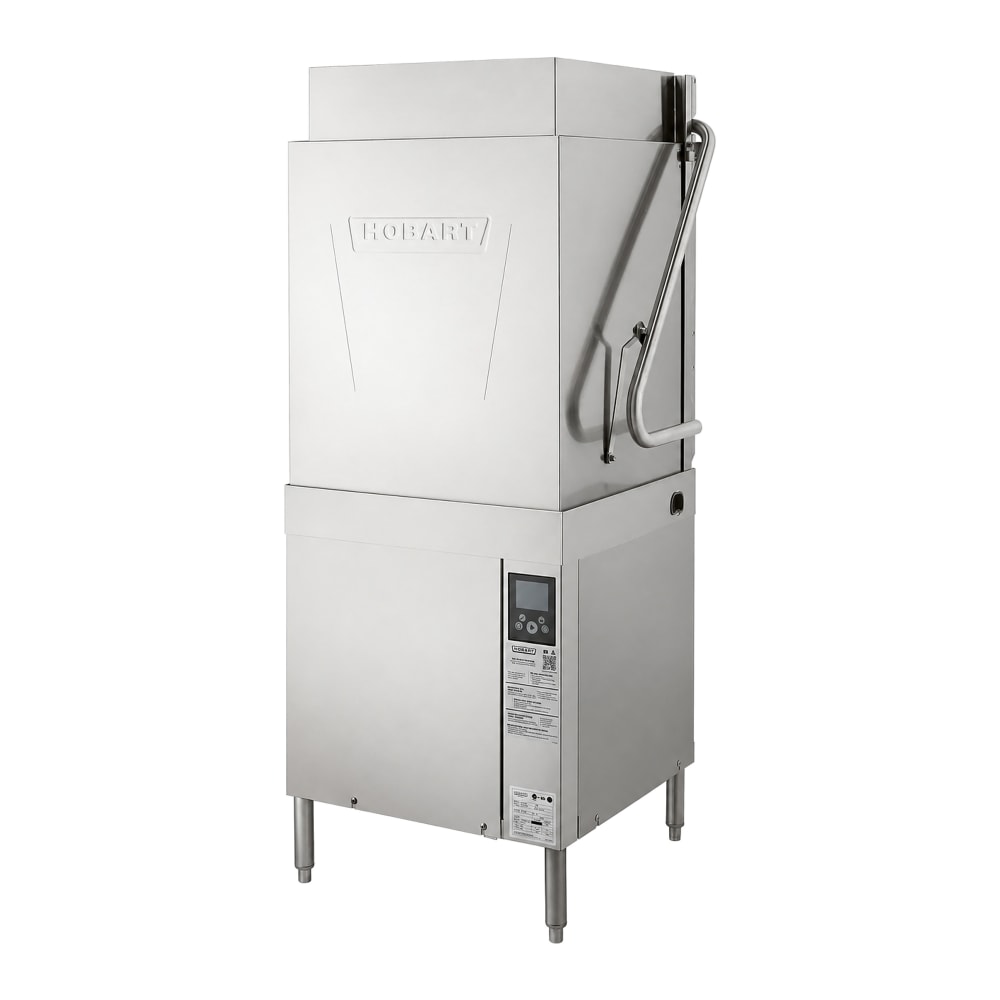

Hobart AM16T-BAS-4 High Temp Door Type Dishwasher w/ 60 Racks/hr Capacity, Built-in Booster, 480v/3ph
Typically ships in 2 - 3 weeks
$23,177.70 /Each
Contact us for details!
Selected Voltage: 480V, 3 Phase
| 480V, 3 Phase |
| 208-240V, 3 Phase |
Non Returnable Item
Hobart AM16T-BAS-4 Description
The Hobart AM16T-BAS-4 high-temp door-type dishwasher includes a sheet pan rack that fits full-size pans. Its vent fan pulls humid air away from the chamber, while the pumped drain mechanically clears spent water after washing. Processing up to 60 racks per hour, its 30-inch-wide by 25 1⁄4-inch-deep by 67 9⁄16-inch-high frame mounts on integrated legs and installs in corner or pass-thru setups to promote efficient workflow. Controlled by a touchscreen, it eases diagnostic checks for minimal downtime.
The Hobart AM16T-BAS-4 dishwasher incorporates a lift-up door to simplify cycle activation in high-volume foodservice settings. Outfitted with revolving X-shaped wash arms, it ensures full-coverage washing, while automatic fill and pumped rinse preserve continuous water delivery from the 10 1⁄2-gallon tank. Electric tank heat and the Sense-A-Temp™ booster correct rinse temperature for high-heat sanitization. The two-stage filtration catches debris throughout the cycle, and AutoClean eliminates leftover residue.
- Accommodates 60 racks per hr.
- Pass-thru or corner installation
- Stainless steel construction
- 10 1⁄2-gal. wash tank

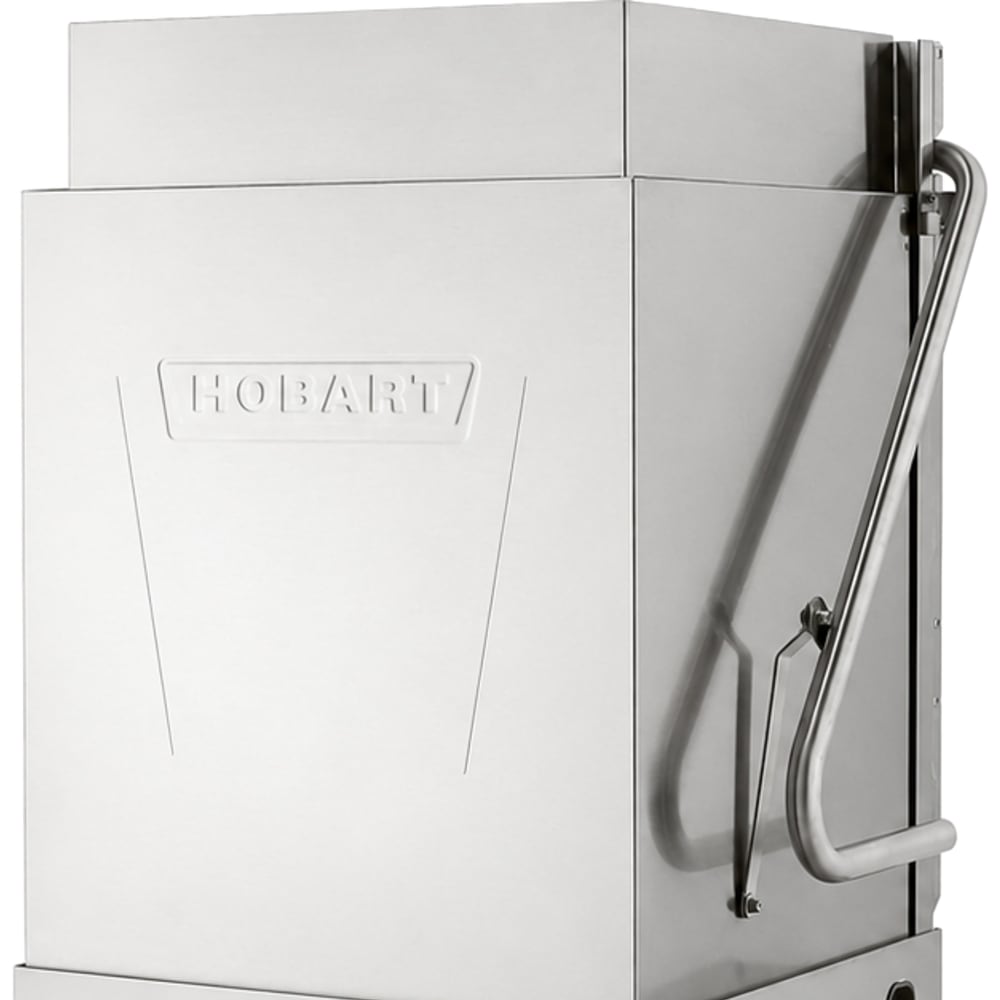

- Lift-up door
- Door-actuated start

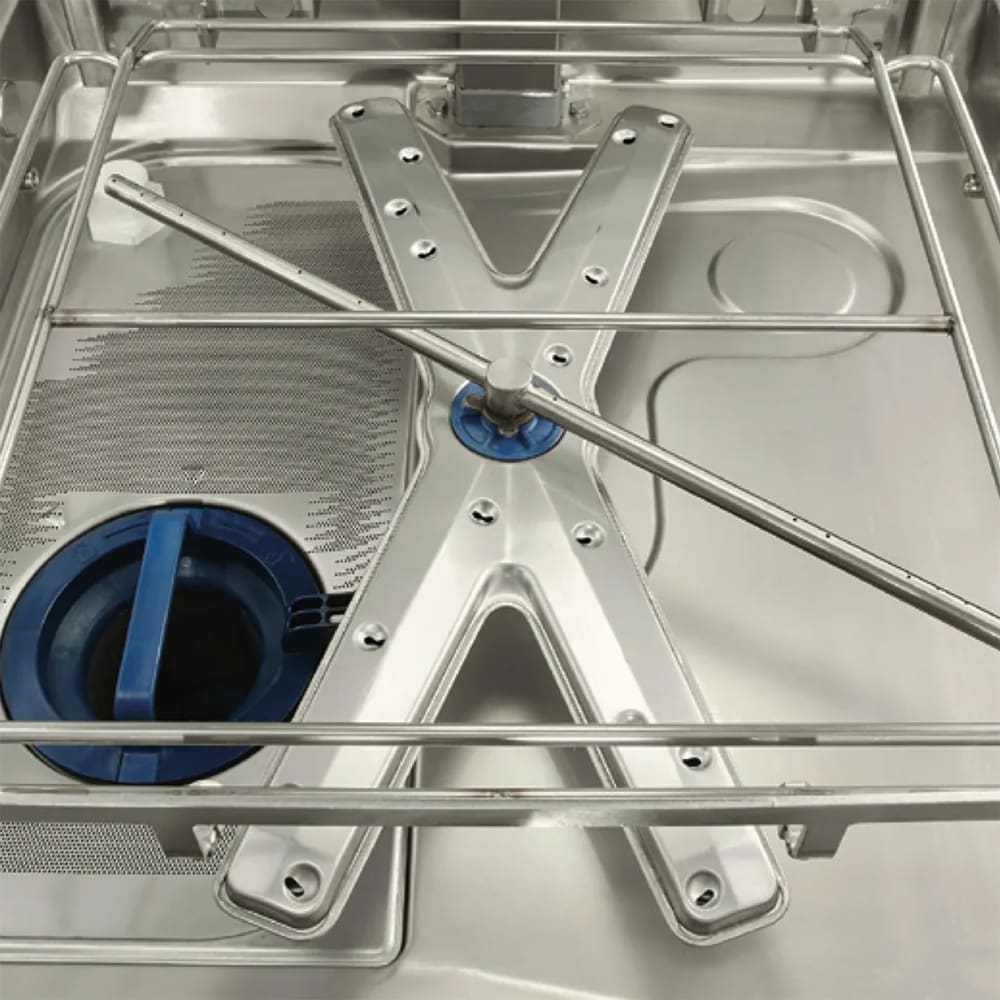

- Revolving X-shaped wash arms
- Sheet pan rack
- 2-stage filtration

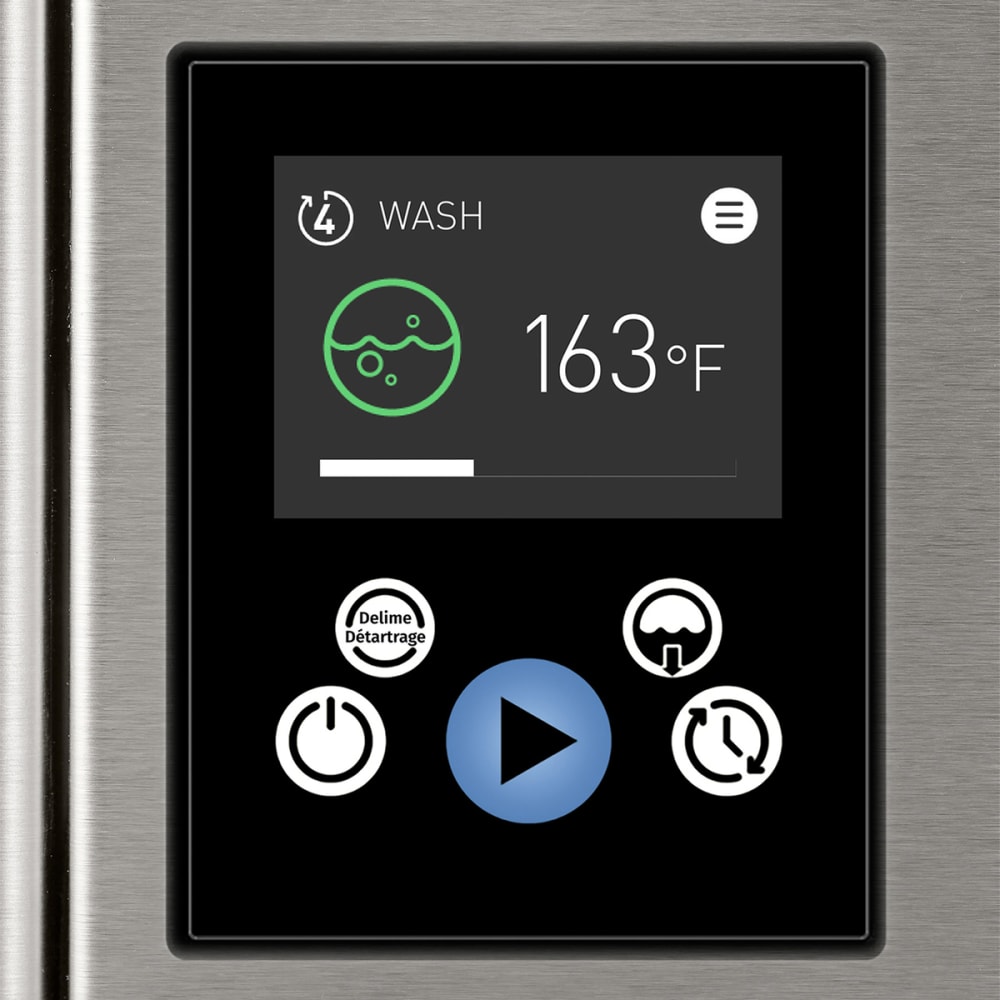

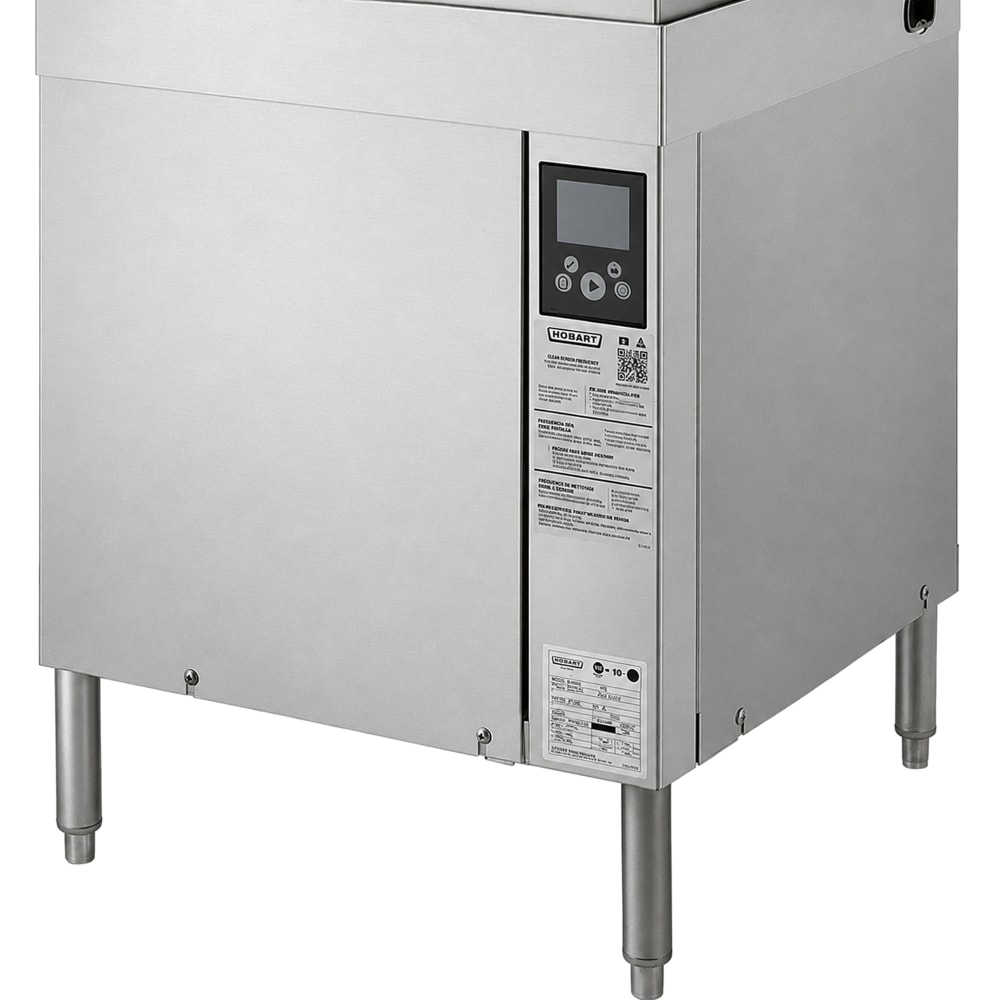

- Touchscreen controls
- Vent fan
- Integrated legs
- Sense-A-Temp booster
- Electric tank heat
- Pumped rinse and drain
- AutoClean
- Automatic fill
- 30 in. W x 25 1⁄4 in. D x 67 9⁄16 in. H
- 23.5 A
- 480 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hobart AM16T-BAS-4 within the 48 contiguous states.
From The Manufacturer
Dishwasher, door type, tall chamber (27”), high temp sanitizing, 480/60/3, 60 racks/hour, straight-thru or corner, user-friendly smart touchscreen controls, Sense-A-Temp™ booster, electric tank heat, pumped rinse, pumped drain, auto-fill, stainless steel tank, frame, doors & feet, sheet pan rack, cULus, NSF, ENERGY STAR®
Watch a video about this product
Hobart AM16T-BAS-4 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hobart |
| Capacity | Single Rack |
| Cavity Height (in) | 27 |
| Control Location | Bottom |
| Depth (in) | 25.25 |
| Design | Standard |
| Door Type | Lift Up |
| Drain Type | Pump |
| Heat | Electric |
| Height (in) | 67.56 |
| Hertz | 60 |
| Phase | 3 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 60 |
| Rating | Better |
| Special Features | Built In Booster |
| Special Features | Pot & Pan Washer |
| Type | High Temp |
| Voltage | 480 |
| Warranty | 1-year Parts, Labor, & travel time during normal working hours within the USA |
| Width (in) | 30 |
| Weight | 357.00 |
