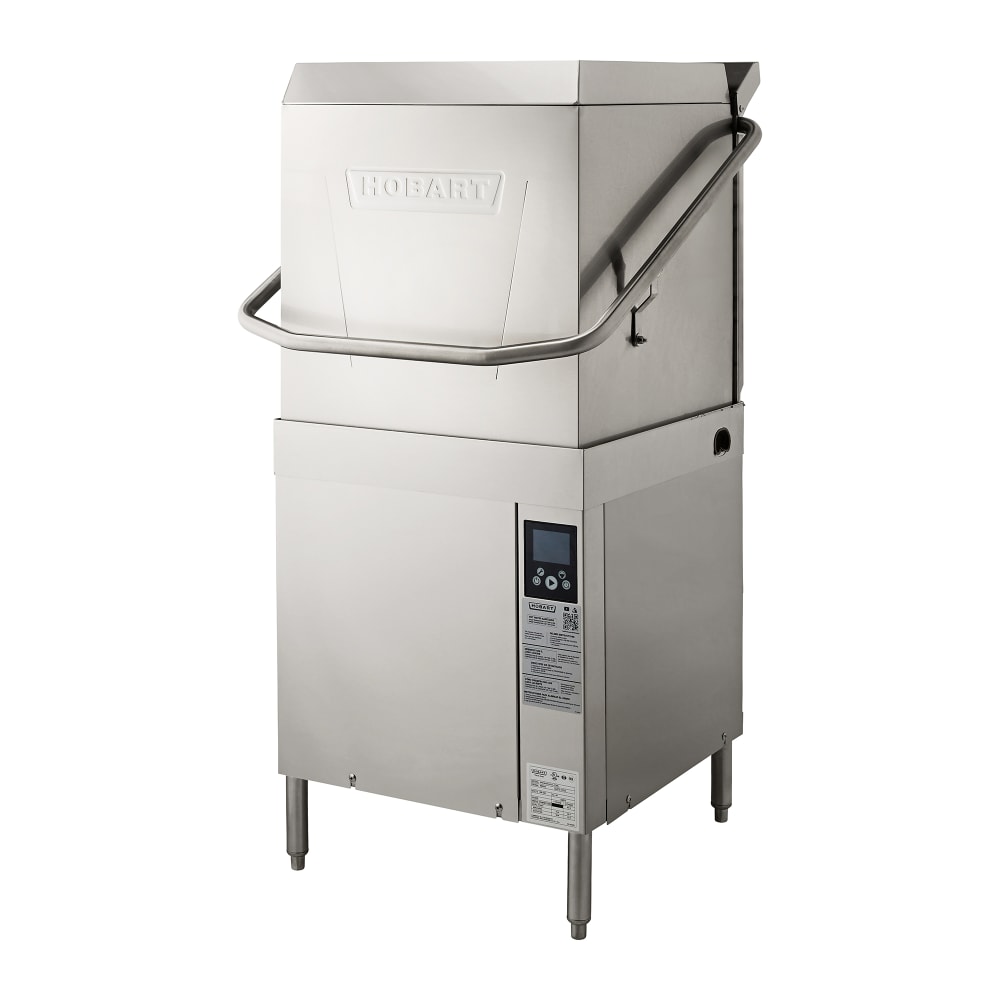

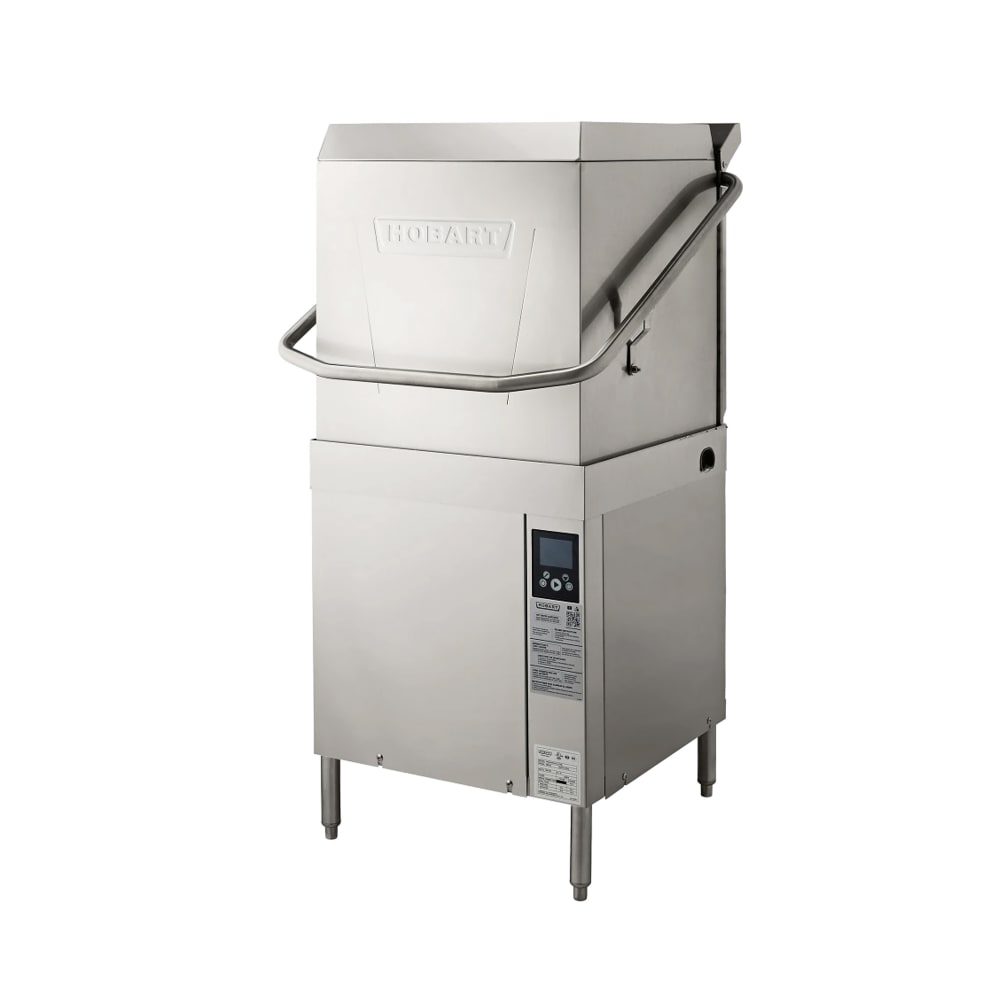

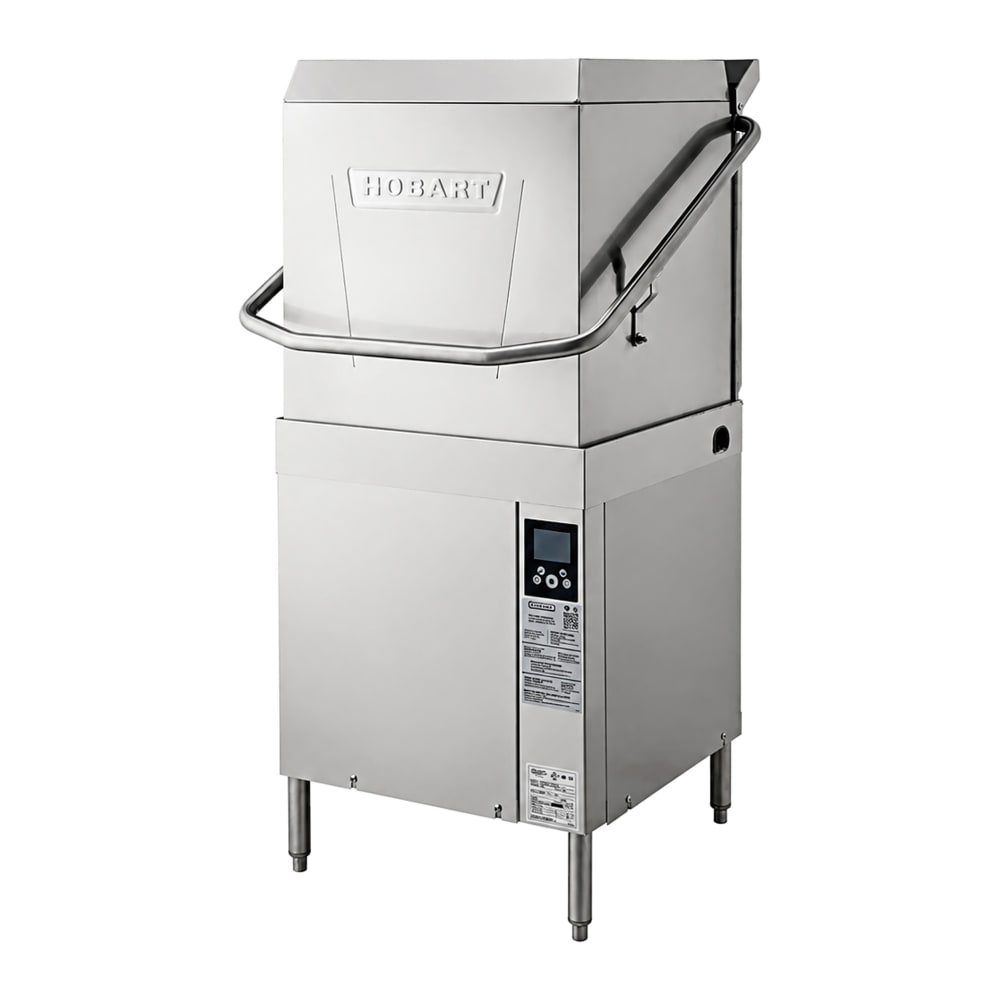

Hobart AM16-BAS-4 High Temp Door Type Dishwasher w/ 60 Racks/hr Capacity, Built-in Booster, 480v/3ph
IN STOCK: Ships in 1 Business Day
Less Than 5 in Stock, Order Soon!
$17,922.80 /Each
Contact us for details!
Selected Voltage: 480V, 3 Phase
| 208-240V, 3 Phase |
| 480V, 3 Phase |
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Hobart AM16-BAS-4 Description
The Hobart AM16-BAS-4 high-temp door-type dishwasher is designed for installation in commercial kitchen spaces. This dishwasher measures 251/10 inches wide by 59 inches high and features a five-sided insulated hood. The tank, tank shelf, chamber, trim panels, and frame and feet are made of stainless steel for durability and corrosion resistance, and this unit cleans 60 racks per hour using X-shaped, revolving, interchangeable upper and lower wash arms and revolving, interchangeable upper and lower rinse arms. Thermoplastic rollers ensure the unit retains structural integrity throughout heavy use.
The Hobart AM16-BAS-4 high-temp door-type dishwasher's user-friendly controls enable users to select between one-, two-, four-, and six-minute cycles. The Sense-a-Temp 70-degree booster achieves ideal water temperatures for efficient washing, and users can connect to the SmartConnect app via Wi-Fi to check machine status, temperature logs, error code reporting, cost, and consumption and usage analysis. Auto-clean and delime cycles are included to simplify maintenance.
Product Details

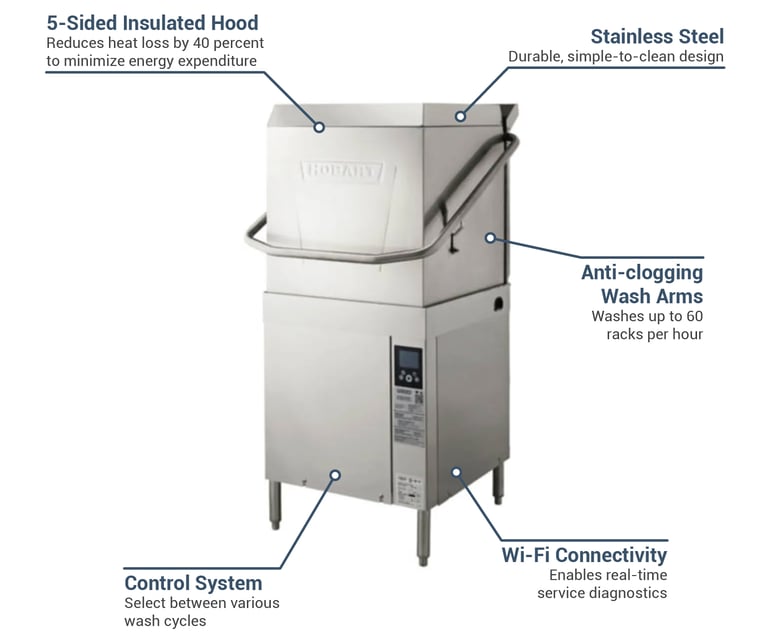

- Cleans 60 racks/hour

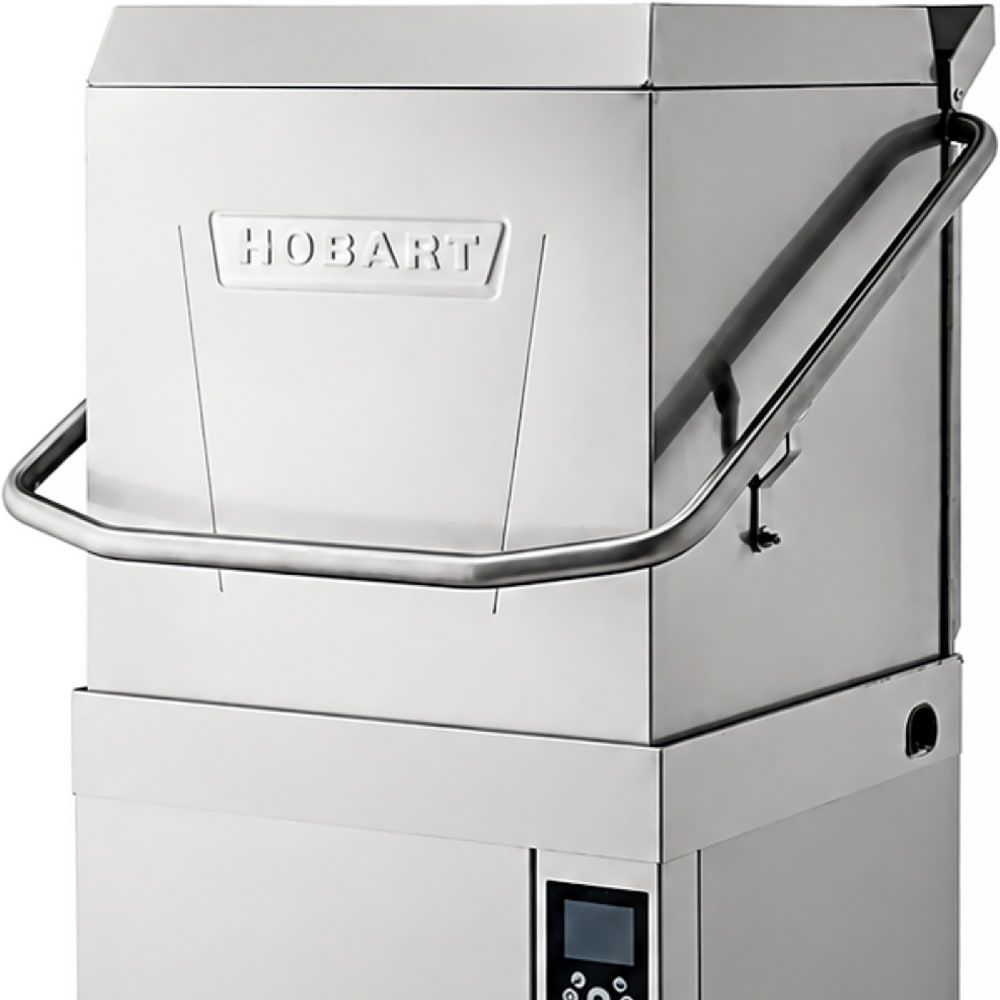

- 5-sided, insulated hood
- Self-draining, high-efficiency wash pump with stainless steel impeller
- Stainless steel drawn tank, tank shelf, chamber, trim panels
- Spring counterbalanced chamber with reinforced thermoplastic rollers

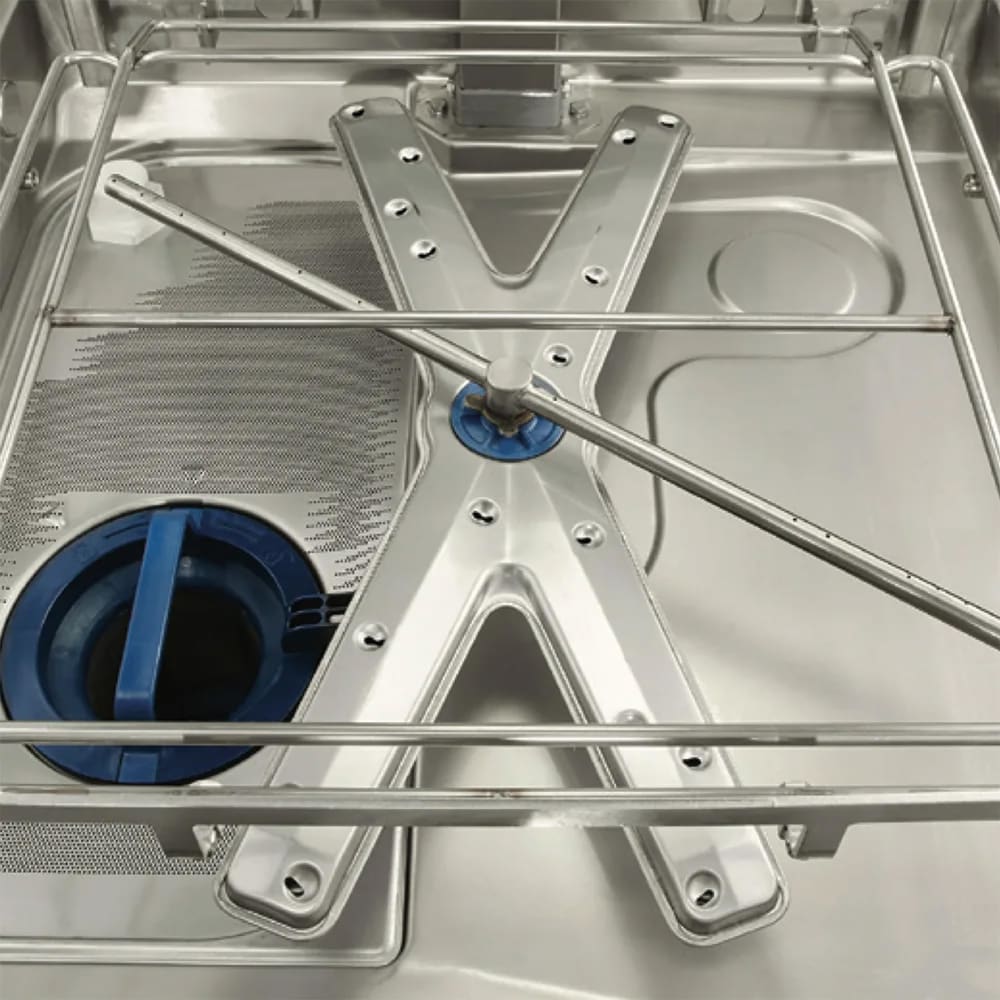

- X-shaped, revolving, interchangeable upper and lower anti-clogging wash arms
- Stainless steel draw tank, tank shelf, chamber, trim panels, frame and feet

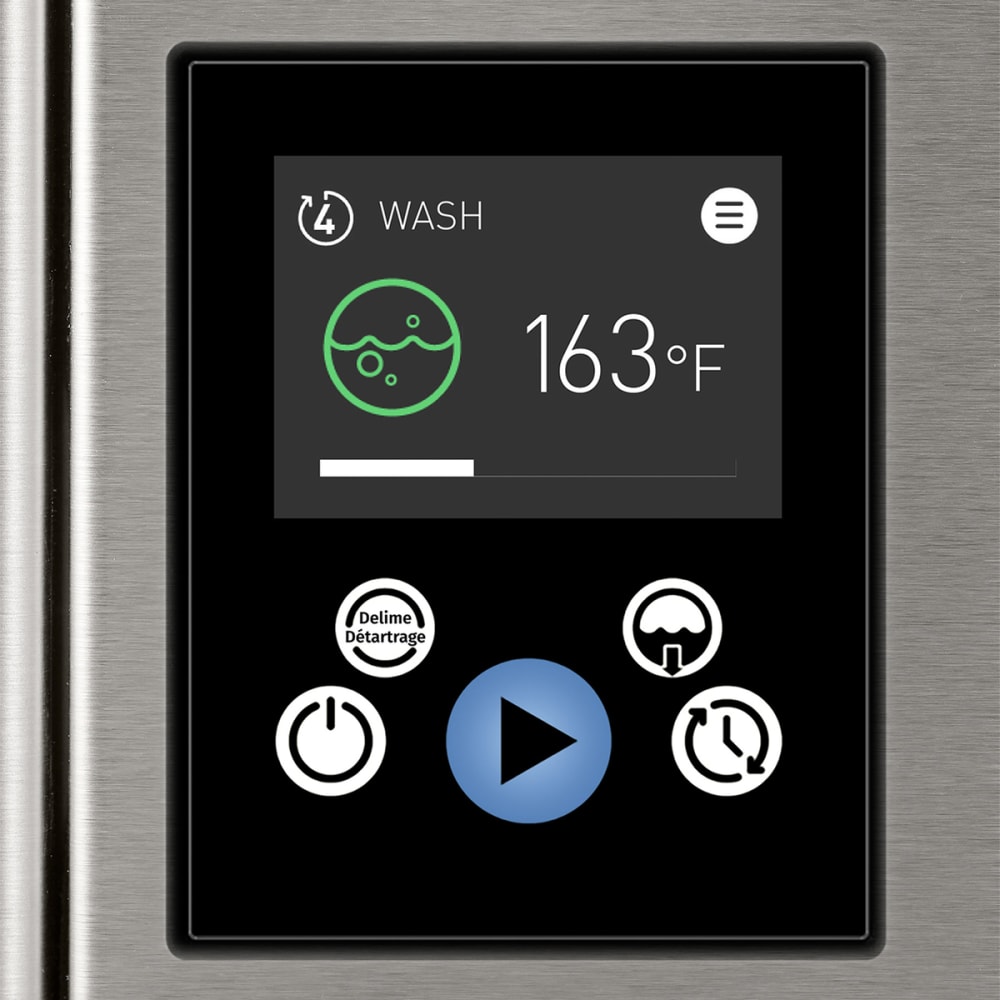

Control System
- Intuitive design
- SmartConnect app
- Offers cloud with machine status, temperature logs, error code reporting, cost, and consumption and usage status
- Timed wash cycles
- Vent fan control
- Delime cycle with notification (field activated)
- Sense-a-temp 70-degrees F rise electric booster heater
Dimensions & Utilities
- 251/10 in. W x 242/5 in. D x 59 in. H
- 480 V/60 Hz/3 ph
Product Features
*Free shipping on Hobart AM16-BAS-4 within the 48 contiguous states.
From The Manufacturer
Dishwasher, door type, high temp sanitizing, 480/60/3, 60 racks/hour, straight-thru or corner, user-friendly smart touchscreen controls, Sense-A-Temp™ booster, electric tank heat, pumped rinse, pumped drain, auto-fill, stainless steel tank, frame, doors & feet, cULus, NSF, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Hobart AM16-BAS-4 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hobart |
| Cavity Height (in) | 17 |
| Control Location | Bottom |
| Depth (in) | 24.44 |
| Design | Standard |
| Door Type | Lift Up |
| Drain Type | Pump |
| Heat | Electric |
| Height (in) | 59 |
| Hertz | 60 |
| Phase | 3 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 60 |
| Rating | Better |
| Special Features | Built in Booster |
| Type | High Temp |
| Voltage | 480 |
| Warranty | 1-year Parts, Labor, & travel time during normal working hours within the USA |
| Width (in) | 25.19 |
| Weight | 312.00 |
