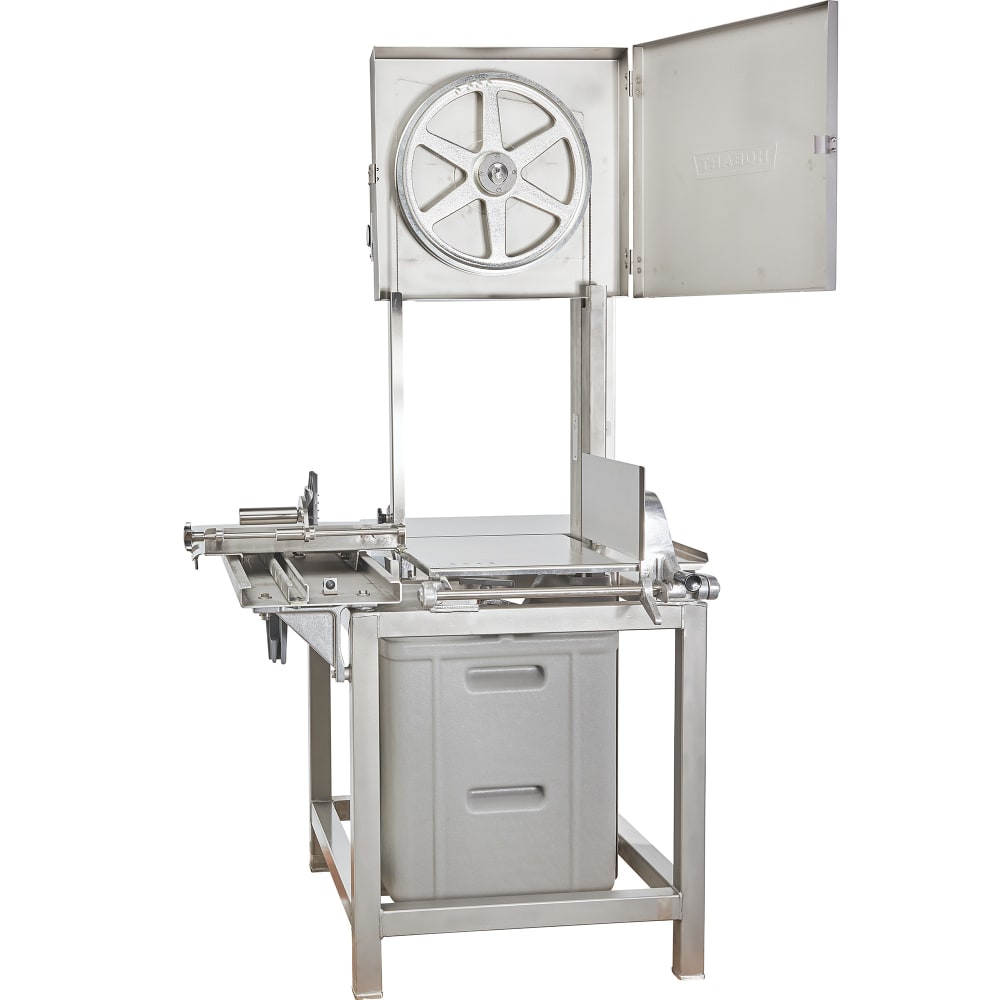

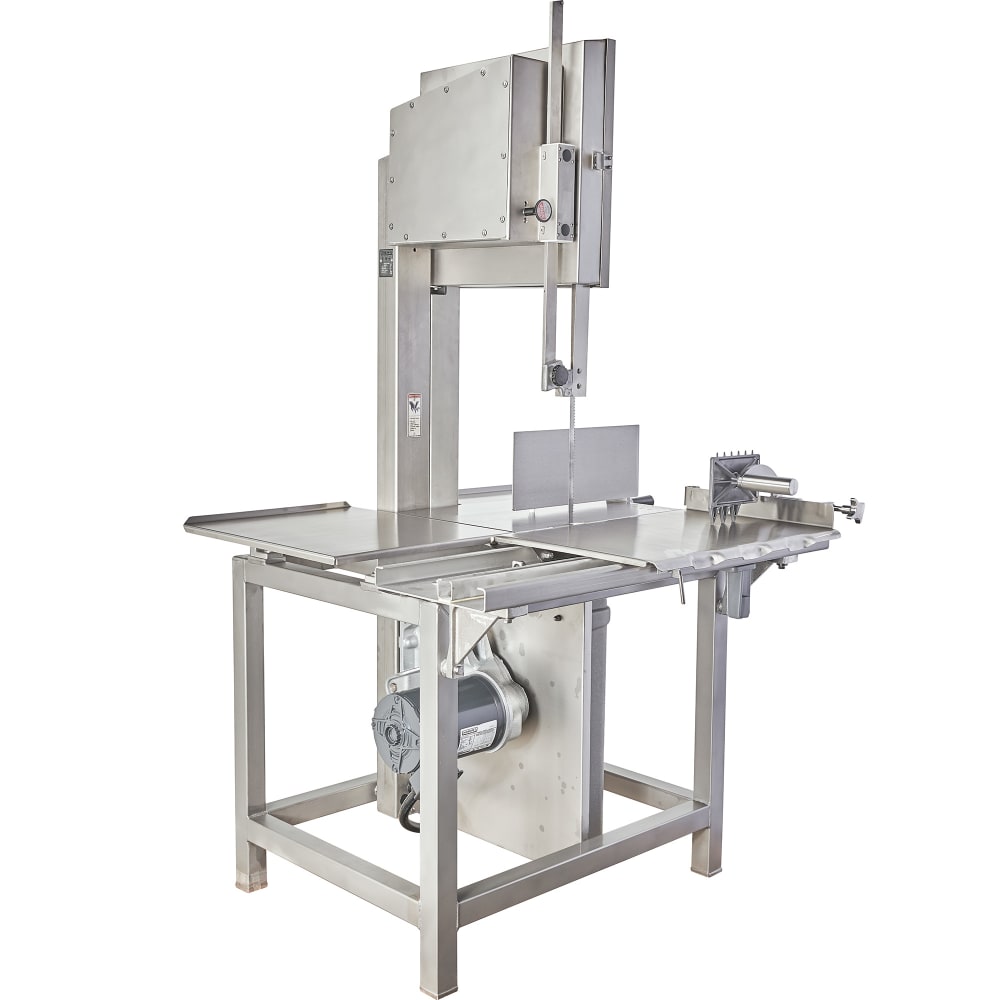

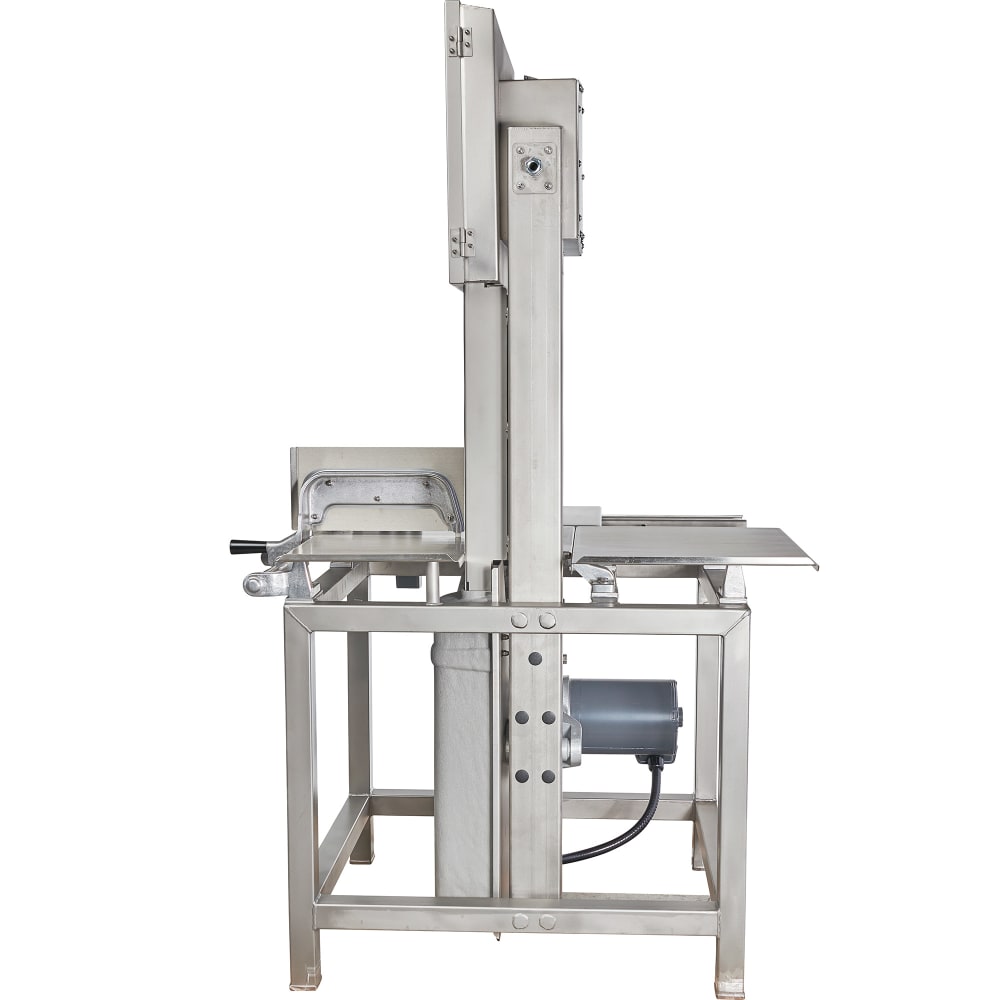

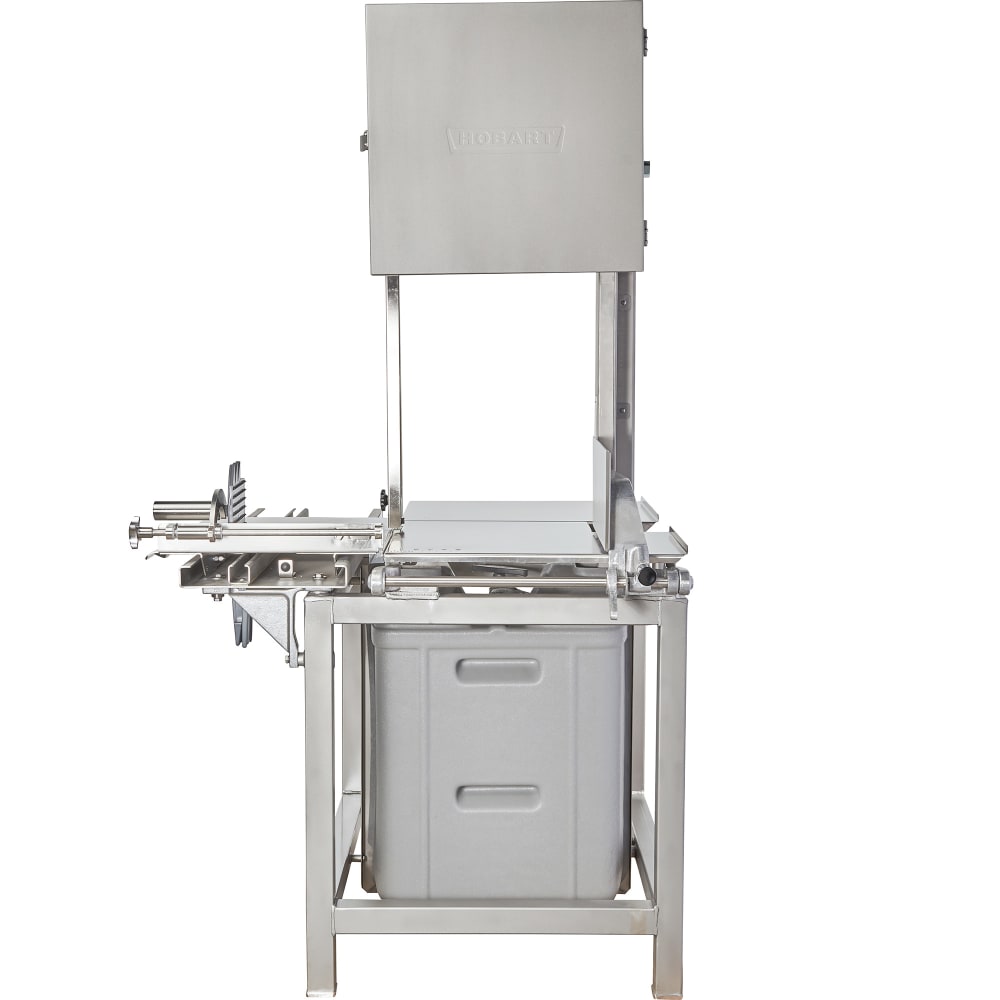

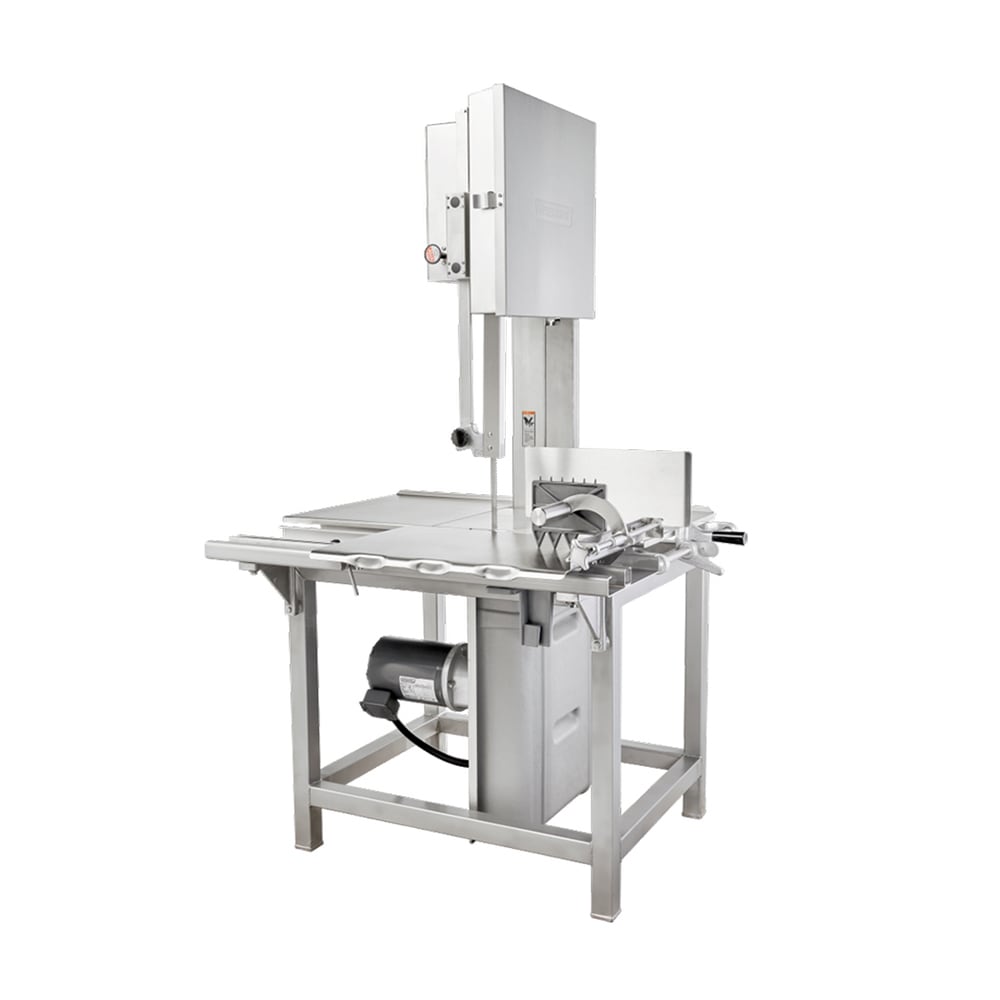

Hobart 6801-18IP Floor Model Commercial Meat Saw w/ 142" Blade - 200-230v/3ph
Typically ships in 10 - 12 weeks
Retail Price: $32,201.00
$24,150.75 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Hobart 6801-18IP Description
Staff can cut large quantities of meat smoothly with the Hobart 6801-18IP floor model meat saw's 142-inch-long vertical blade. Its beltless design eliminates potential belt replacement needs, slips, adjustments, or breaks. It has a 39 5⁄8-inch-wide by 21 1⁄2-inch-deep cutting table made of stainless steel for heavy-duty use and features turned-down edges to enhance rigidity. It has a pivot-mounted motor transmission, lower-pully assembly, and a water-resistant, enclosed 3-horsepower motor. This model features blade guards above and below the cutting zone to reduce the risk to fuser injuries, and its pusher plate keeps user's hands away from the blade. Overall, it measures 38 1⁄4 inches wide by 49 1⁄4 inches deep by 73 7⁄8 inches high.

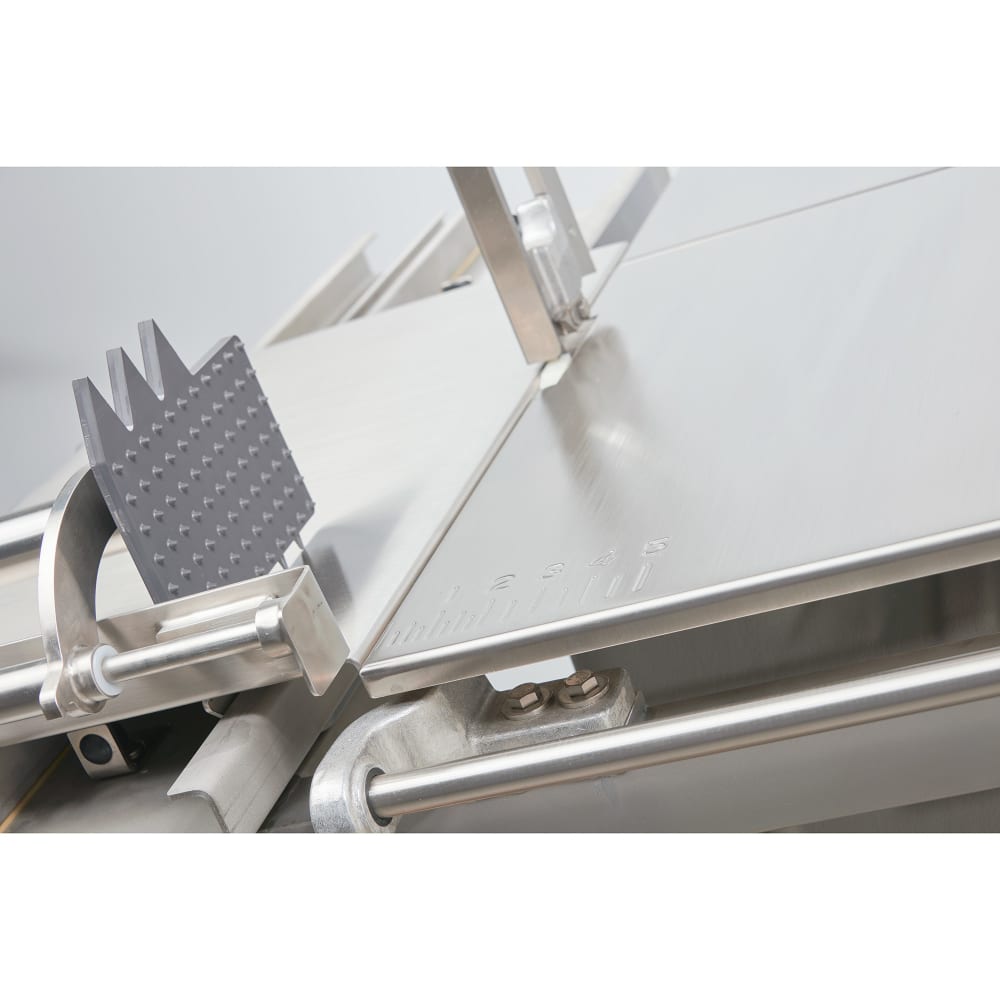

The Hobart 6801-18IP meat saw is built with 2-inch legs that can be raised or lowered to establish a comfortable working height. Its upper and lower blade pulleys are made of bright-tinned cast iron and include blade-retaining double flanges and a center crown to extend service life and blade integrity. Its integrated pusher carriage is simple to locate and operate and can be pushed out of the way when not in use. For simple cleaning, operators can disassemble the carriage without tools. Created with an exclusive design, its rugged gauge plate end enables fast removal of meat cuts for stacking, while the thickness of each cut can be adjustable for consistent, precise results. For durability, this 16 3⁄4-inch-wide by 6 3⁄4-inch-deep stainless steel plate sits on an aluminum cast frame.
- Single pull-to-start, push-to-stop switch
- Heated controls resist moisture condensation
- Reduced footprint
- Pivot-mounted motor, transmission, and lower pulley assembly
- Accessible blade tension control
- Enclosed bone-dust system keeps dust contained
- Safe to wash in a sink or with a high-pressure hose
- Water-resistant, enclosed 3-HP motor with flange-mounted, grease-packed ball bearings
- Direct gear-drive transmission has no belt to replace, slip, adjust, or break
- Open-frame stainless steel construction

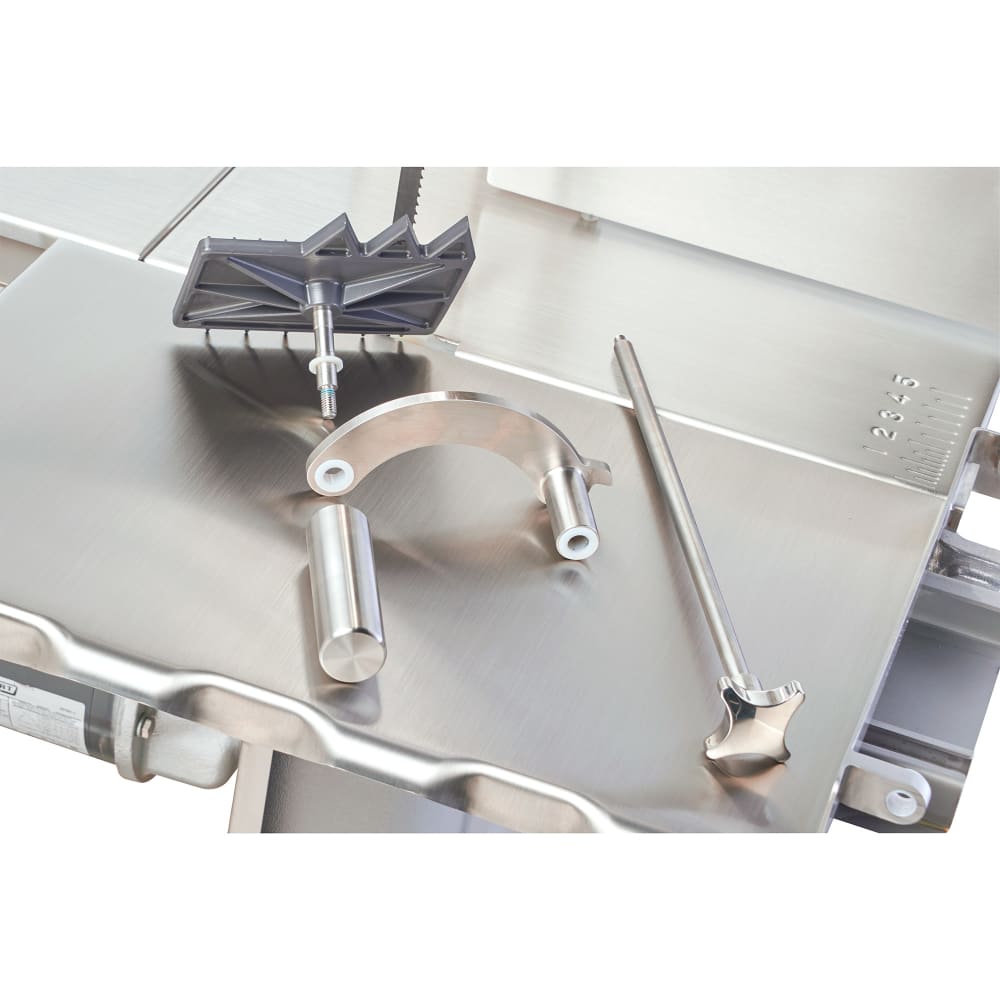

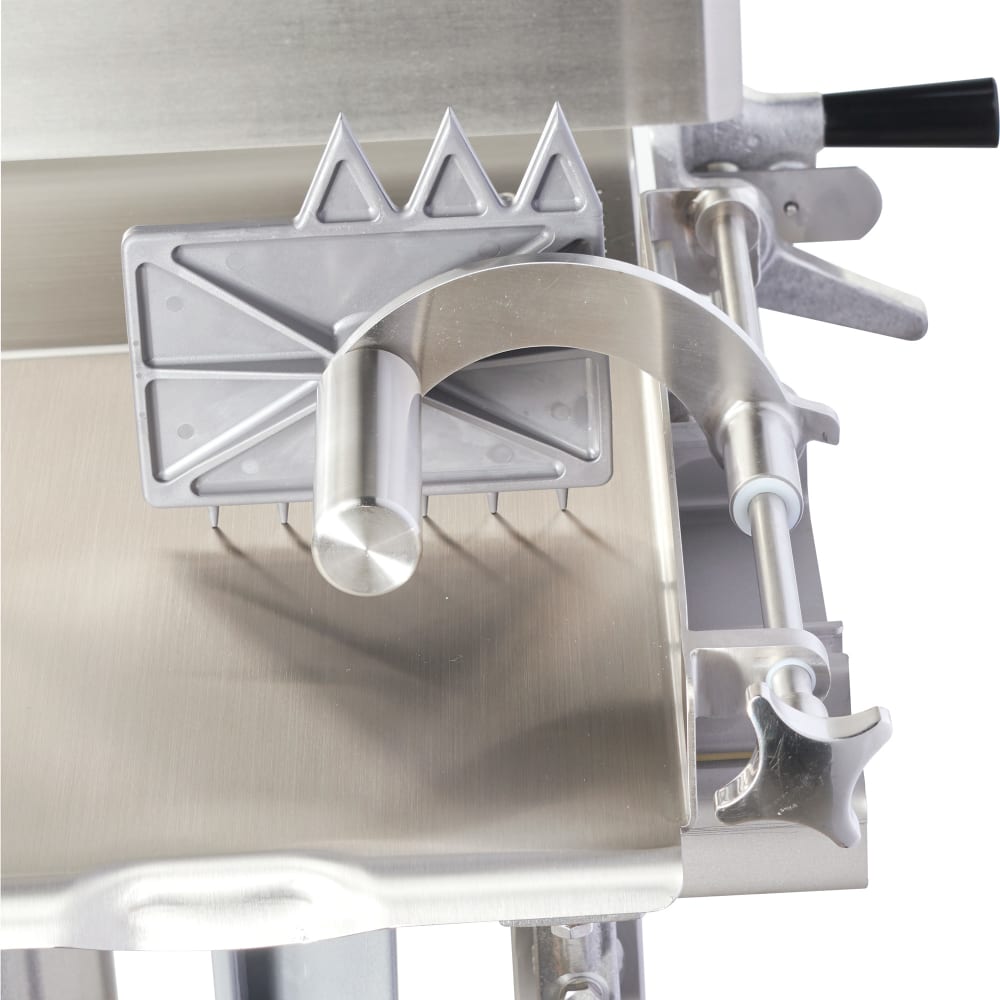

- Includes simple-to-operate integrated pusher carriage
- 2-in. legs can be adjusted from 1 3⁄4 in. to 2 1⁄4 in.
- 14-in.-long pulleys
- Cutting clearance: 24 in. W x 15 3⁄4 in. D x 17 1⁄2 in. H
- Stainless steel plate on aluminum cast frame
- Adjustment enables control of thickness for consistent, precise cuts
- Can be easily disengaged
- Exclusive gauge plate end design enables quick removal of cuts for stacking
- 2-piece design
- Heavy stainless steel with turned down edges for rigidity
- Fully supported for heavy-duty use
- Offers large stacking space
- Can be broken down for cleaning
- Bright-tinned cast iron upper and lower blade pulleys
- True running of the blade is assured by precision pulley balance
- Blade-retaining double flanges and center crown maintain blade integrity
- Easily removable
- Saw blade: 142 in. L x 5⁄8 in. W
- Stationary cutting table: 39 5⁄8 in. W x 21 1⁄2 in. D
- Gauge plate: 16 3⁄4 in. W x 6 3⁄4 in. D
- Carriage tray: 24 1⁄4 in. W x 16 in. D
- Overall: 38 1⁄4 in. W x 49 1⁄4 in. D x 73 7⁄8 in. H
- 3 HP
- 200-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hobart 6801-18IP within the 48 contiguous states.
From The Manufacturer
Meat Saw, vertical blade, 16” Pulleys, 4150 fpm, 3 Hp motor, direct gear transmission, stainless steel open frame design, push/pull switch, moveable-lockable carriage tray, two piece stationary rear cutting table, adjustable legs (2" movement), hose down capability, integrated pusher included, cULus, NSF
Hobart 6801-18IP Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hobart |
| Blade Length (in) | 142 |
| Construction | Stainless Steel |
| Depth (in) | 38.25 |
| Height (in) | 73.88 |
| Hertz | 60 |
| HP | 3 |
| No. of Speeds | 1 |
| Phase | 3 |
| Plate Depth (in) | 6.75 |
| Plate Material | Stainless Steel |
| Plate Width (in) | 16.75 |
| Product | Meat & Bone Saws |
| Product Type | Food Prep Equipment |
| Type | Floor Model |
| Voltage | 200/230 |
| Warranty | 1-year Limited |
| Width (in) | 54.88 |
| Weight | 564.00 |
