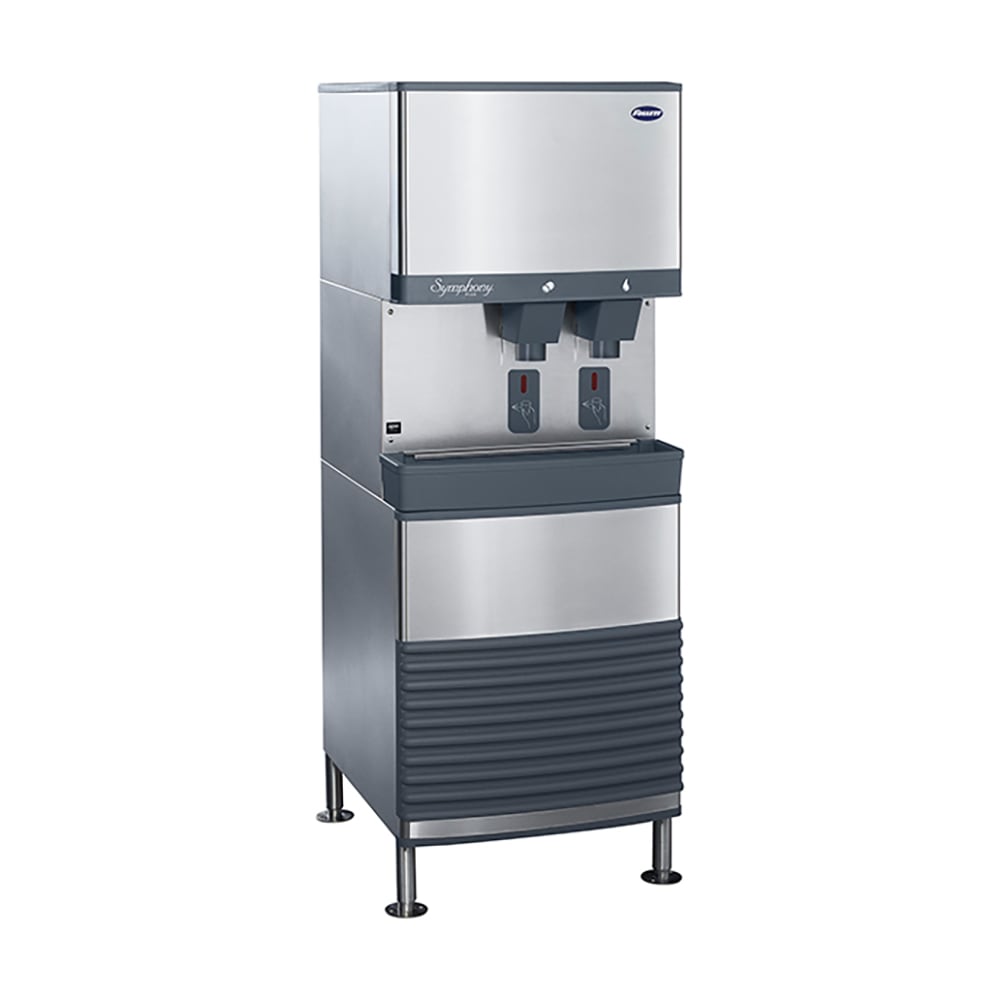

Follett 110FB414W-S 380 lb Freestanding Water & Nugget Ice Dispenser - 90 lb Storage, Cup Fill, 115v

The Follett 110FB414W-S freestanding nugget ice and water dispenser produces chewable, compressed nugget ice—a form of ice ideal for patient care. To conserve energy, this unit is designed with a Quiet Night™ sleep mode that turns off the dispenser when idle, while its automatic self-flushing feature removes impurities. This unit's drain cup provides an internal air gap that protects food zone components from drain line contamination, and the Agion® silver-based antimicrobial defends key water and ice components. Operators can dispense ice with the dispenser's SensorSAFE™ infrared sensor.

Operators can clean and sanitize the Follett 110FB414W-S Symphony Plus™ ice and water dispenser in as little as 1 hour. This unit's LED control board simplifies maintenance by displaying the machine status, and operators can remove the dispenser's panels to access all components. Because the unit's parts are common across all dispensers in its series, maintenance is simple. This unit's evaporator and auger are made of durable stainless steel for an extended service life, and the dispenser runs on environmentally friendly R290 refrigerant. With its continuous ice-making process, the unit lowers electricity and water usage.

Product Details

• Part of the Symphony Plus series
• 90-lb. storage capacity
• Freestanding configuration
• 380-lb. maximum daily ice production
• Produces chewable nugget ice
• Quiet Night sleep mode conserves energy
• Automatic self-flush removes impurities
• Drain cup with internal air gap protects food zone components from drain line contaminants
• Components protected by Agion silver-based antimicrobial
• SensorSAFE ice dispense
• LED control board provides machine status
• Easily removable panels
• Auger and evaporator are stainless steel
• Eco-friendly R290 refrigerant
• Continuous ice-making process lowers water and electricity use
• Durable stainless steel cabinet comes with accent trim
• Corrosion-resistant poly drain pan, grille, and dispenser lid
• Secured top lid
• Arrives fully assembled
• Connections for electric, water, and drain
• Consumes 12 gal. of potable water per 100 lbs. of ice
• Dispense height clearance: 7.75 in.
• 12-in. top service clearance
• Ideal incoming air temperature: 50-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Potable water pressure: 10-70 psi
• Condenser water pressure: 10-125 psi
• 1400-BTU heat transfer capacity
• 0.5 gpm in ambient conditions

Dimensions & Utilities

• 26.25 in. W x 29.44 in. D x 68.12 in. H
• Drain pan depth: 7 in.
• ³⁄₈-in. FPT potable water inlet
• ³⁄₄-in. MPT drain dispenser
• ³⁄₄-in. MPT ice machine drain
• 11 A, 0.8 kW
• 115 V/60 Hz/1 ph, 7-ft. cord with NEMA 5-15 hospital-grade plug

*Free shipping on Follett 110FB414W-S within the 48 contiguous states.

From The Manufacturer

Symphony Plus™ ice and water dispenser, freestanding with SensorSAFE™ dispense, removable water-cooled icemaker, up to 380 lb. production of Chewblet® nugget ice in 24 hours, Agion® silver-based antimicrobial protection, 90 lb. storage capacity, stainless steel cabinet with accent trim, 115v/60/1-ph

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Compressor Parts

Follett 110FB414W-S Specifications

Based in Pennsylvania, Follet manufactures ice machines and beverage dispensers and specializes in front-of-house ice and water dispensers. Its products include features like RIDE®️ technology, which allows ice to be delivered into dispensers from up to 75 feet away. A Middleby company, Follett has been creating innovative products since 1948.
