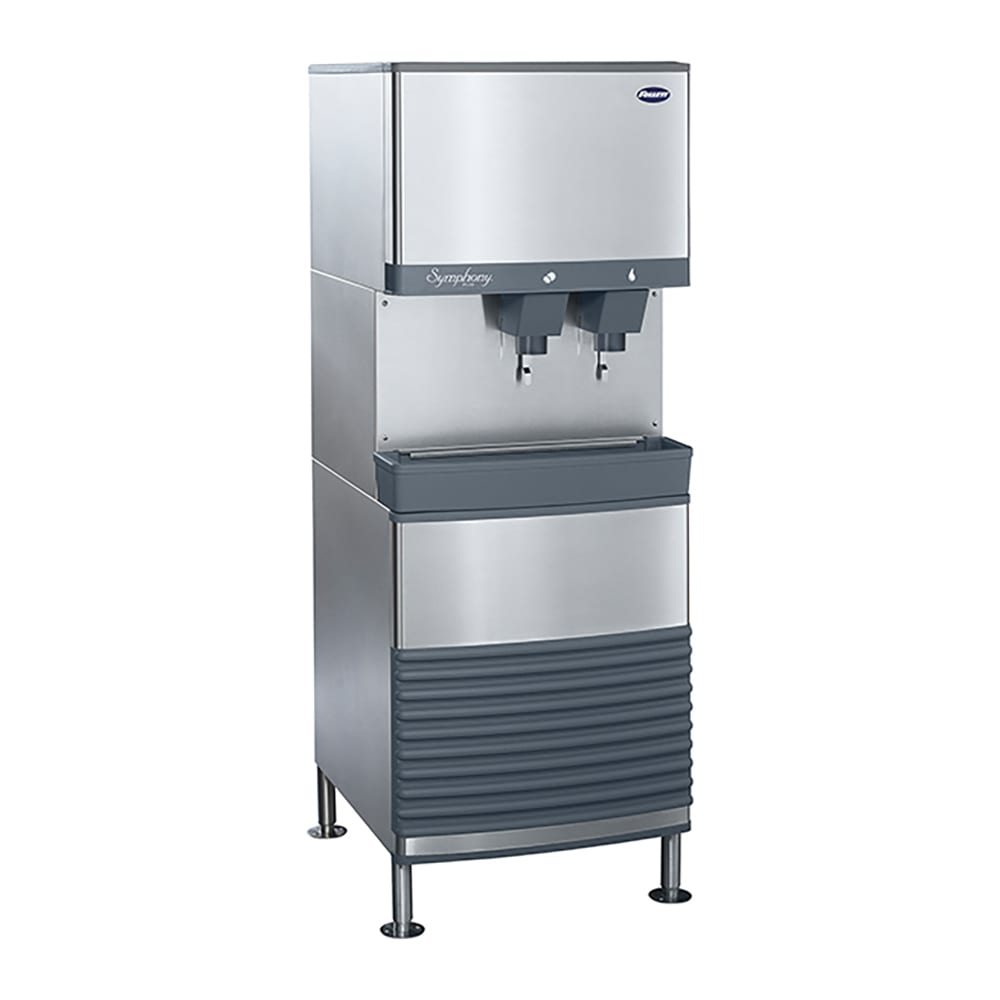

Follett 110FB414W-L 380 lb Freestanding Water & Nugget Ice Dispenser - 90 lb Storage, Cup Fill, 115v

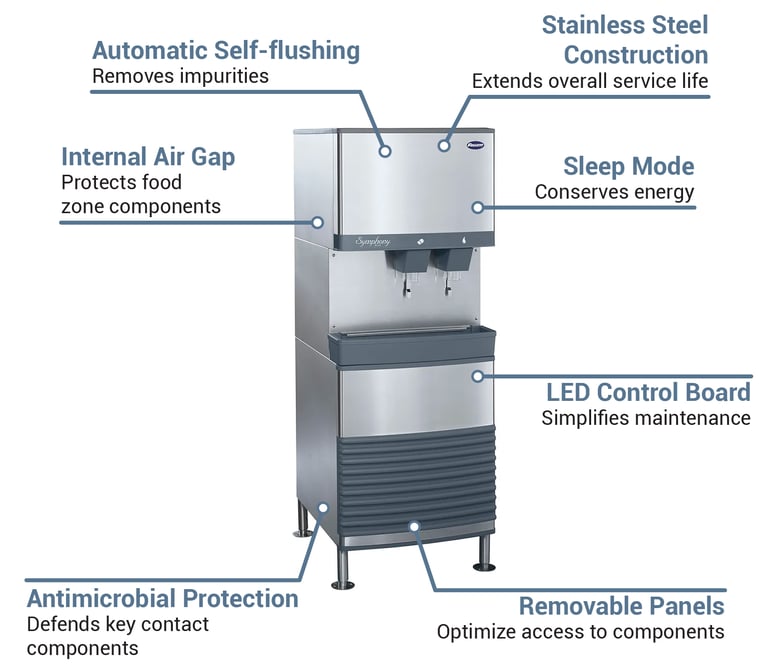

The Follet 110FB414W-L freestanding nugget ice and water dispenser can produce as much as 380 pounds of Chewblet® ice in 24 hours. To conserve energy, this unit's Quiet Night™ sleep mode turns the dispenser off when it's idle, while the automatic self-flushing feature removes impurities. For added protection of food zone components, this unit's drain cup features an internal air gap. Agion® silver-based antimicrobial protection defends key ice and water contact components from contaminants, and the entire dispenser can be cleaned and sanitized in only 1 hour. For simplified maintenance, an LED control board displays the unit's status.

Operators can remove the Follet 110FB414W-L Symphony Plus™ ice and water dispenser's panels for component accessibility. Simplifying repairs and replacement, this unit's parts are common across all dispensers in the series, and to extend the dispenser's overall service life, its evaporator and auger are made of stainless steel. For environmental consciousness, this unit runs on R290 refrigerant, and its continuous ice-making process reduces electricity and water consumption. The dispenser's cabinet is constructed of stainless steel with an accent trim, while its grille, drain pan, and lid are corrosion resistant.

Product Details

• Part of the Symphony Plus series
• 90-lb. storage capacity
• Freestanding unit
• 380-lb. maximum daily ice production
• Produces Chewblet ice
• Quiet Night sleep mode turns unit off when idle
• Automatic self-flushing removes impurities
• Drain cup with internal air gap protects food zone components
• Agion silver-based antimicrobial protection enhances unit sanitation
• 1-hand lever ice dispense
• LED control board displays machine status
• Removable panels provide component access
• Stainless steel evaporator and auger
• R290 refrigerant
• Continuous ice-making reduces electricity and water consumption
• Stainless steel cabinet with accent trim
• Poly drain pan, grille, and dispenser lid resist corrosion
• Top lid is secured
• Comes fully assembled
• Installs with connections for electric, water, and drain
• Consumes 12 gal. of potable water per 100 lbs. of ice
• Dispense height clearance: 7.75 in.
• 12-in. top service clearance
• Ideal incoming air temperature: 50-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Potable water pressure: 10-70 psi
• Condenser water pressure: 10-125 psi
• 1400-BTU heat transfer capacity
• 0.5 gpm in ambient conditions

Dimensions & Utilities

• 26.25 in. W x 29.44 in. D x 68.12 in. H
• Drain pan depth: 7 in.
• ³⁄₈-in. FPT potable water inlet
• ³⁄₄-in. MPT drain dispenser
• ³⁄₄-in. MPT ice machine drain
• 11 A, 0.8 kW
• 115 V/60 Hz/1 ph, 7-ft. cord with NEMA 5-15 hospital-grade plug

Product Features

*Free shipping on Follett 110FB414W-L within the 48 contiguous states.

From The Manufacturer

Symphony Plus™ ice and water dispenser, freestanding with lever dispense, removable water-cooled icemaker, up to 380 lb. production of Chewblet® nugget ice in 24 hours, 90 lb. storage capacity, Agion® silver-based antimicrobial protection, stainless steel cabinet with accent trim, 115v/60/1-ph

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Compressor Parts

Follett 110FB414W-L Specifications

Based in Pennsylvania, Follet manufactures ice machines and beverage dispensers and specializes in front-of-house ice and water dispensers. Its products include features like RIDE®️ technology, which allows ice to be delivered into dispensers from up to 75 feet away. A Middleby company, Follett has been creating innovative products since 1948.

Documents

Spec Sheet

Installation Guide
